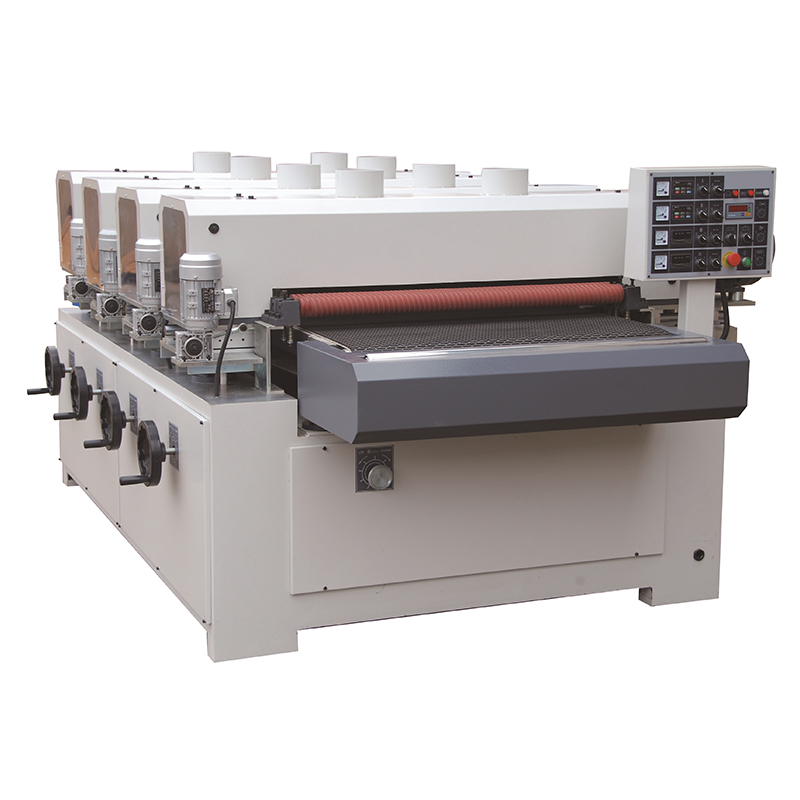

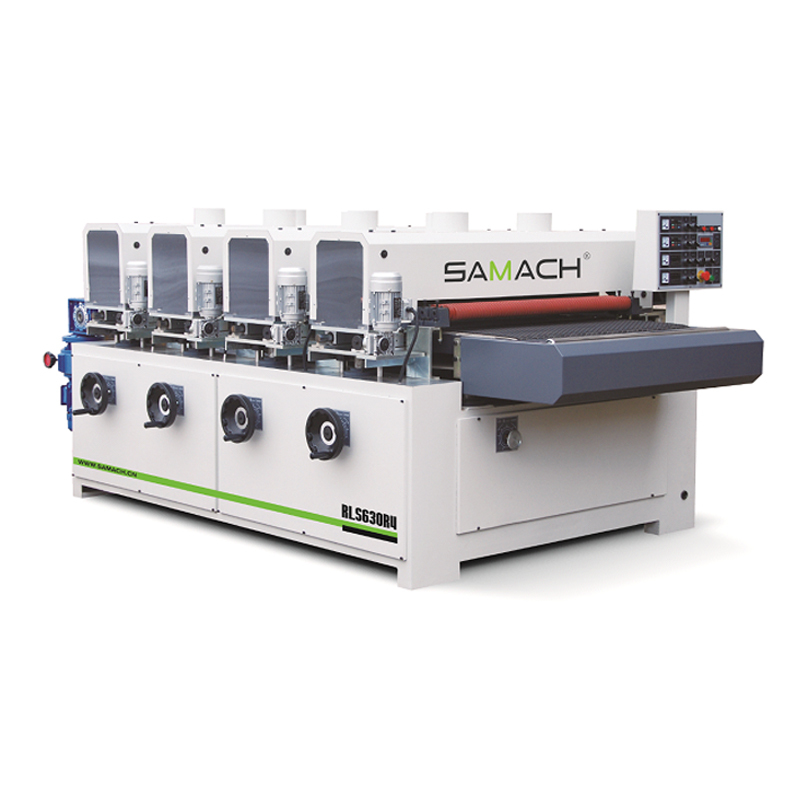

Wire Drawing Machine

  • THE MACHINE IS USED FOR SOLID WOOD, DENSITY BOARD, VENEER, LAMINATED AND OTHER MATERIALS

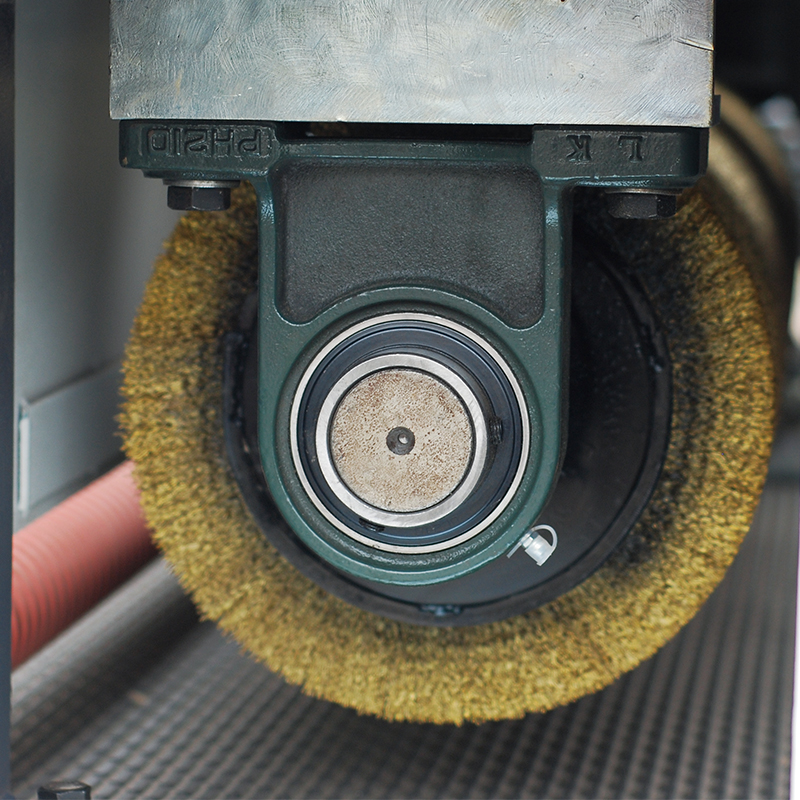

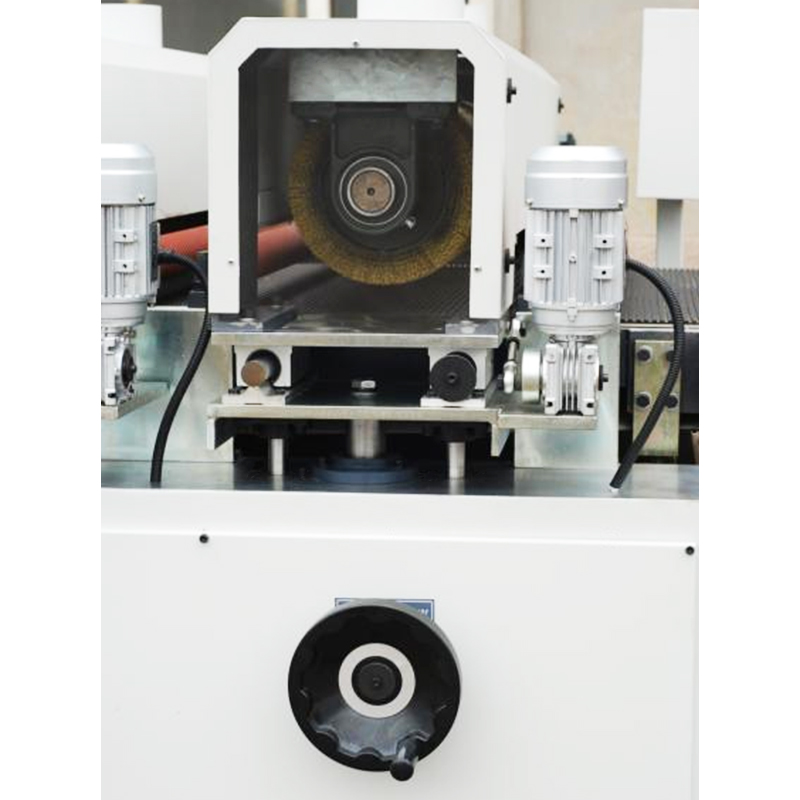

  • THE DRAWING MACHINE ADOPTS FOUR ROLLERS INDEPENDENT SPLIT TYPE DESIGN(TWO WIRE DRAWING ROLLER AND TWO POLISHING). FOUR COVERS OF INDEPENDENT 4-AXIS MACHINING, EFFECTIVELY SOLVES THE PROBLEM OF DUST

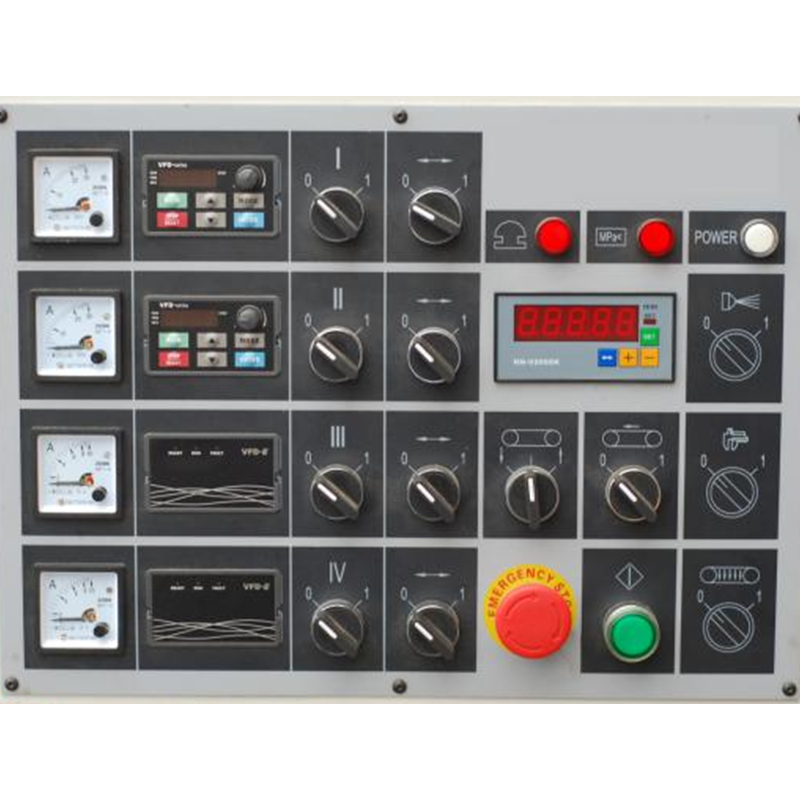

  • TWO WIRE DRAWING ROLLERS ARE RESPECTIVELY CONTROLLED BY INVERTER, WHICH CAN MAKE ADJUSTMENT OF ROTATING SPEED ACCORDING TO DIFFERENT WIRE DRAWING EFFECT

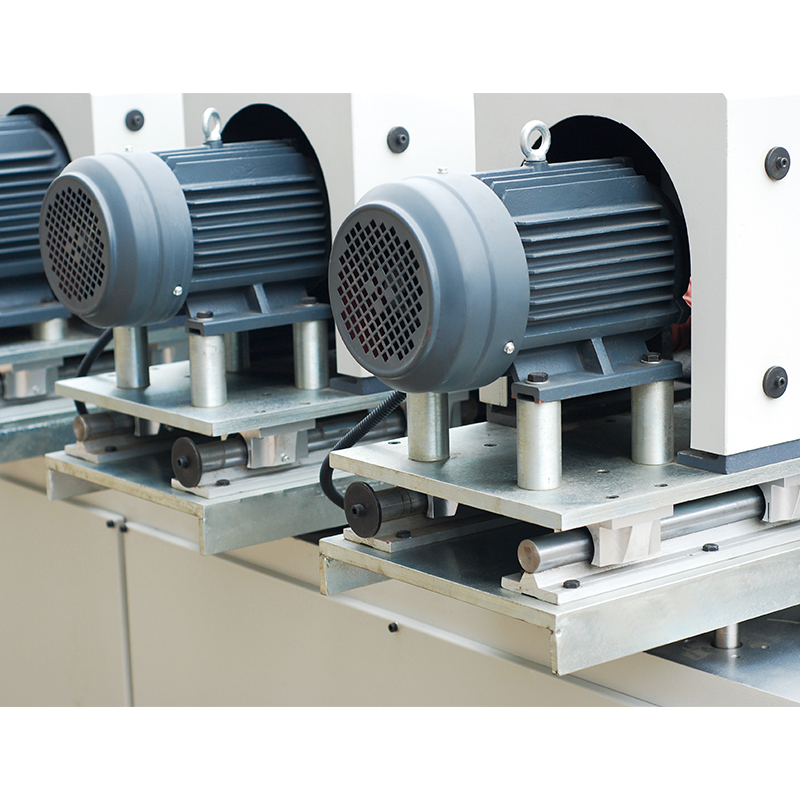

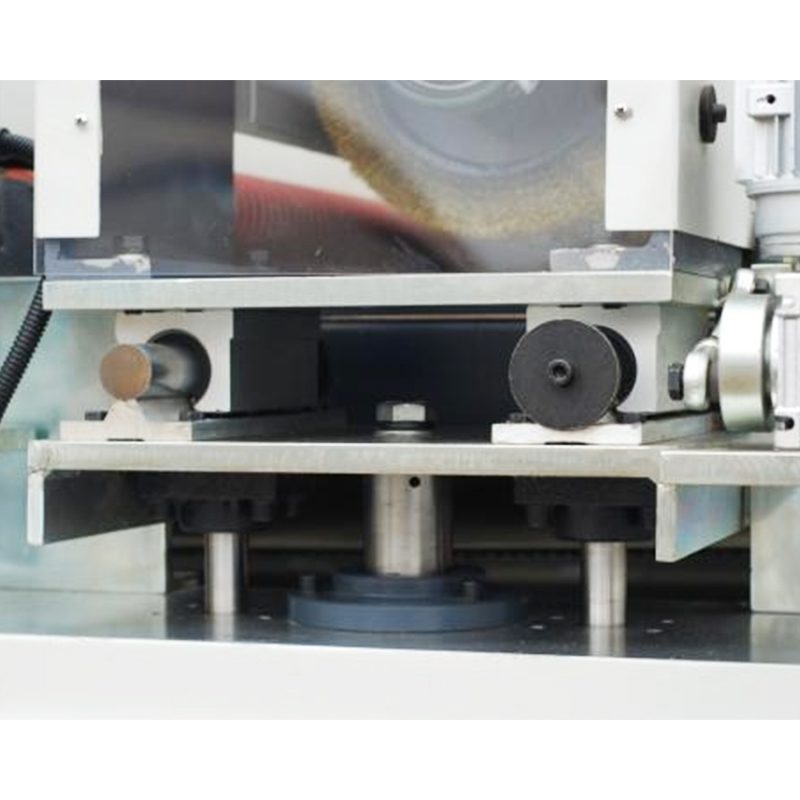

  • FOUR ROLLERS CAN BE INDIVIDUALLY ADJUSTED TO LIFT UP AND DOWN, LEFT AND RIGHT TO ACHIEVE DIFFERENT DEPTH OF SURFACE PROCESSING
Model RLS630R4 RLS1000R4 RLS1300R4
Working width 40-630mm 40-1000mm 40-1300mm
Working thickness 2-100mm 2-100mm 2-100mm
Working length ≥420mm ≥420mm ≥510mm
#1 sanding unit motor power 5.5kw 7.5kw 11kw
#1 sanding unit speed 3-18 m/s (frequency speed) 3-18 m/s (frequency speed) 3-18 m/s (frequency speed)
#2 sanding unit motor power 5.5kw 7.5kw 11kw
#2 sanding unit speed 3-18 m/s (frequency speed) 3-18 m/s (frequency speed) 3-18 m/s (frequency speed)
#3 sanding unit motor power 2.2kw 2.2kw 5.5kw
#3 sanding unit speed 22 m/s 22 m/s 22 m/s
#4 sanding unit motor power 2.2kw 2.2kw 5.5kw
#4 sanding unit speed 22 m/s 22 m/s 22 m/s
Feeding speed 2.5-12.5 m/s 2.5-12.5 m/s 2.5-12.5 m/s
Swing motor 0.18kw*4 0.18kw*4 0.18kw*4
Feeding motor 1.5kw 1.5kw 3.0kw
Lifting motor 0.55kw 0.55kw 0.55kw
Total motor power 18kw 22.2kw 37.3kw
Working air pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa
Working voltage  380V, 50Hz 380V, 50Hz 380V, 50Hz
Dust collect required 8200m3/h 8200m3/h 8200m3/h
Dust collect speed ≥25m/s ≥25m/s ≥25m/s
