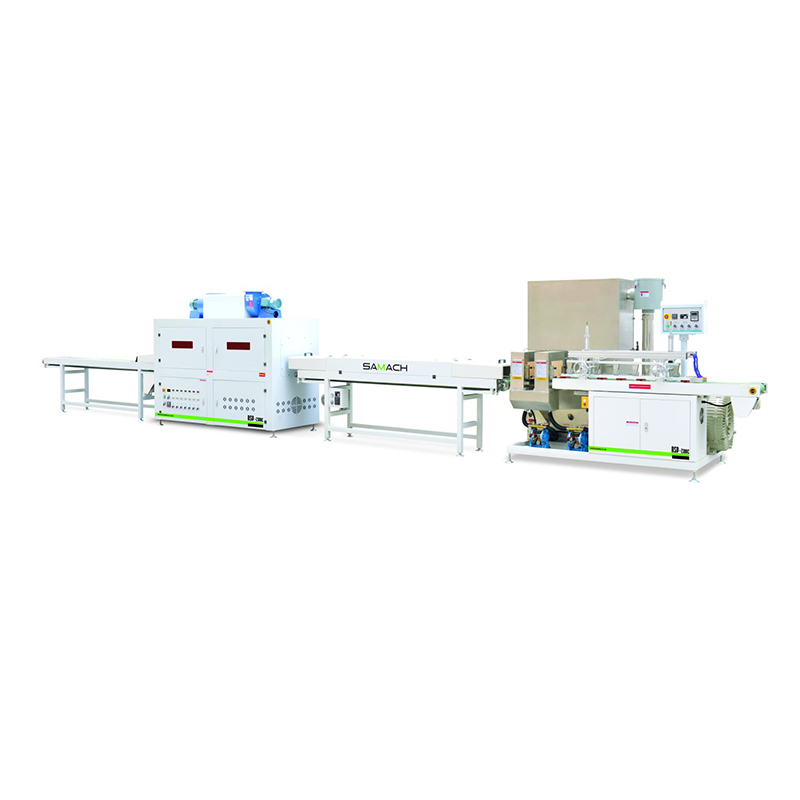

Vacuum Edge Spraying Line (UV)

PROFESSIONAL SPECIAL DESIGN FOR LINE SURFACE PAINTING
THE PROCESS IS ATOMIZED IN THE VACUUM BOX, AND THE PAINT IS 100% RECYCLED, WITH NO WASTE AND ZERO DYEING

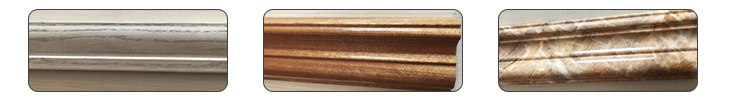

SUITABLE FOR PHOTO FRAMES, CURTAIN RODS, DOOR CASING LINES, CORNER LINES, FLOORS, AND VARIOUS LINE PRODUCTS, WATER-BASED PAINT OR UV ARE SUITABLE
A: TRANSPARENT OR WHITE PRIMER; B: TRANSPARENT PRIMER OR TOPCOAT; C: TRANSPARENT OPEN PRIMER OR CLOSED PRIMER

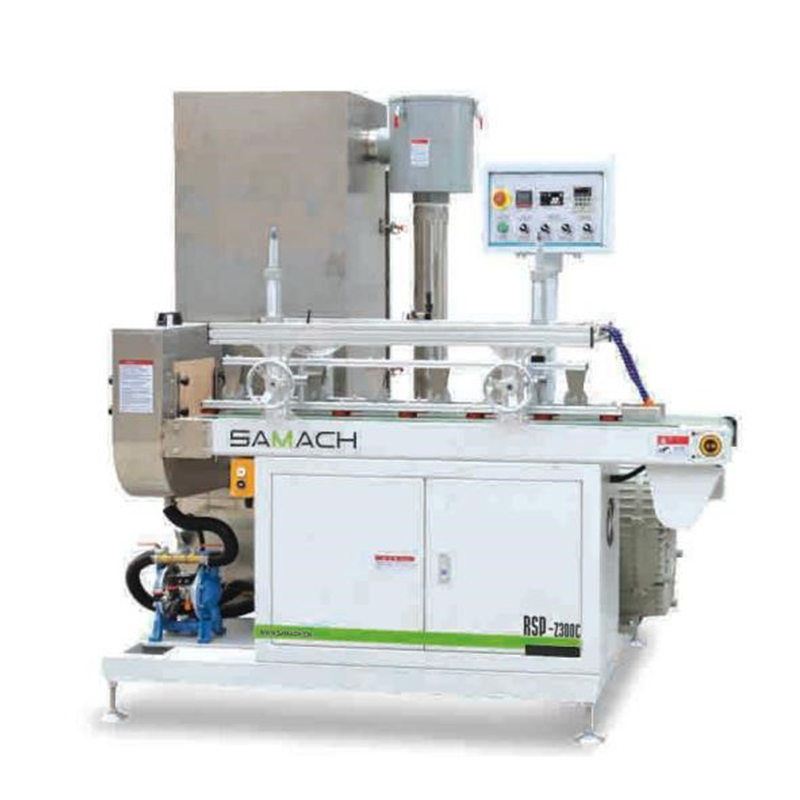

Model	RSP-Z300C
Double heads vacuum spray machine
Working width	260mm
Working height	20-80mm
Min. Working length	800mm
Feeding speed	10-30m/min
Fan power	12.5kw
Feeding power	0.4kw
Overall size	200012001600mm

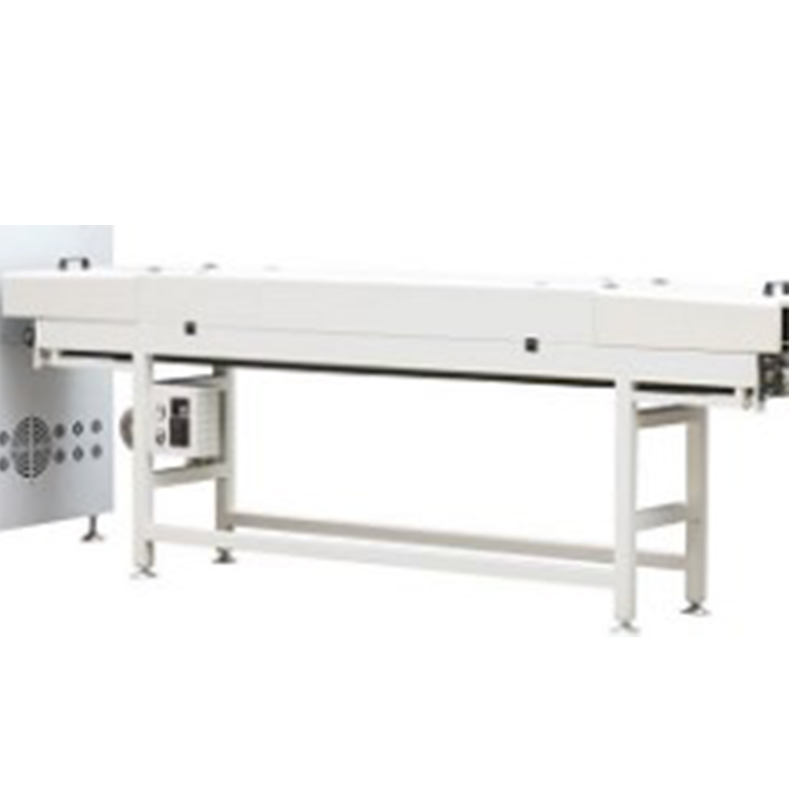

3m IR flow drying machine
Working width	260mm
Working height	60mm
Min. Working length	800mm
Overall size	30005001100mm

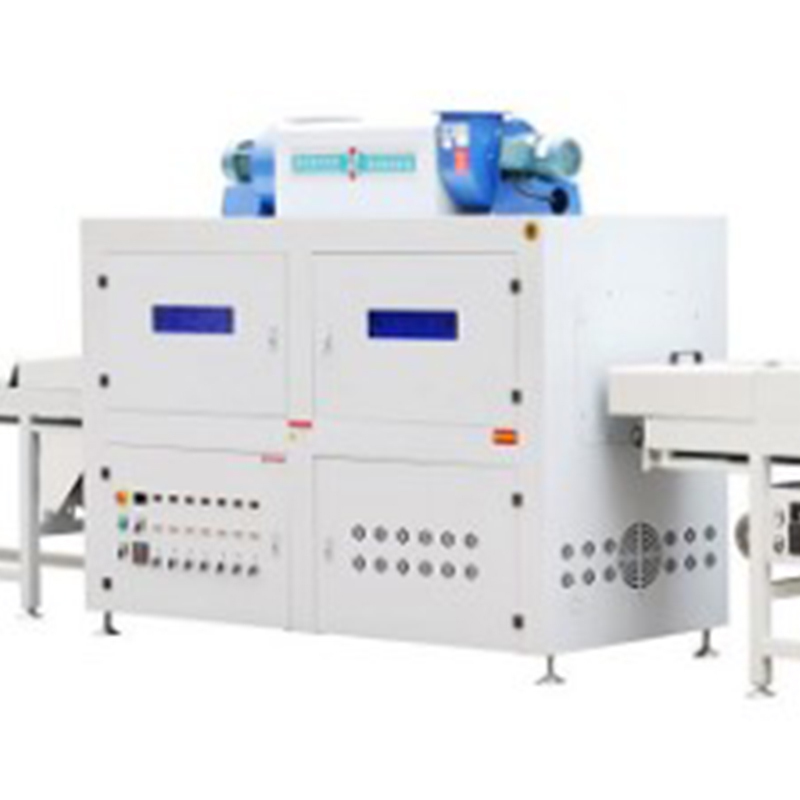

7 lights UV drying machine
Working width	260mm
Working height	60mm
Min. working length	800mm
Feeding speed	10-30m/min
UV light power	5kw*7
Fan power	1.1kw*2
Air delivery	2100m³/h
Overall size	20008002100mm

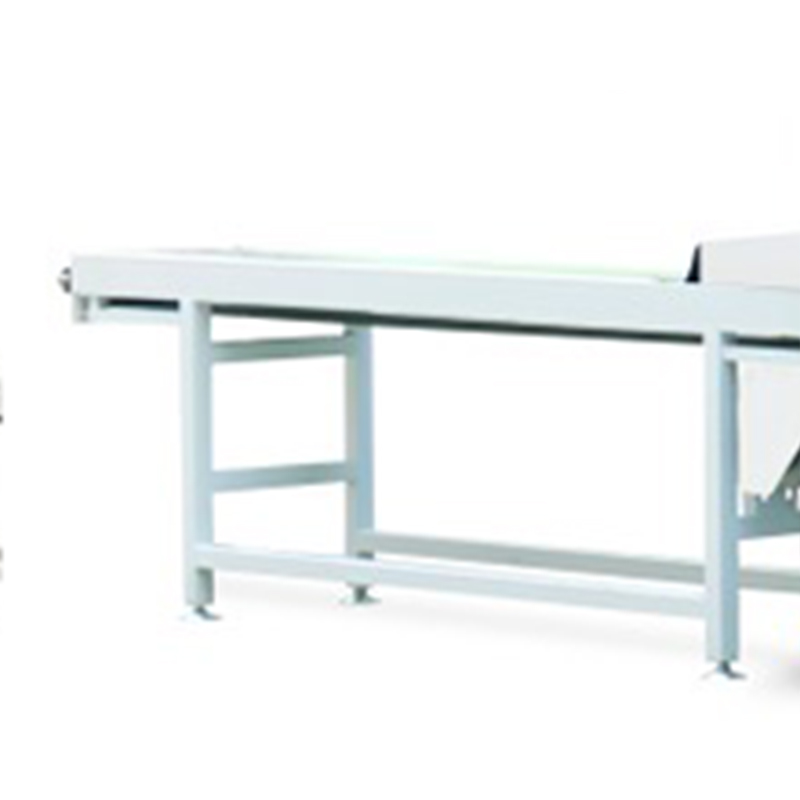

3m conveyor
Working width	260mm
Working height	60mm
Min. working length	800mm
Overall size	30005001100mm

Cart
