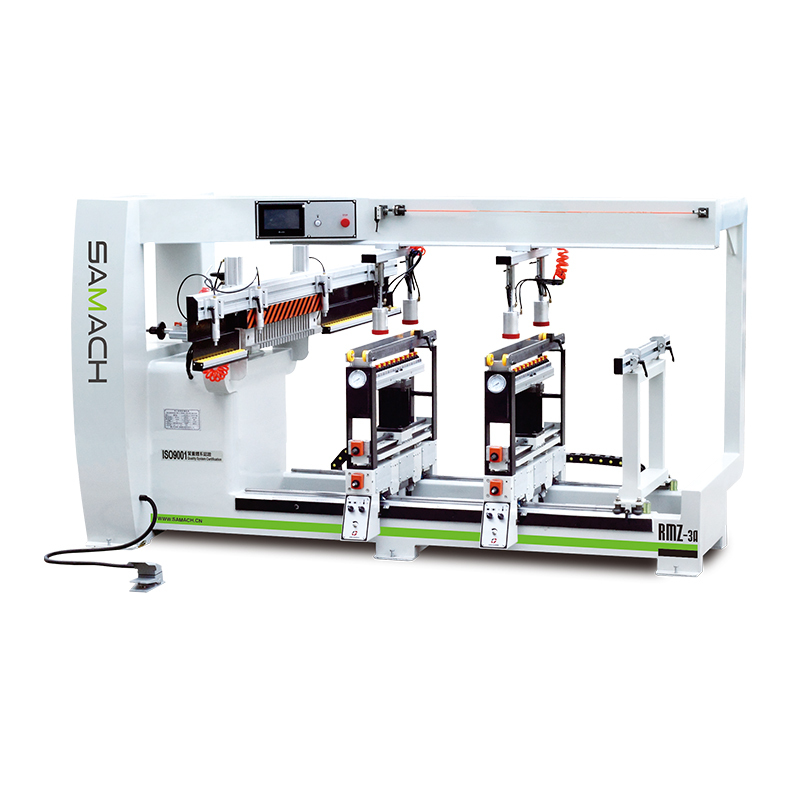

Three Rows Drilling Machine
- ONE HORIZONTAL AND 2 VERTICAL DRILLING LINE TO IMPROVE WORK EFFICIENCY
- SUITABLE FOR DRILLING ALL KINDS OF DENSITY BOARD AND PARTICLE BOARD MAN-MADE BOARD, PVC BOARD, PERSPEX SHEET AND SOLID WOOD BOARD
- BORING MACHINE IS COMMON DRILLING EQUIPMENT IN BOARD TYPE FURNITURE
- UNDER MANY HOLE POSITIONS AND HOLES, IT ENSURES TO FINISH AT ONE TIME BY ADJUSTING DISTANCE OF EACH DRILLING ARRANGEMENT OR TRANSFORMING THE VERTICAL DRILLING ARRANGEMENT POSITION
| Model | RMZ-3A | RMZ-3B |
| Max. center distance between holes | 1650mm*640mm | 1650mm*672mm |
| Min. center distance between holes | 220mm*32mm | 220mm*32mm |
| Workpiece thickness | 8-80mm | 8-80mm |
| Total quantity of spindles | 21pcs*3 | 11pcs*4+22pcs*1 |
| Total quantity of drill lines | 2+1 | 2+1 |
| Max. drilling diameter | 35mm(single bit) 13mm(multi bits) |
35mm(single bit) 13mm(multi bits) |
| Max. drilling depth | 50mm | 50mm |
| Dia. of drill bit shaft | 10mm | 10mm |
| Installation tool length | 57/70mm | 57/70mm |
| Spindle speed | 2840rpm | 2840rpm |
| Total power | 4.5kw | 7.5kw |
| Net weight | 1000kg | 1200kg |
| Overall dimensions | 2700*2500*1650mm | 2700*2500*1650mm |
