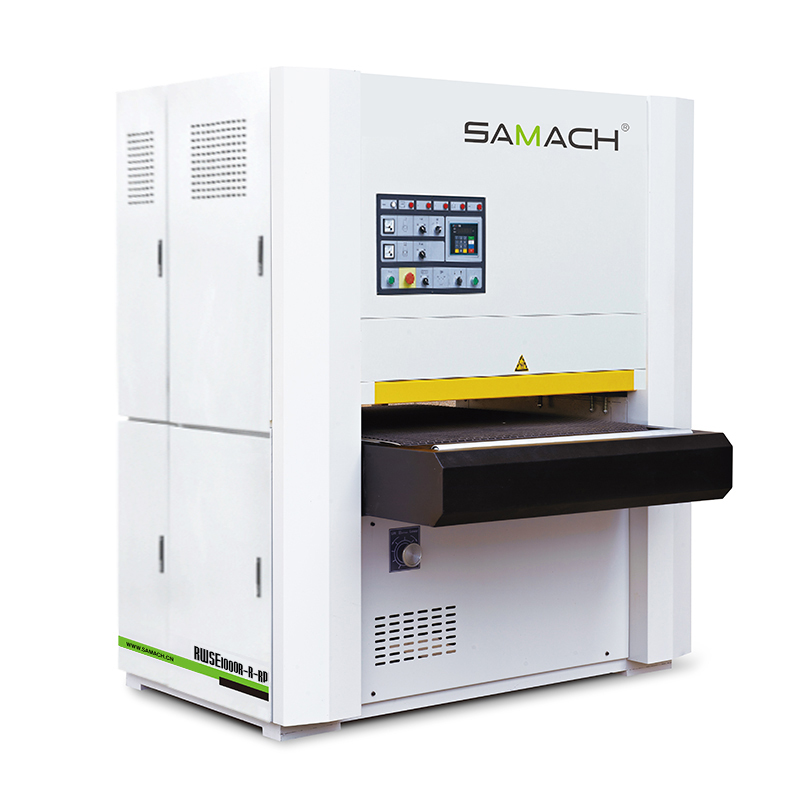

Three Heads Wide Belt Sanding Machine

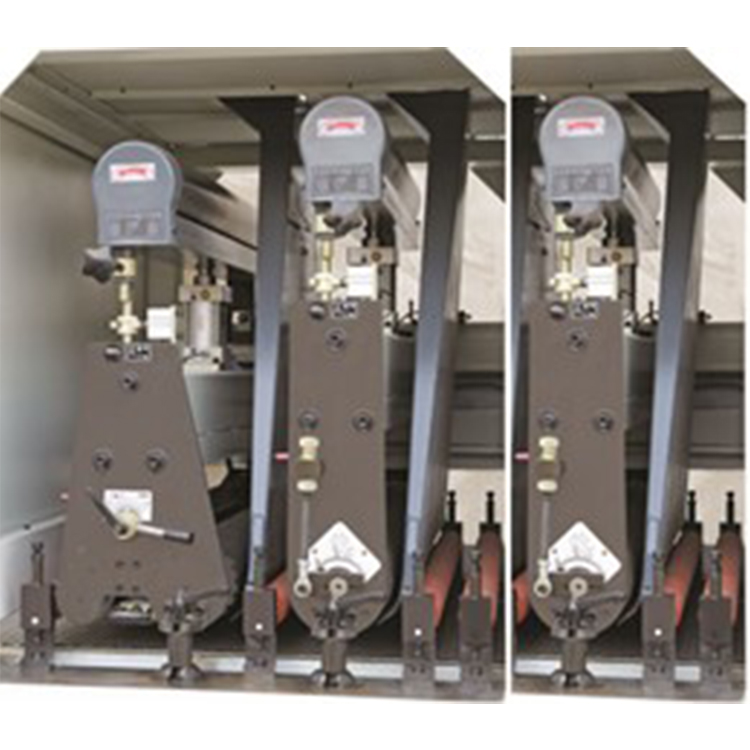

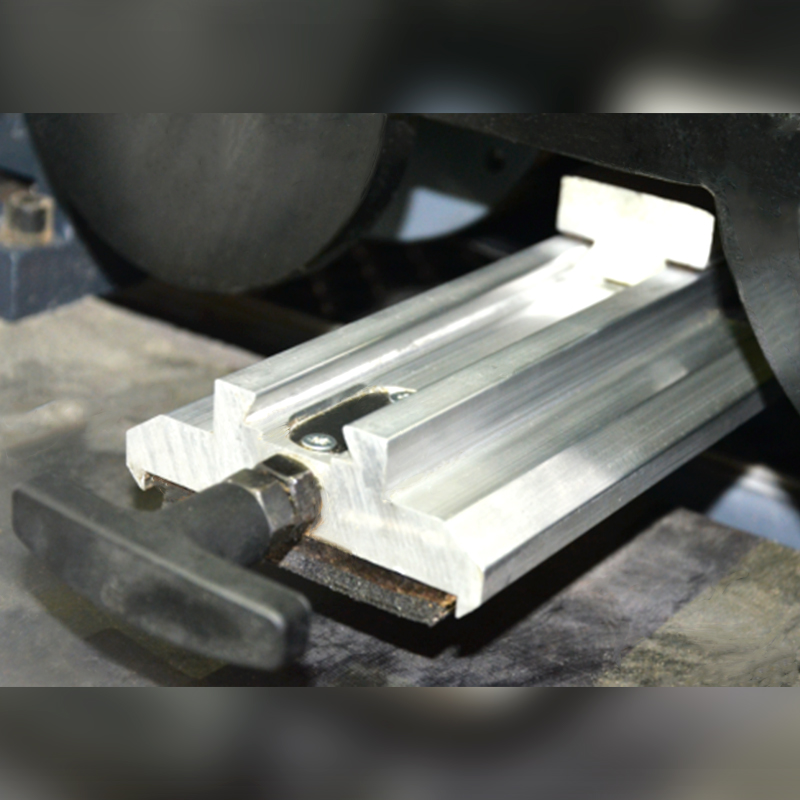

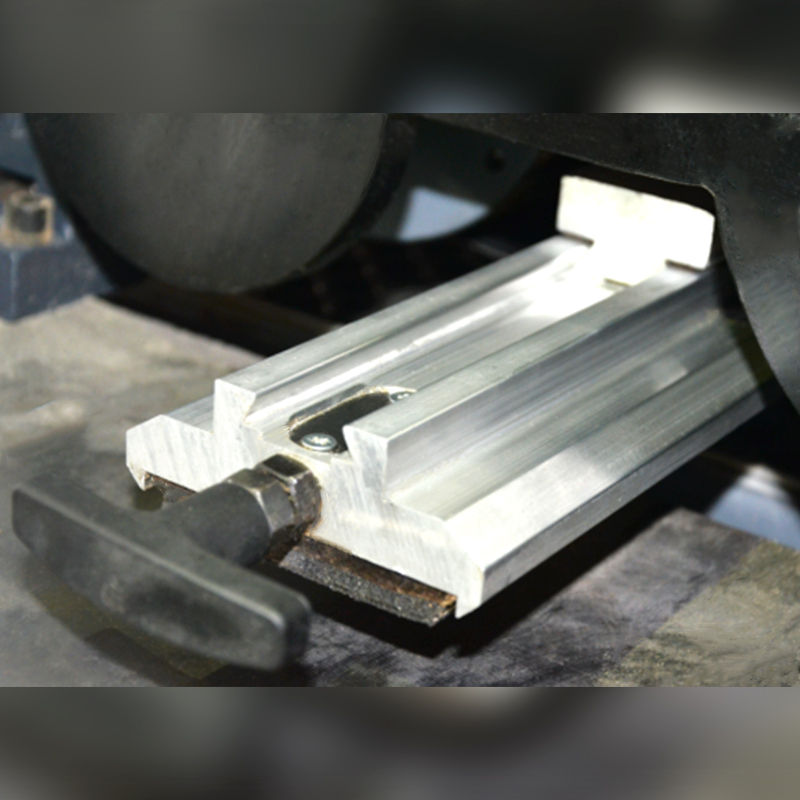

  • 2 STEEL AND RUBBER ROLLERS PLUS PAD CONFIGURATION IS GOOD FOR CALIBRATING AND FINE SANDING

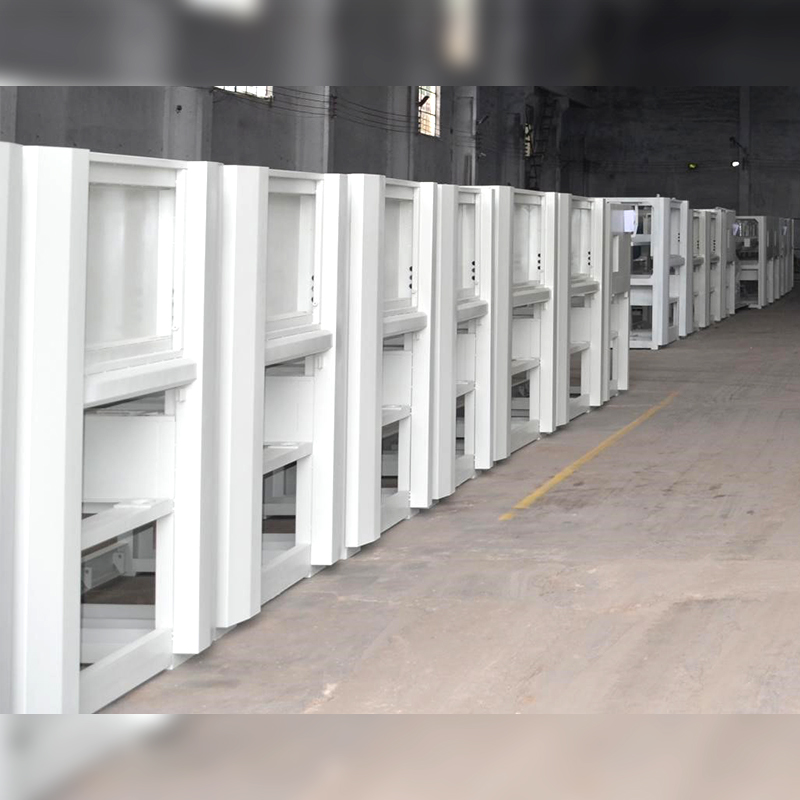

  • HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME

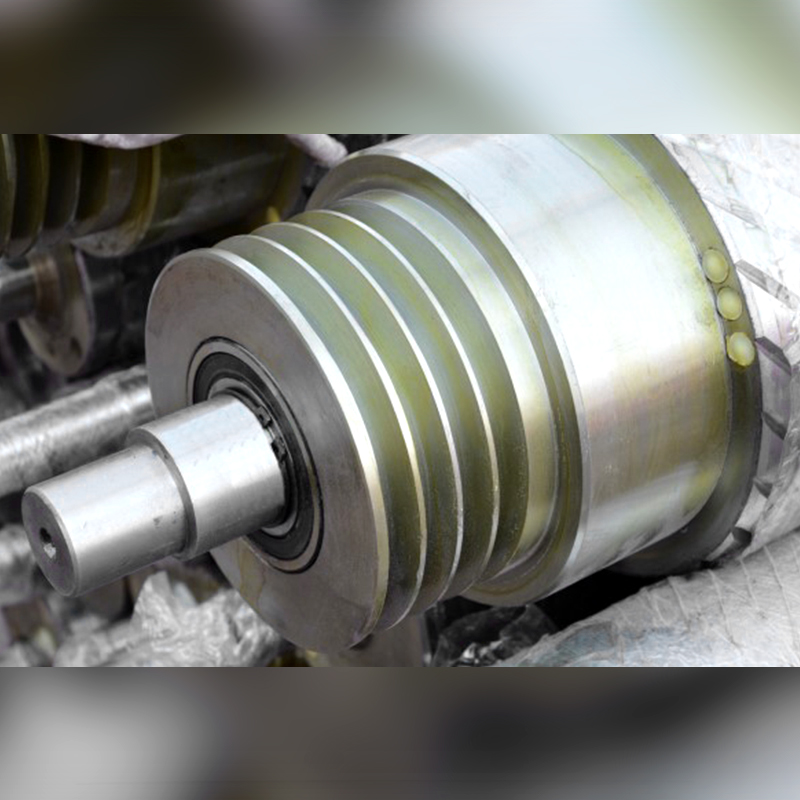

  • ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY
  • FIRST 2 SHAFT IS ECCENTRIC SHAFT. LIFTING CONTROL BY PNEUMATIC TURN-OVER IS EASY TO OPERATE
Model RWSE630R-R-RP RWSE1000R-R-RP RWSE1300R-R-RP
Working width 30-630mm 30-1000mm 30-1300mm
Working thickness 2-100mm 2-100mm 2-100mm
Working length ≥420mm ≥420mm ≥510mm
Feeding speed 0-18m/min RV frequency 0-18m/min RV frequency 0-18m/min RV frequency
Size of sanding belt 650*1900mm 1020*2000mm 1320*2200mm
Feeding motor power 3 kw 3 kw 5.5 kw
Lifting motor power 0.37 kw 0.37 kw 0.55 kw
#1 sanding shelf ø165mm Eccentric steel, 15kw ø165mm Eccentric steel, 15kw ø190mm Eccentric steel, 15kw
#2 sanding shelf ø165mm, 85sh Eccentric rubber, 11kw 85sh ø165mm, Eccentric rubber, 11kw 85sh ø190mm, Eccentric rubber, 11kw
#3 sanding shelf ø140mm, 85sh rubber+pad, 7.5kw 85sh ø140mm, rubber+pad, 7.5kw 85sh ø165mm, rubber+pad, 7.5kw
Total motor power 36.87kw 47.87kw 95.05kw
Working air pressure 0.6Mpa 0.6Mpa 0.6Mpa
Air dust collect 12000m³/h 12000m³/h 12000m³/h
Overall dimensions 2290*1265*2060mm 2290*1675*2100mm 2600*2080*2070mm
