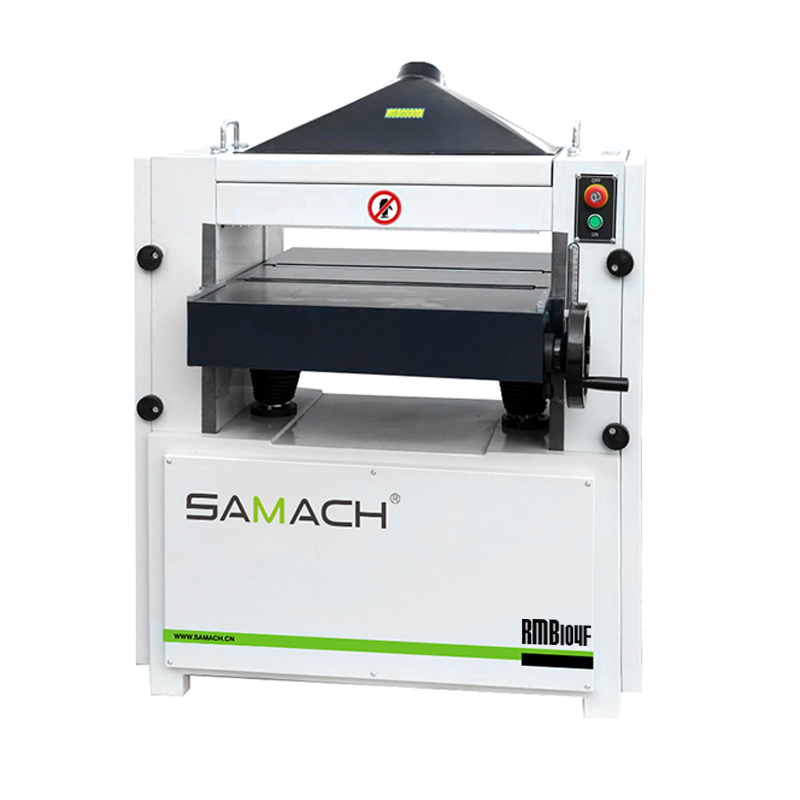

Thicknesser
- SINGLE SIDE PRECISION CUTTING OFF

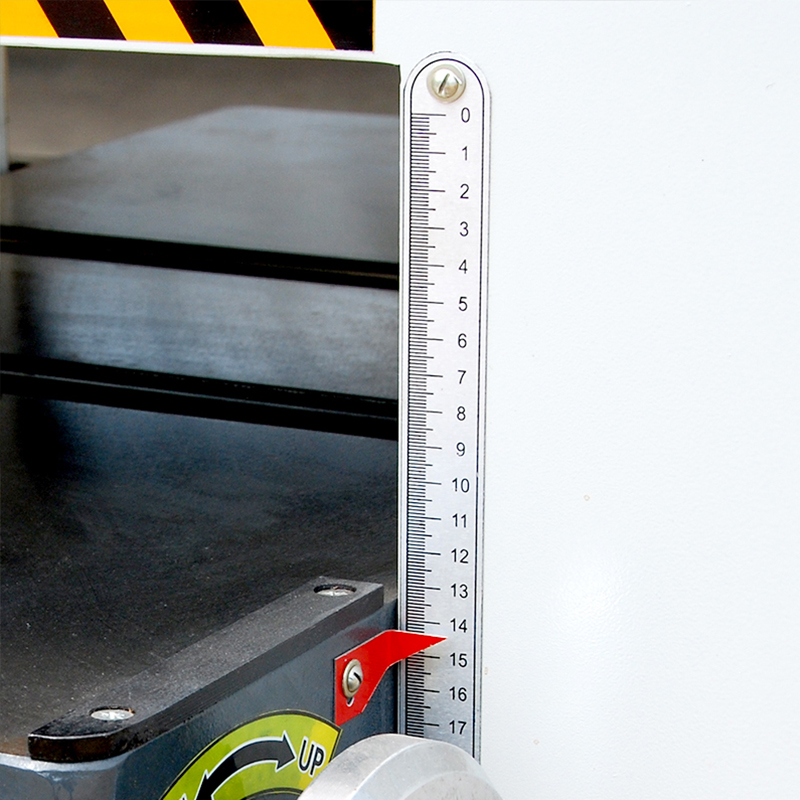

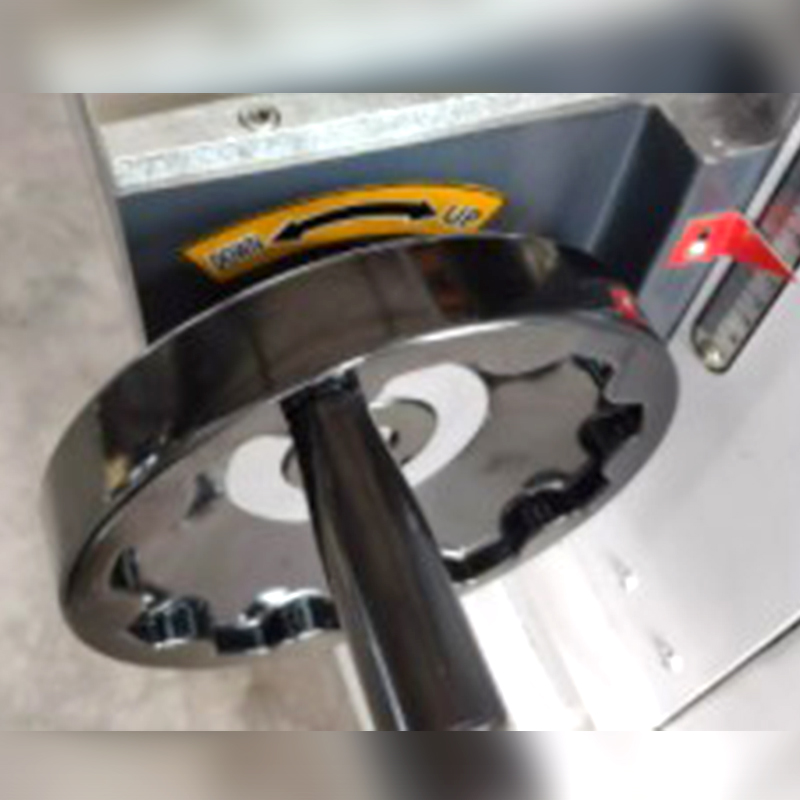

- WORK THICKNESS CAN BE ADJUSTED EASILY
- BIG DUST COLLECT COVER TO KEEP FACTORY CLEAN

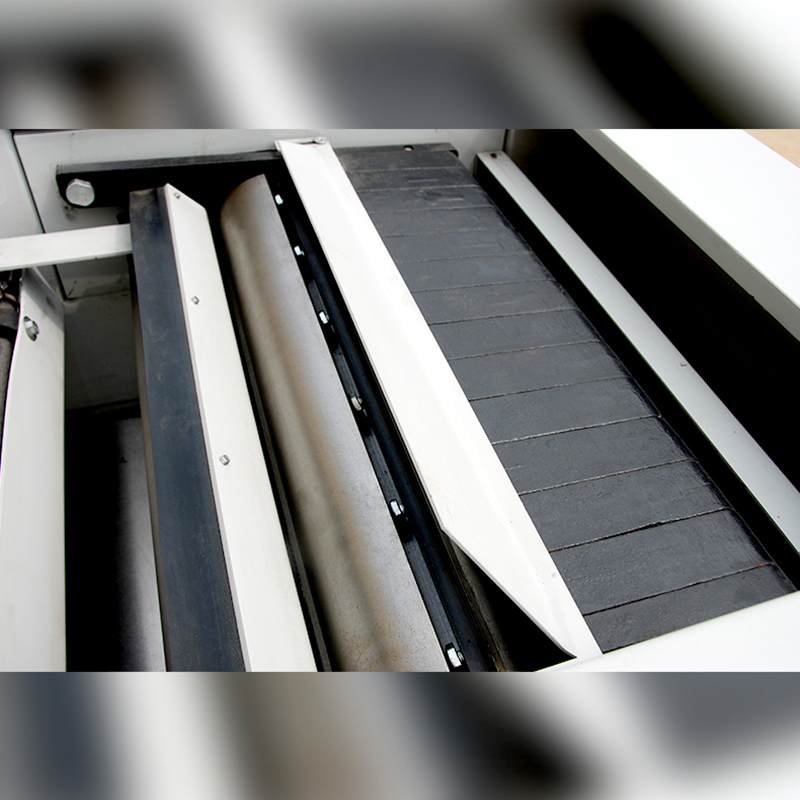

- SPIRAL CUTTERS ARE OPTIONAL
| Model | RMB104F | RMB105F | RMB106F |
| Max. work width | 440mm | 540mm | 640mm |
| Max Work thickness | 210mm | 210mm | 210mm |
| Min. cutting length | ≥220mm | ≥220mm | ≥220mm |
| Max. cutting off depth | ≤5mm | ≤5mm | ≤5mm |

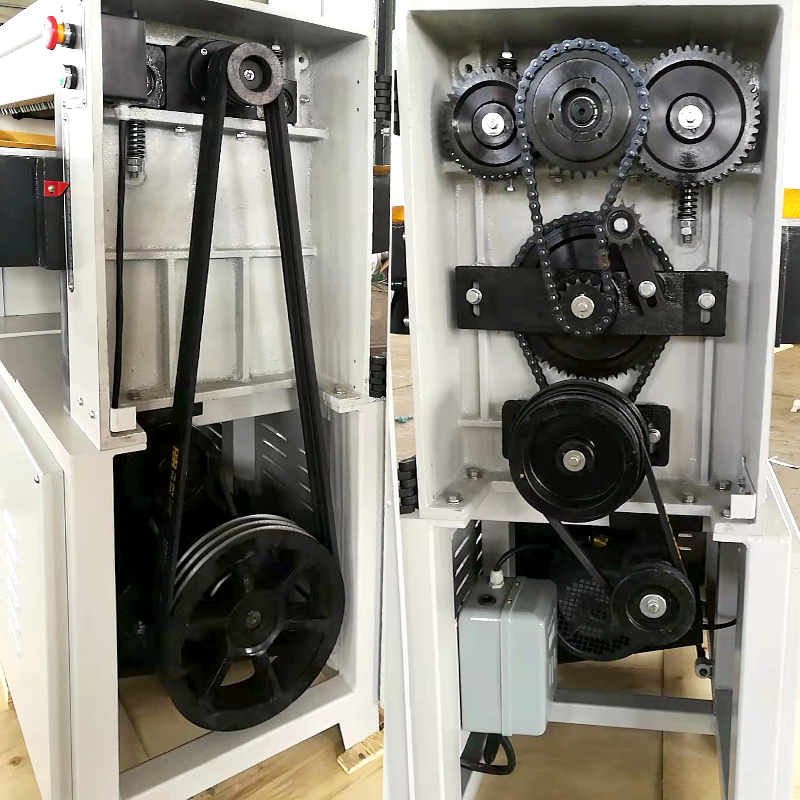

| Feeding speed | 8-10-12m/min | 8-10-12m/min | 8-10-12m/min |
| Spindle speed | 5000r/min | 5000r/min | 5000r/min |
| Motor power | 380V/4kw | 380V/5.5kw | 380V/7.5kw |
| Spindle diameter | φ108mm | φ108mm | φ108mm |
| Oversize | 830*825*1340mm | 830*925*1340mm | 830*1025*1340mm |
| Net weight | 450kg | 480kg | 540kg |
| Pack weight | 480kg | 520kg | 580kg |
| Package size | 920*920*1290mm | 920*1100*1290mm | 920*1120*1290mm |
