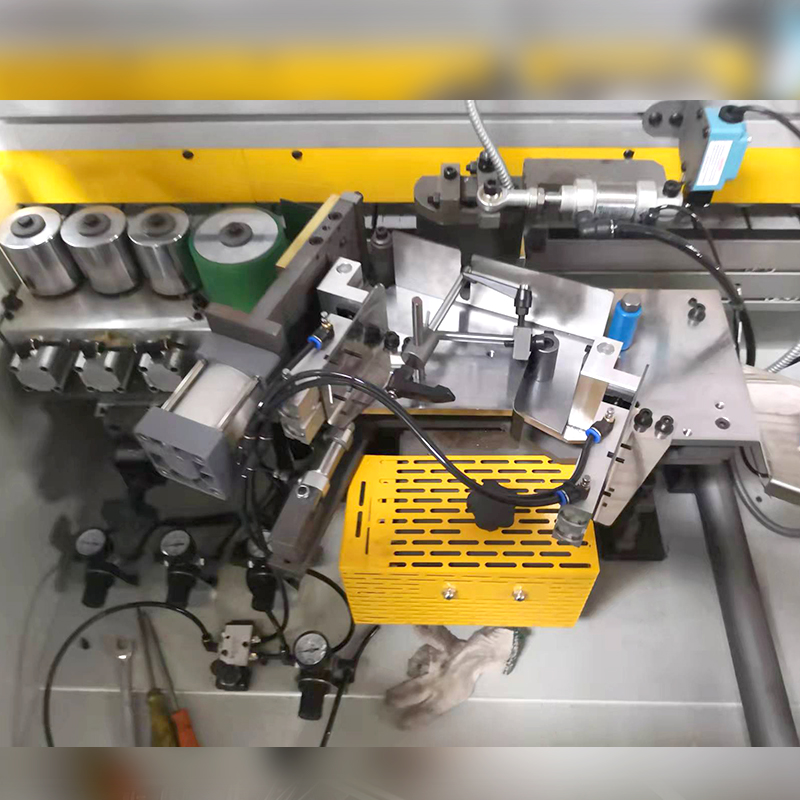

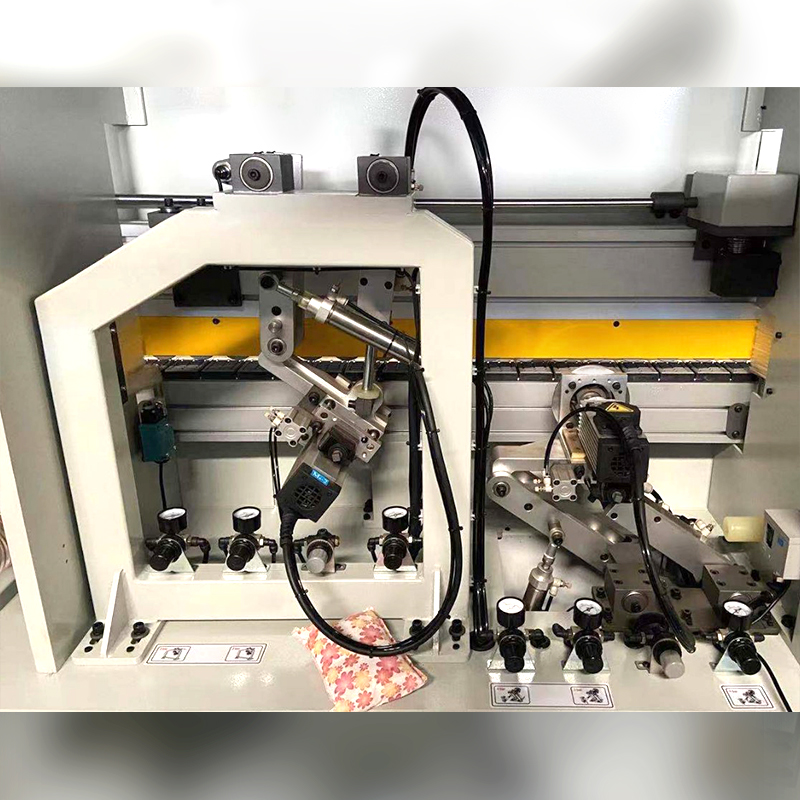

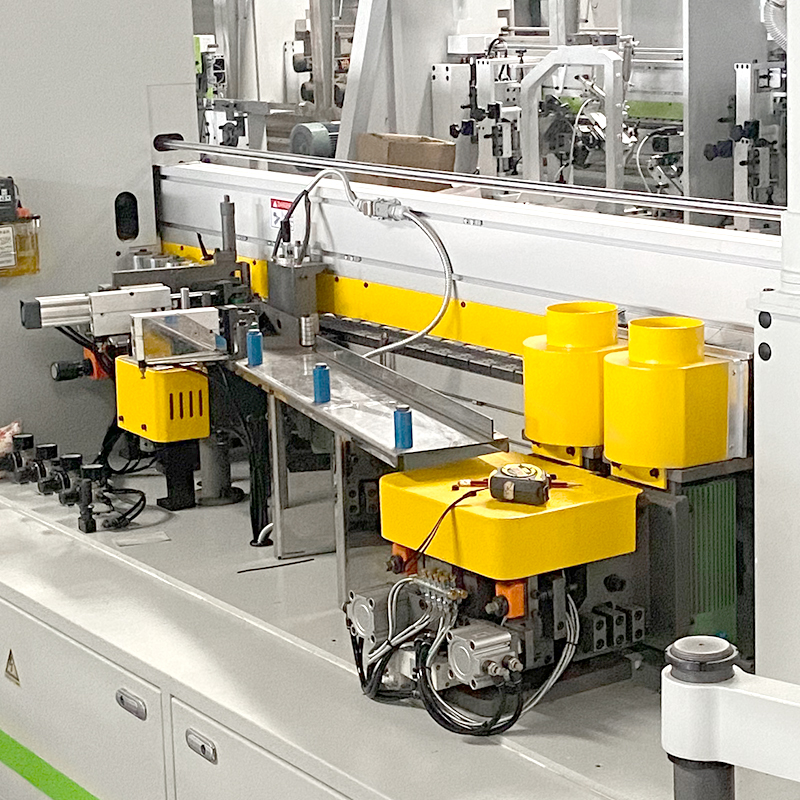

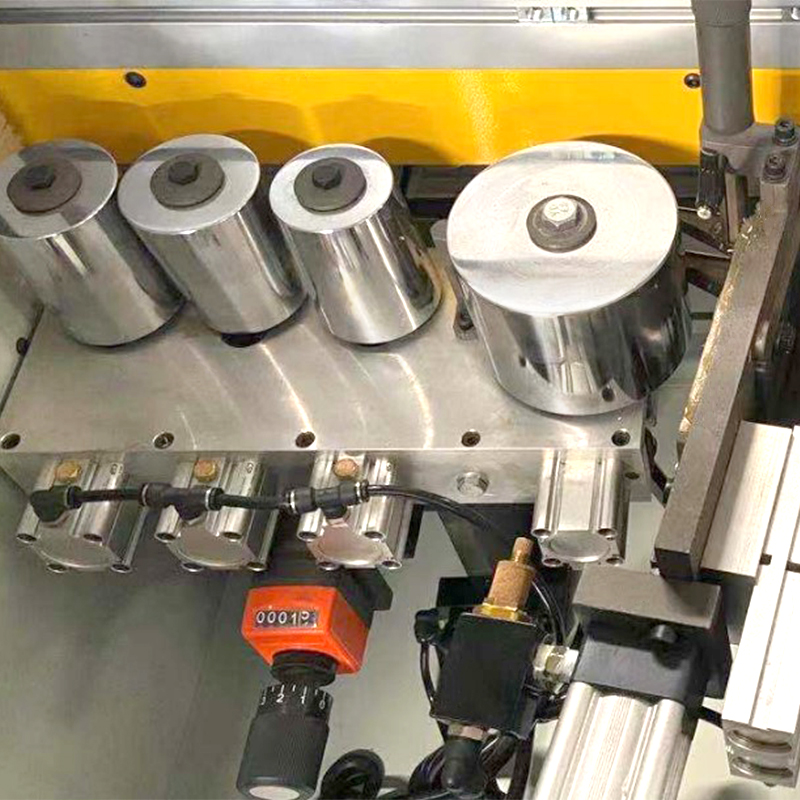

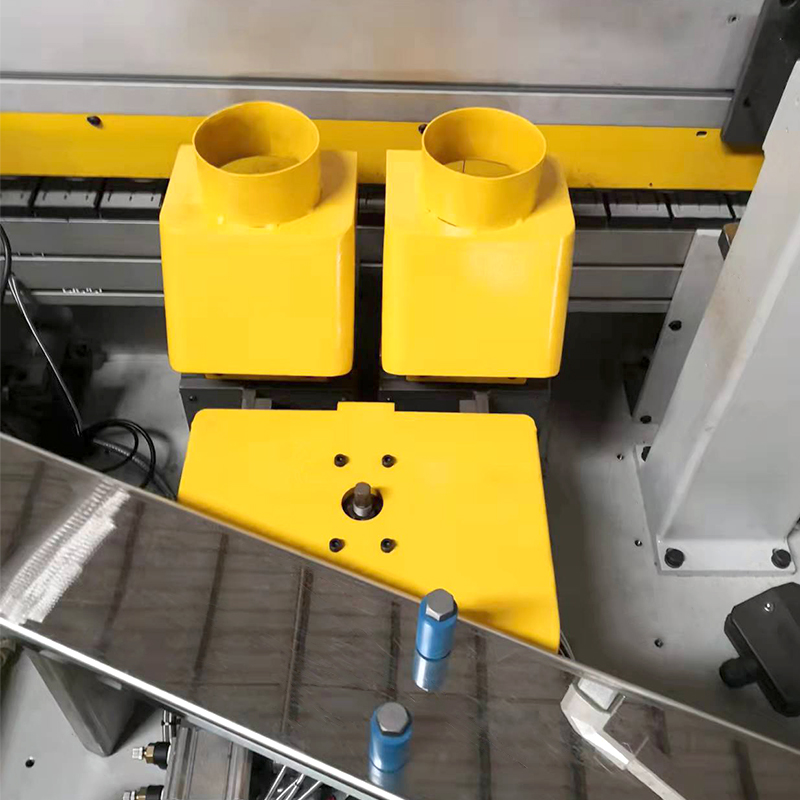

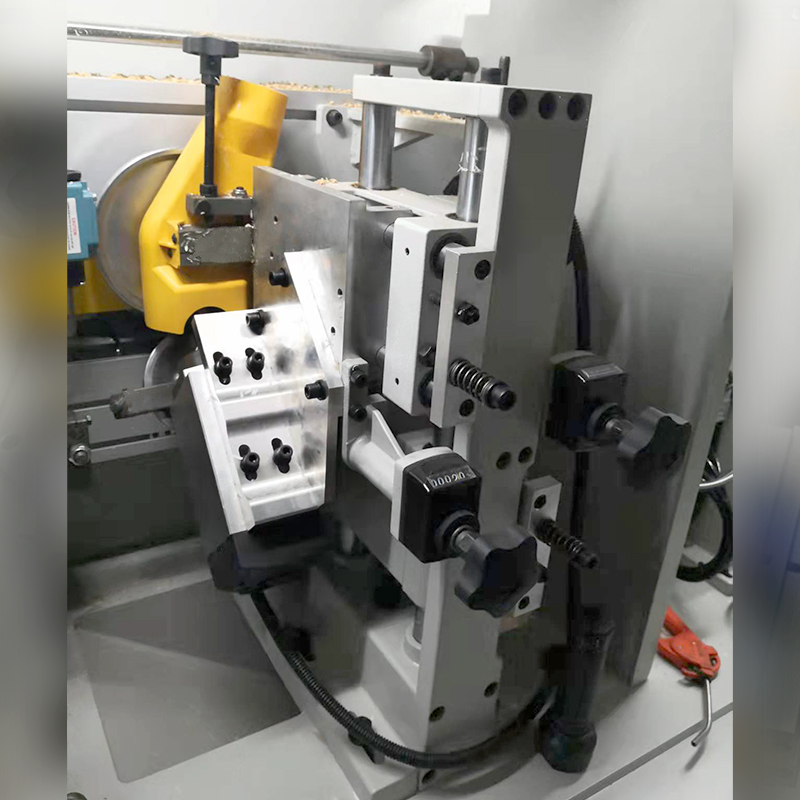

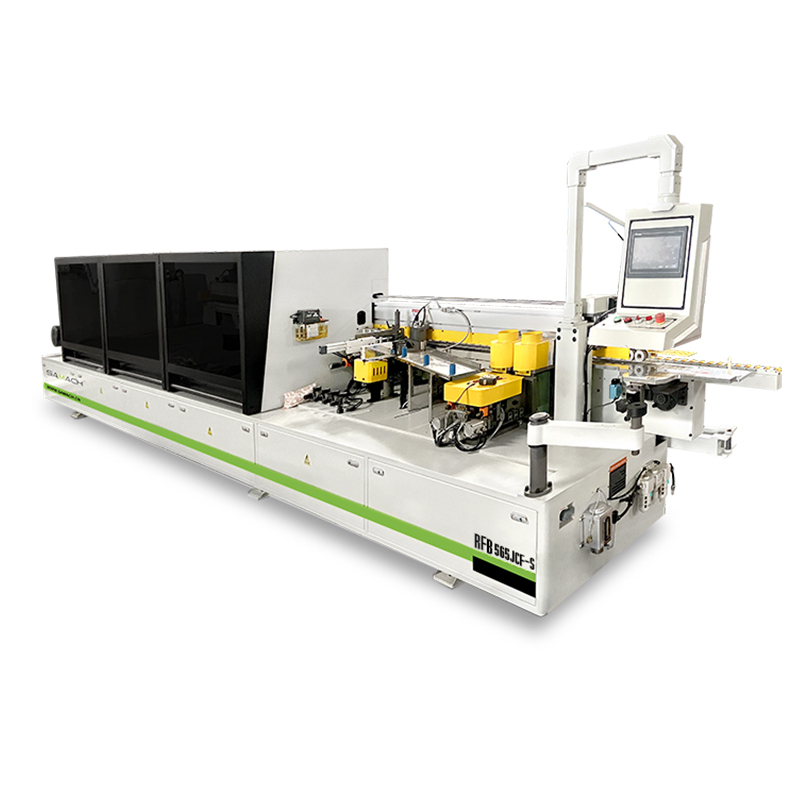

Solid Wood Strip Edge Banding Machine
- SOLID WOOD STRIP AND PVC CAN BE USED IN ONE MACHINE
- PRE-MILLING CUTTER ADOPTS SIX-TOOTH DIAMOND

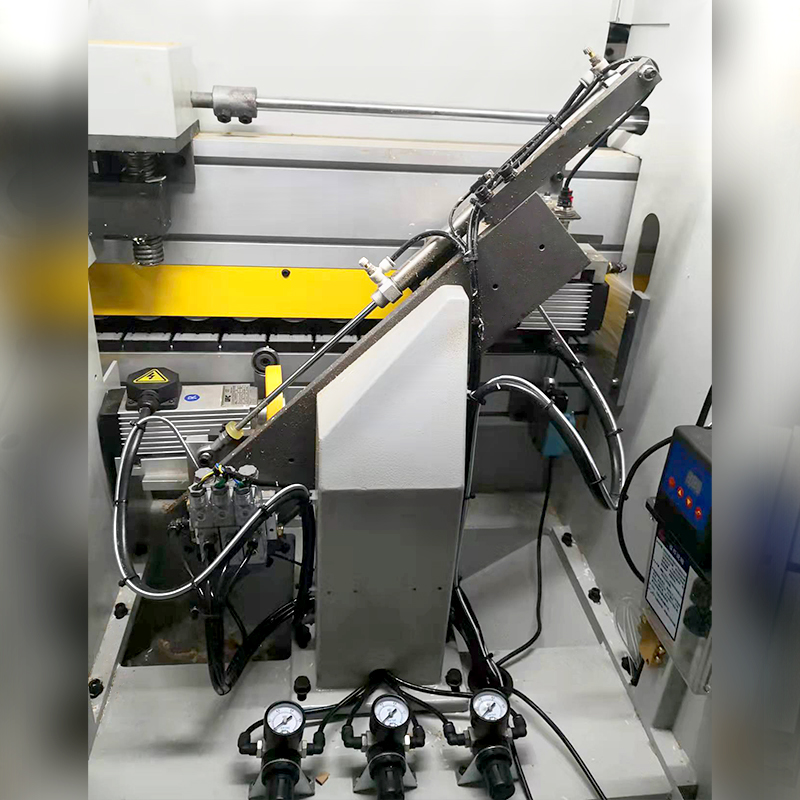

- 0.37KW*2 HIGH FREQUENCY AND HIGH SPEED MOTOR FOR END TRIM
- 0.75KW*4 HIGH FREQUENCY MOTOR MOTOR FOR ROUGH AND FINE TRIM
- 0.37KW*2 HIGH FREQUENCY MOTOR FOR CORNER TRIM

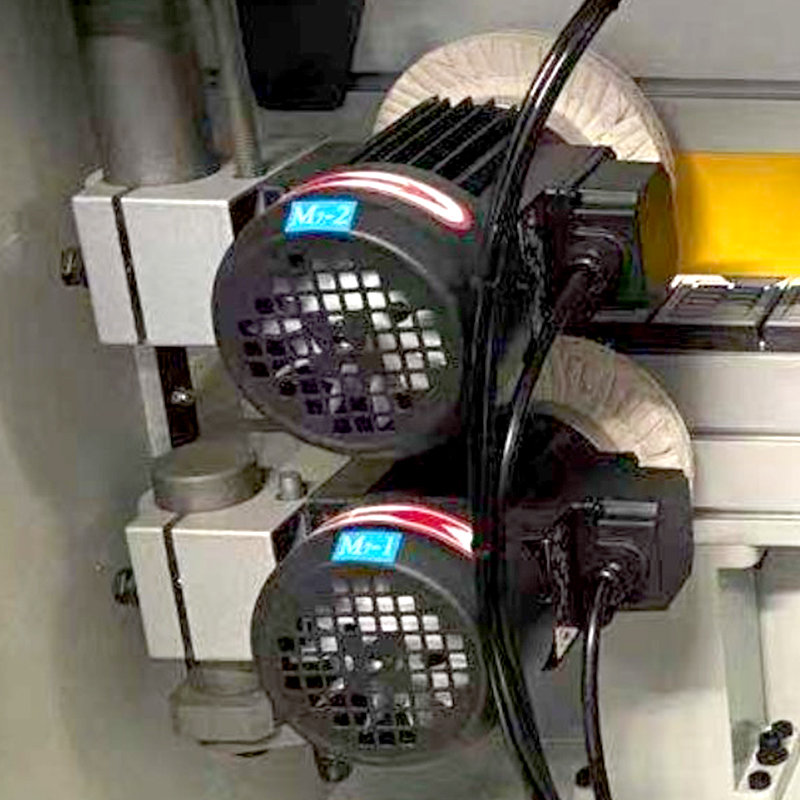

- TWO INDEPENDENT MOTORS EQUIPPED WITH BUFFING WHEELS
| Model | RFB565JCF-S |
| Panel length | ≥300mm |
| Panel width | ≥60mm |
| Panel thickness | 10-60mm |
| Edgeband thickness | 0.3-3mm |
| Solid wood thickness | ≤12mm |
| Feeding speed | 13-22m/min |
| Required air pressure | 0.6Mpa |
| Total power | 17.2kw |
| Overall dimensions | 6900*900*1560mm |
