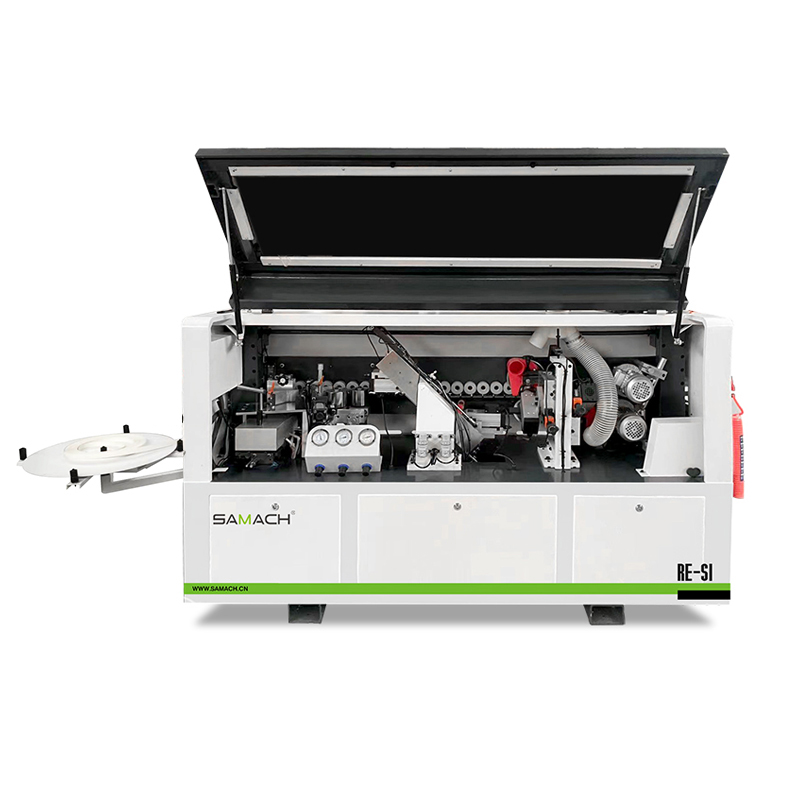

Small Edge Banding Machine

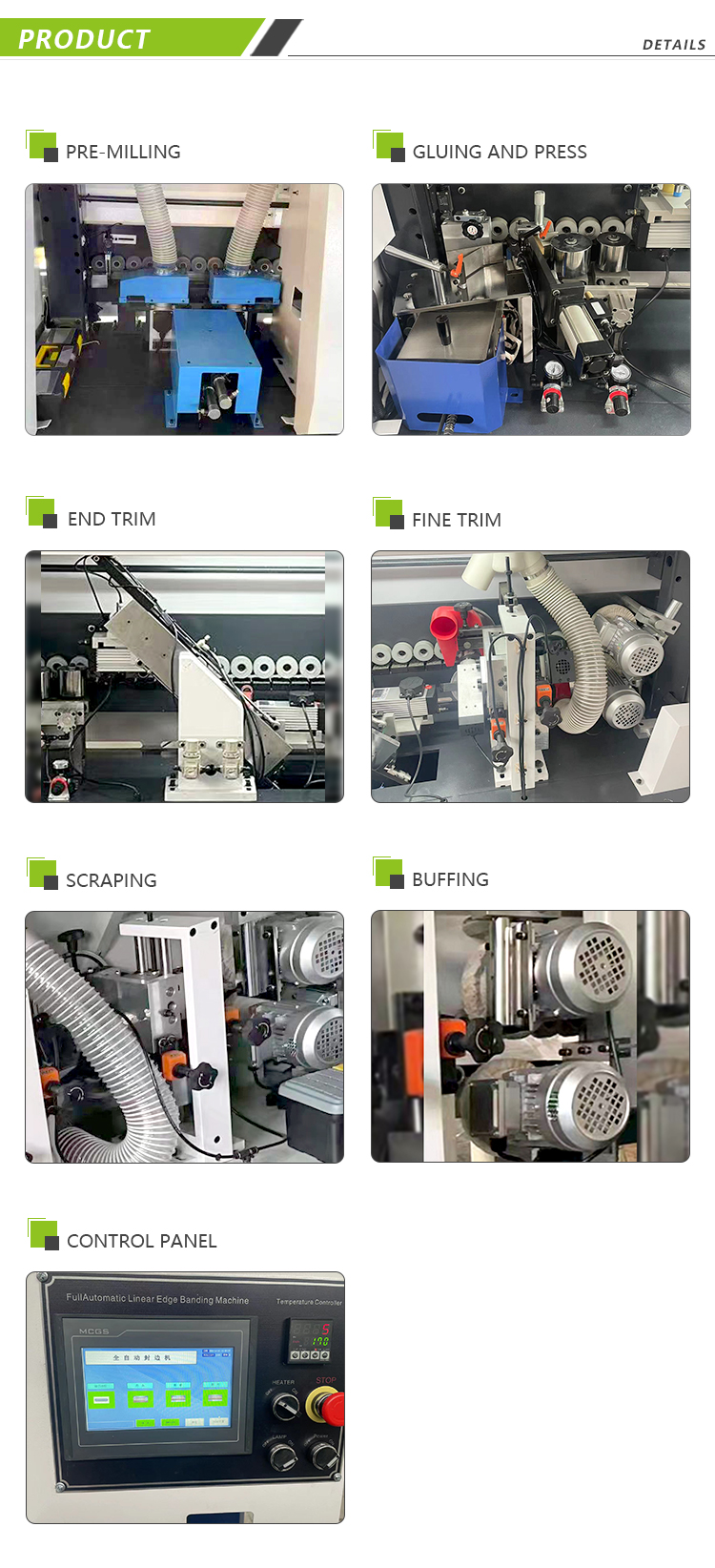

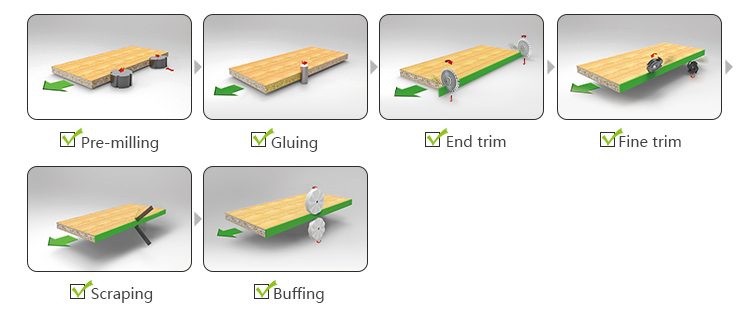

- SMALL AUTOMATIC EDGEBANDER WITH 6 FUNCTIONS

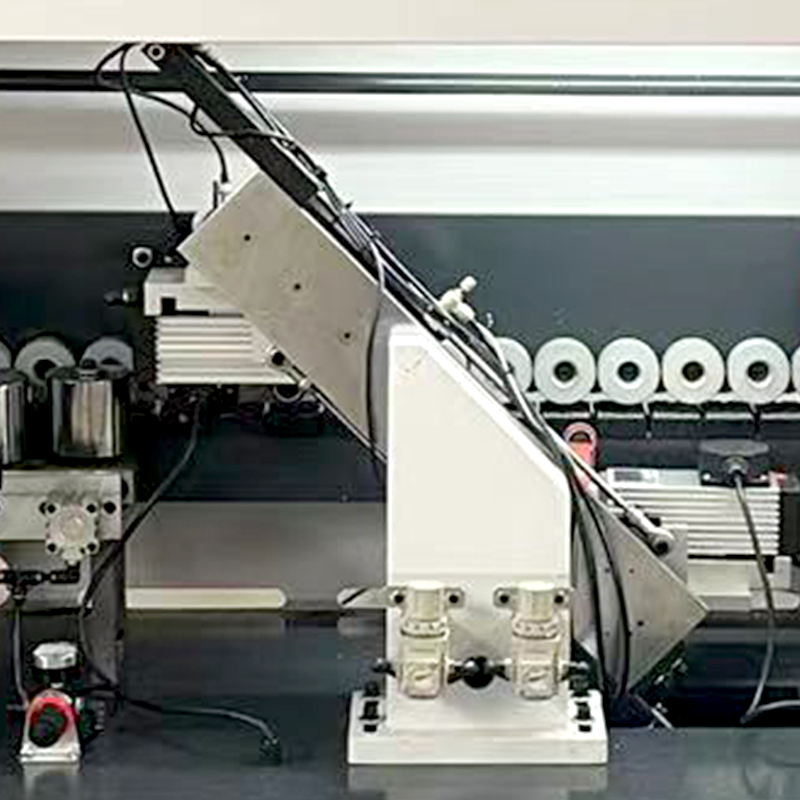

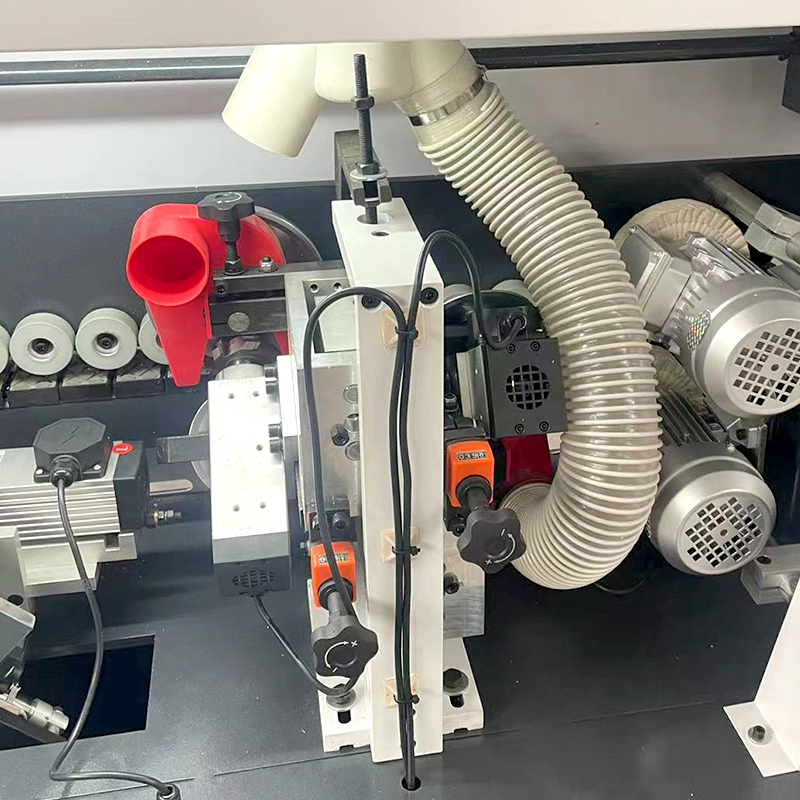

- THE END TRIMMING GUIDE RAIL ADOPTS TAIWAN BRAND, STABLE AND DURABLE

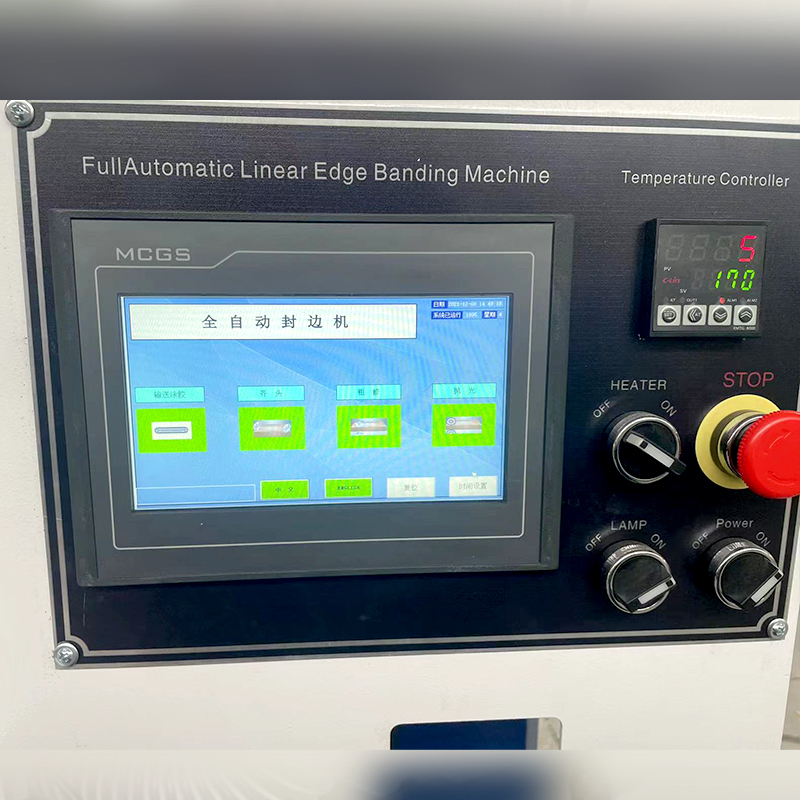

- TOUCH SCREEN ADOPTS THE WELL-KNOWN TAIWAN PLC CONTROL SYSTEM

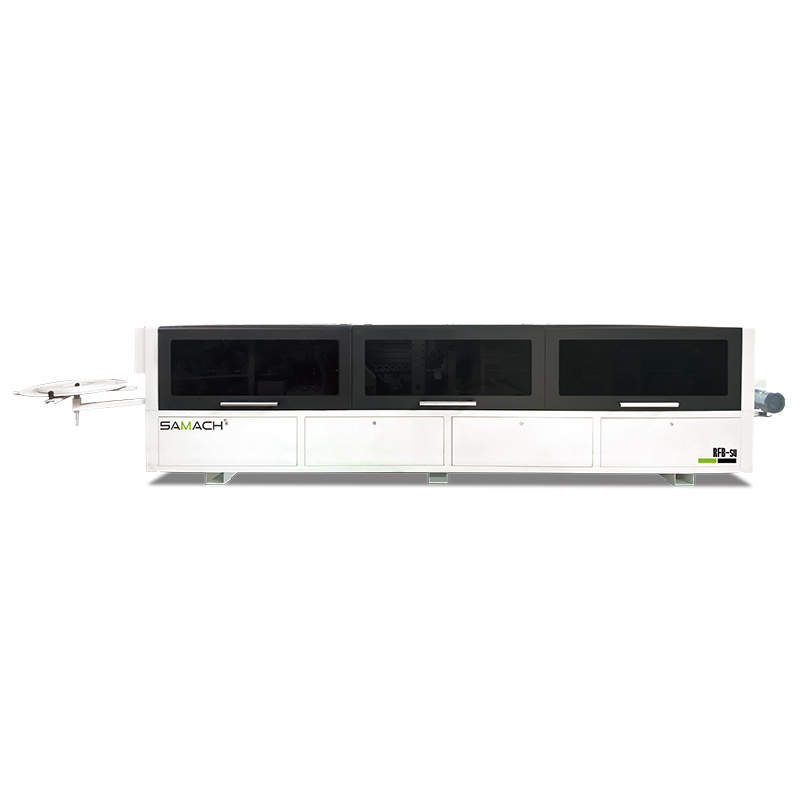

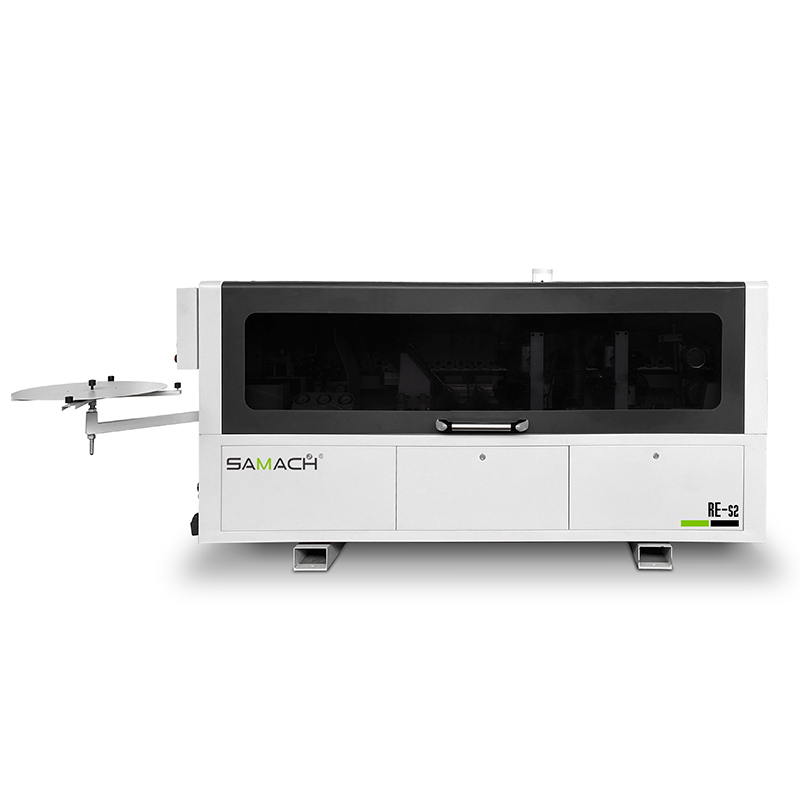

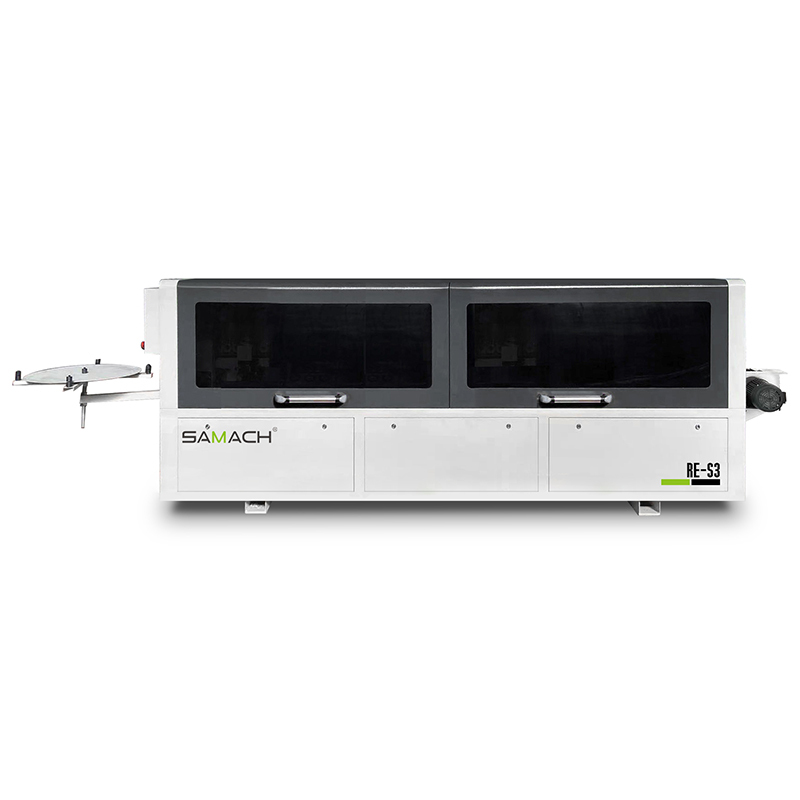

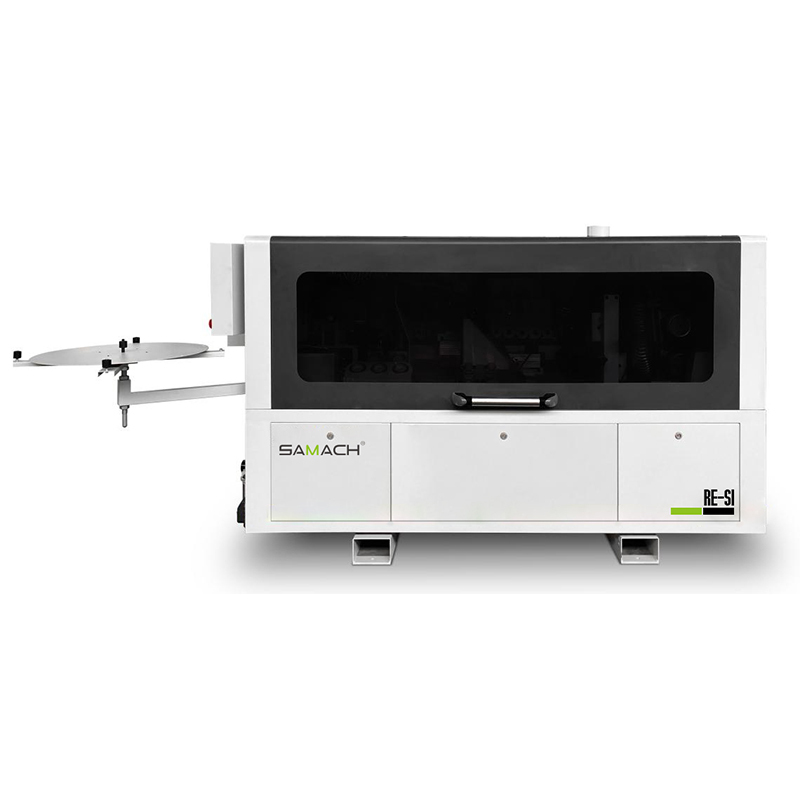

| Model | RE-S1 | RE-S2 | RE-S3 | RE-S4 |
| Panel length | ≥120mm | ≥120mm | ≥120mm | ≥120mm |
| Panel width | ≥80mm | ≥80mm | ≥80mm | ≥80mm |
| Panel thickness | 10-40mm | 10-40mm | 10-40mm | 10-40mm |
| Edgeband thickness | 0.4-2mm | 0.4-2mm | 0.4-2mm | 0.4-2mm |
| Feeding speed | 10m/min( other speed is options) | 10m/min( other speed is options) | 10m/min( other speed is options) | 3 speed 12/14/18m/min |
| Air pressure | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa |
| Total power | 7kw | 7kw | 10.6kw | 11.7kw |
| Overall size | 2200*600*1400mm | 2800*600*1170mm | 4150*700*1170mm | 5420*700*1170mm |
| Weight | 600kg | 800kg | 1100kg | 1400kg |
