Sliding Table Panel Saw

  • APPLY TO PROCESSING ALL KINDS OF DENSITY BOARDS, SHAVING BOARDS, WOOD-BASED PANELS, ABS PANELS, PVC PANELS, SOLID WOOD AND OTHERS WITH WOOD STRUCTURE AND SIMILAR HARDNESS.

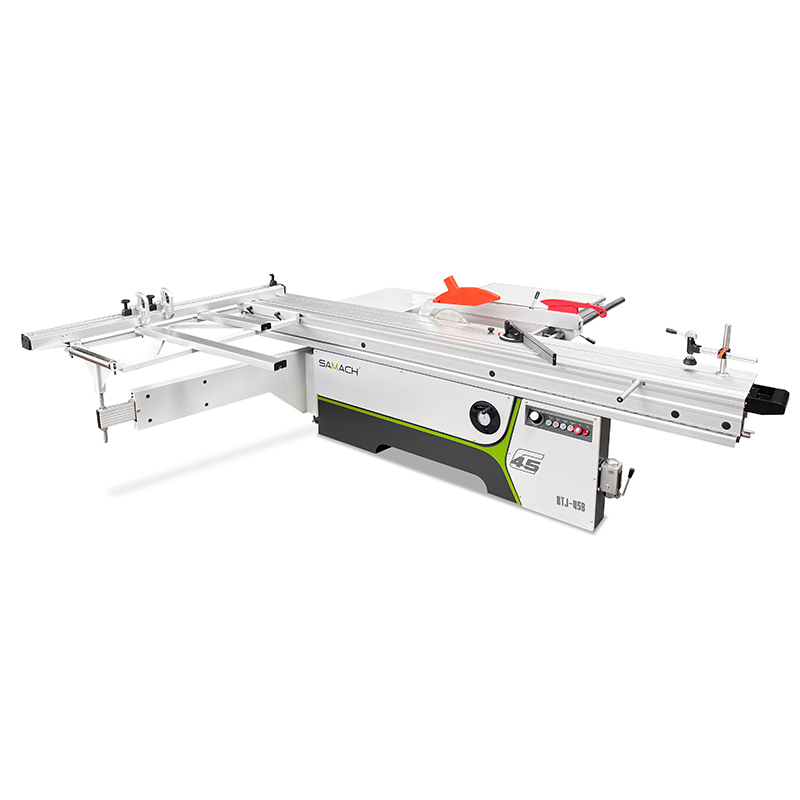

Model RTJ-45B
Sliding table size 3200*390mm
Main saw blade diameter 300mm
Inner hole diameter of main saw blade 30mm
Scoring saw blade diameter 120mm
Inner hole diameter of scoring saw blade 20mm
Speed of main saw spindle 4000/5000r/min
Speed of scoring saw spindle 9100r/min
Max. cutting thickness 90mm

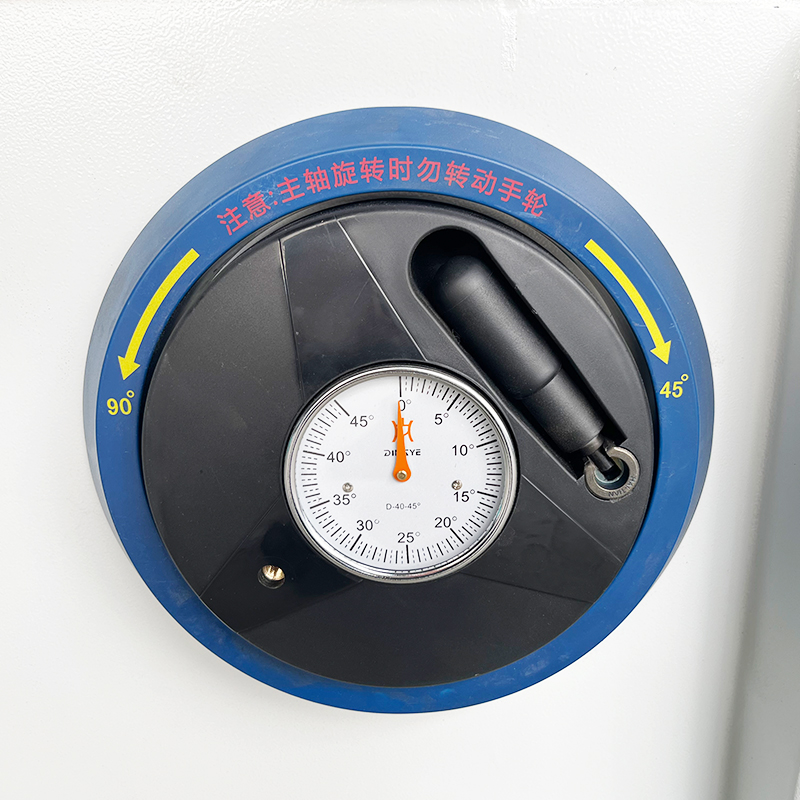

Angle of inclination 45°

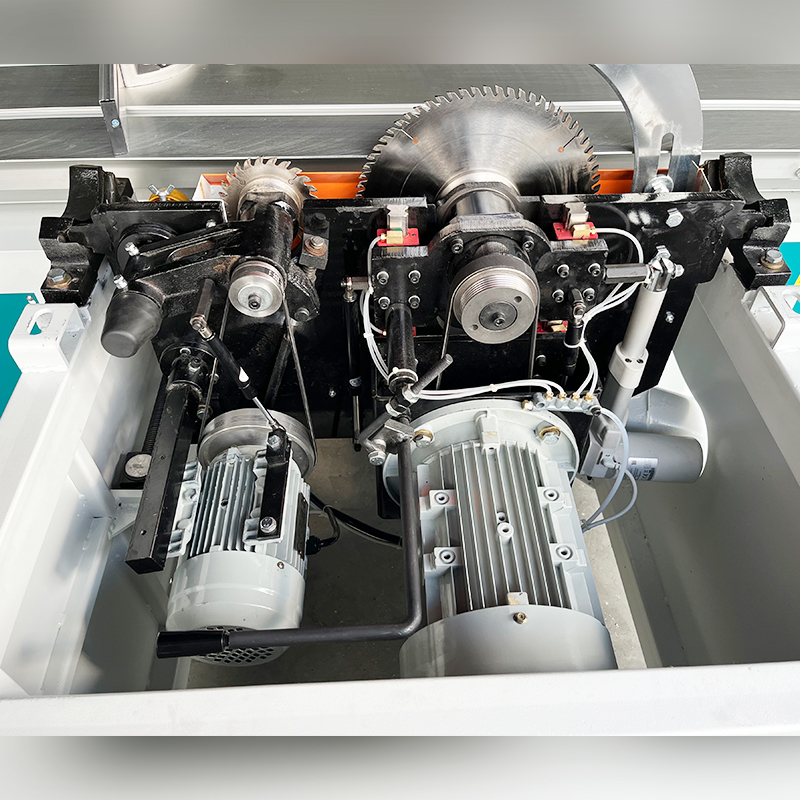

Main saw motor power 5.5kw
Scoring saw motor power 1.1kw
Power AC380V/50Hz
Dust collect outlet Φ100mm×1
Size 3400*2600*1000mm
Weight 650kg

Sliding Table Saw
