Sliding Panel Saw
- APPLY TO PROCESSING ALL KINDS OF DENSITY BOARDS, SHAVING BOARDS, WOOD BASED PANELS, ABS PANELS, PVC PANELS, SOLID WOOD, EIC
- ELECTRICAL LIFTING AND TILTING WITH DIGITAL DISPLAY OF ANGLE

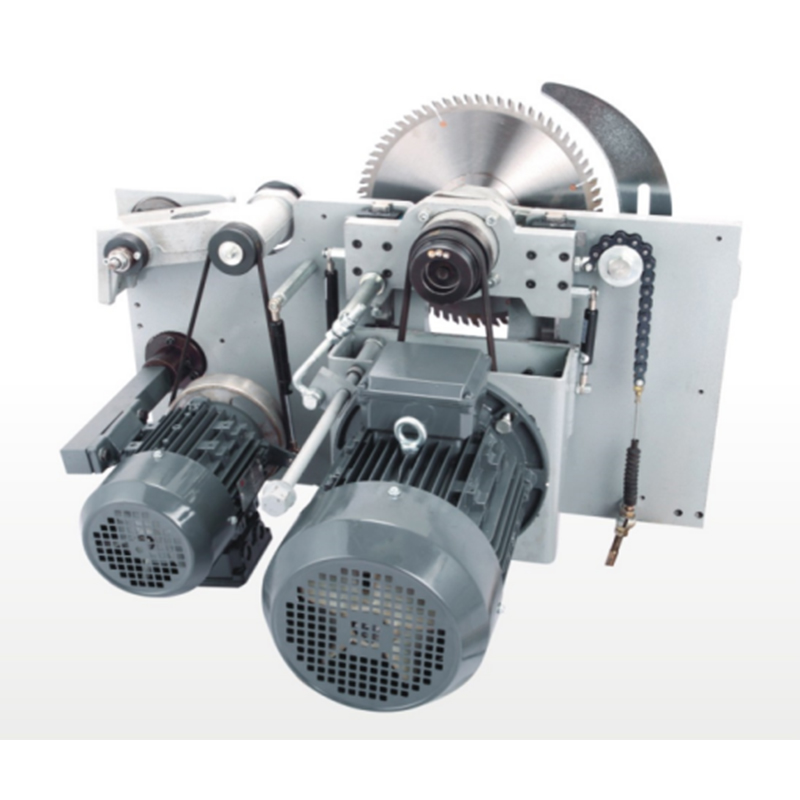

- MOTOR OF MAIN SAW: 5.5KW(6.5KW IS OPTIONAL). MOTOR OF GROOVING SAW: 1.1KW

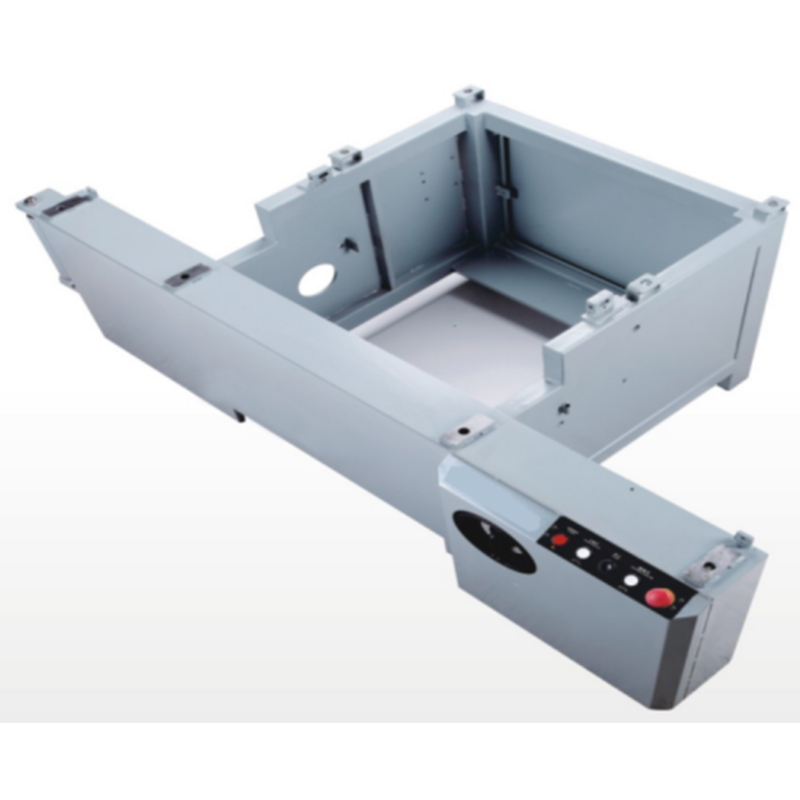

- THE 6MM-10MM STEEL PLATE IS WELDED TO THE SQUARE TUBE LOAD-BEARING BEAM
- MANUAL SCALING-OFF, ACCURACY: ±0.1MM
| Model | RTJ-45TE |
| Main saw blade max. diameter | 350mm |
| Main saw shaft diameter | 30mm |
| Groove saw blade max. diameter | 120mm |
| Groove saw shaft diameter | 20mm |
| Main saw motor power | 5.5kw(6.5kw is optional) |
| Groove saw motor power | 1.1kw |
| Main spindle rotate speed | 4000/5000rpm |
| Groove saw shaft speed | 8200rpm |

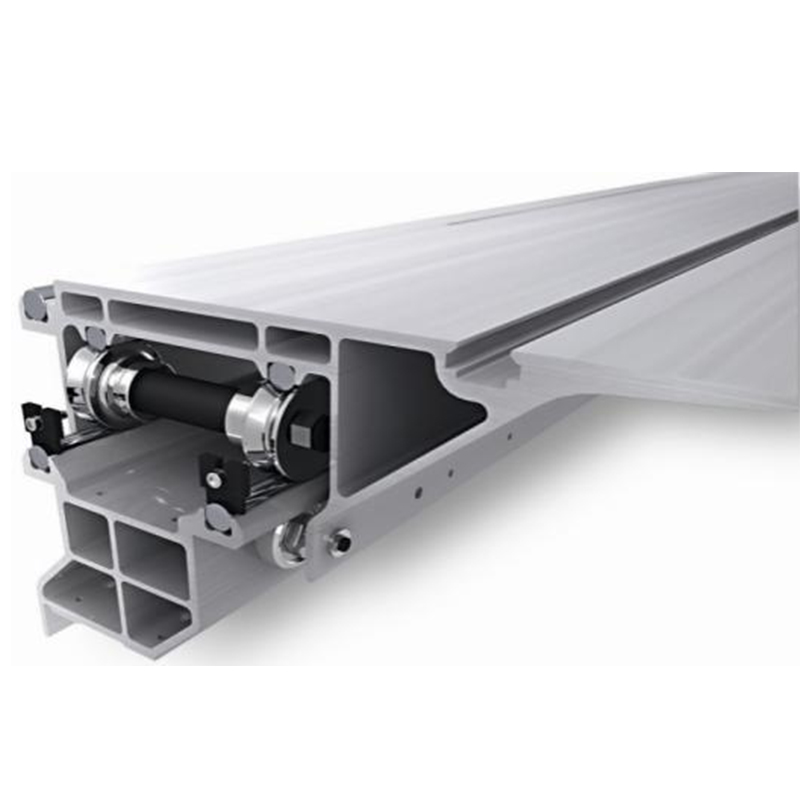

| Sliding table max. sawing length | 3100mm |
| Max cut thickness | 100mm |
| Saw blade tilt range | 0-45 ° |
| Main motor lifting power | 55W |
| Angle motor power | 25W |
| Machine weight | 850Kg |
