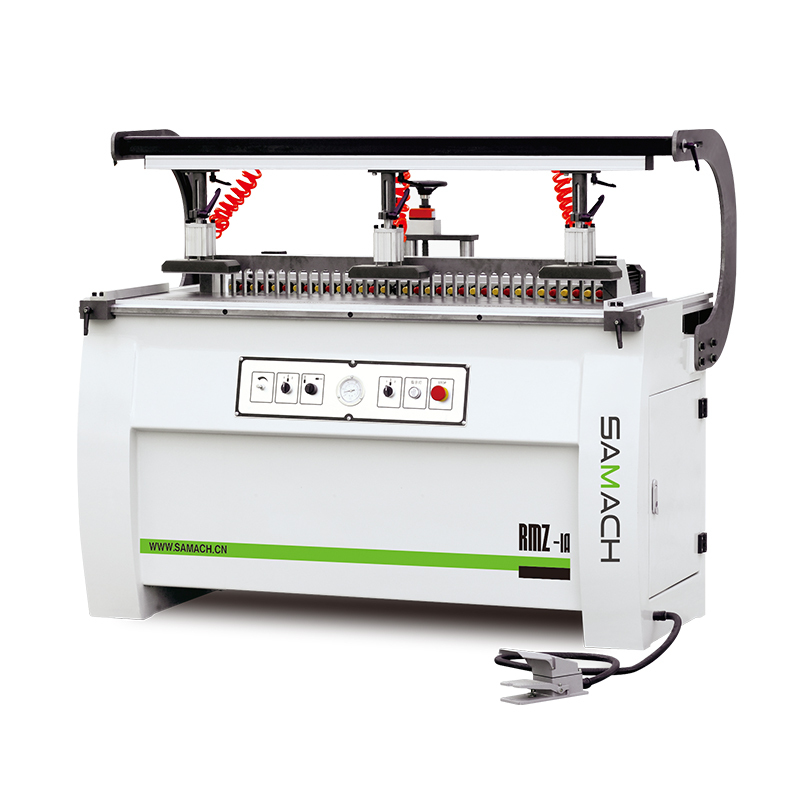

Single Row Drilling Machine
- SINGLE LINE BORING MACHINE IS SUITABLE FOR SMALL PRODUCTION ENTERPRISE OR AUXILIARY DRILLING REQUIREMENTS OF SEVERAL LINES BORING MACHINE
- DRILLING ARRANGEMENT DRILL LARGE RANGE, ALL DRILL BITS USE FAST JOINTS THAT IS FAST AND CONVENIENT
- DRILLING DEPTH, DRILLING DISTANCE CAN BE SHOWED BY ACCURATE RULER, SIZE POSITION IS QUICK AND ACCURATE
| Model | RMZ-1A |
| Max. center distance between holes | 640mm*600mm |
| Min. center distance between holes | 32mm*50mm |
| Workpiece thickness | 8-50mm |
| Total quantity of spindles | 21/27/35 pcs |
| Total quantity of drill lines | 1 |
| Max. drilling diameter | 35mm (single bit) 13mm(multi bits) |
| Max. drilling depth | 50mm |
| Dia. of drill bit shaft | 10mm |
| Installation tool length | 57/70mm |
| Spindle speed | 2840rpm |
| Total power | 1.5kw |
| Net weight | 450kg |
| Overall dimensions | 1100*900*1450mm |
