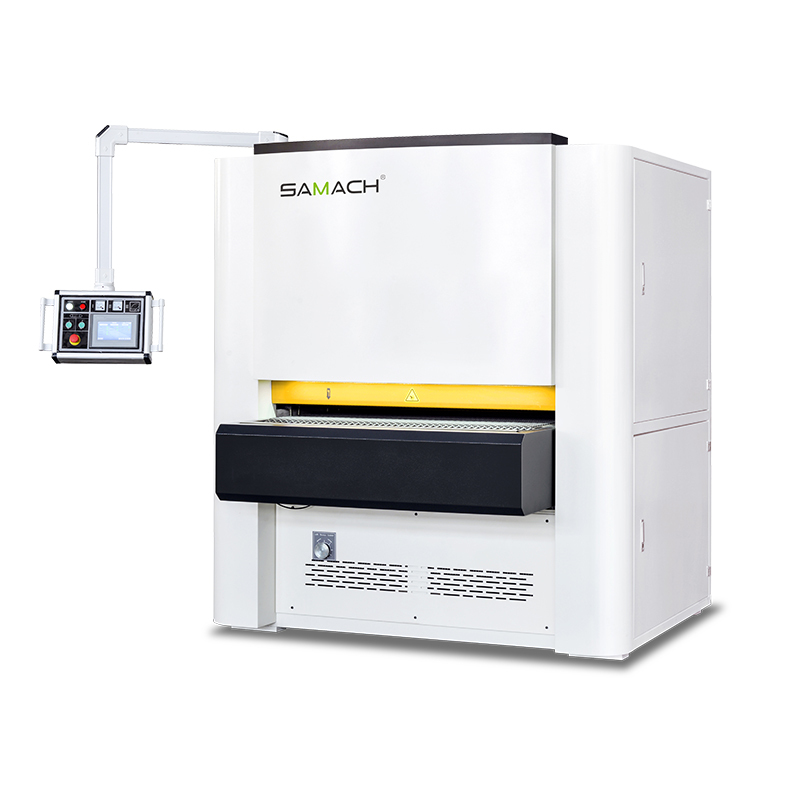

Single Head Wide Belt Sanding Machine

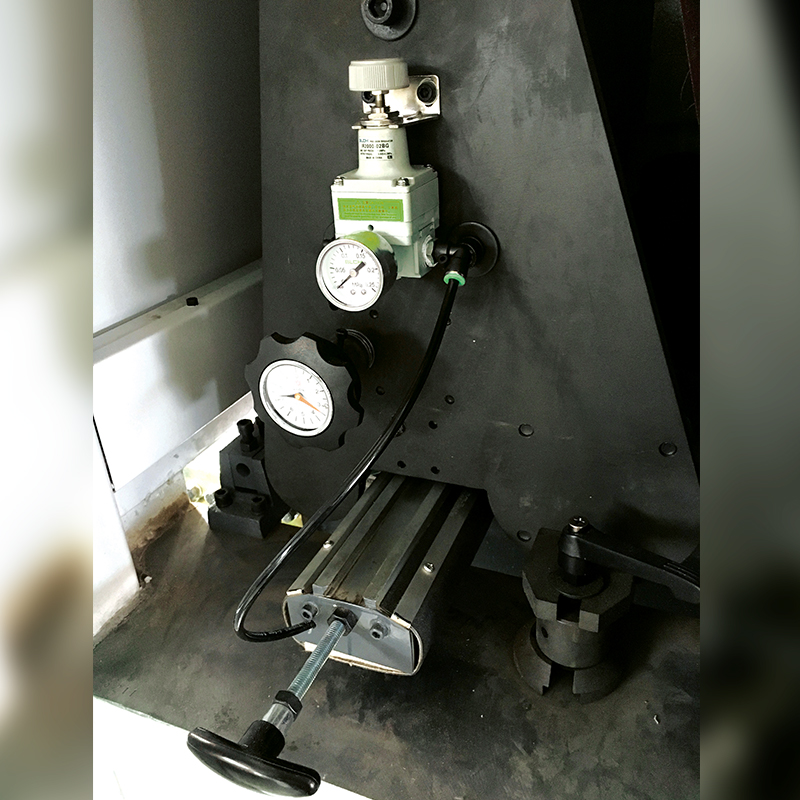

- RUBBER ROLLERS PLUS PAD CONFIGURATION IS GOOD FOR CALIBRATING AND FINE SANDING
- HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME

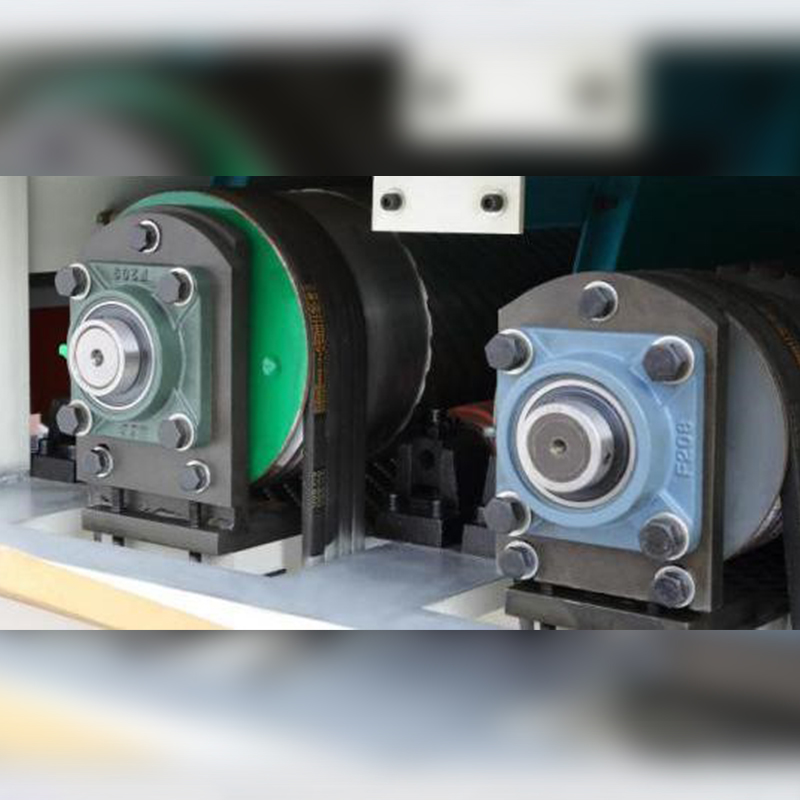

- ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY
- ECCENTRIC SHAFT IS ADOPTED. LIFTING CONTROL BY PNEUMATIC TURN-OVER IS EASY TO OPERATE
- TOUCH SCREEN WHICH IS EASY TO OPERATE
| Model | RWS630RP | RWS1000RP | RWS1300RP |
| Working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 2-100mm | 2-100mm | 2-100mm |
| Working length | ≥420mm | ≥420mm | ≥510mm |
| Feeding speed | 5-25m/min | 5-25m/min | 5-25m/min |
| Size of sanding belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
| #1 sanding shelf | ø165mm rubber, 7.5kw(85sh) | ø165mm rubber, 11kw(85sh) | Ø210mm rubber, 22kw(85sh) |
| Sanding belt (cloth) | 120Mesh | 120Mesh | 120Mesh |
| Total motor power | 9.37kw | 12.87kw | 22.55kw |
| Working air pressure | ≥0.55Mpa | ≥0.55Mpa | ≥0.55Mpa |
| Sanding thickness | 0.8mm for hard panel & 1mm for soft panel | 0.8mm for hard panel & 1mm for soft panel | 0.8mm for hard panel & 1mm for soft panel |
| Speed of sucked air | ≥25m/s | ≥25m/s | ≥25m/s |
| Overall dimensions | 1862*1265*2000mm | 1620*1675*2040mm | 1940*2020*2200mm |
