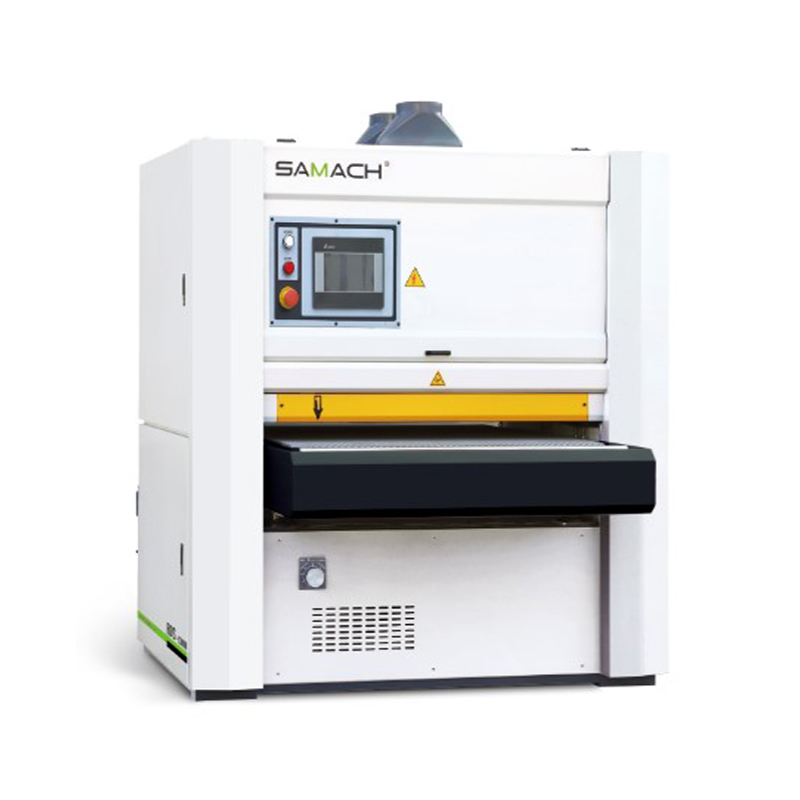

Single Head Lacquer Sanding Machine
$0.00 USD
Shipping calculated at checkout.
Quantity
Free worldwide shipping
Free returns
Carbon neutral
Secure payments

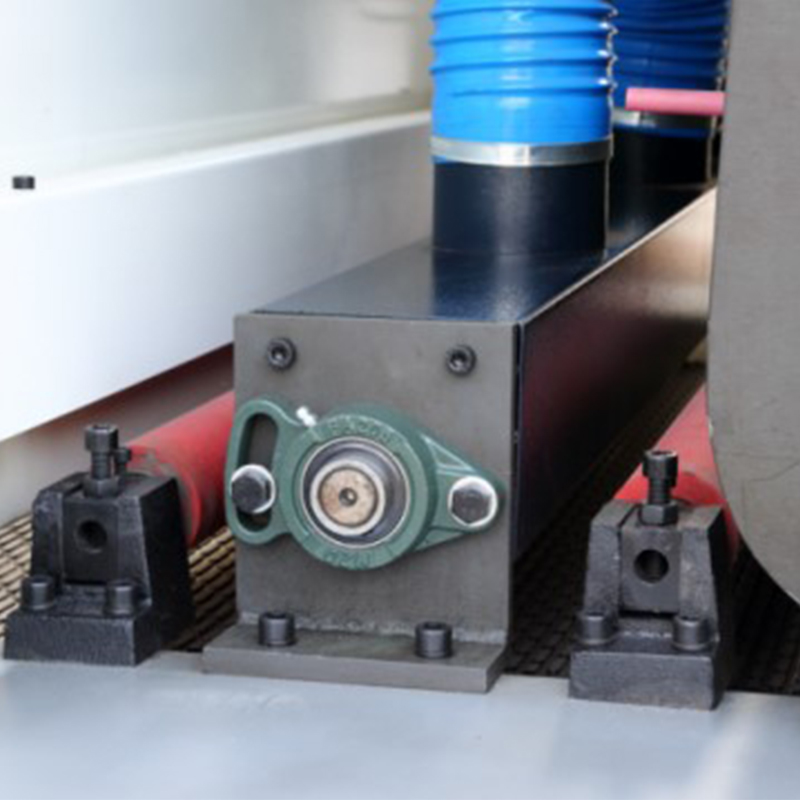

- RUBBER ROLLER PLUS BUILD IN BRUSH FOR BOARDS AFTER PAINTING
- SWING SANDING BELT DUST REMOVE TO KEEP BELT CLEAN TO EXTEND THE SANDING BELT WORK TIME
- HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME, STABLE AND PRECISION

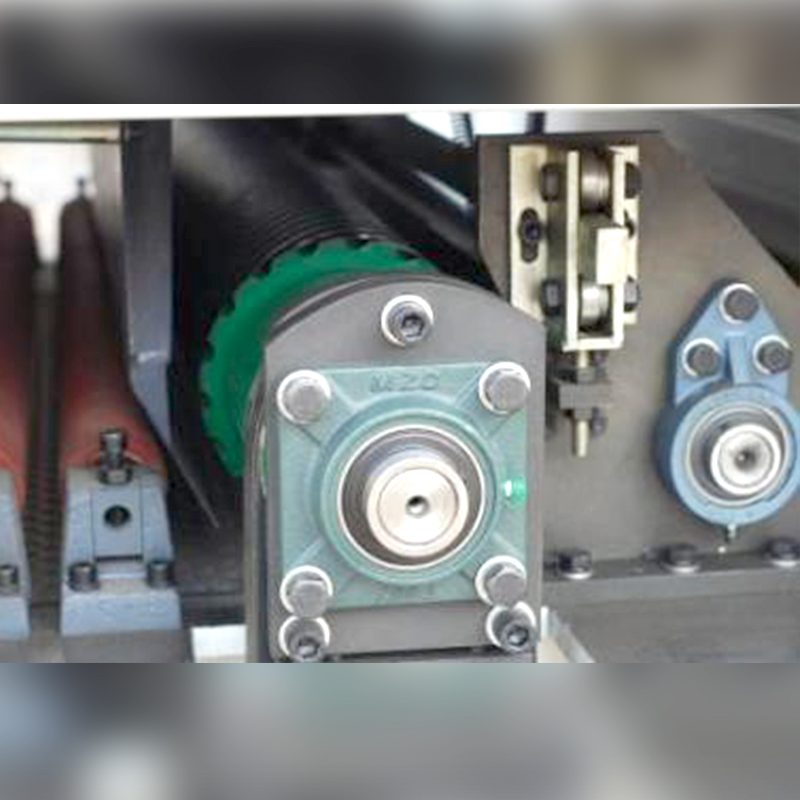

- ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY
| Model | RPS630R | RPS1000R | RPS1300R |
| Working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 2-100mm | 2-100mm | 2-100mm |
| Abrasive belt speed | 3-16m/s | 3-16m/s | 3-16m/s |
| Feed speed | 5-18m/min | 5-18m/min | 5-18m/min |
| Size of abrasive belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
| Sanding belt (paper) | 320 mesh | 320 mesh | 320 mesh |
| #1 sanding shelf | 4kw, Ø190mm, 25sh rubber | 7.5kw, Ø190mm, 25sh rubber | 11kw, Ø240mm, 25sh rubber |
| Total motor power | 5.5kw | 9.7kw | 15kw |
| Working air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Speed of sucked air | ≥25m/s | ≥25m/s | ≥25m/s |
| Overall dimensions | 1530*1233*2000mm | 1545*1620*2030mm | 1870*1983*2145mm |
