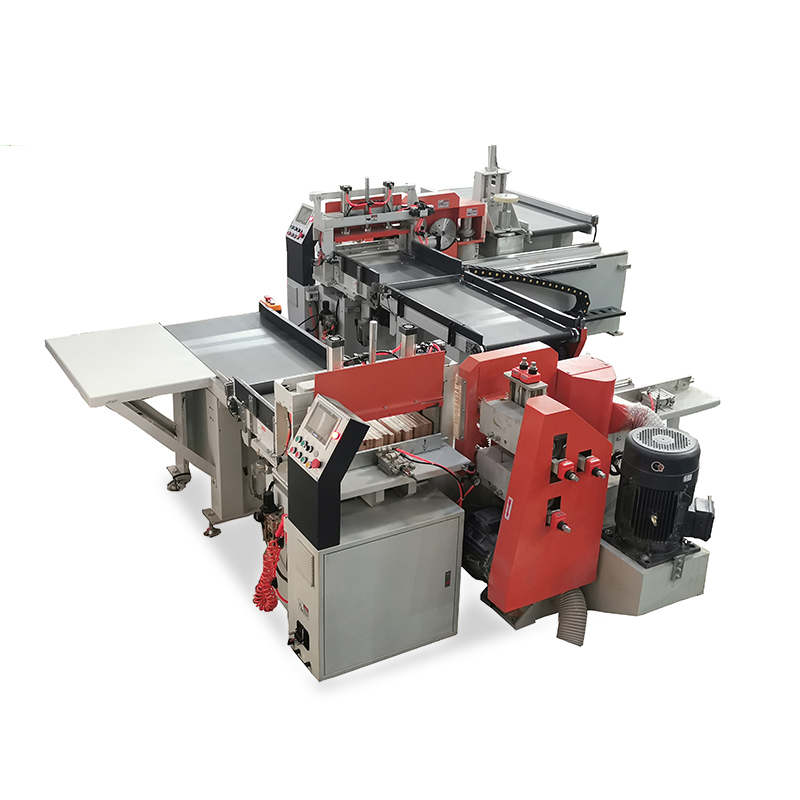

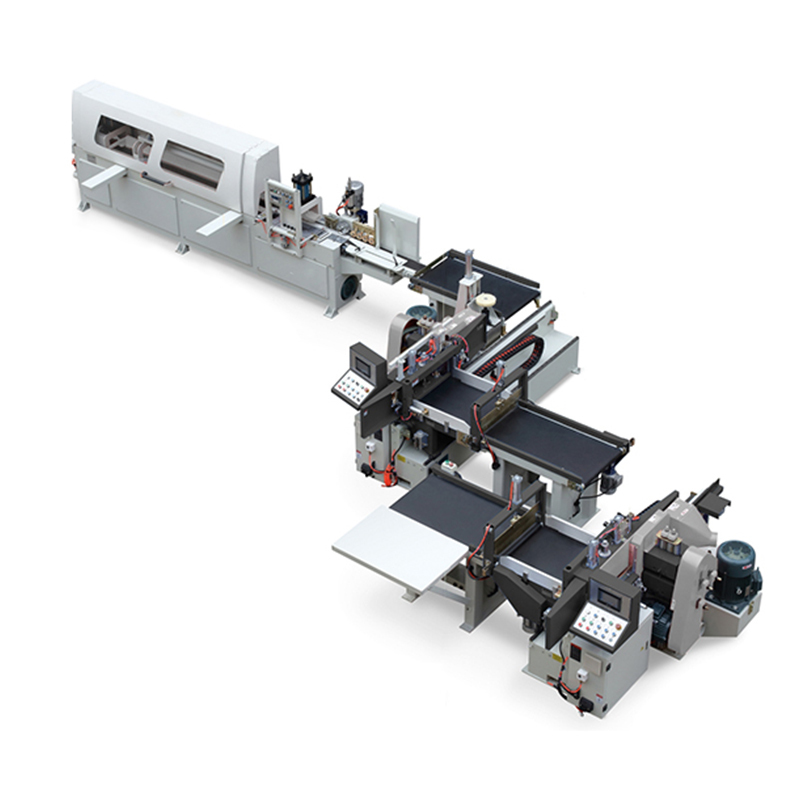

Semi-automatic Finger Joint Line
- HIGH OPERATIONAL CAPACITY, PROCESS SPEED UP TO 6 CYCLE PER MINUTE
- OUR FINGER JOINT CAN PROCESS SHORTEST RESIDUAL WOOD OF 15CM LONG, MAXIMUM YOUR PRODUTION, MINIMUM YOUR COST
- CONIROL PANEL ARE EASY TO OPERARE
- TWO OPERATORS, EASY OPERATION, SAVE LABORS

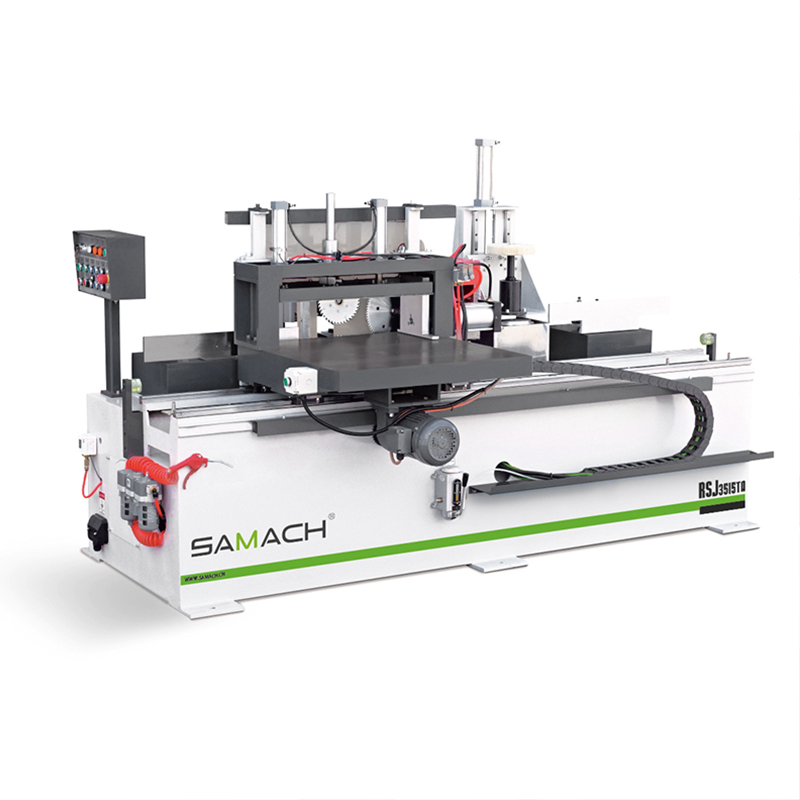

| Model | Finger joint shaper | Finger joint shaper(with gluing) |
| Worktable size | 850*600mm | 850*600mm |
| Max. working size | 850*80*150mm | 850*80*150mm |
| Min. working size | 150*20*30mm | 200*30*20mm |
| Shaper spindle diameter | Φ70mm | Φ70mm |
| Shaper blade diameter | Φ160mm | Φ160mm |
| Main saw blade size | Φ255mm | Φ255mm |
| Main saw spindle speed | 2840rpm | 2840rpm |
| Shaper spindle speed | 6000rpm | 6000rpm |
| Working air pressure | 0.5-0.8 Mpa | 0.5-0.8 Mpa |
| Total power | 16.12kw | 18.74kw |

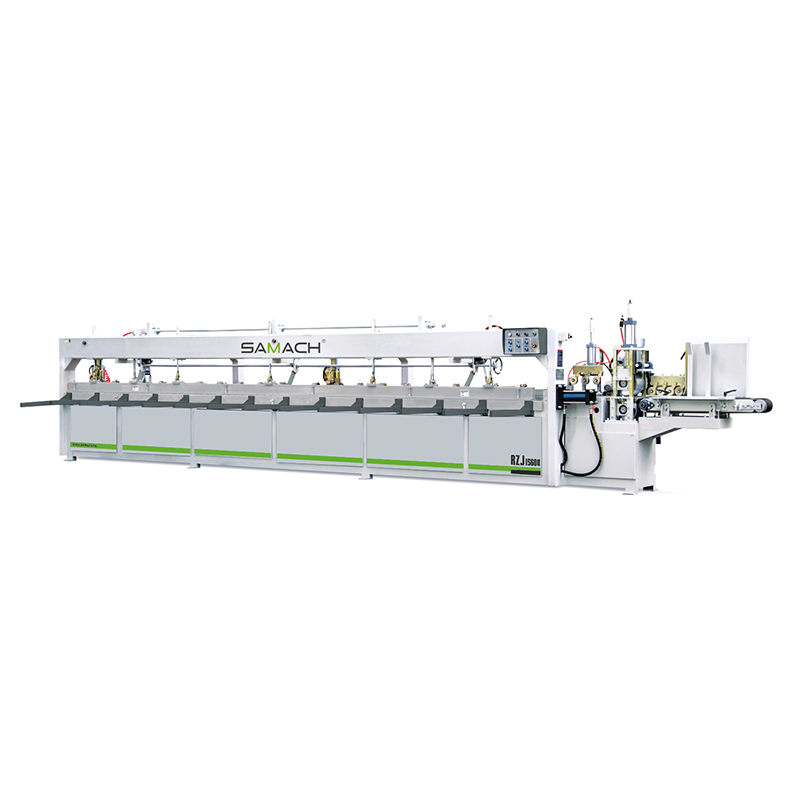

| Model | Finger joint assembler |
| Joint length | 2000-2500mm |
| Joint width | 30-150mm |
| Joint thickness | 18-80mm |
| Main saw blade size | Φ355mm (14") |
| Rated power of saw spindle | 3kw |
| Rated power of oil pump | 2.2kw |
| Max. push power of oil pressure | 7800kg |
| Rated power of feeding speed | 1.5kw*2Pcs |
| Overall dimension | 4300*1650*1600mm |
| Weight | 1850kg |

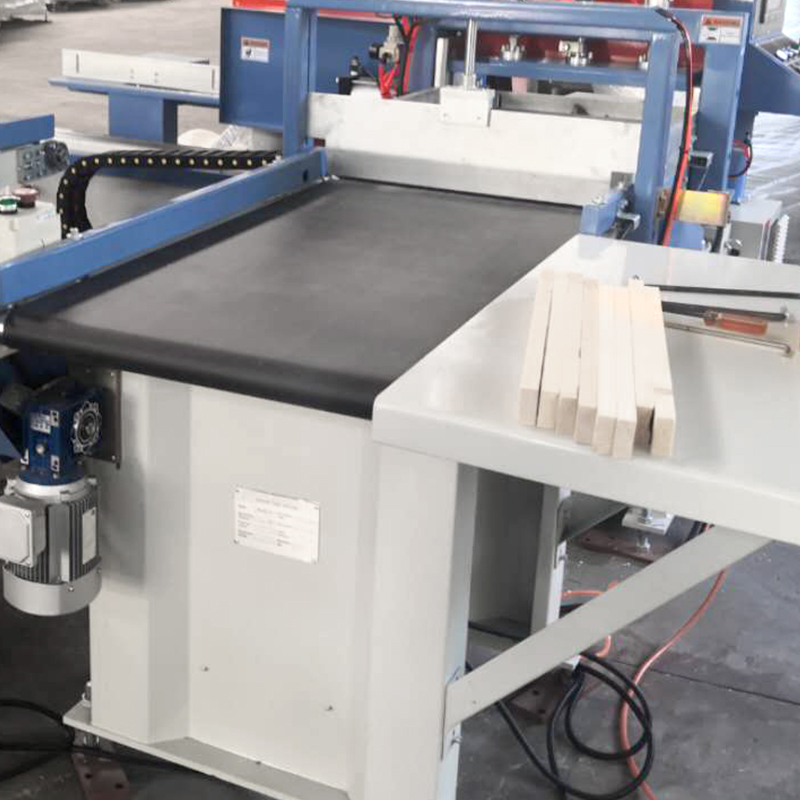

| Model | Horizontal belt conveyor | Upender |
| Width of work table | 150mm | 150mm |
| Rate power of motor | 1.5kw | 1.5kw |
| Working pressure | 0.6Mpa | 0.6Mpa |
| Overall diameter | 1800*1200*1000mm | 2600*650*1200mm |
