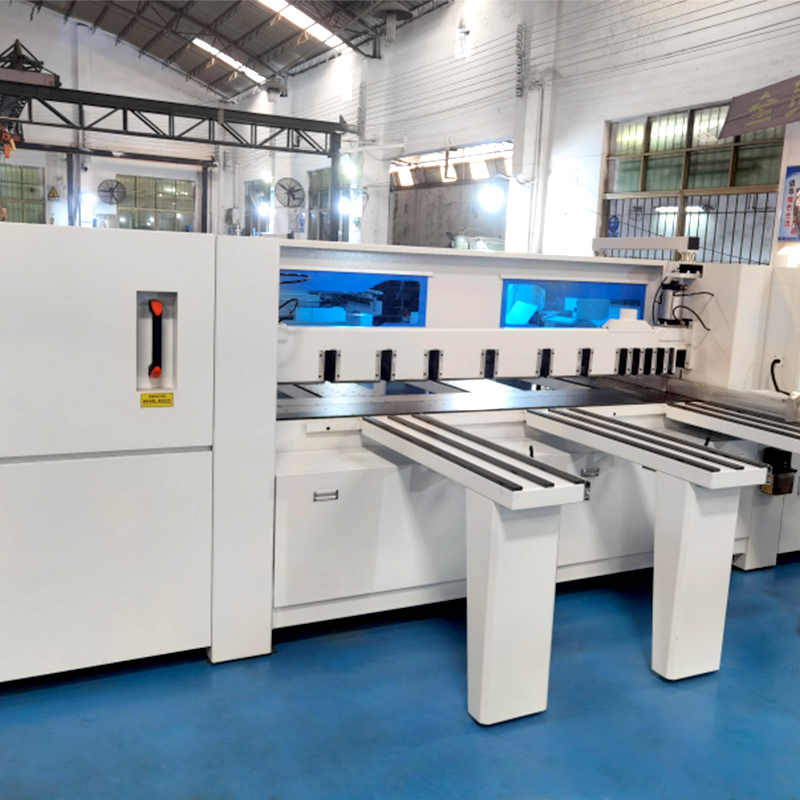

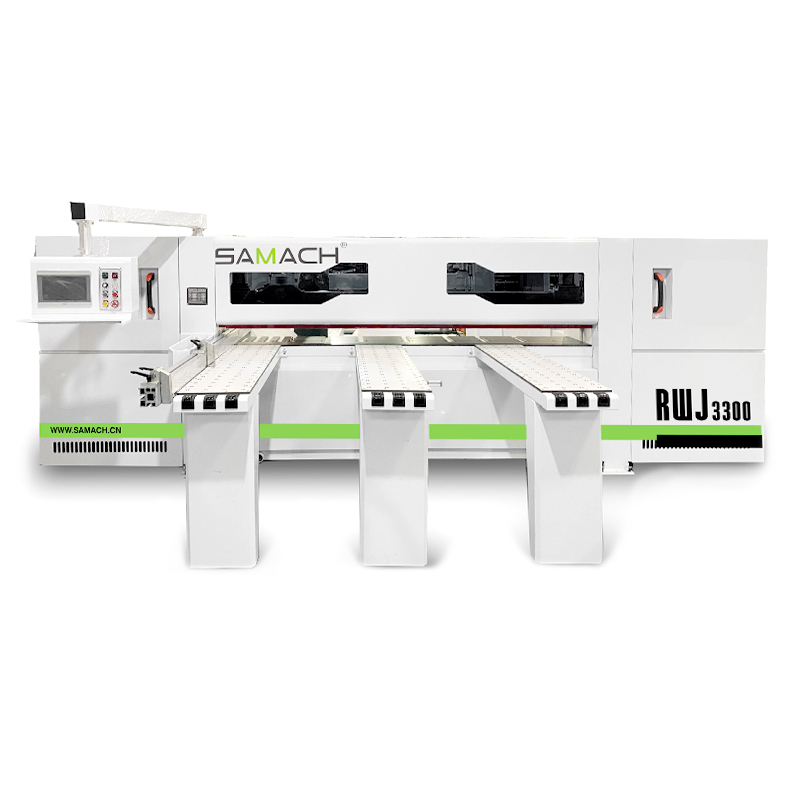

Reciprocating Panel Saw
- SUITABLE FOR LARGE QUANTITY OF SAME LENGTH WORKPIECE
- SELECT HIGH-QUALITY STEEL, ADOPT HIGH-DENSITY WELDING TECHNOLOGY AND ANNEALING TREATMENT TO EFFECTIVELY ENSURE THE STRUCTURE STABILITY

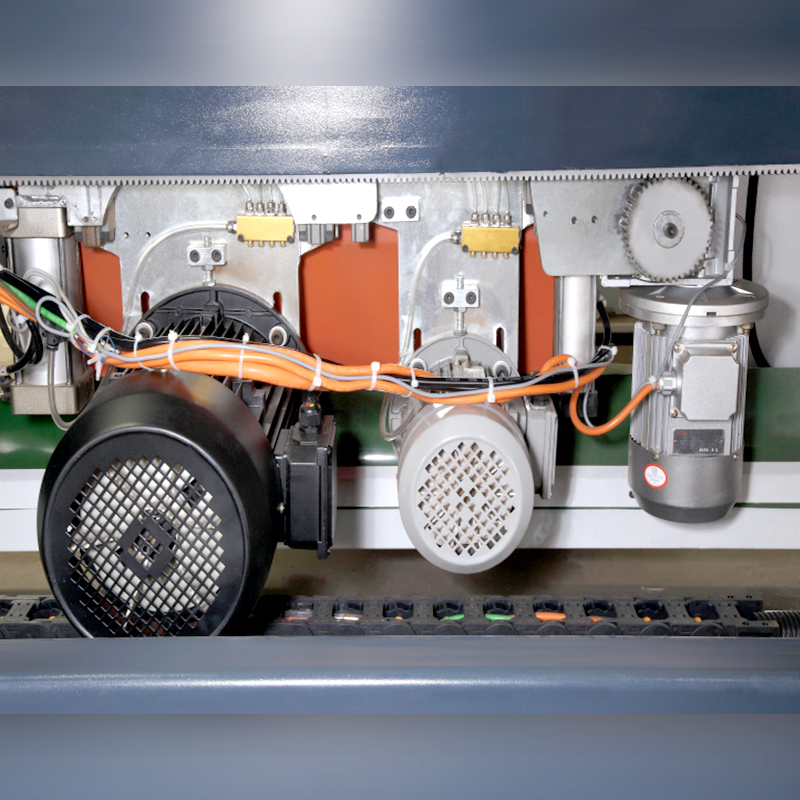

- THE SAW CARRIER BASE IS GUIDED BY DOUBLE GUIDE RAILS, MAKES THE STRAIGHT SAW ROAD AND HIGH PRECISION

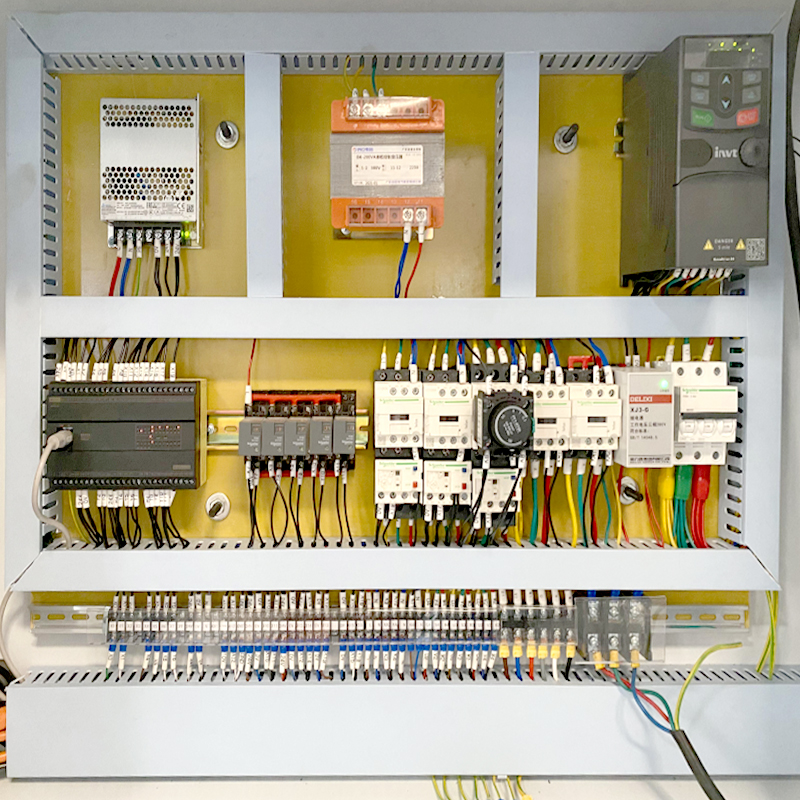

- ADOPT TAIWAN ELECTRICAL ELEMENTS AND SOLENOID VALVE, DURABLE AND FASTER
| Model | RWJ2800 | RWJ3300 |
| Main saw shaft diameter | Ф80mm | Ф80mm |
| Main saw speed | 4100rpm | 4100rpm |
| Groove saw shaft diameter | Ф55mm | Ф55mm |
| Main saw motor power | 11kw | 11kw |
| Groove saw motor power | 2.2kw | 2.2kw |
| Saw carrier motor power | 1.5kw | 1.5kw |
| High pressure blower motor | 2.2kw | 2.2kw |
| Cutting speed | 0-100m/min | 0-100m/min |
| Return speed | 0-120m/min | 0-120m/min |
| Machine size (L*W*H)MM | 5300*3200*1800 | 5900*3800*1800 |
| Weight | 3000kg | 3500kg |
