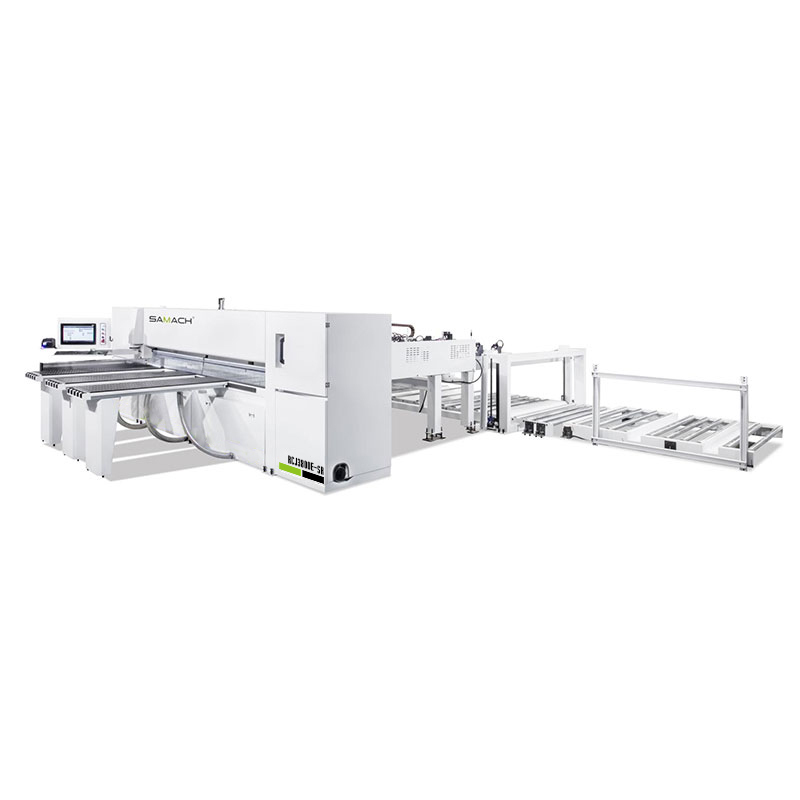

| Model |
RCJ3800E-SR |
| Main saw power |
16.5kw |
| Scoring saw motor power |
2.2kw |
| Max. cutting length |
3750mm |
| Max. cutting thickness |
100mm |
| Max. cutting width |
3750mm |
| Min. panel size for horizontal cutting |
5mm |
| Min. panel size for vertical cutting |
40mm |
| Servo positioning accuracy |
0.02mm |
| Cutting accuracy |
±0.1mm |
| Main saw blade outer diameter |
360mm |
| Main saw blade inner diameter |
75mm |
| Main saw speed |
4800r/min |
| Traction motor power (rack drive) |
2.0kw |

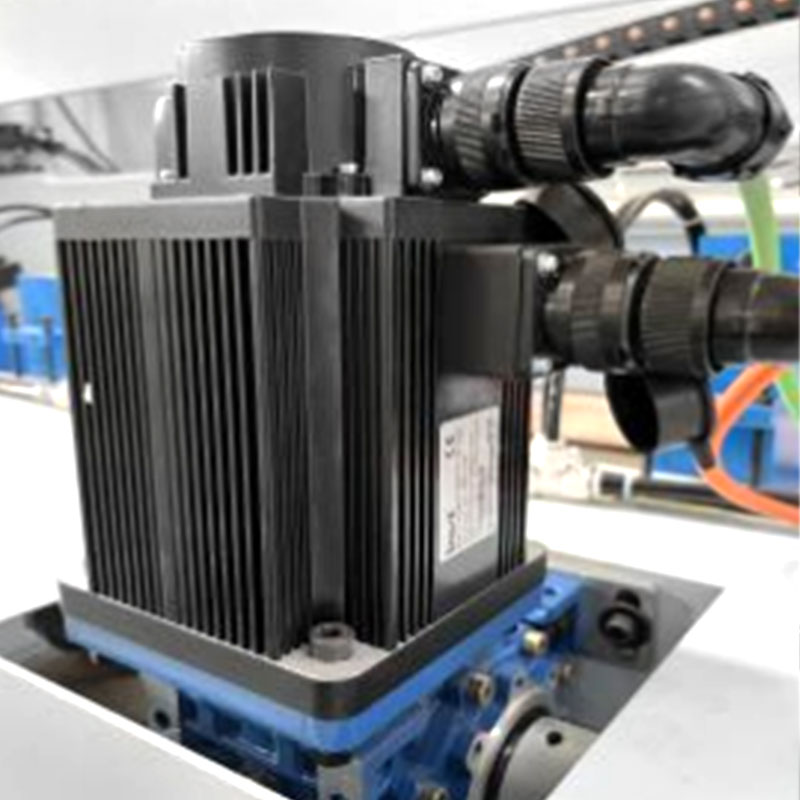

| Gripper servo motor |
2.0kw |
| Cutting speed |
100m/min |
| Return speed |
120m/min |
| Lift platform power |
4kw |
| High pressure blower |
4kw |
| Air pressure |
0.6-0.8mpa |
| Air float table specifications |
1750*540mm*4pcs |

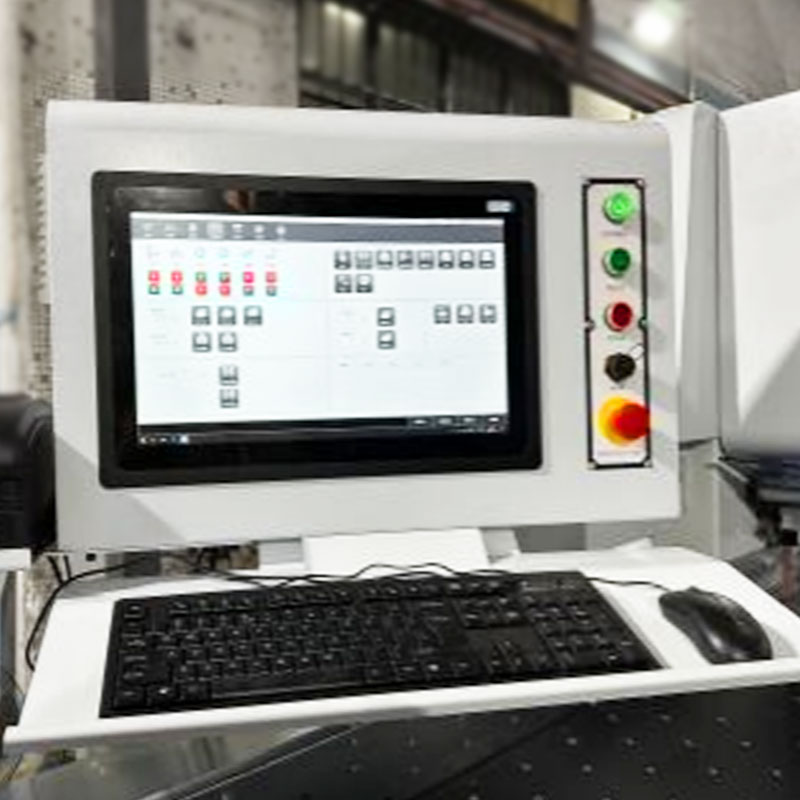

| Display screen |
19 inch |
| Total power |
30.7kw |
