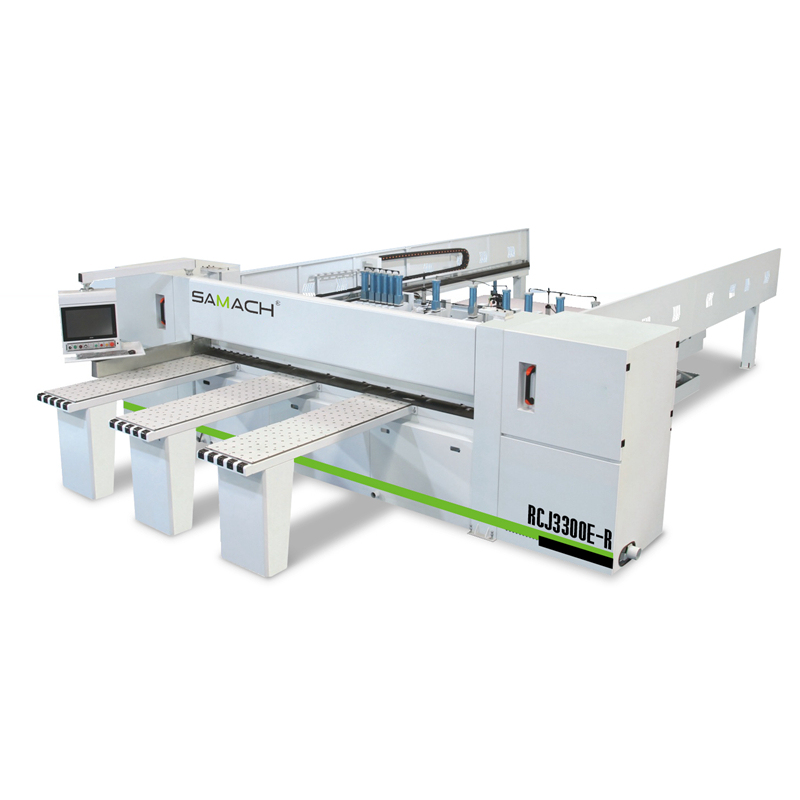

Rear Loading CNC Panel Saw

AUTOMATIC LOADING FOR LARGE QUANTITIES TO SAVE LABORS
HIGH PRECISION: THE MACHINE BODY SAW CARRIER IS ADOPT GERMAN TECHNOLOGY, THE PERFECT COMBINATION OF RACK AND PINION TRANSMISSION AND REDUCER CONTROL, THE SAWING ACCURACY IS WITHIN ±0.15
THE AUTOMATIC POSITIONING AND SAWING CAN BE REALIZED FOR DIFFERENT WORKPIECE WIDTH

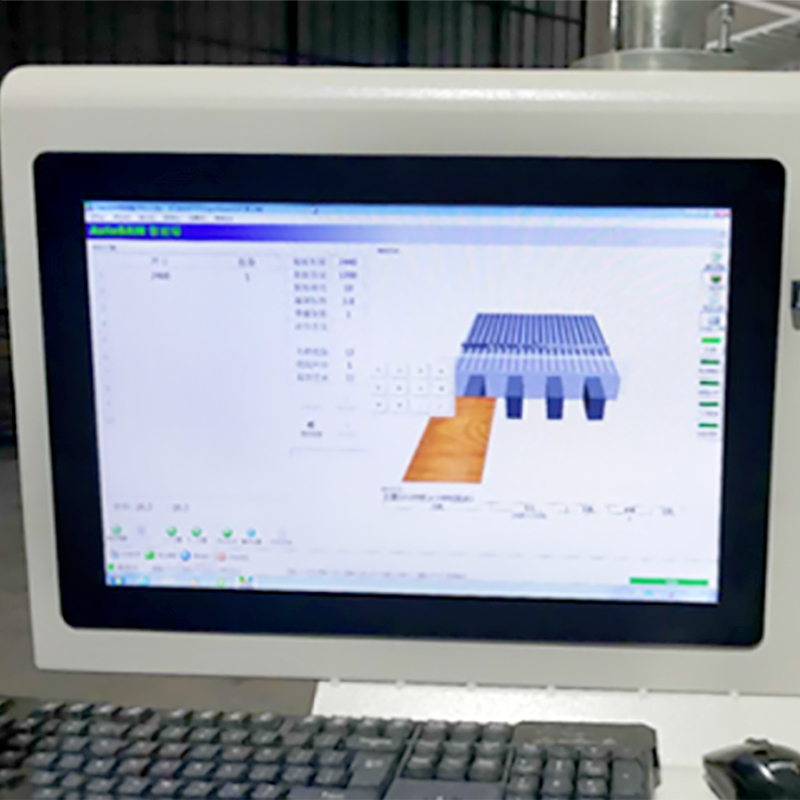

PLC CONTROL SYSTEM: IT CAN EDIT AND MANAGE THE SAWING PLAN, AND CONNECT WITH A VARIETY OF SAWING SOFTWARE, BARCODE MANAGEMENT SOFTWARE, AND AUTOMATION SYSTEM

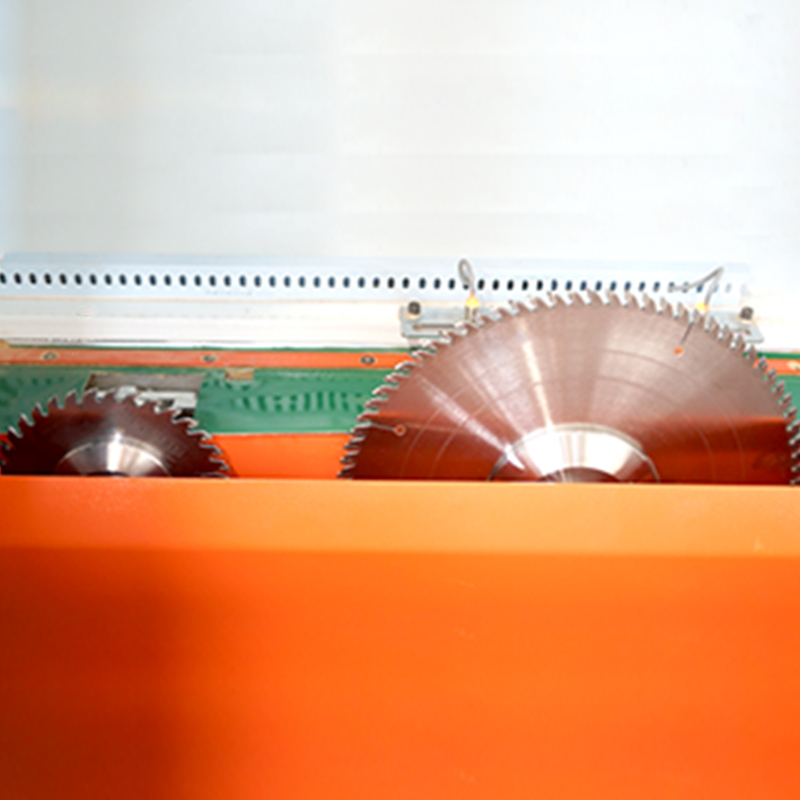

INDEPENDENT LIFTING OF MAIN AND GROOVE SAWS: THE MAINE SAW ADOPTS IGARASHI MOTOR 15KW, AND THE GROOVE SAW 2.2KW

Model	RCJ2800E-R	RCJ3300E-R
Work length	2750mm	3250mm
Work thickness	100mm	100mm
Work precision	±0.1mm	±0.1mm
Main saw blade diameter	Ф355mm	Ф355mm
Main saw shaft diameter	Ф80mm	Ф80mm
Main saw shaft speed	4800rpm	4800rpm
Groove saw blade diameter	Ф180mm	Ф180mm
Groove saw shaft diameter	Ф55mm	Ф55mm
Groove saw shaft speed	6900rpm	6900rpm
Saw base forward speed	100m/min	100m/min
Saw base retreat speed	150m/min	150m/min
Main saw motor	15kw	15kw
Groove saw motor	2.2kw	2.2kw
Saw base drive motor	1.5kw	1.5kw
Automatic feeding motor	2.0kw	2.0kw
High pressure blower motor	2.2kw	2.2kw
Gripper quantity	11	13
Air pressure	5-7kg/cm²	5-7kg/cm²
Height of worktable away ground	950mm	950mm
Machine size	540067001800mm	590078001800mm
Optimization software&Printer	Optional	Optional
