Piston Air Compressor
Piston Air Compressor
Piston Air Compressor
Piston Air Compressor
Piston Air Compressor
Piston Air Compressor
1/2

Piston Air Compressor

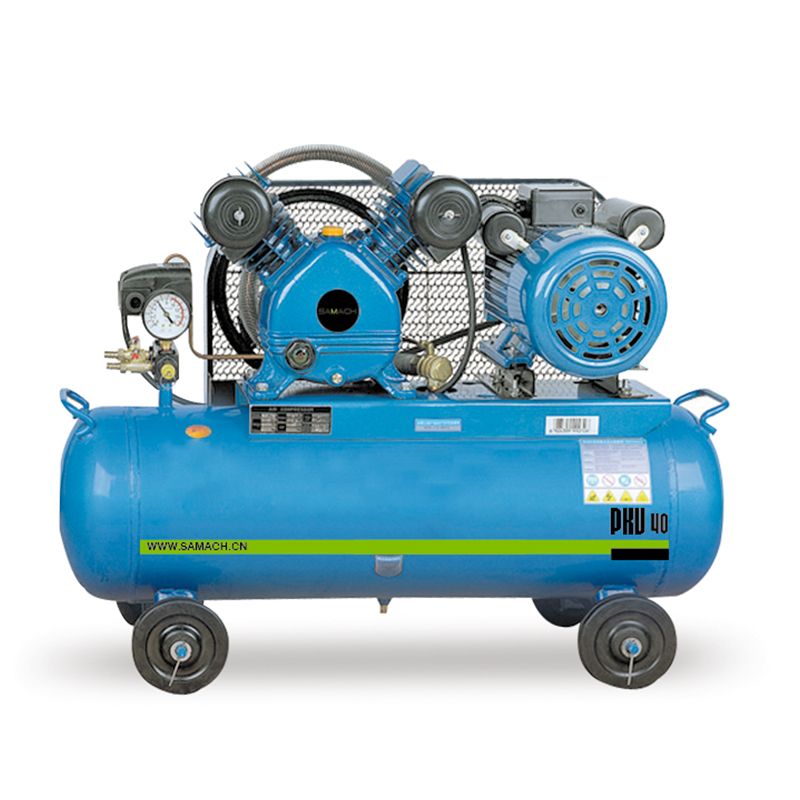

Model RKV11 RKV15 RKV22 RKV40
Motor 1.1KW/1.5HP 1.5KW/2HP 2.2KW/3HP 4KW/5.5HP
Air cylinder 51mm*2 51mm*2 65mm*2 90mm*2
Stroke 43mm 44mm 46mm 60mm
Air displacement 0.08m³/min 0.12m³/min 0.25m³/min 0.48m³/min
Rated pressure 0.8Mpa 0.8Mpa 0.8Mpa 0.8Mpa
Air capacity 35L 40L 100L 125L
Overall size 940*450*690mm 940*450*690mm 1150*480*860mm 1420*540*930mm
Weight 66kg 72.5kg 106.5kg 183kg

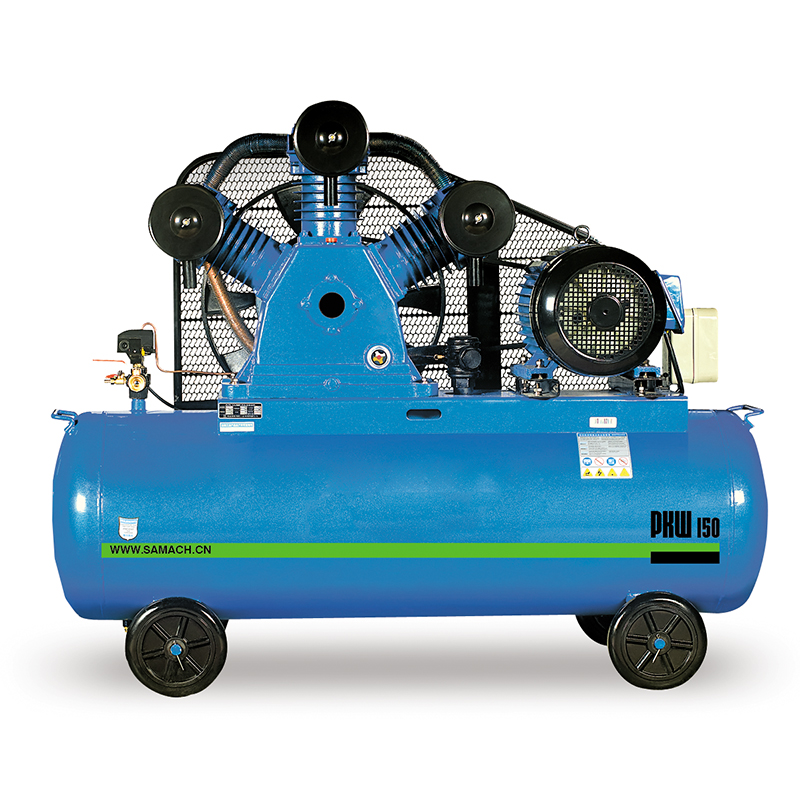

Model RKW30 RKW55 RKW75 RKW150
Motor 3.0KW/4.0HP 5.5KW/7.5HP 7.5KW/10HP 15KW/20HP
Air cylinder 65mm*3 80mm*3 100mm*3 120mm*3
Stroke 48mm 70mm 80mm 100mm
Air displacement 0.36m³/min 0.67m³/min 1.25m³/min 2m³/min
Rated pressure 0.8Mpa 0.8Mpa 0.8Mpa 0.8Mpa
Air capacity 110L 135L 250L 340L
Overall size 1200*480*850mm 1510*580*960mm 1680*760*1220mm 1880*820*1390mm
Weight 123kg 214kg 370kg 540kg
