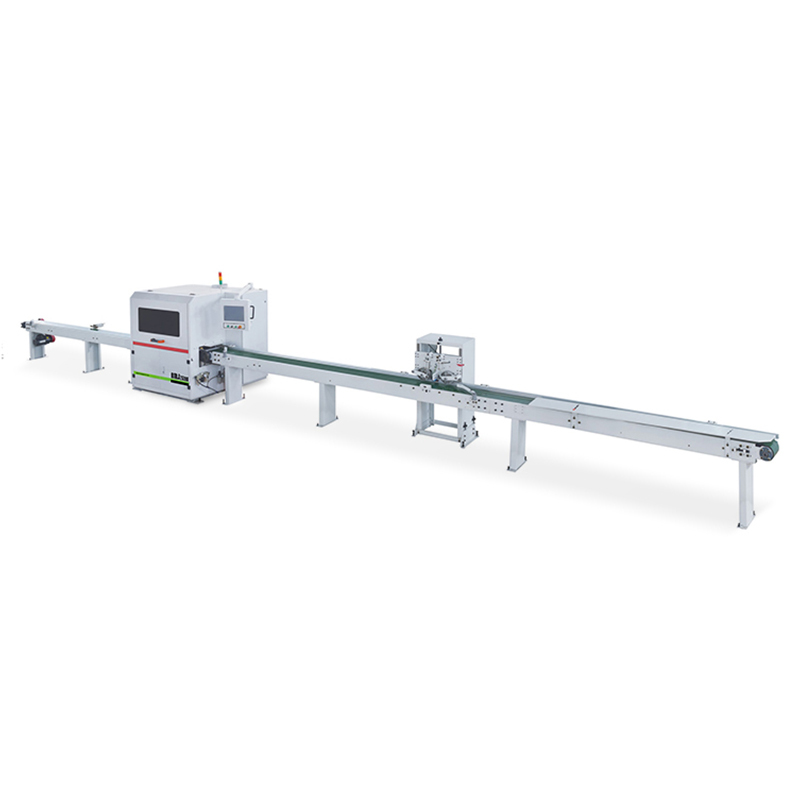

Optimization Cut Off Saw
- OPTIMAL YIELD CUTTING: ACCORDING TO THE MAX WOOD YIELD. CALCULATE THE BEST POSSIBLE LENGTH COMBINATION FROM THE AVAILABLE FIXED LENGTHS IN THE CUTTING LIST.
- OPTIMAL VALUE CUTTING: ACCORDING TO THE MAX WOOD VALUE, CALCULATE THE BEST POSSIBLE VALUE COMBINATION FROM THE AVAILABLE VALUES IN THE CUTTING LIST.
- DEFECT REMOVAL: ONLY CUT OUT THE MATERIAL DEFECTS, SUCH AS KNOTS, TEAR-OUTS AND ROTS.
- LONGEST LENGTH CUTTING: ALWAYS CUT THE LONGEST LENGTH FIRST AVAILABLE IN THE CUTTING LIST.
- JOINT CUTTING: CUT OUT THE RESIDUAL WORKPIECE AND WASTE MATERIAL. AND THEN JOINT THEM THROUGH FINGER JOINTING TECHNOLOGY, REDOING MATERIAL WASTE.
- QUANTITY (ORDER) CUTTING: ACCORDING TO THE QUANTITY STATED IN THE ORDER, CALCULATE THE BEST POSSIBLE LENGTH COMBINATION FROM THE AVAILABLE FIXED LENGTHS IN THE CUTTING LIST AND FULFILL THE QUANTITY TASK ON VARIOUS LENGTHS AUTOMATICALLY.
| Model | RMJ-S120A | RMJ-S260A |
| Working width | 20-120mm | 20-260mm |
| Working thickness | 12-50mm | 12-80mm |
| Max.cutting size | 80*50mm | 180*80mm/150*100mm |
| Length of feeding work table | 6300mm | 6300mm |
| Length of output table | 5000m | 5000m |
| Number of output pusher | 3 | 3 |
| Width of work table | 330mm | 330mm |
| Min cutting length | 400mm | 400mm |
| Feeding speed | 80m/min | 80m/min |
| Feed active rollers | 5 | 5 |
| Saw blade diameter | 405mm/455mm | 455mm/510mm |
| Saw shaft speed | 3500r/min | 3500r/min |
| Saw shaft motor power | 5.5kw | 5.5kw |
| Saw cut frequency | 2-4 cut/1s | 2-4 cut/1s |
| Lifting motor power | 3kw | 3kw |
| Feeding motor power | 3kw | 3kw |
| Output motor power | 0.75kw | 0.75kw |
| Pressing wheel lift motor power | 0.18kw | 0.18kw |
| Total power | 12.43kw | 12.43kw |
| Measuring wheel diameter | 160mm | 160mm |
| Air Tolerance | 1000NL/min | 1000NL/min |
| Air Pressure | 0.6mpa | 0.6mpa |
| Diameter of dust collect | Ф140mm*2 | Ф140mm*2 |
| Exhaust speed | 30m/s | 30m/s |
