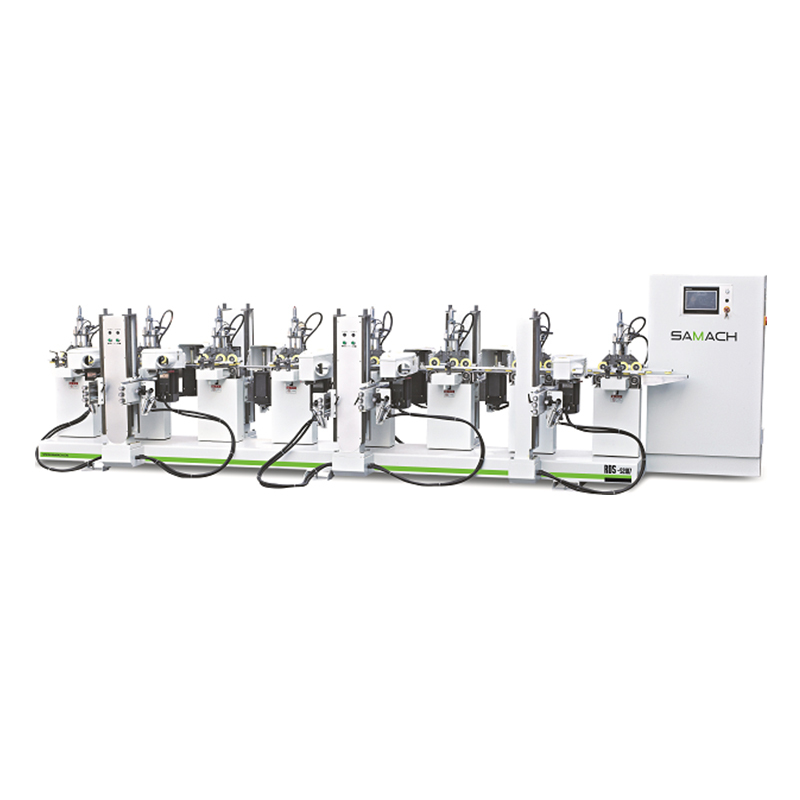

| Model |
RDS-S2W6~12 |
| Width of the workpiece |
20-200mm |
| Min. workpiece length |
1000mm |
| Workpiece thickness range |
3-80mm |
| Feed speed |
（Frequency）3-40m/min |
| Feed motor power |
0.55kw*9 |
| Sand frame motor power |
2.2KW*2 |
| Sand frame speed |
（Frequency）300-1440r/min |
| Sand frame angle |
Adjustable |
| Sand head spindle motor power |
1.5 kw*7 |
| Number of head spindle configurations |
7 sets(Configure PLC grinding wheel automatic compensation) |
| Overall size |
10000*1600*1600mm |
| Total power |
42kw |
| Automatic compensation device |
7 sets, Compensation amount 0.04mm/time |
| Sand head spindle speed |
（Frequency）2800r/min |
| Sand head spindle rotation |
Adjustable |
| Spindle size (shaft diameter * length) |
Φ25.4*100mm*5 Φ25.4*150mm*2 |
| Grinding wheel size (outer diameter) |
180mm |
| Dust collector diameter |
100mm |
| Working air pressure |
0.2-0.6Mpa |
| Power supply |
380V 50Hz，three-phase five-wire |
| Total power |
19.5kw |
| Overall dimension |
7300*1450*1550mm |
| Weight |
3000kg |
