Metal Sanding Machine with STR-r Series

THE MACHINE IS CAPABLE OF EFFICIENT DE-SLAGGING AND EDGE ROUNDING OF MEDIUM-THICK METAL PARTS AFTER OXY-FUEL, PLASMA, OR HIGH POWER LASER CUTTING PROCESSES

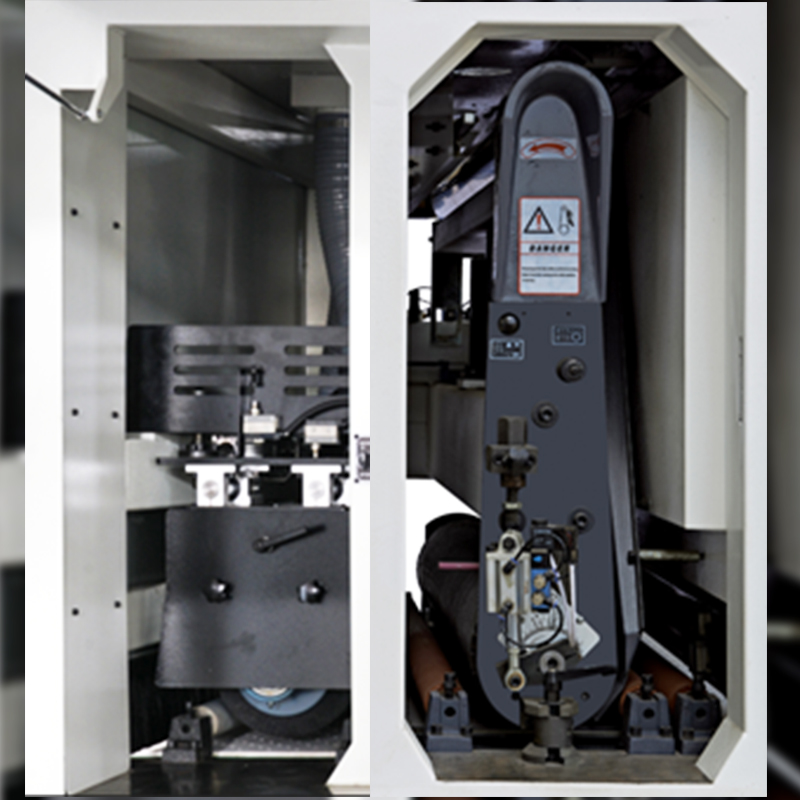

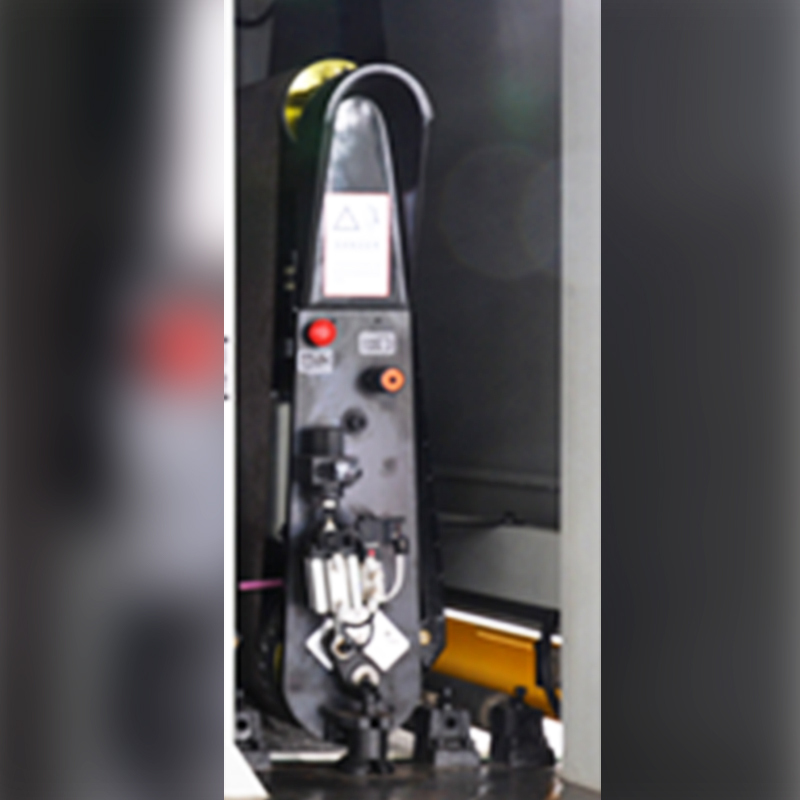

THE WIDE ABRASIVE BELT HEAD IS CAPABLE OF SANDING DOWN AND REMOVING THE BIGGER BURRS ON THE PARTS, OR USING IT FOR WHOLE SURFACE FINISHING
EFFICIENT AND CLEAN PROCESSING CHARACTERISTICS ARE SUITABLE FOR THE WORKPIECE TO ENTER THE NEXT PROCESS SUCH AS HEMMING, SURFACE SPRAYING, AND WELDING

Model	ST100R-r	ST130R-r
Effective processing width	1000mm	1300mm
Processing thickness	0.5-100mm	0.5-100mm
Linear speed of contact roller	3-16m/s Frequency	3-16m/s Frequency
Abrasive belt size	2000*1020mm	2200*1320mm
Transfer speed	0.5-5m/min Frequency	0.5-5m/min Frequency
Contact roller motor power	18.5kw	22kw

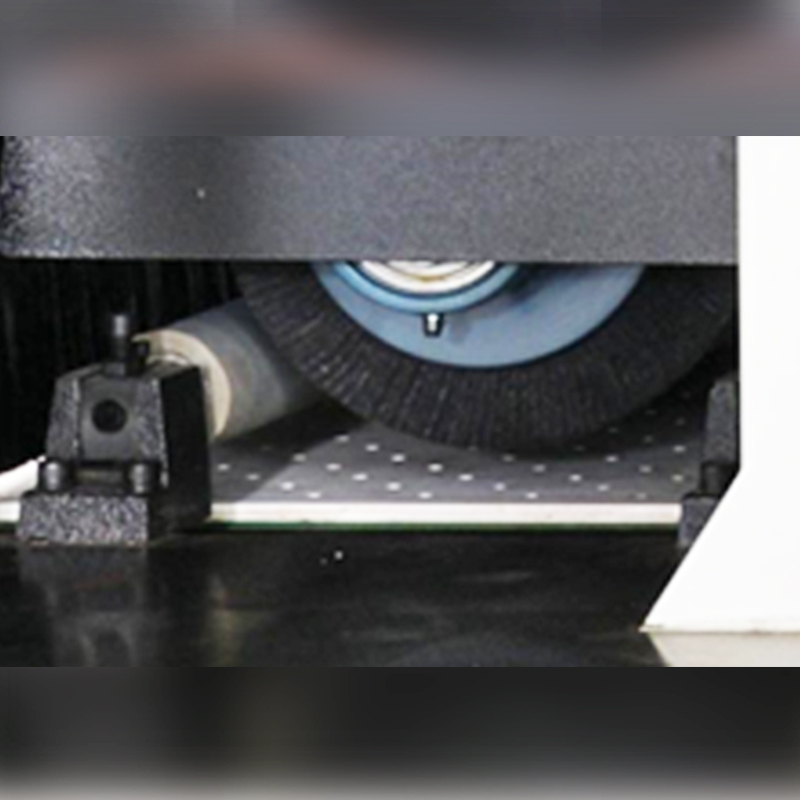

Polishing roller motor power	7.5kw	11kw
Polishing roller lifting power	0.25kw	0.25kw
Polishing roller swing power	0.25kw	0.25kw
Conveying motor power	1.5kw	1.5kw
Workbench lifting motor power	0.55kw	0.55kw

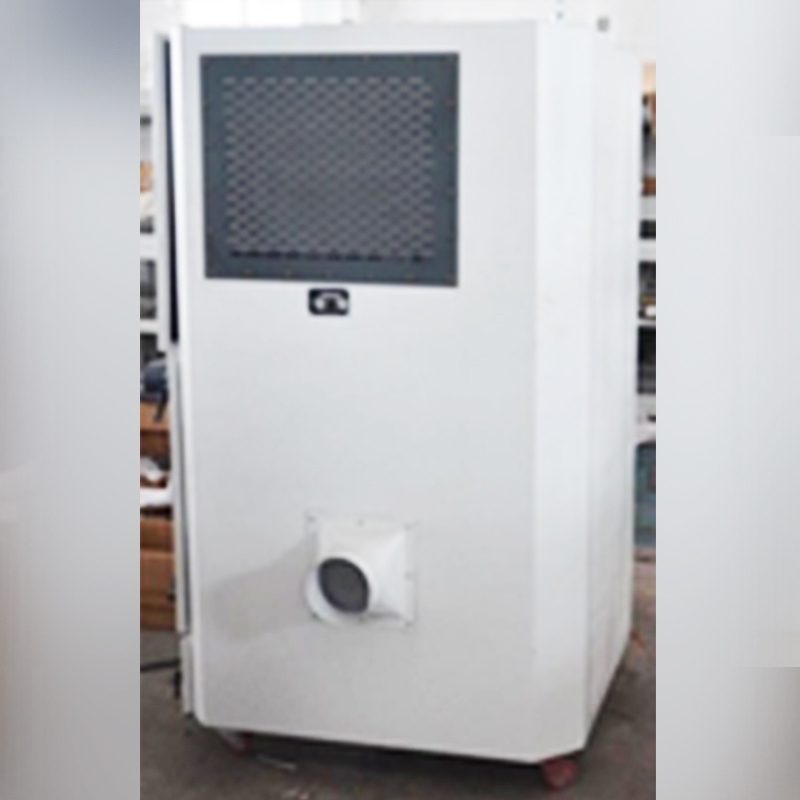

Vacuum suction motor power	15kw	15kw
Total motor power	43.55kw	50.55kw
