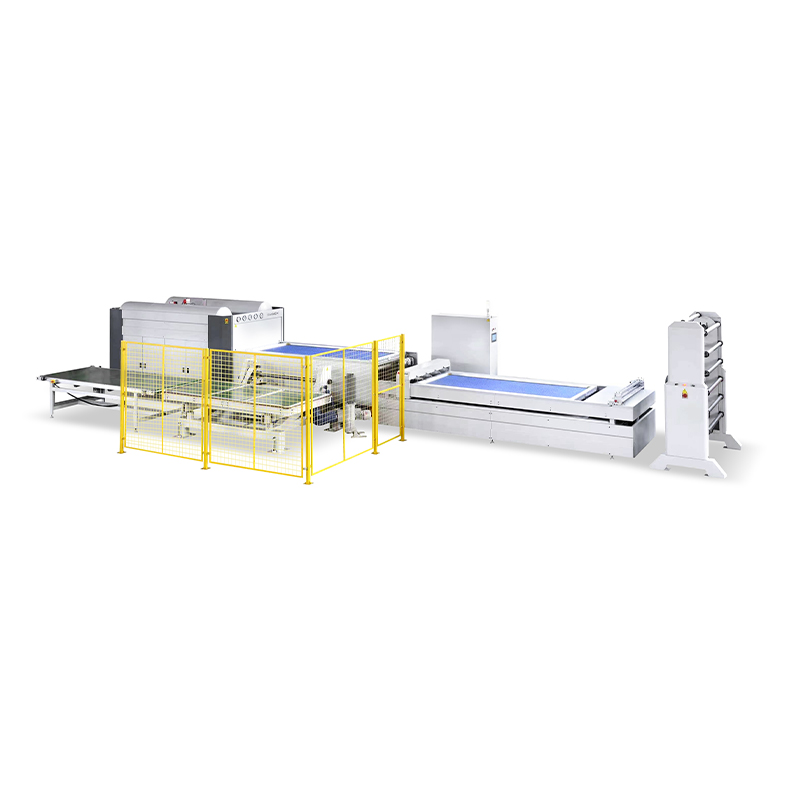

Membrane Press Machine
- THIS MACHINE CAN BE USED TO PASTE PVC, PAPER ETC FILM ON FURNITURE, CABINETS, LOUDSPEAKERS, RELIEF DOORS, DECORATION PANELS FOR WALLS AND OTHER ABNORMAL DECORATION SHAPES WITH A SPECIAL SILICON SHEET
- HEAT TRANSFER OIL HEATING SYSTEM AND HIGH QUALITY HEAT PRESERVATION MATERIAL CAN ENSURE EVEN HEATING AND ENERGY SAVING
- HEAT TRANSFER OIL HEATING SYSTEM AND HIGH QUALITY HEAT PRESERVATION MATERIAL CAN ENSURE EVEN HEATING AND ENERGY SAVING
- THE INTEGRATED MOVEMENT ELECTROMOTOR PRODUCES LESS NOISE AND SELDOM BREAKS DOWN
- ADOPT VACUUM PUMP, WHICH ARE STABLE AND RELIABLE WITH SIMPLE MAINTENANCE WORK. IT IS QUICK TO PUMP OUT,WITH LOWER TROUBLE RATE; IT HAS ULTRA-LARGE GAS TANK WITH DOUBLE AIR CHANNELS TO FLOW THROUGH, LARGE AMOUNT OF THE VENTILATION AND HUGE EXPLOSIVE FORCE
- MAIN COMPONENTS ARE PRODUCED BY NUMERICAL CONTROL MACHINING CENTER TO ENSURE ITS HIGH PRECISION
- THE RACKS ARE ALL COMPOSED OF STEEL PLATE,THE WHOLE FRAME IS REASONABLE, CAN SUPPORT 500 TONS OF PRESSURE
- THE HEATING SYSTEM ADOPTS THE HEAT CONDUCTION OIL FOR HEATING CIRCULARLY, THE TEMPERATURE IS EVEN, AND MACHINE HAS THE BOTTOM HEATING, CAN ENABLE THE PRODUCT TO ACHIEVE AN IDEAL EFFECT
| Model | RWV3000B-PIN |
| Working size (inner size) | 3000*1330*40mm |
| Working speed | 2~4 min/1 time |
| Membrane pressure | 0.3~0.5mpa |
| Positive(+) pressure | 0.4~0.5mpa |
| Negative(-) pressure | -0.8mpa |
| Working voltage | 380V/50Hz or Basis on client country |
| Pressure of supply system | >0.5m³ |
| Total power | 52.6kw (half power after running) |
| Top heating | 36kw |
| Under heating | 12kw |
| Hydraulic station | Integrated System |
| Temperature control | Temperature controller set temperature |
| Heater system | Oil heater system |
| Pin blocks | 4725pcs/worktable |
| Total weight | 18000kg |
| Auto pin size |
28*28mm/worktable lifting height for placement: 12 mm lifting height during machining: 15 mm |
| Outside size | 12000*2250*2250mm |
