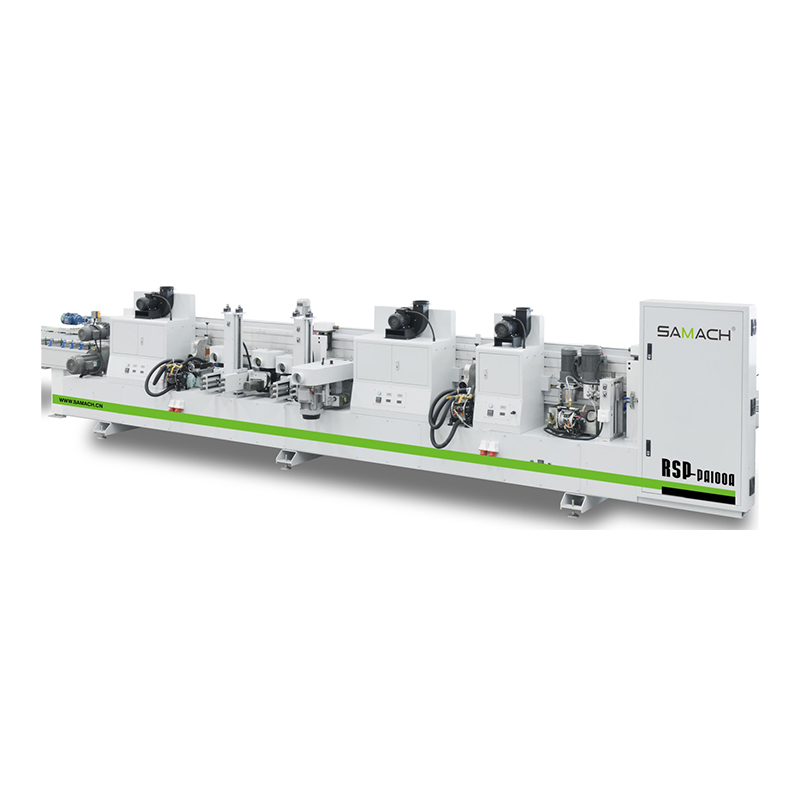

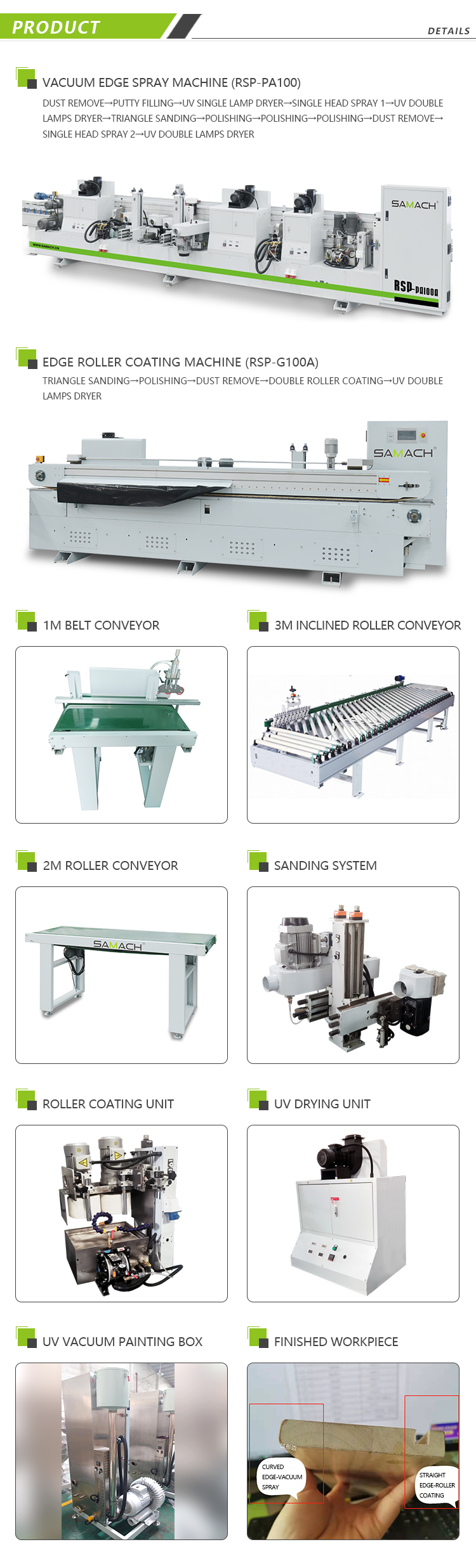

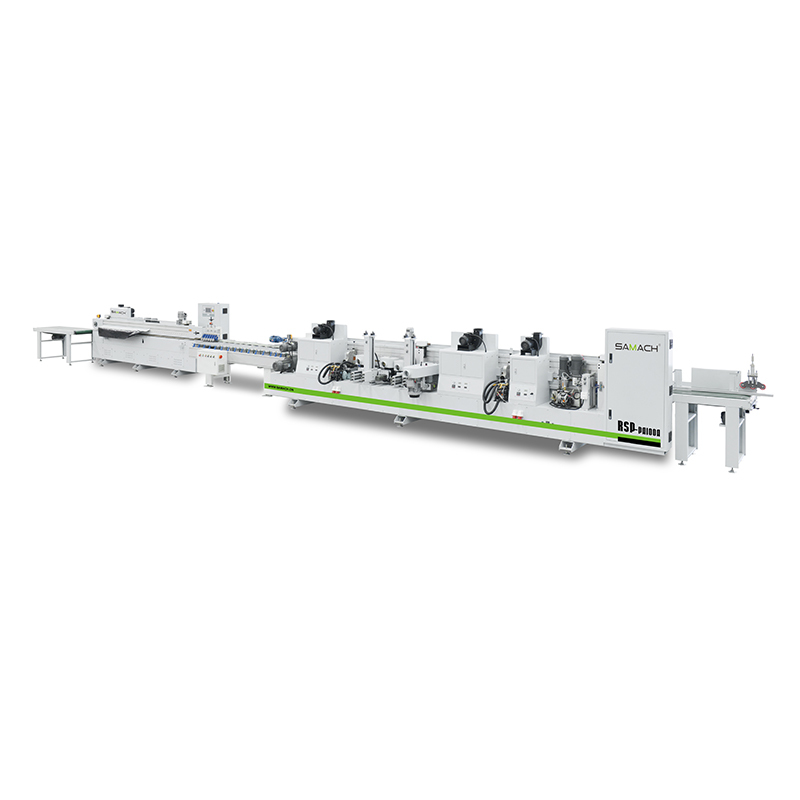

Linear Curved-side Vacuum Spray Line for Drawer

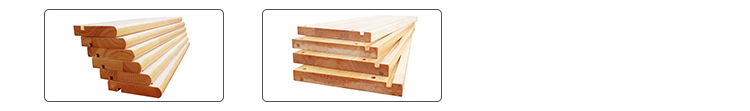

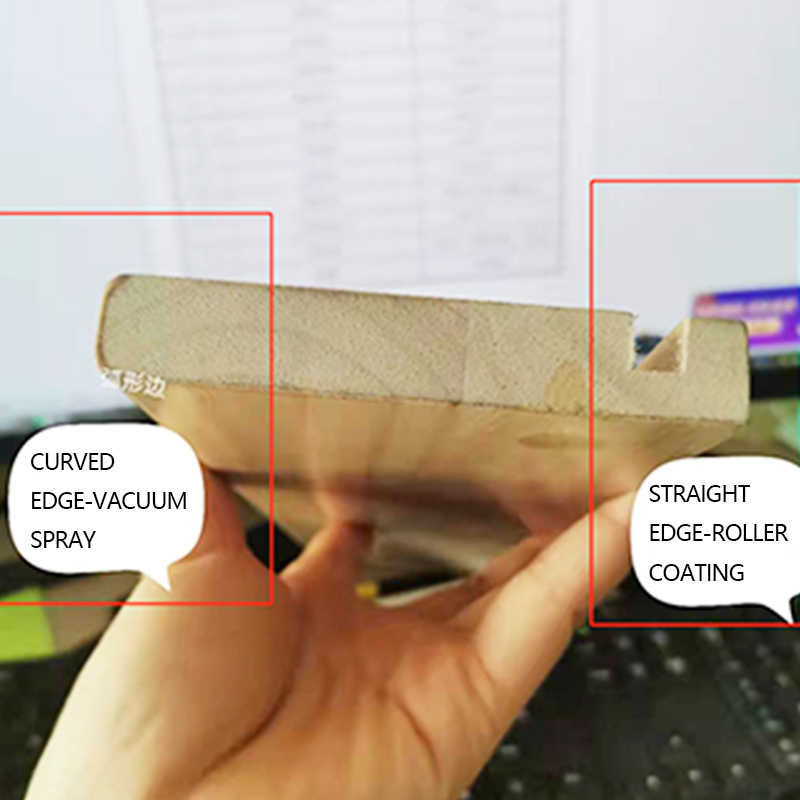

- SPECIAL FOR DRAWER PLATE, WHICH HAS CURVED EDGE AND STRAIGHT EDGE
- VACUUM SPRAY MACHINE FOR CURVED EDGE, EDGE ROLLER COATING MACHINE FOR STRAIGHT EDGE

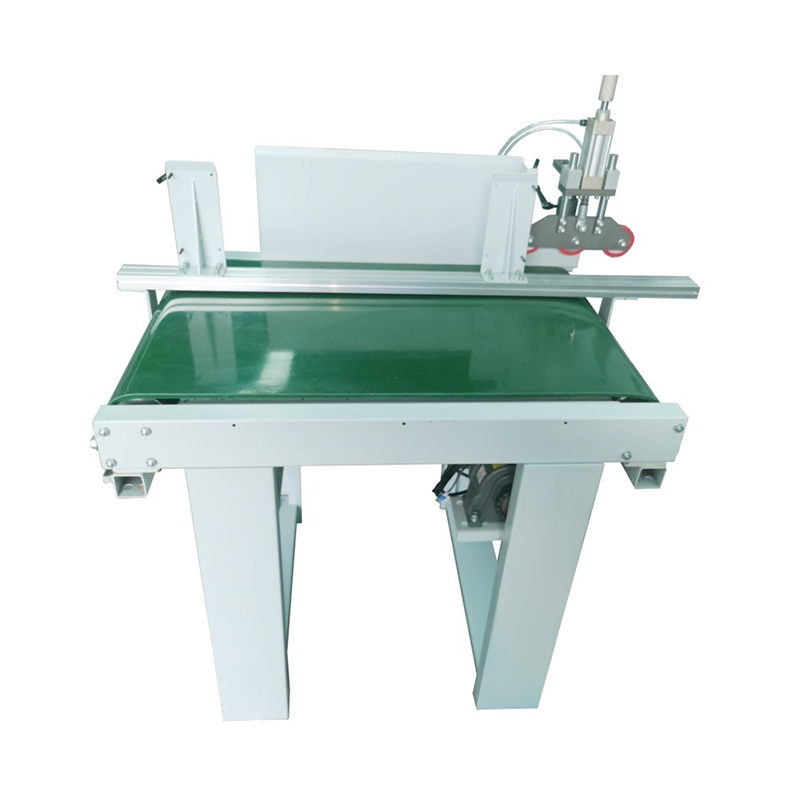

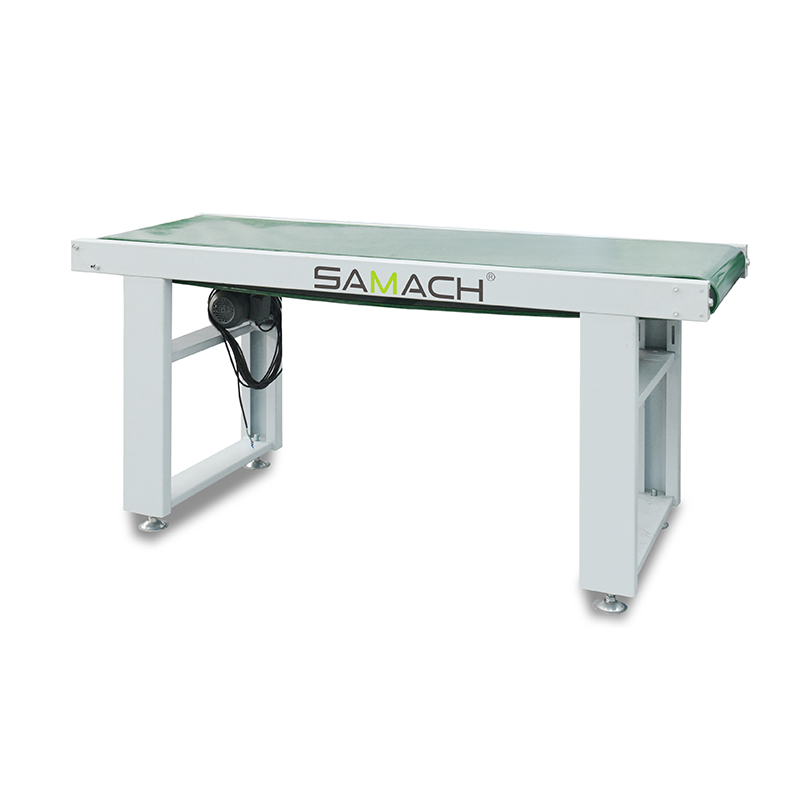

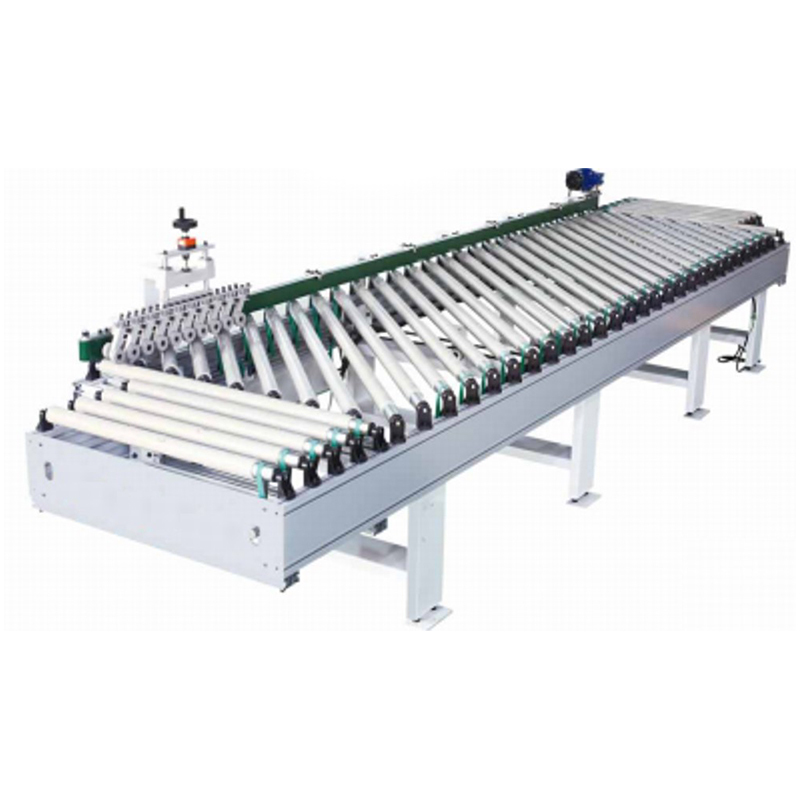

- FEEDER DRIVER AND INCLINED ROLLER CONVEYOR WHICH MAKES IT AUTOMATIC RUNNING FOR THE WHOLE LINE
- FULL AUTOMATIC LINE, SAVE LABORS AND IMPROVE THE WORK EFFICIENCY
| Model | RSP-PAG100A |
| Vacuum Edge Spray Machine | |
| Work thickness | 10-60mm |
| Work width | 80-1000mm |
| Work length | 200-3000mm |
| Conveyor Motor | 3.7kw*1 |
| Lifting motor | 0.37kw*1 |
| Belt motor | 0.75kw*1 |
| Triangular sand motor | 2.2kw*1 |
| Polishing Motor | 1.5kw*3 |
| Roller motor | 0.4kw*2 |
| Lamp power | 3kw*5 |
| Exhaust fan | 0.4kw*1; 0.75kw*2 |

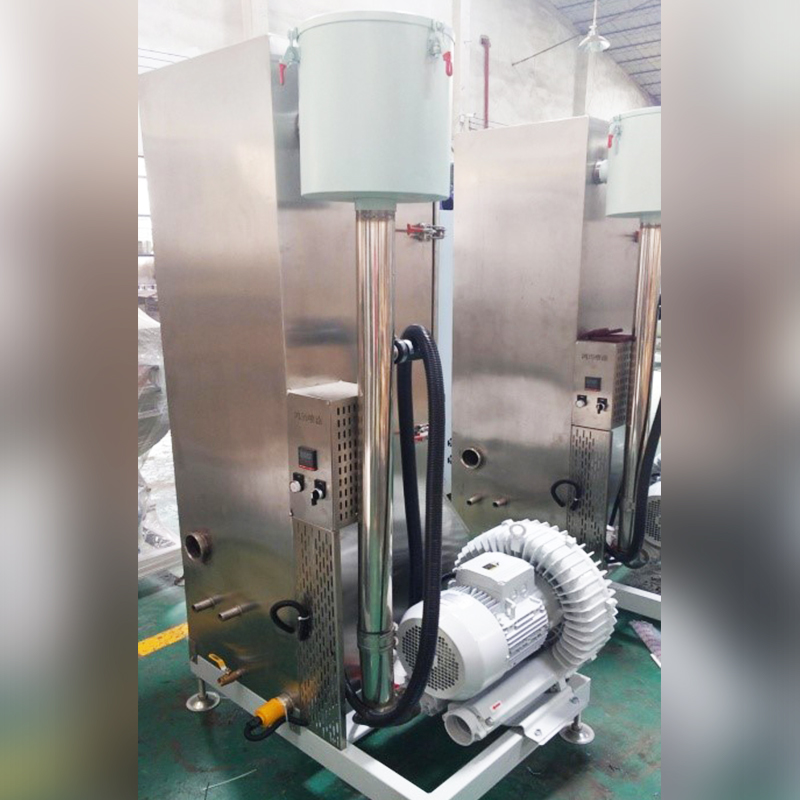

| Vacuum fan | 5.5kw*2 |
| Heater power | 1kw*2; 2kw*2 |
| Machine size | 6900*1200*1680mm |
| Total power | 46kw (work:32kw) |
| Weight | 3500kg |

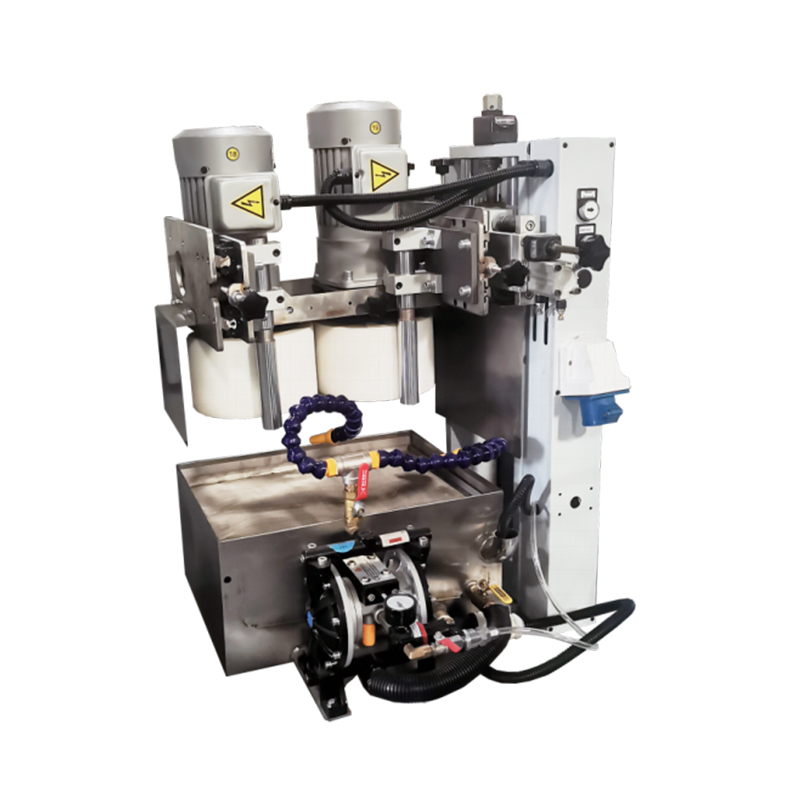

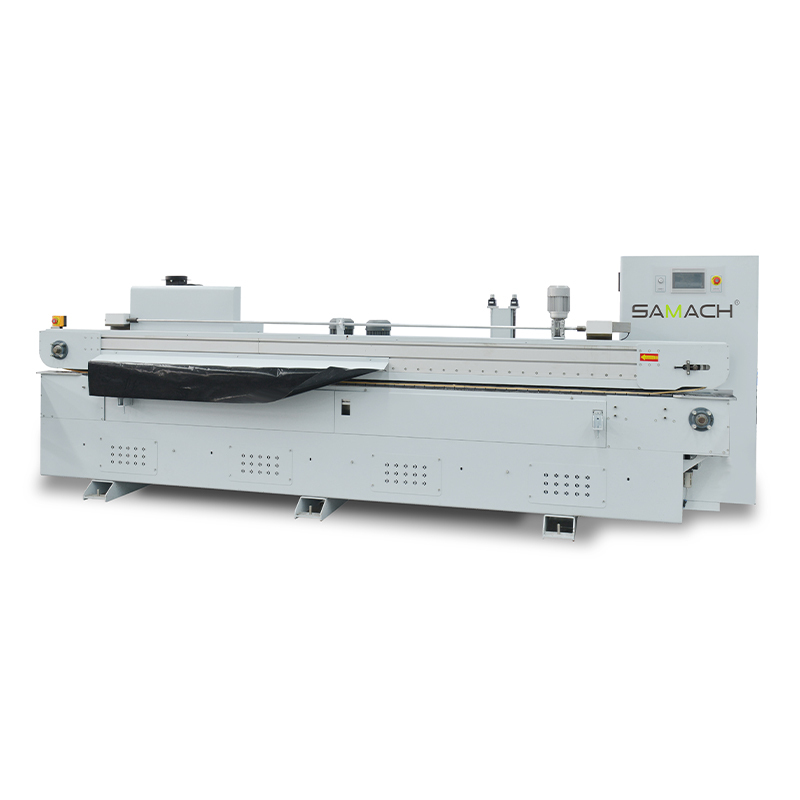

| Edge Roller Coating Machine | |
| Work thickness | 10-120mm |
| Work width | 60-2000mm |
| Work length | 200-3000mm |
| Conveyor Motor | 2.2kw*1 |
| Lifting motor | 0.37kw*1 |
| Belt motor | 0.75kw*1 |
| Triangular sand motor | 2.2kw*1 |
| Polishing Motor | 1.5kw*1 |
| Roller motor | 0.4kw*2 |
| Lamp power | 3kw*2 |
| Exhaust fan | 0.75kw*1 |
| Heater power | 1kw*2 |
| Machine size | 4600*1200*1680mm |
| Total power | 17kw (work:12kw) |
| Weight | 2000kg |
