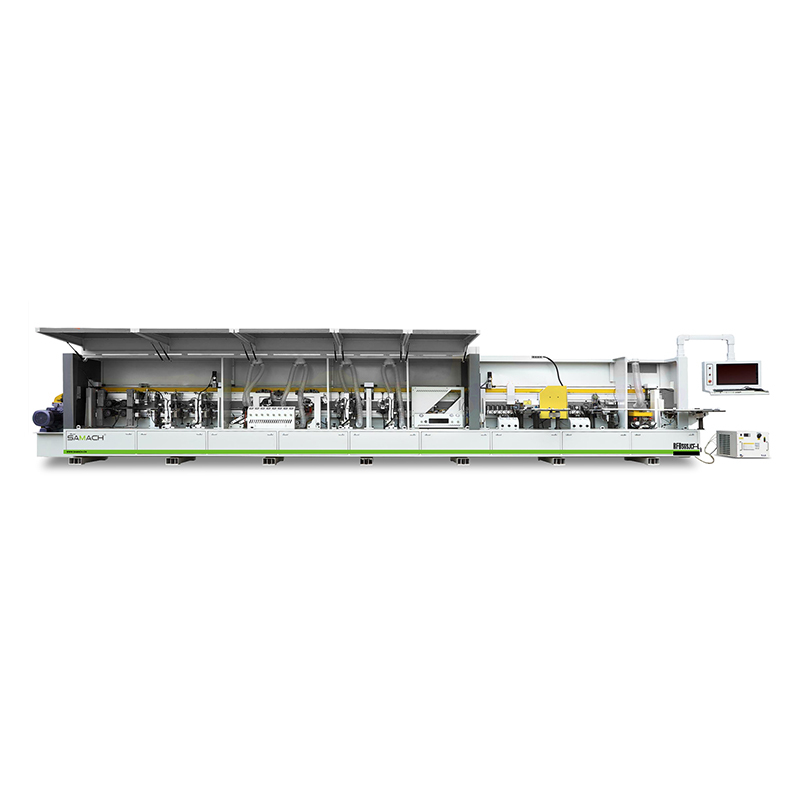

Laser Edge Banding Machine
- THE MACHINE HAS OUTSTANDING PERFORMANCE IN EDGE BANDING EFFECT, AND ENVIRONMENTAL PROTECTION TECHNOLOGY.
- LASER EDGE BANDING TECHNOLOGY MAKES THE PLATE HAVE HIGH STRENGTH ADHESIVE FORCE, WATERPROOF, ALMOST NO GLUE LINE, SURFACE EDGE ONE, EDGE SEALING EFFECT IS BETTER.
- MACHINE IDLING LOW ENERGY CONSUMPTION, LASER SEAL INSTANT BONDING, NO GLUE VOLATILE POLLUTION, THE PROCESS IS MORE ENVIRONMENTAL PROTECTION.

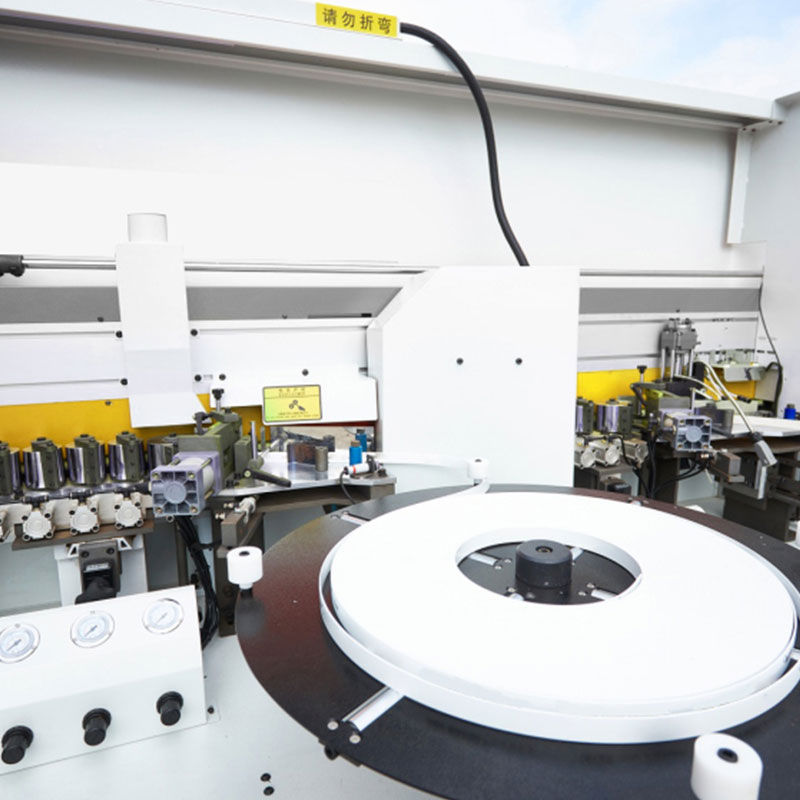

- THIS MACHINE CAN MEET THE PURSUIT OF HIGHER CUSTOM FURNITURE SURFACE EFFECT, AND ADD PUR GLUING SYSTEM.
- COULD CHANGE THE EDGE BAND TYPE ACCORDING TO YOUR REQUEST.
| Model | RFB565JCF-L |

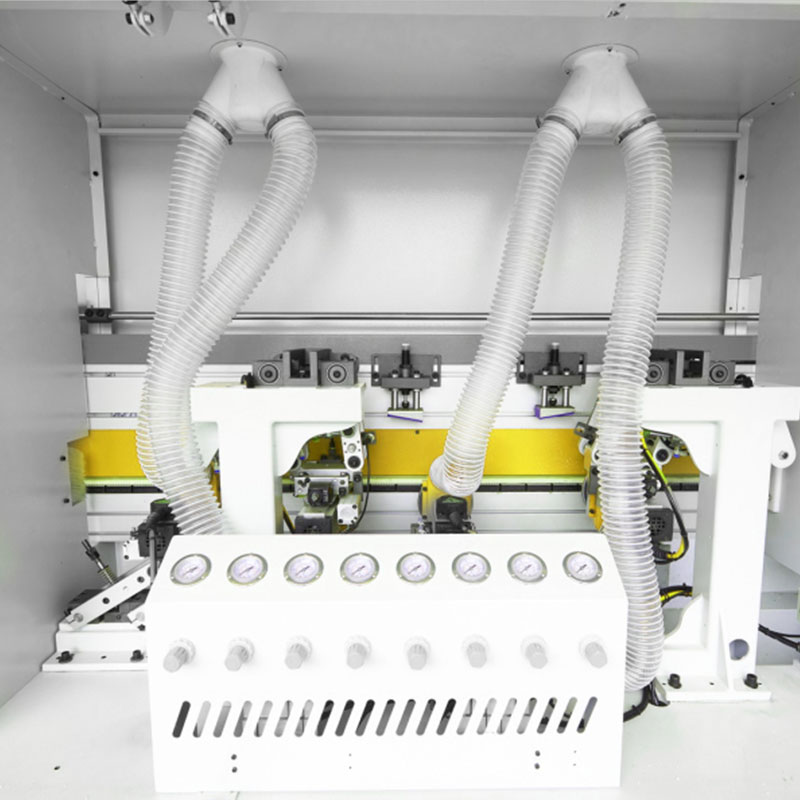

| Panel length | ≥120mm (≥200mm with corner trim) |
| Panel width | ≥80mm |
| Laser power | 3kw |
| Cooling mode and power | Water cooling 8.5kw |
| Panel thickness | 9-60mm(9-35mm with laser edge banding) |
| Edge band belt thickness | 0.4-3mm(0.8-3mm with laser edge banding) |
| Laser edge band belt width | 14-40mm |
| Feeding speed | 18-22m/min |
| Feeding speed with corner trim | 18m/min |
| Total power | 42kw |
| Machine size | 10700*1000*2200mm |
| Net weight | 4800kg |
