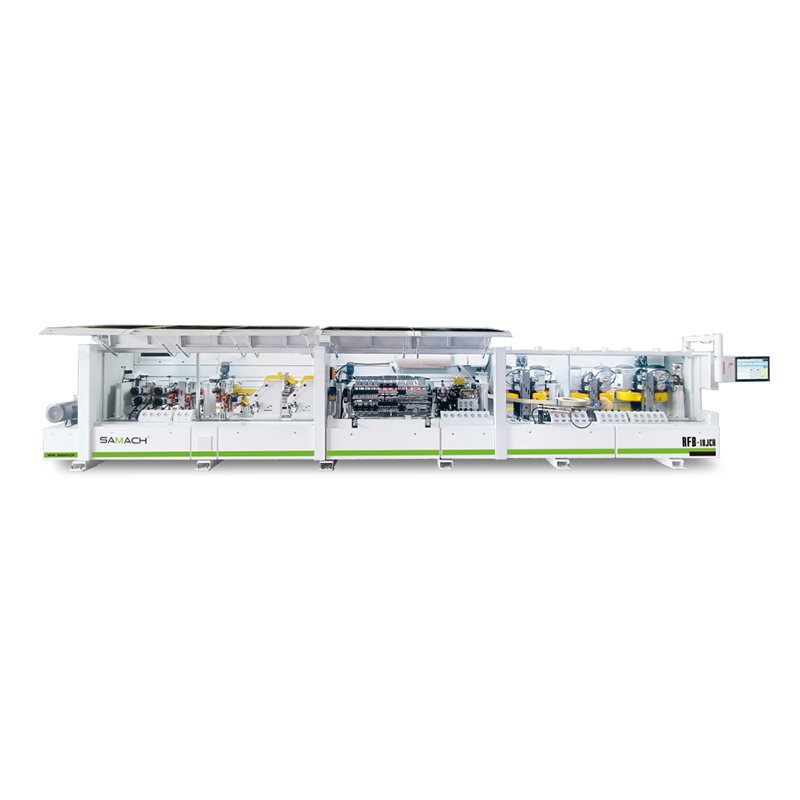

J/C/Bevel Shaped Edge Banding Machine

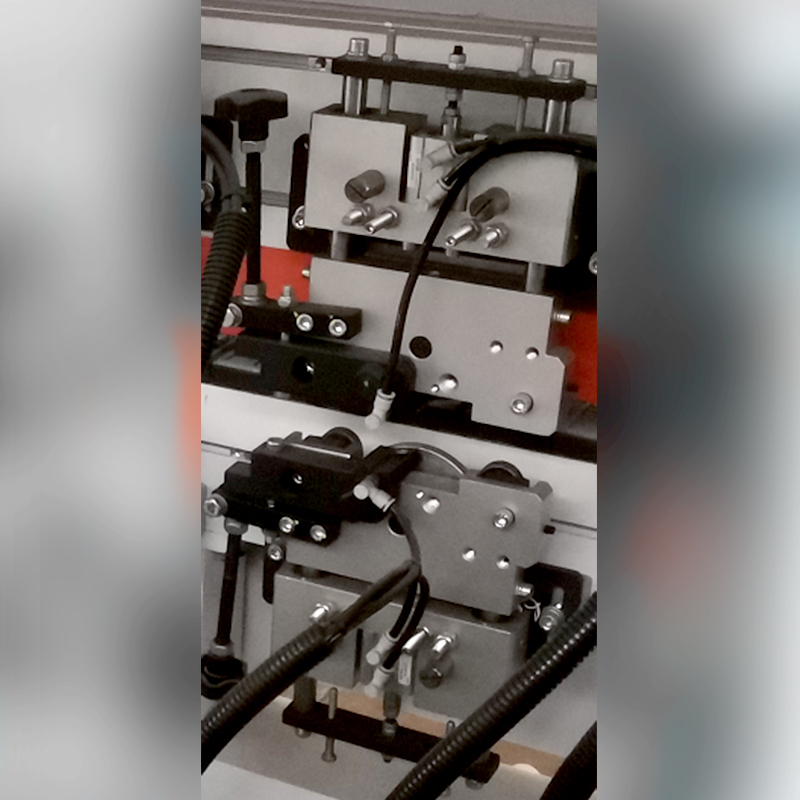

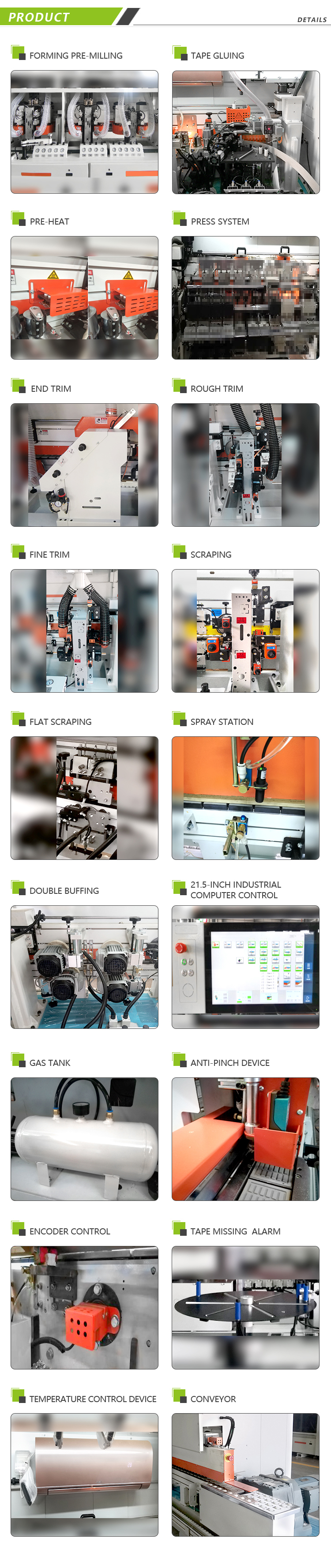

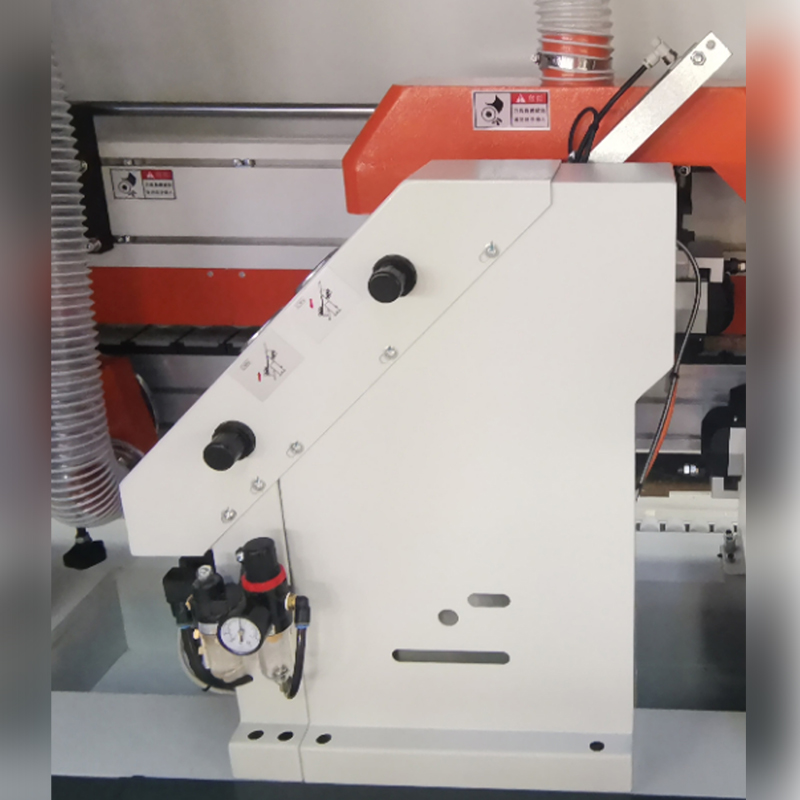

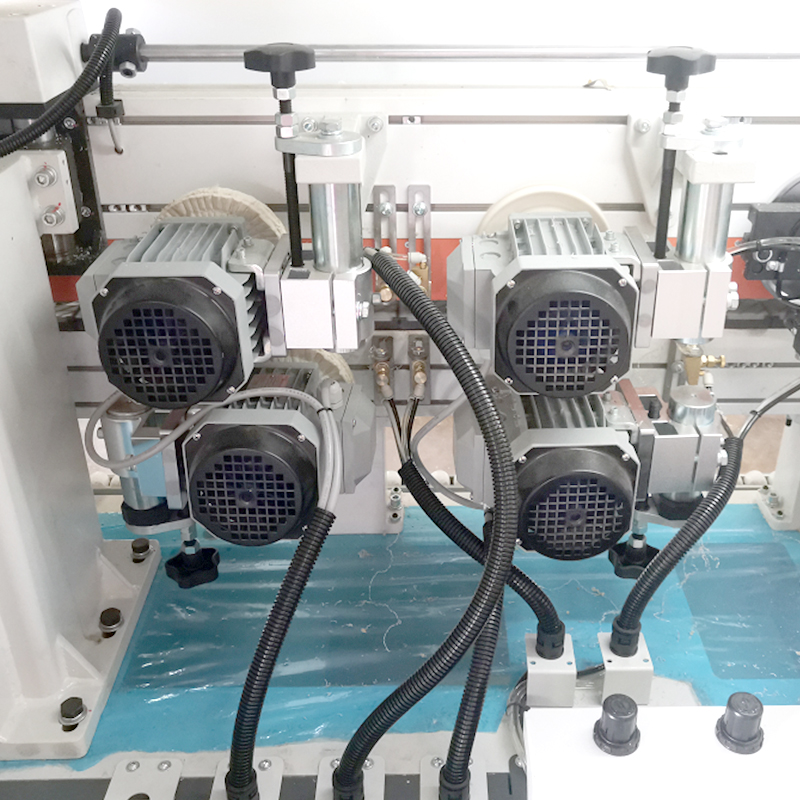

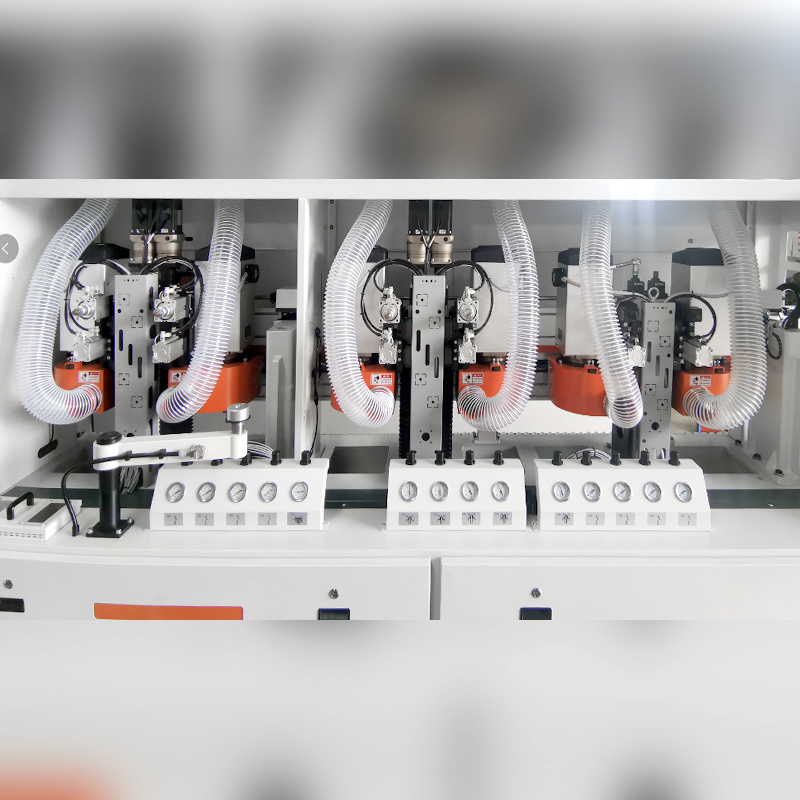

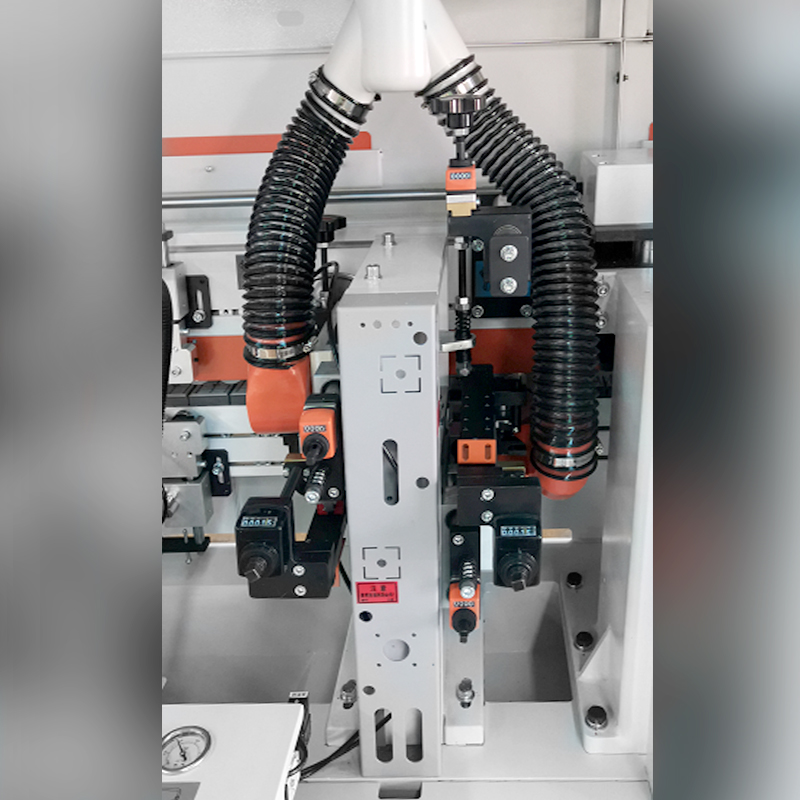

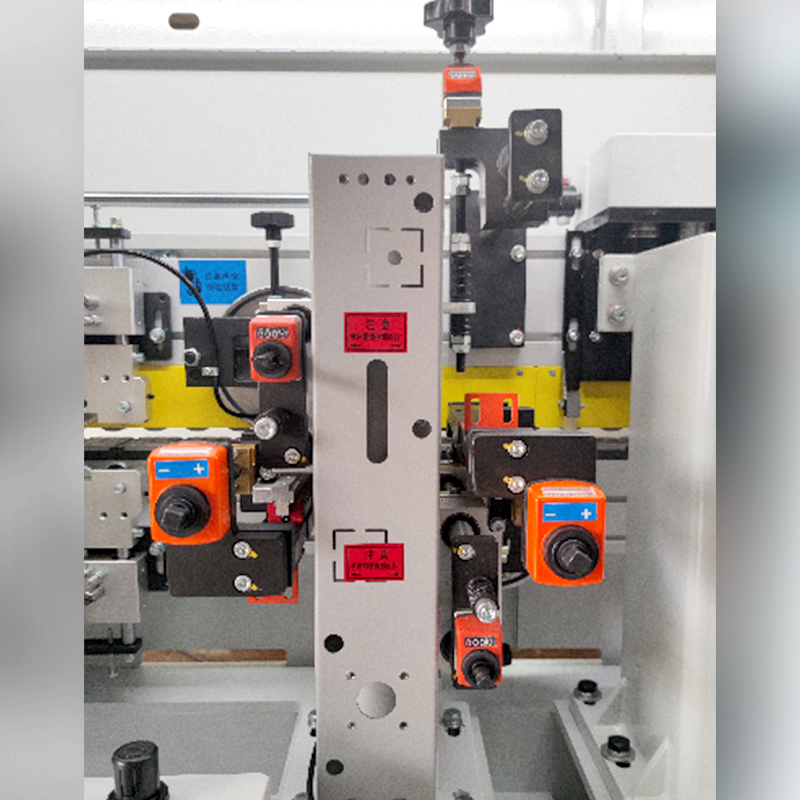

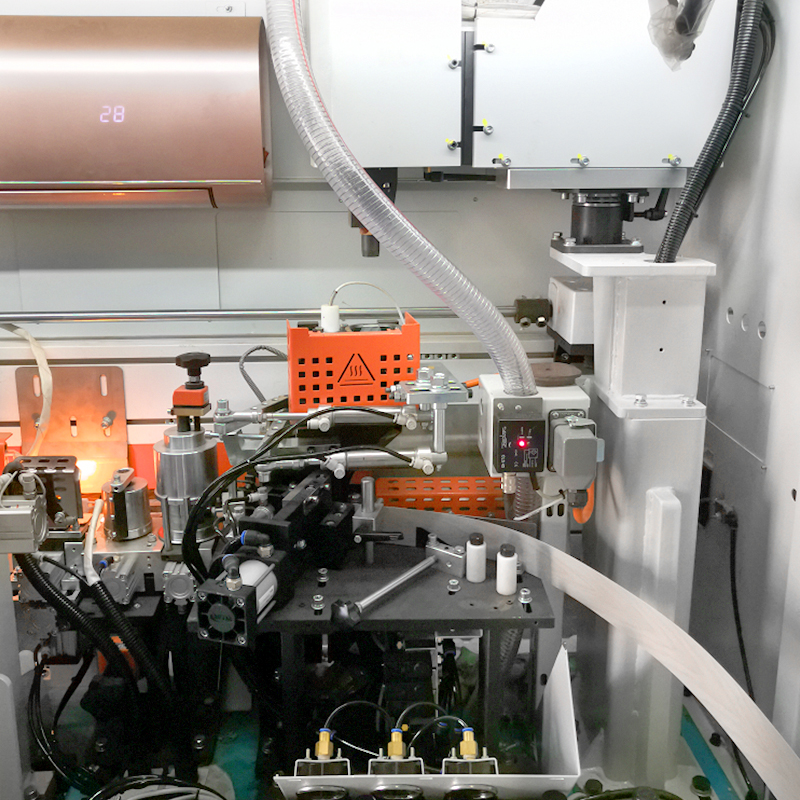

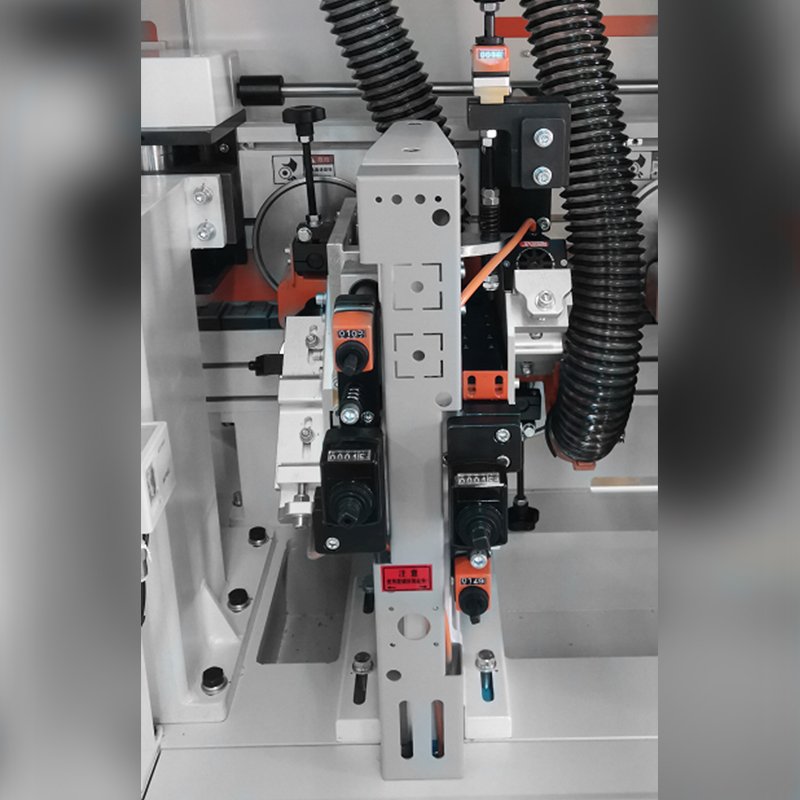

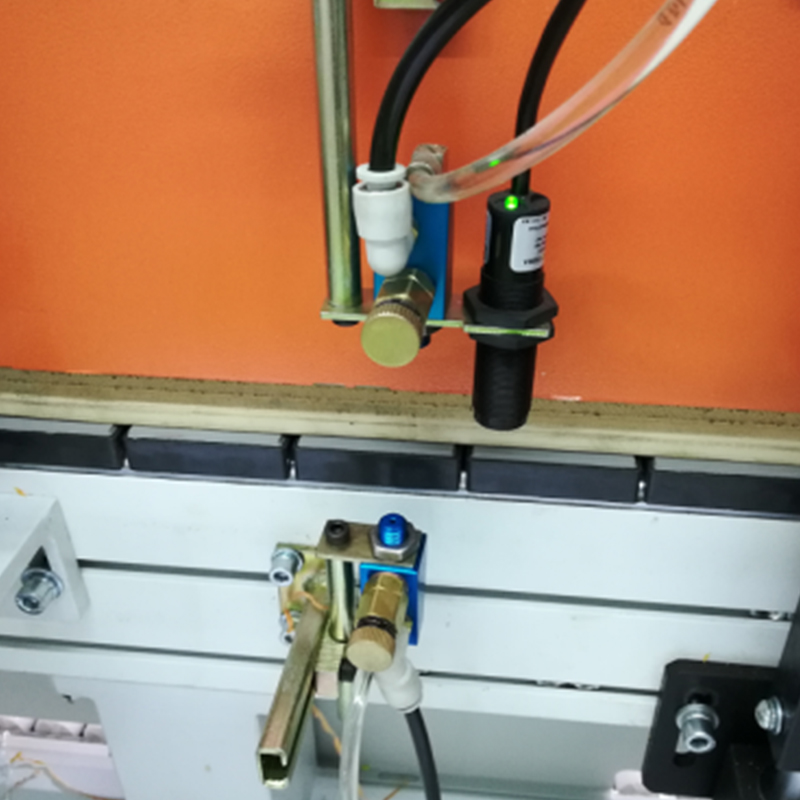

- FUNCTIONS: SEPARATION SPRAY, FORMING MILLING 1, FORMING MILLING 2, FORMING MILLING 3, GLUING IN TAPE, FORMING BANDING PRESS, END TRIM 1, END TRIM 2, ROUGH TRIM, FINE TRIM, SCRAPING, FLAT SCRAPING, CLEANING, POLISHING 1, POLISHING 2.
| Model | RFB-18JCX/22JCX/25JCX | Remark |

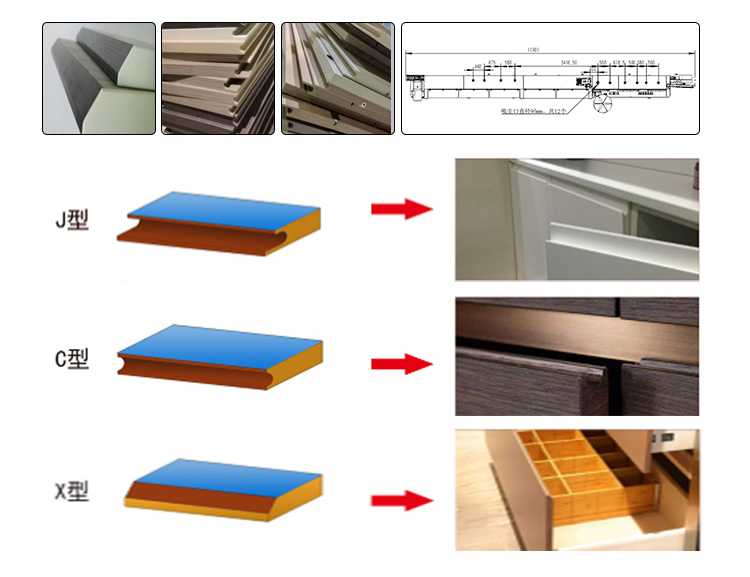

| Panel Thickness | 18mm / 22mm / 25mm | For J/C shape |
| 15-25mm（Angle:45°, straight edge 5mm） | Inclination 45 bevel edge | |
| Tape thickness | 0.52-0.54mm | 18/22/25mm J/C shape |
| 0.8-1.5mm | 45° Inclination | |
| Min panel size(L*W) | ≥250*150mm | J/C/45° |
| Tape material | PVC | Matt or other soft PVC |
| Total power | 74kw | |
| Feed speed | 13m/min | |
| Electric lifting power | 0.37kw*2 | |
| Working Pressure | 0.6Mpa | |
| Overall Size | 11320*1000*2000mm | |
| Weight | 5100kg |
