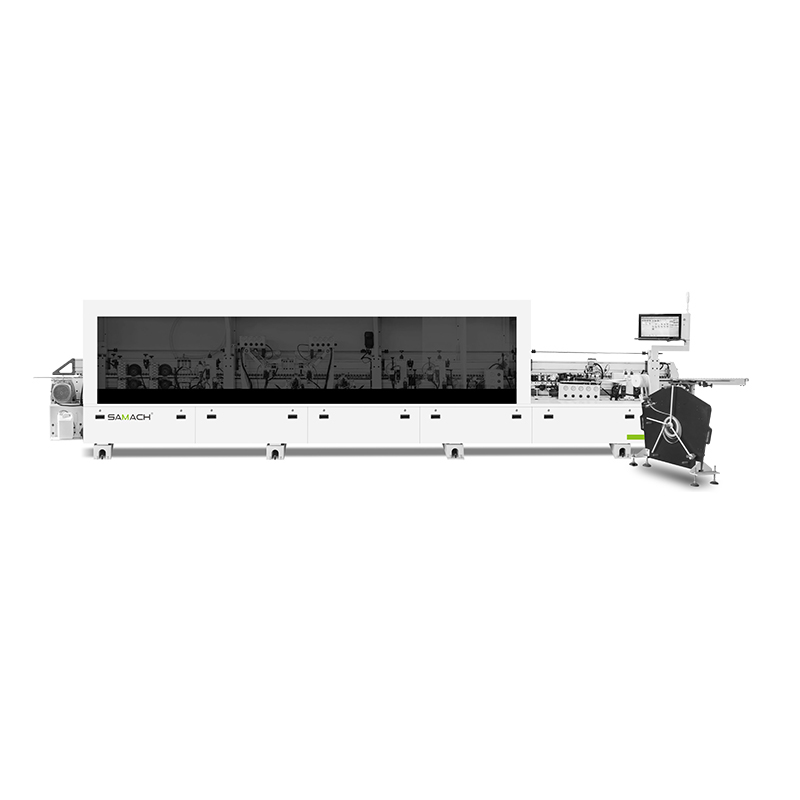

Heavy Duty Laser Edge Banding Machine
| Model | RFB-M5 |
| Min. length of panel | 100mm |
| Min. width of panel | 60mm |
| Panel thickness | 9-60mm |
| Edgeband thickness | 0.4-3mm |
| Conveyor belt speed | 12-25m/min |
| Narrow board size | 35-60mm |
| Board spacing | Corner trim off≥600mm Corner trim on≤700mm |

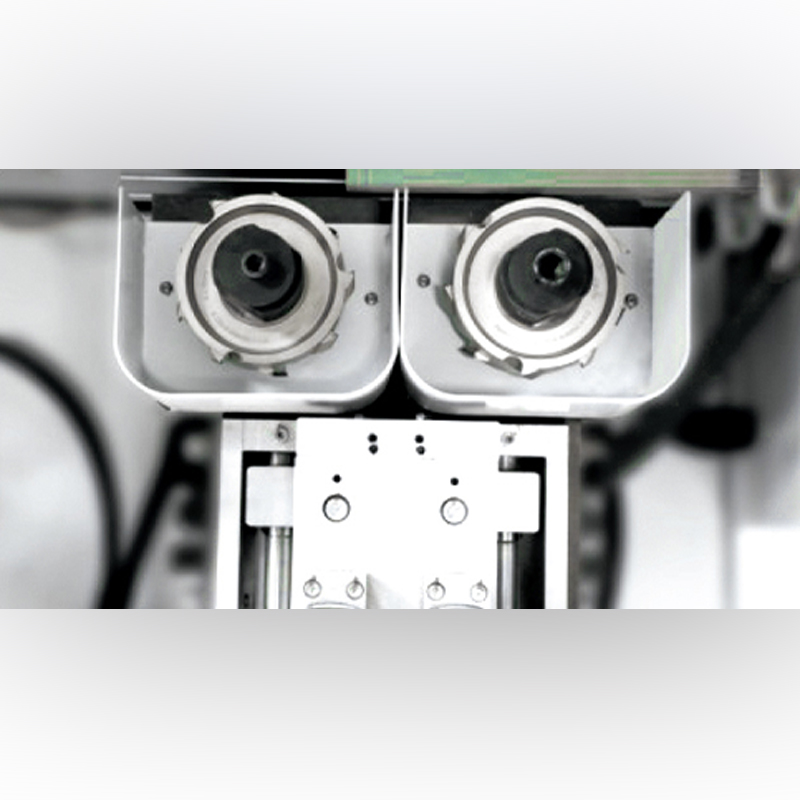

| Vacuum port | Premilling：Φ100mm*2 End trim：Φ100mm*1 Fine trim：Φ75mm*2 |
| Required air pressure | 0.65Mpa |
| Total power | 34kw |
| Voltage | 380V/50Hz/3phase |
| Weight | 5800kg |
| Package dimensions | 9800*1000*1900mm |
