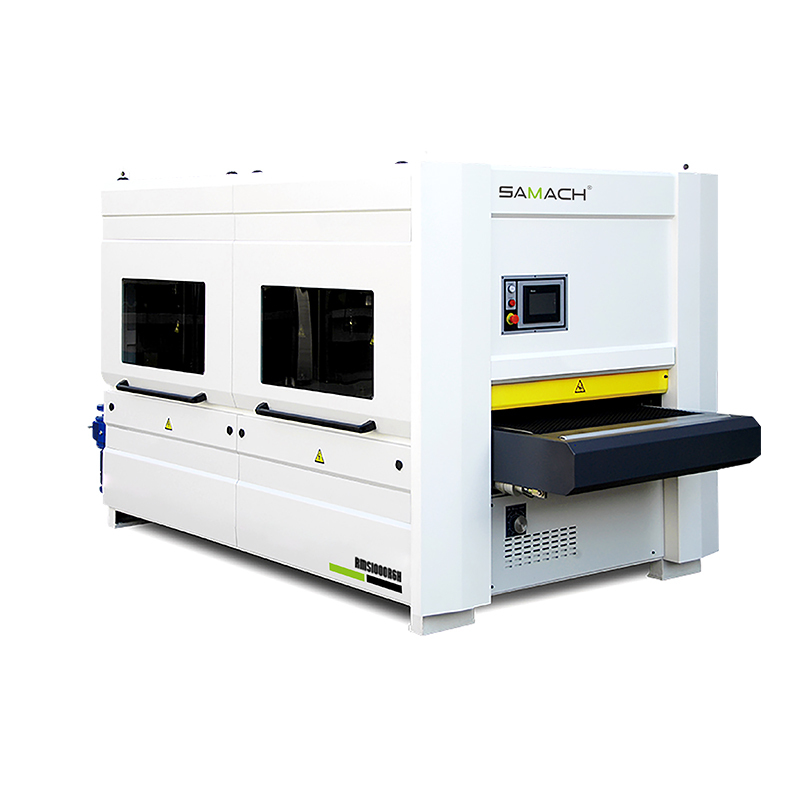

Heavy Duty Brush Sanding Machine

Heavy Duty Brush Sanding Machine

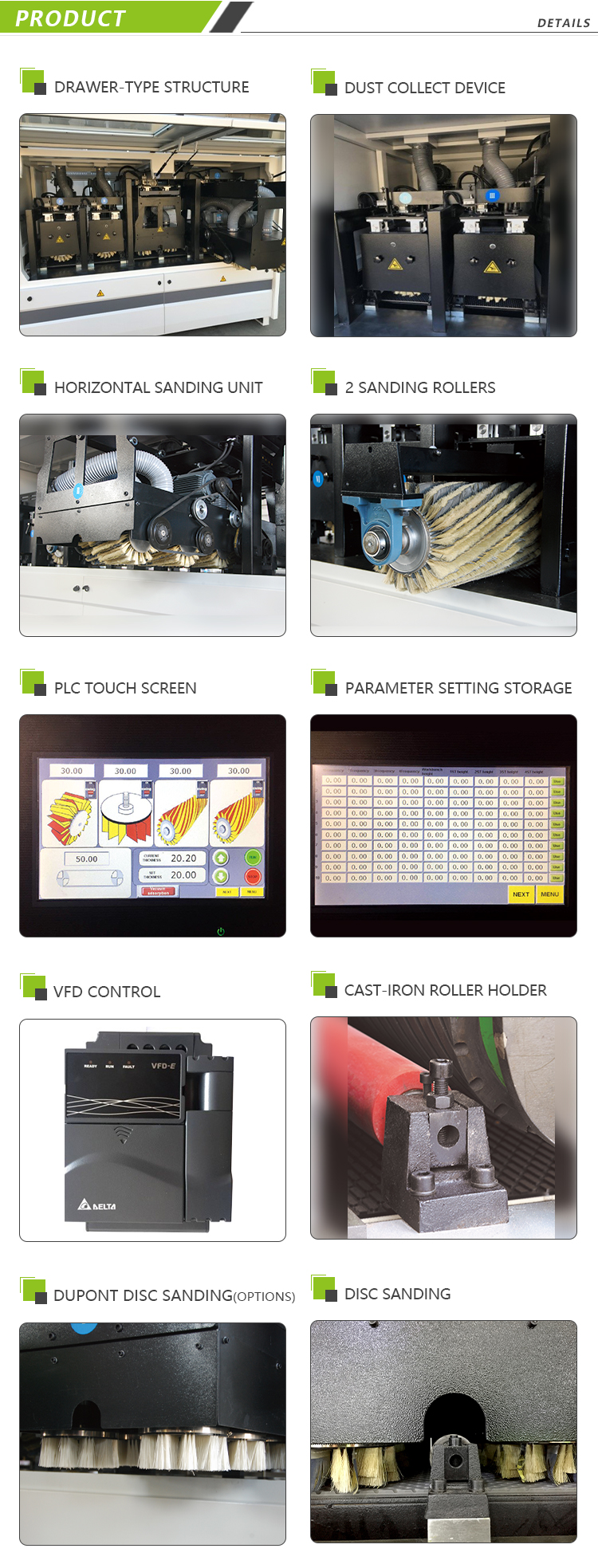

  • THREE GROUPS OF SANDING UNITS CAN SAND PANELS WITH CURVED SURFACES IN DIFFERENT DIRECTIONS AND DIFFERENT HEIGHT, THAT CAN ACHIEVE THE BEST SANDING EFFECT

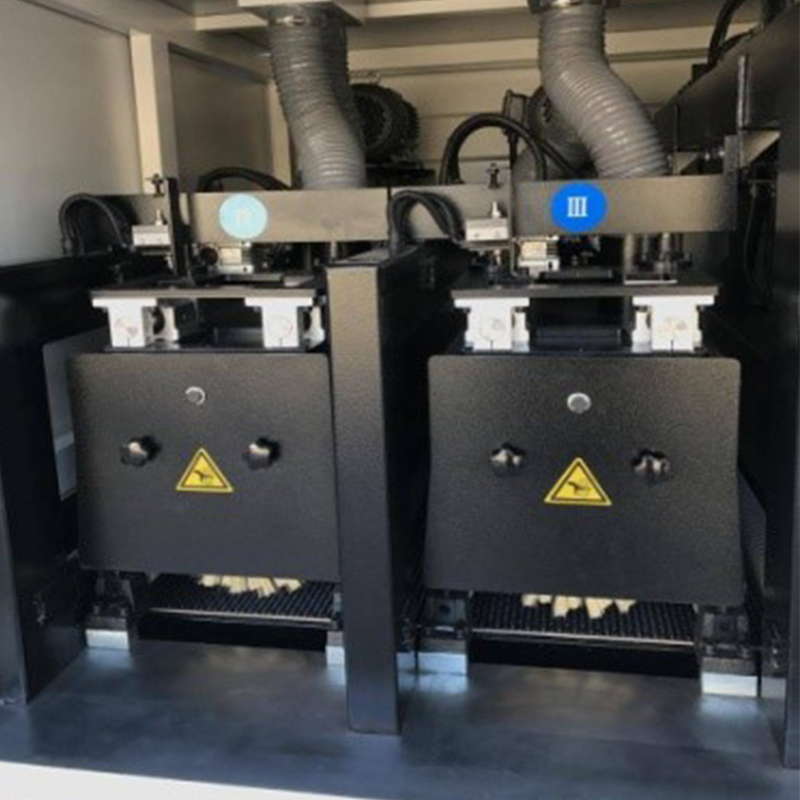

  • EACH SANDING UNIT HAS 2 ROWS, WHICH CAN ROTATE IN TWO DIFFERENT DIRECTIONS

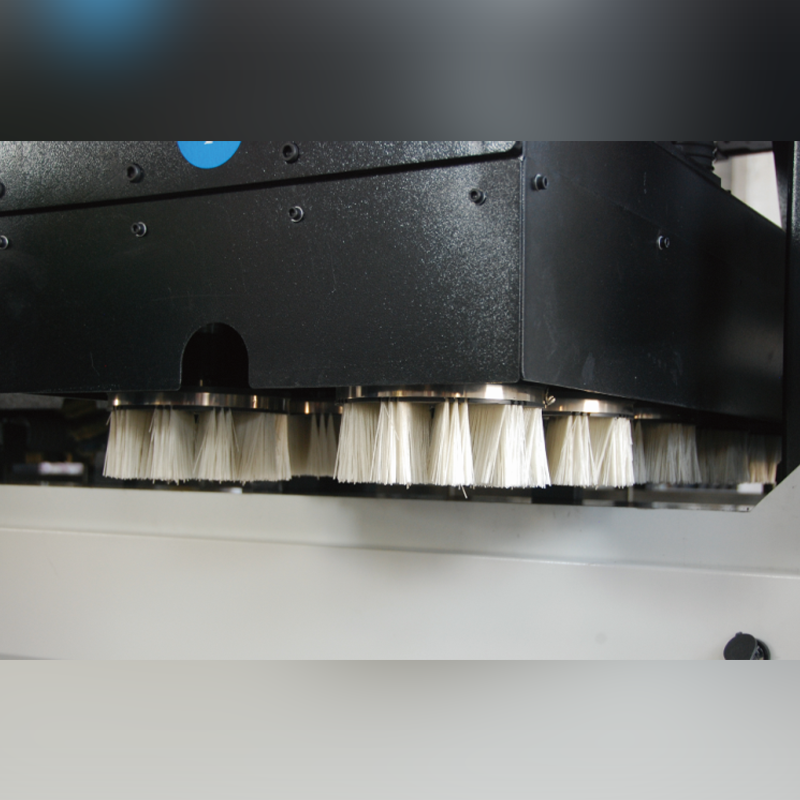

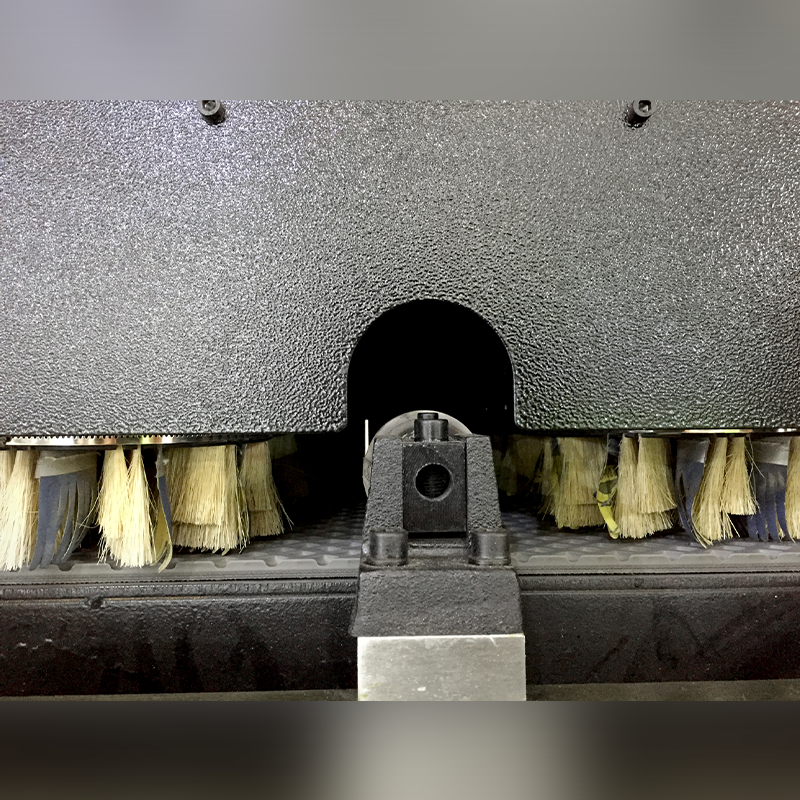

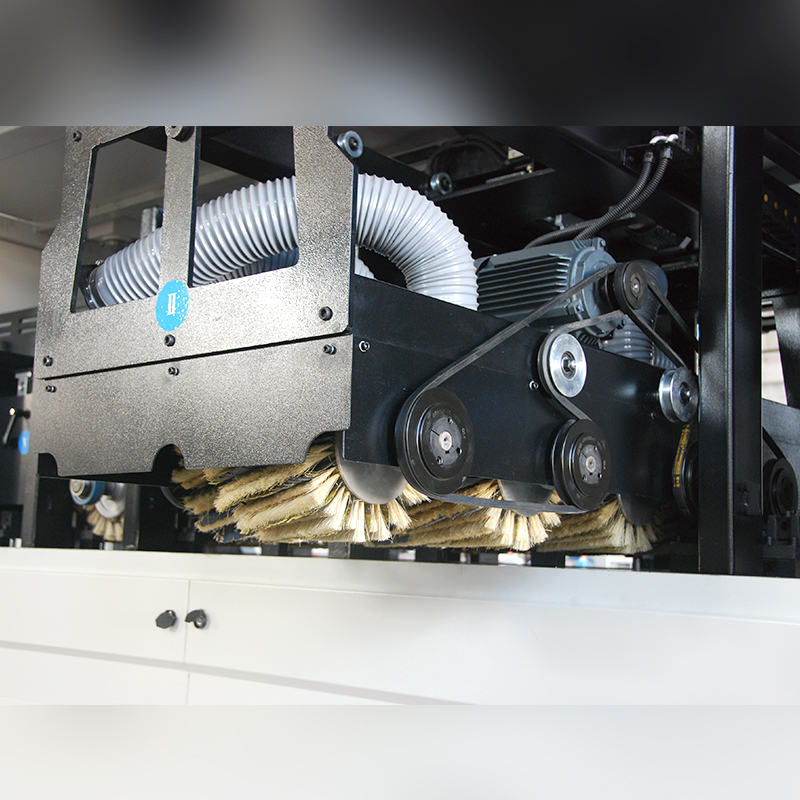

  • HORIZONTAL ROLLER IS USED TO SANDING HORIZONTAL GROOVES IN PANELS, SANDING DISK IS USED TO SANDING PANELS SURFACE AND SHARP EDGES AND CORNERS

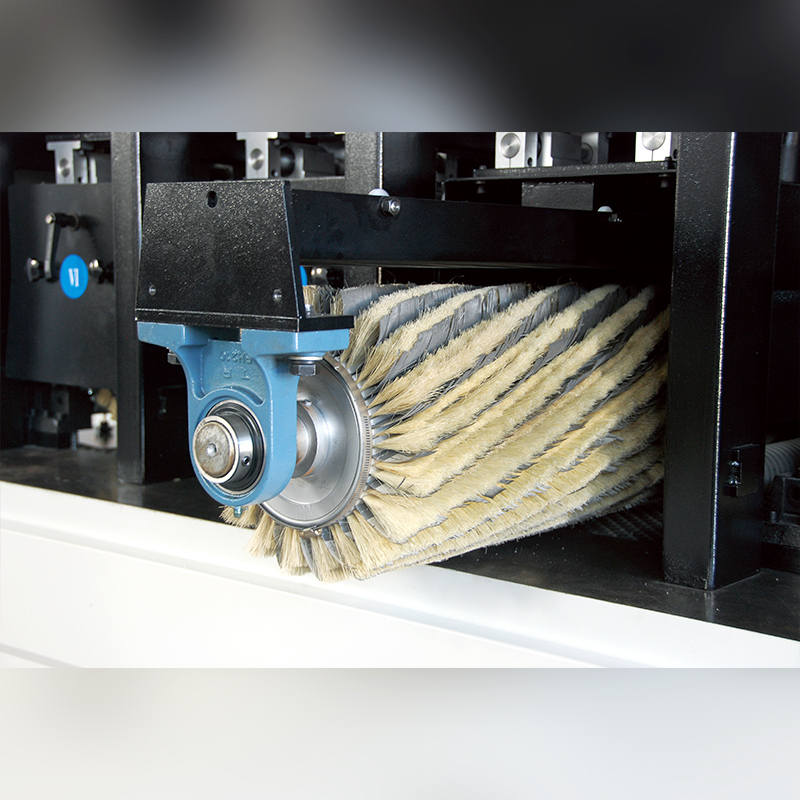

  • 2 SANDING ROLLERS, USED TO SANDING PANELS SURFACE AND VERTICAL GROOVES
  • EACH SANDING SHAFT CAN SWING SEPARATELY, IT IS USED TO SANDING THE SANDING MARKS CAUSED IN WORK. IT CAN MAKE PANEL SURFACE MORE SMOOTH AND CLEAN

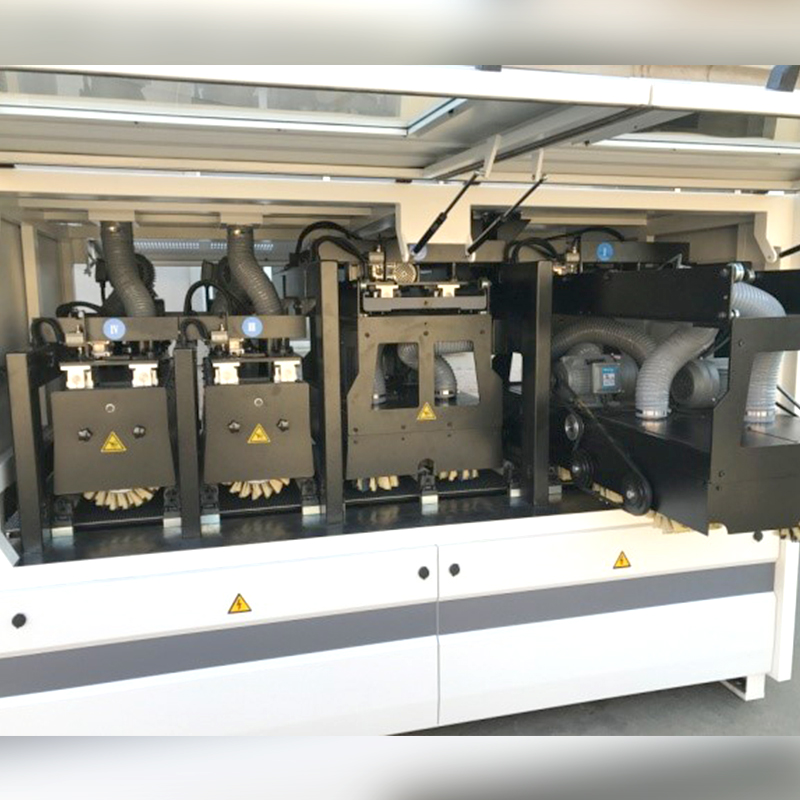

  • SANDING UNIT CAN BE PULLED OUT AS A WHOLE PART FROM 2 SIDES OF THE MACHINE, IT IS CONVENIENT TO CHANGE SANDING PAPER
Model RMS1000R6H RMS1300R6H
Working width 20-1000mm 20-1300mm
Working thickness 2-110mm 2-110mm
Working length ≥400mm ≥400mm
Feed speed 2.5-12.5m/min 2.5-12.5m/min
Number of polishing roller 8 lateral +10 disc+ 2 roller 10 lateral +12 disc+ 2 roller
Total motor power 12.85kw 18.75kw
Swing scope 50/30/15mm 50/30/15mm
Speed of sucked air ≥25m/s ≥25m/s
Working air pressure ≥0.5Mpa ≥0.5Mpa
Sanding belt 180/240/320 mesh(paper tape) for MDF,
320/400/600 mesh(cloth tape) for lacquer		 180/240/320 mesh(paper tape) for MDF,
320/400/600 mesh(cloth tape) for lacquer
Overall dimensions 3600*1950*1800mm 3600*2250*1800mm
