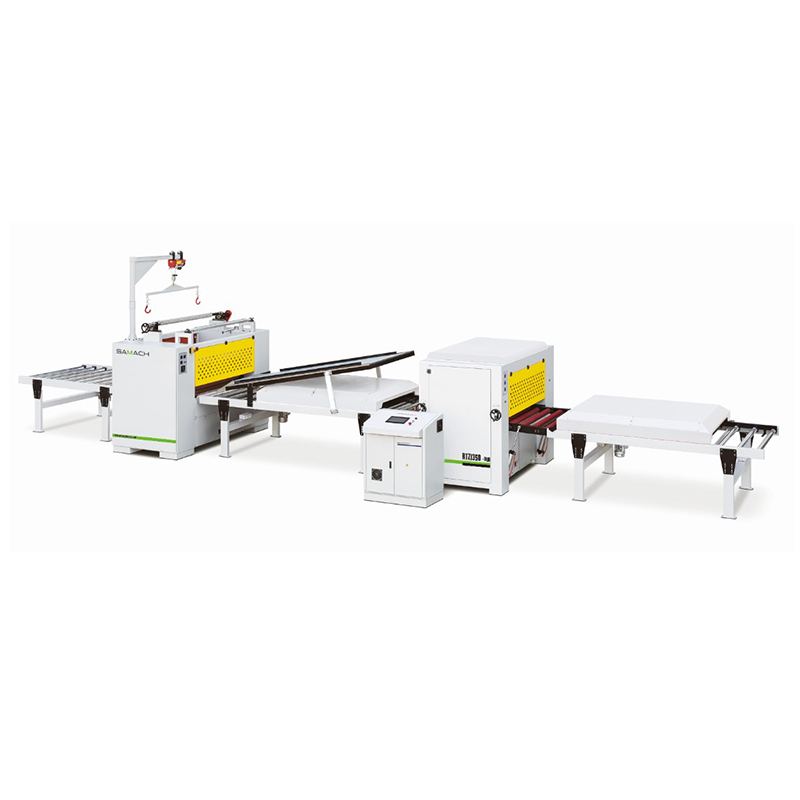

Full Automatic Paper Lamination Line

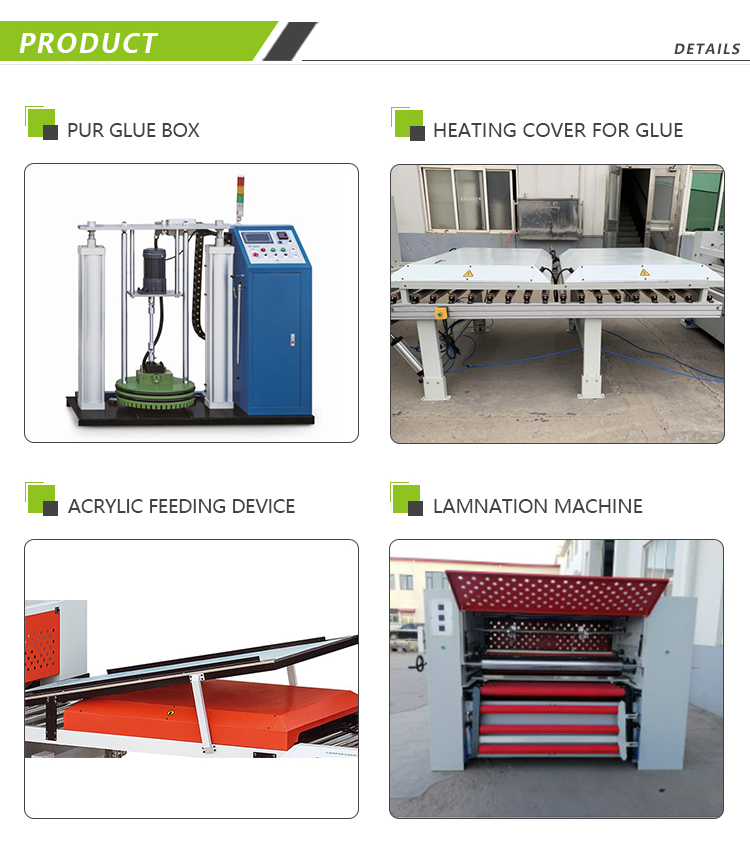

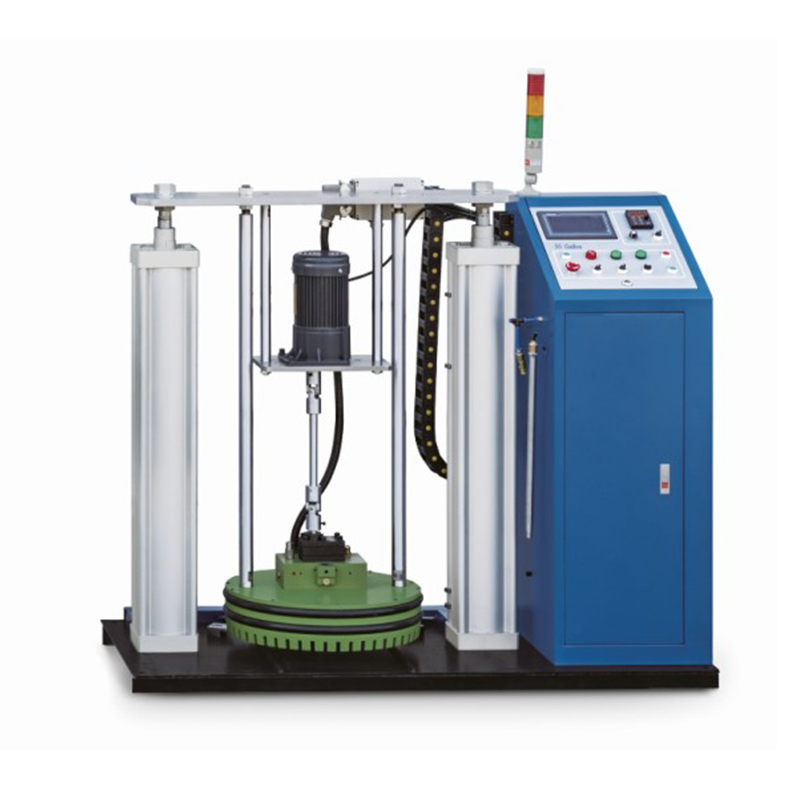

- PUR GLUE FOR LAMINATE HIGH GLOSSY FILM, ACRYLIC PANEL, PVC PANEL, PVC FILM, PAPER, PET FILM, ON MDF, PLYWOOD, PVC PANEL AND OTHER PANEL
- DUST CLEANING DEVICE TO KEEP THE PANELS CLEAN BEFORE GLUING

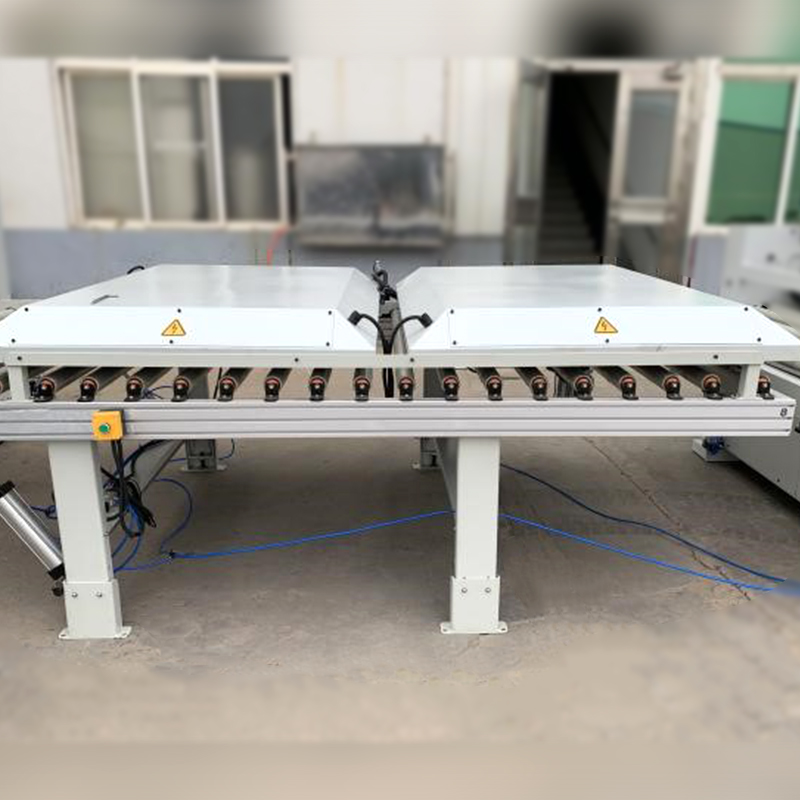

- HEATING SYSTEM TO PROTECT THE GLUING EFFECT STABLE UNDER ANY TEMPERATURE

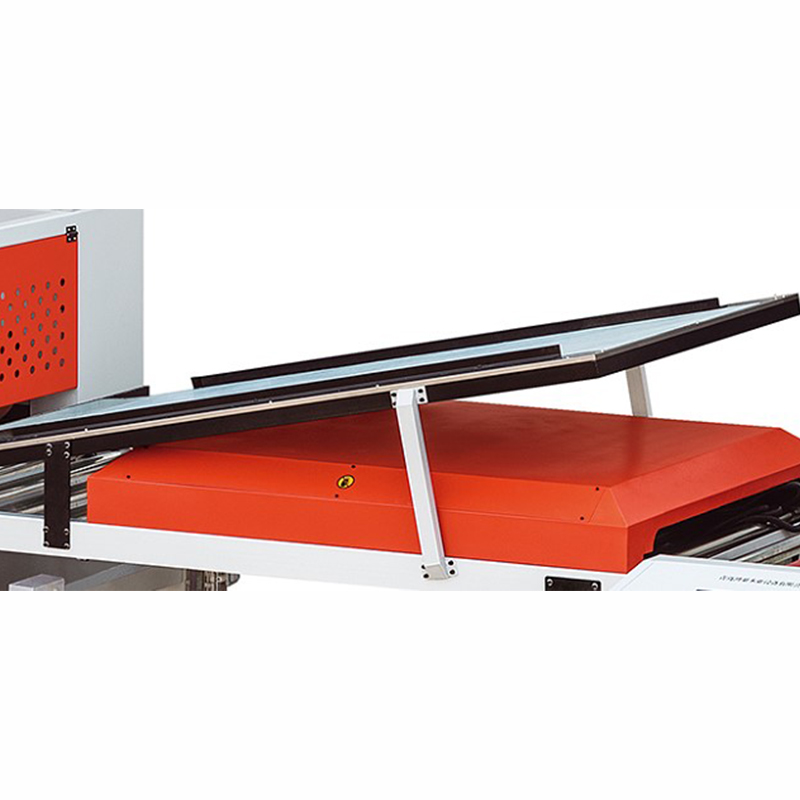

- SPECIAL FEEDING DEVICE FOR THE ACRYLIC
| Model | RTZ1350-PUR |
| Max. panel width | 1220mm |
| Max. feeding speed | 15m/min |
| PUR supply machine | 13kw |
| Gluing roll diameter | Φ240mm |
| Press roll diameter | Φ400mm |
| Total power | 65kw |
| Overall dimensions | 13000*2100*2550mm |
