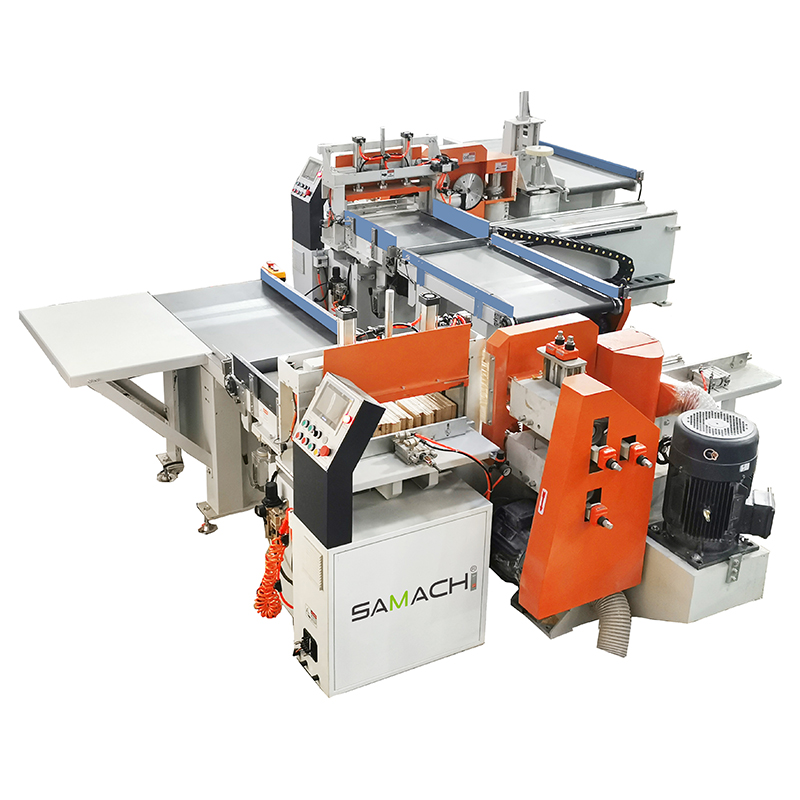

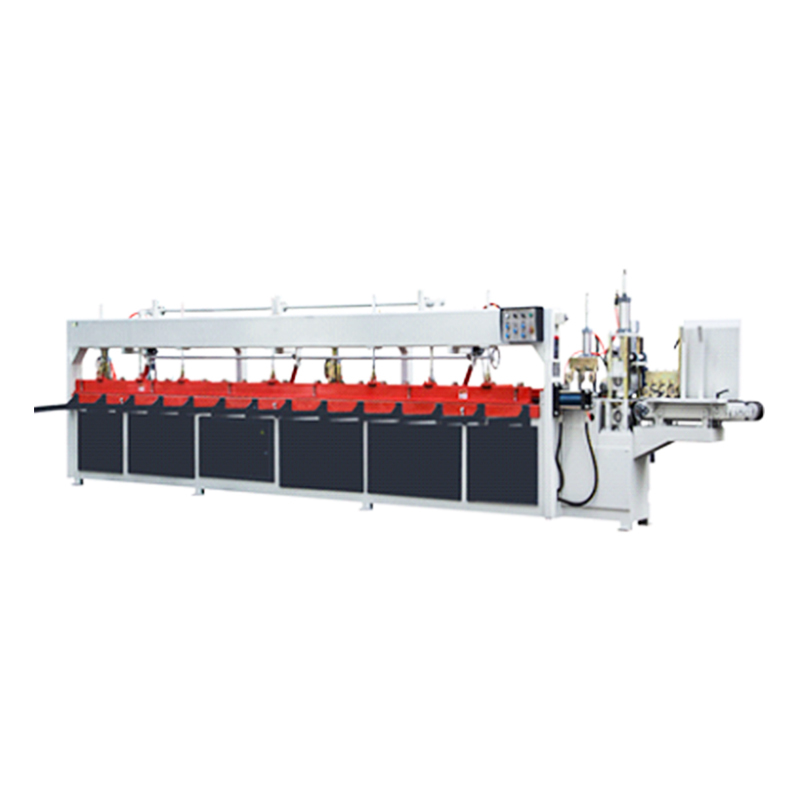

Full Automatic Finger Joint Line
- FULL AUTOMATIC HIGH OPERATIONAL CAPACITY PROCESS SPEED UP TO 5PCS OF 6M PER MINUTE
- 2.5/6 METER UNLIMITED LENGTH FINGER JOINT MACHINE CAN BE MATCHED IN THIS LINE
- PROCESS SHORTEST RESIDUAL WOOD OF 15CM LONG, MAXIMUM YOUR PRODUCTION, MINIMUM YOUR COST

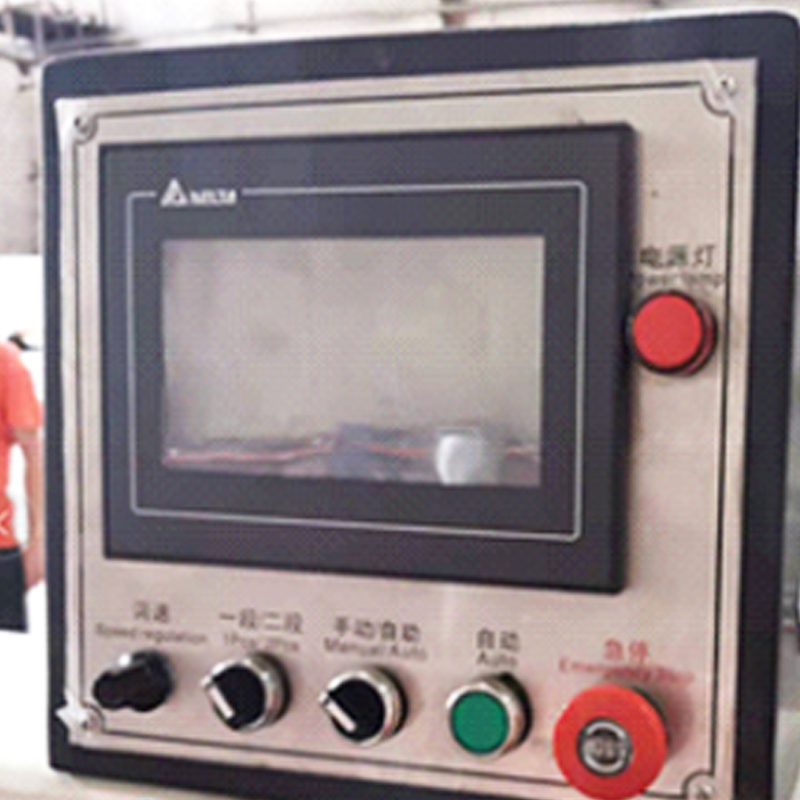

- CONTROL PANEL ARE EASY TO OPERARE
- ONE OPERATOR, EASY OPERATION, SAVE LABORS
| Model | Finger joint shaper | Finger joint shaper(with gluing) |
| Worktable size | 850*600mm | 850*600mm |
| Max. working size | 850*80*150mm | 850*80*150mm |
| Min. working size | 150*20*30mm | 200*30*20mm |
| Shaper spindle diameter | Φ70mm | Φ70mm |

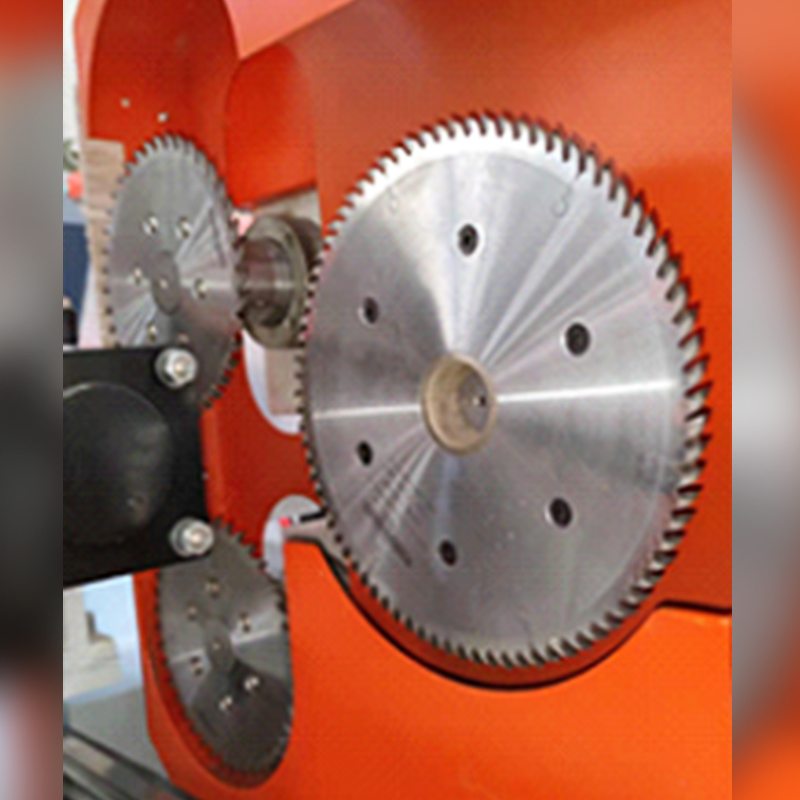

| Shaper blade diameter | Φ160mm | Φ160mm |
| Main saw blade size | Φ255mm | Φ255mm |
| Main saw spindle speed | 2840rpm | 2840rpm |
| Shaper spindle speed | 6000rpm | 6000rpm |
| Working air pressure | 0.5-0.8 Mpa | 0.5-0.8 Mpa |
| Total power | 16.12kw | 18.74kw |
| Model | Finger joint machine |
| Max. length of inoculation | 2000-6250mm |
| Max. width of inoculation | 30-155mm |
| Max. thickness of inoculation | 18-80 mm(15-100mm is optional) |
| Rotating speed of saw blade | 3700r/min |
| Diameter of saw blade | 405mm |
| Rated power of saw motor | 3kw |
| Rated power of oil pump | 2.2kw |
| Air pressure of working | 0.5-0.8Mpa |
| Max. engaging force | 7800kg |
| Install power | 7.5kw |
| Overall dimension | 7650*1000*1420mm |
| Model | Infeed strap conveyor | Middle strap conveyor | Output strap conveyor |
| Length of work table | 1150mm | 1150mm | 1150mm |
| Width of work table | 600mm | 600mm | 600mm |
| Rate power of motor | 0.375kw | 0.375kw | 0.375kw |
| Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Overall diameter | 1180*1330*920mm | 1180*725*920mm | 1180*725*920mm |
| Model | Horizontal belt conveyor | Upender |
| Width of work table | 150mm | 150mm |
| Rate power of motor | 1.5kw | 1.5kw |
| Working pressure | 0.6Mpa | 0.6Mpa |
| Overall diameter | 1800*1200*1000mm | 2600*650*1200mm |

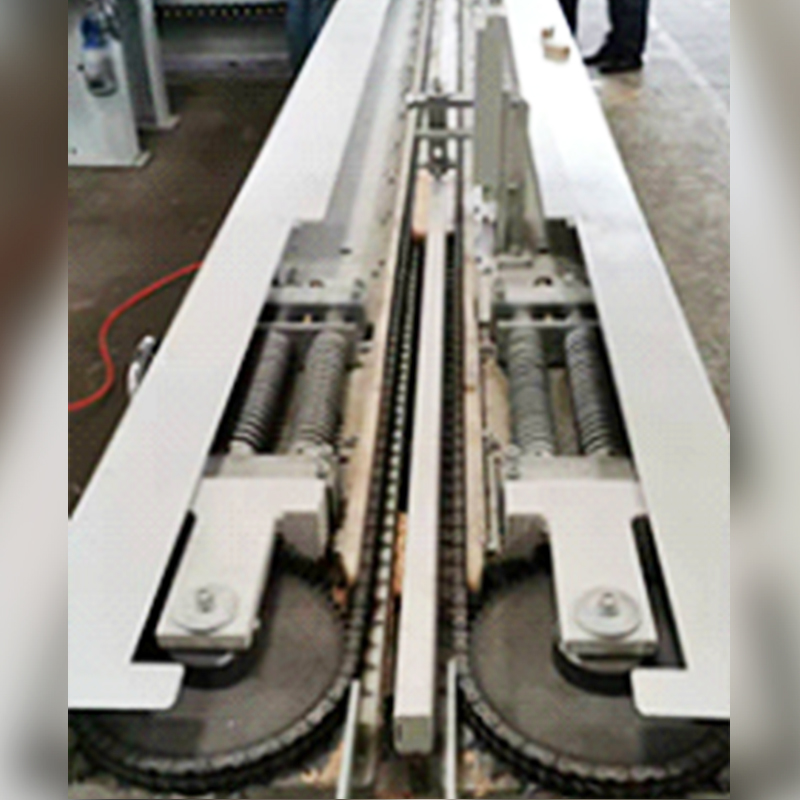

| Model | 5 meter Chain type belt conveyor |
| Length of work table | 5000mm |
| Work thickness | 18-80mm |
| Width of work table | 25-150mm |
| Motor power | 1.5kw*2pcs |
| Reducer power | 1.5kw*2pcs |
| Working pressure | 0.6Mpa |
| Overall diameter | 5200*650*1200mm |
