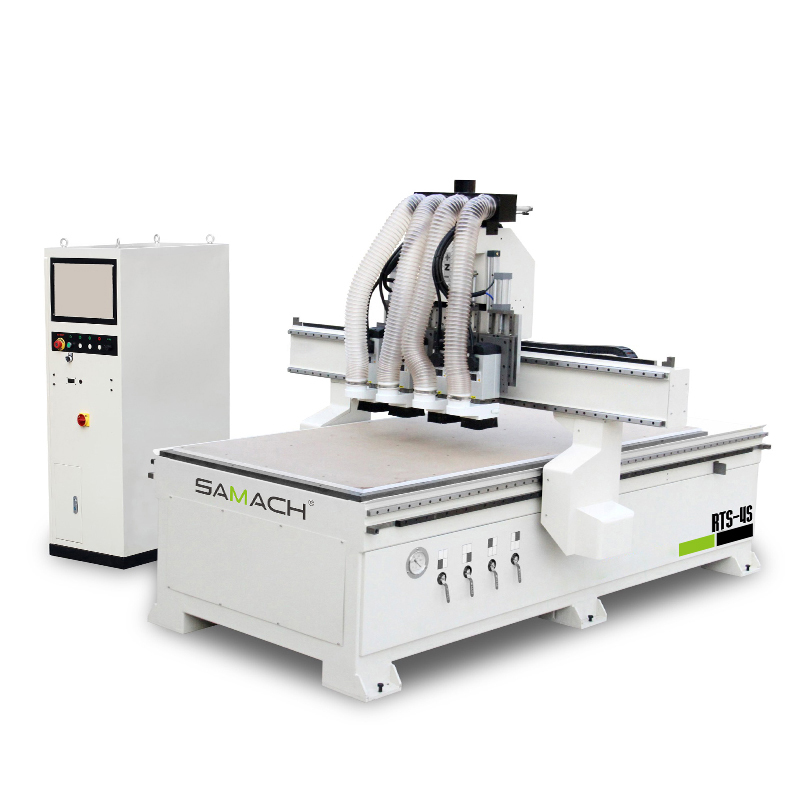

Four Spindles CNC Router

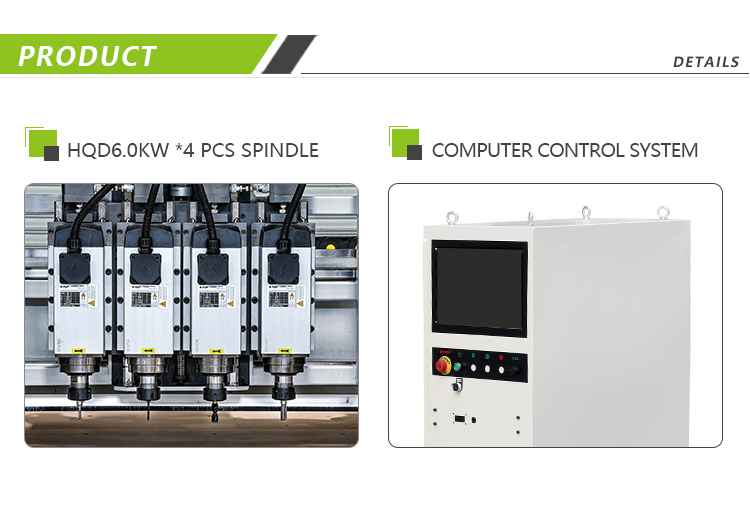

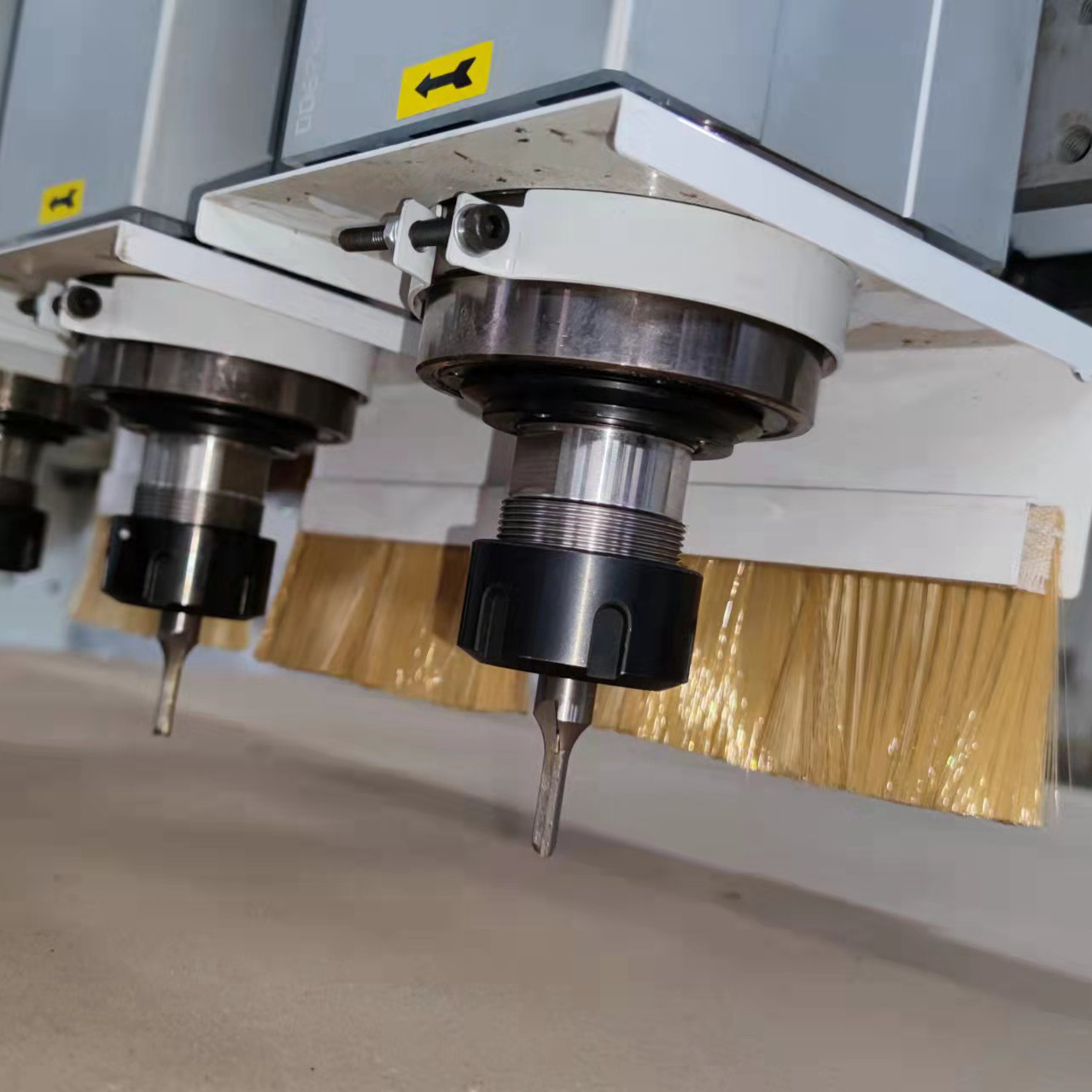

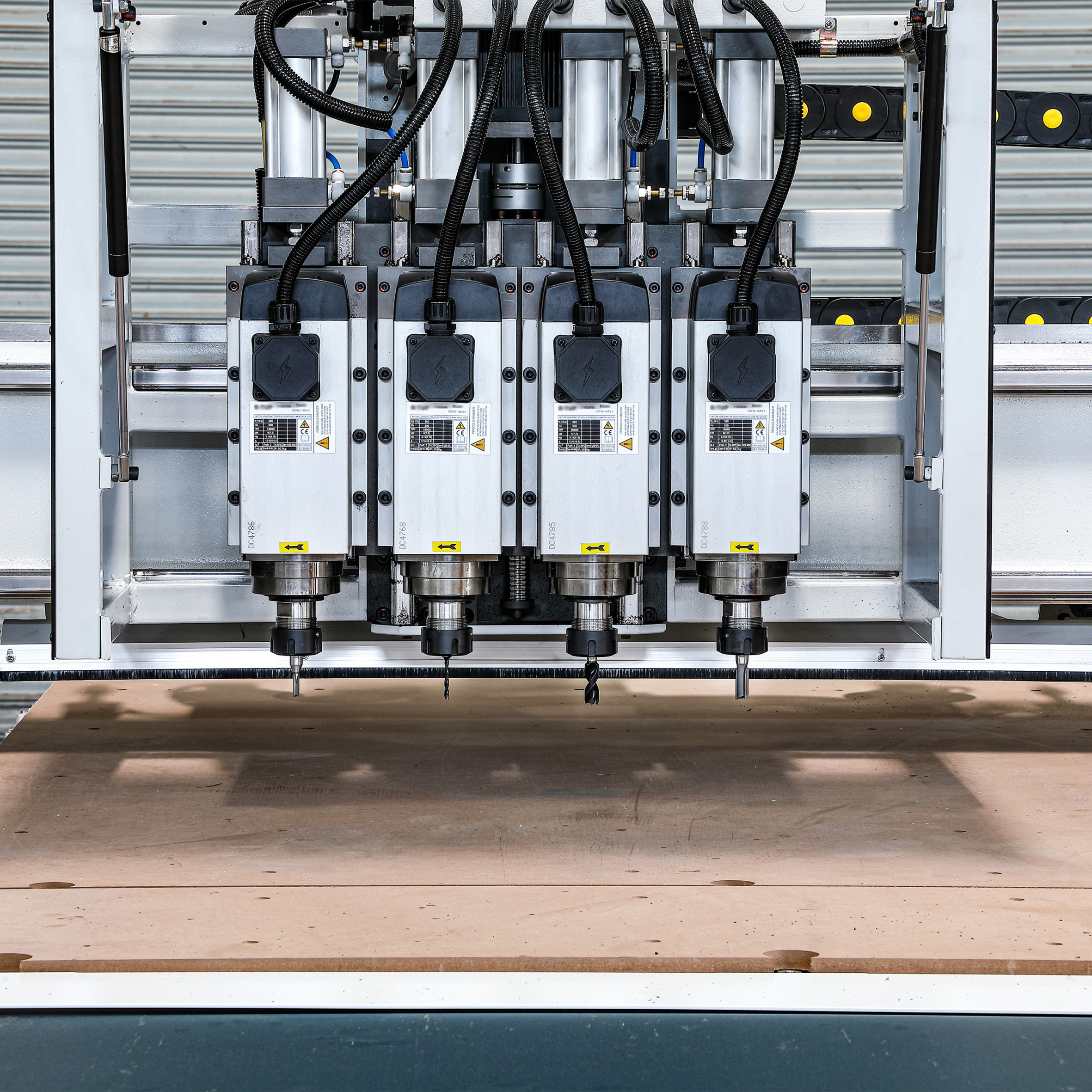

  • HQD 6KW SPINDLE*4 PCS
  • VACUUM TABLE WORK STROKE: 1300*2800*50MM
  • NCSTUDIO SERVO AND DRIVER
  • 7.5 KW FULLING INVERTER

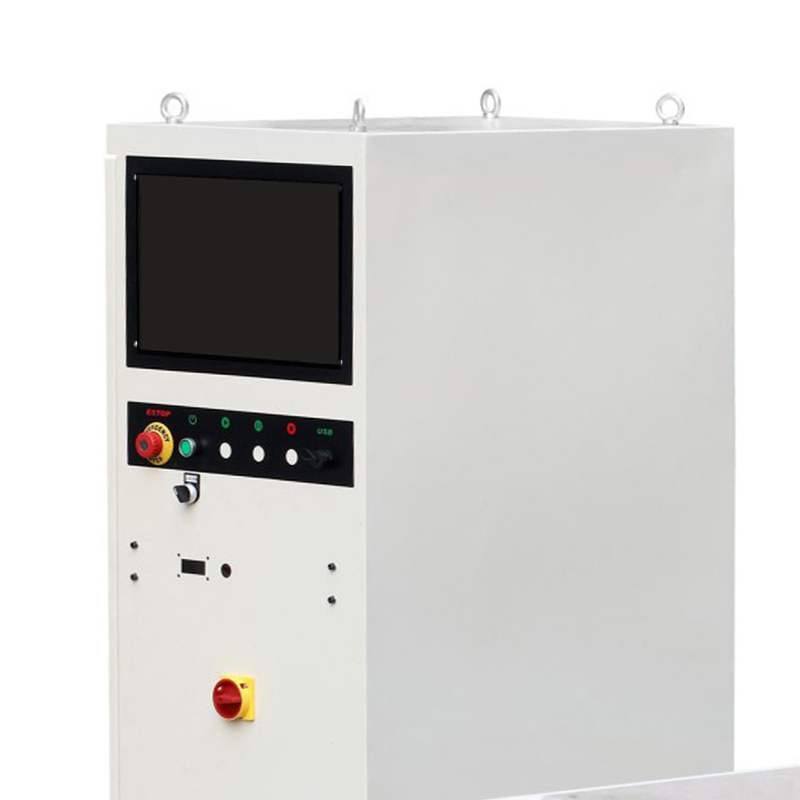

  • NCSTUDIO COMPUTER CONTROL SYSTEM
  • 7.5KW WATER PUMP
  • ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
Model RTS-4S
Work stroke 1300*2800*50mm
Spindle Brand HQD 6KW *4
Spindle Speed 18000r/min
Drive system NC Studio servo drive
Inverter Fulling 7.5 KW
Guide rail X/Y/X axis 25mm
Positioning cylinder X axis 4sets
PVC vacuum adsorption Total 6 areas, 2 holes in each area
Vacuum Pump Domestic water cycle 7.5kw
Reducer Helical gear reducer, 2m rack
Max. Idling speed X/Y axis: 75m/min, Z axis: 15m/min
Max. work speed X/Y axis: 25m/min, Z axis: 10m/min
Total power 17KW
Work voltage 380V 50HZ 3P
Operation instruction G-code, *.NC
Operation system SYNTEC FC computer control system
(display monitor and handwheel)
