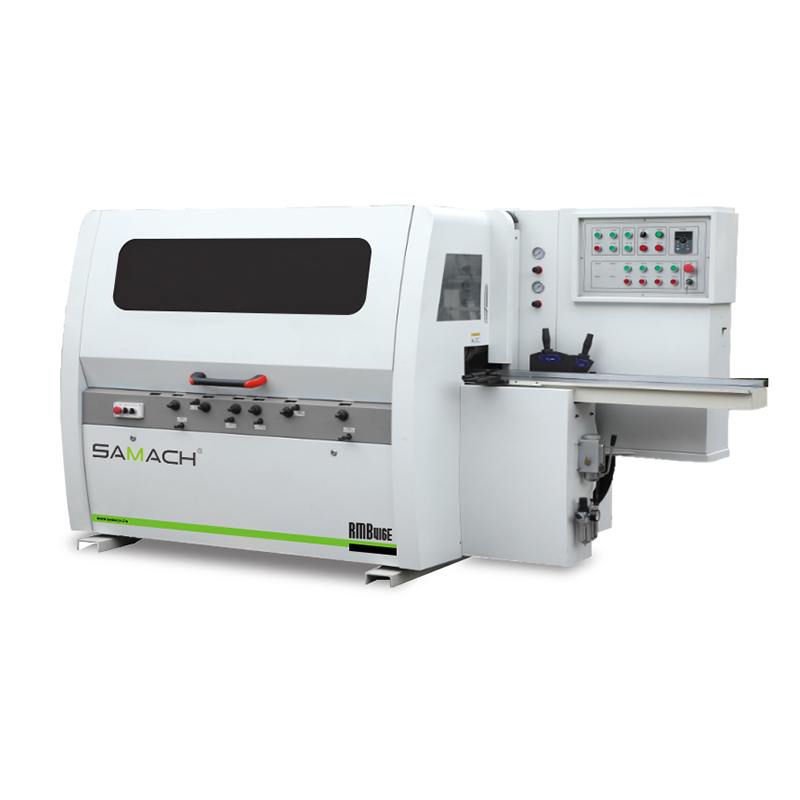

Four Sides Moulder
- DIFFERENT CUTTERS ARE OPTIONAL FOR 4/5/6 SPINDLES

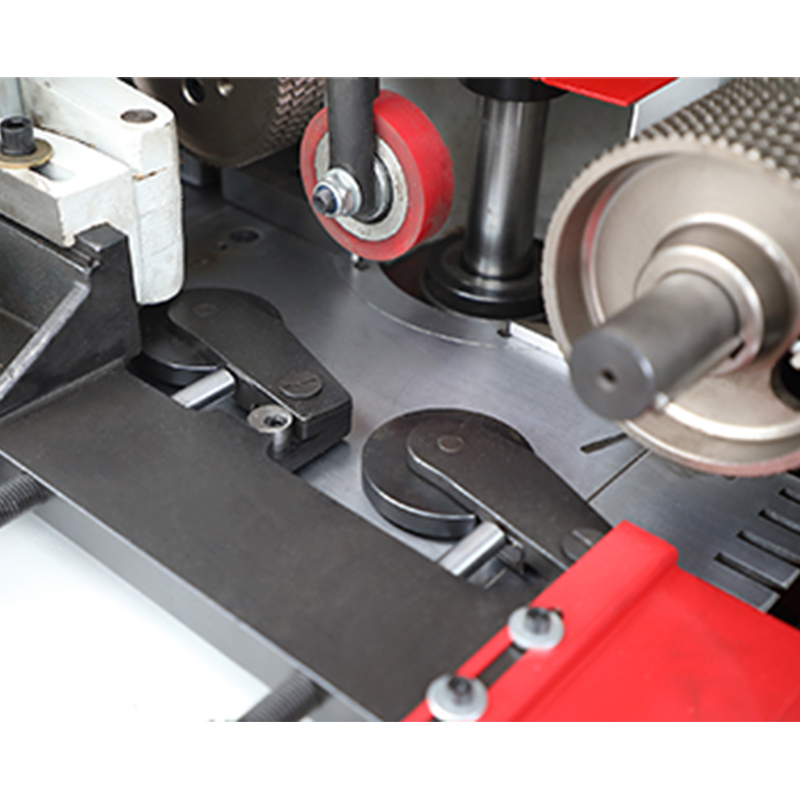

- THE SIDE FEED DEVICE WHICH COULD ENSURE INFEED SMOOTHLY

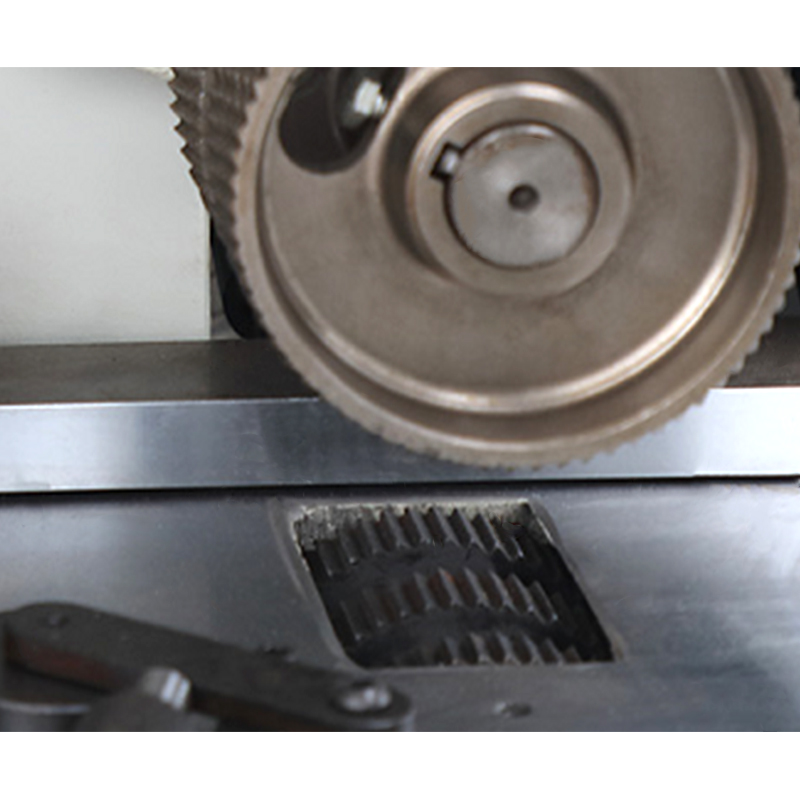

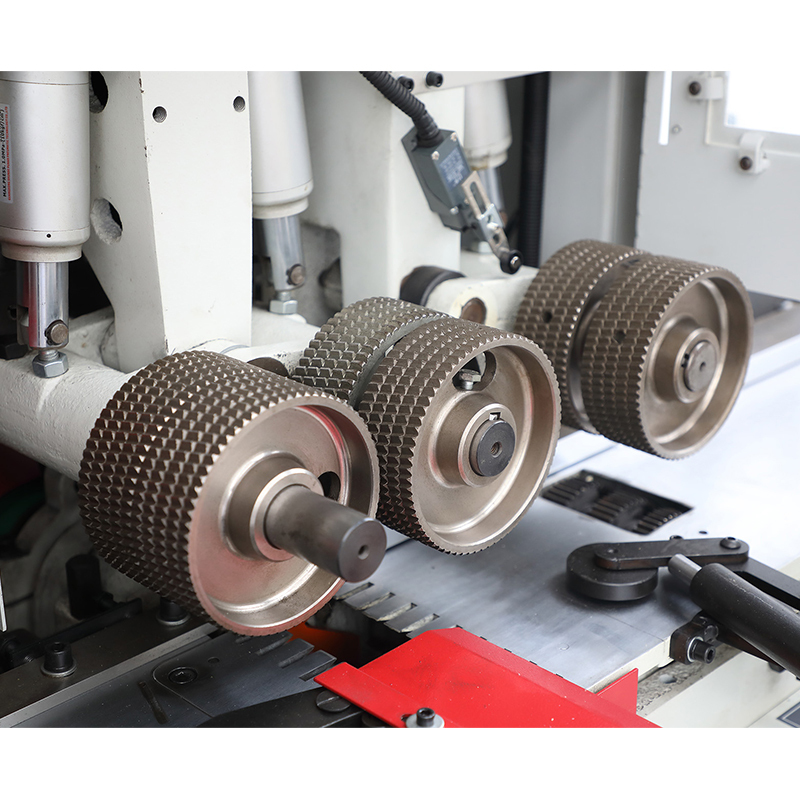

- THE FLAT TOOTH TYPE STEEL ROLLER WITH SPECIAL TREATMENT ARE DURABLE IN USE

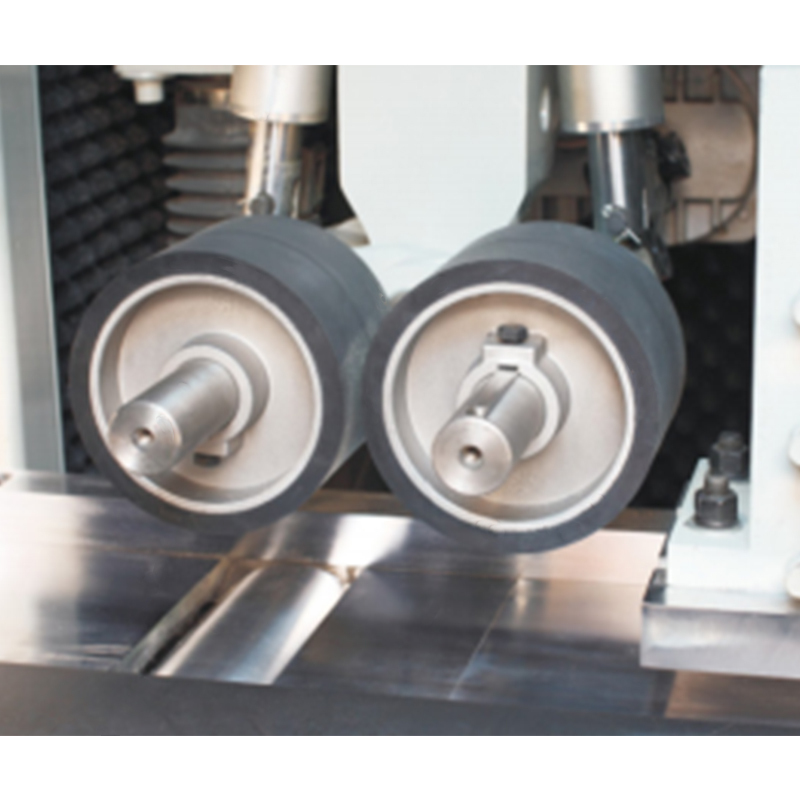

- THERE ARE SECTIONS FOR ADJUSTING PRESSURE ACCORDING TO REQUEST

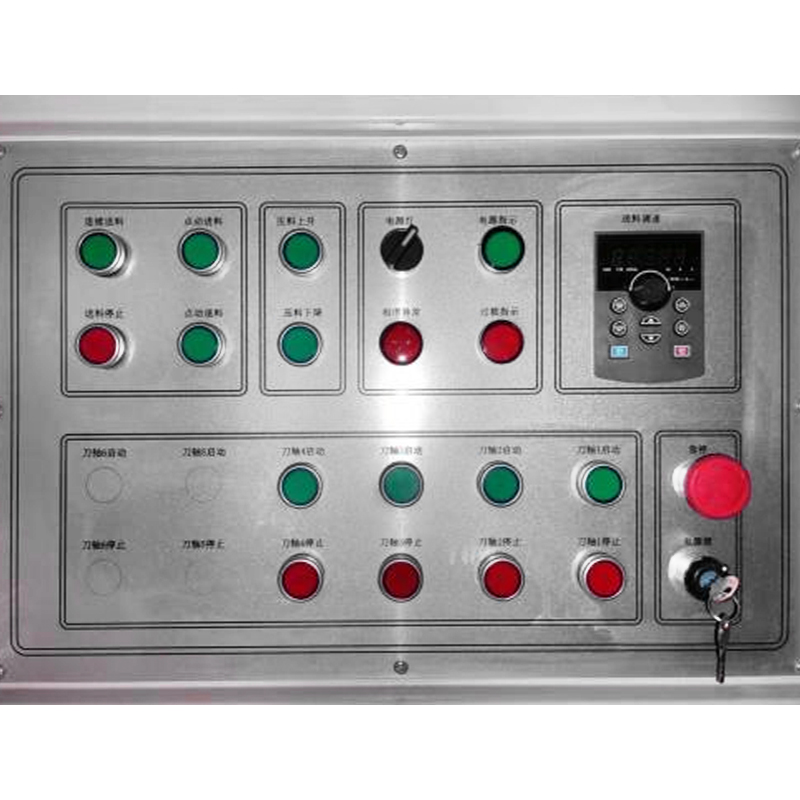

- THE SPEED OF FEEDING IS CONTROLLED IN FREQUENCY
| Model | RMB416E | RMB516SE | RMB516XE | RMB616E |
| Working Width | 25-160mm | 25-160mm | 25-160mm | 25-160mm |
| Working Thickness | 8-120mm | 8-120mm | 8-120mm | 8-120mm |
| Operating Platform Length | 1500mm | 1500mm | 1500mm | 1500mm |
| Feeding speed | 5-36m/min | 5-36m/min | 5-36m/min | 5-36m/min |
| Spindle Diameter | Ф40mm | Ф40mm | Ф40mm | Ф40mm |
| Spindle Speed | 6000r/min | 6000r/min | 6000r/min | 6000r/min |
| Gas Source pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
| Spindle motor power | 4kw(Left) 4kw(Rigth) 5.5kw(Top) 4kw(Bottom) |
4kw(Left) 4kw(Rigth) 5.5kw(1st Top) 4kw(1st Bottom) 5.5kw(2nd Top) |
4kw(Left) 4kw(Rigth) 5.5kw(1st Top) 4kw(1st Bottom) 4kw(2nd Bottom) |
4kw(Left) 4kw(Rigth) 5.5kw(1st Top) 4kw(1st Bottom) 5.5kw(2nd Top) 4kw(2nd Bottom) |
| Feeding lifting motor | 0.55kw | 0.75kw | 0.75kw | 0.75kw |
| Feeding motor power | 3kw | 3kw | 3kw | 3kw |
| Total motor power | 21.05kw | 26.75kw | 25.25kw | 29.25kw |
| Spindle diameter | Ф125-Ф160mm | Ф125-Ф160mm | Ф125-Ф160mm | Ф125-Ф160mm |
| Feeding wheel diameter | Ф140mm | Ф140mm | Ф140mm | Ф140mm |
| Dust outlet diameter | Ф120mm | Ф125mm | Ф125mm | Ф125mm |
| Overall Dimensions | 3100*1600*1700 mm | 3100*1600*1700 mm | 3100*1600*1700 mm | 3500*1410*1650 mm |
