- ACCORDING TO THE PRINCIPLES OF FREEZING AIR DRYING

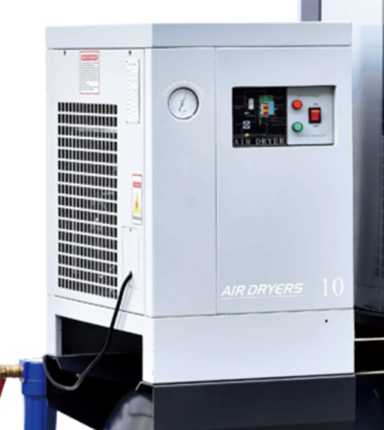

- THIS FREEZING COMPRESSED AIR DRYERS ADOPT THE REFRIGERATION EQUIPMENT TO COOL THE COMPRESSED AIR DOWN TO A CERTAIN DEW POINT TEMPERATURE AND THEN EXACT OUT WATER CONTAINED AND THEN SEPARATE THE WATER FROM THE OIL THROUGH THE SPLITTER AND THEN DISCHARGE IT BY THE AUTOMATIC DRAINER
- ITS AIR KEEP CONFORMITY WITH THE QUALITY STANDARD MADE BY ISO AGAINST THE AIR TREATMENT OF COMPRESSED AIR

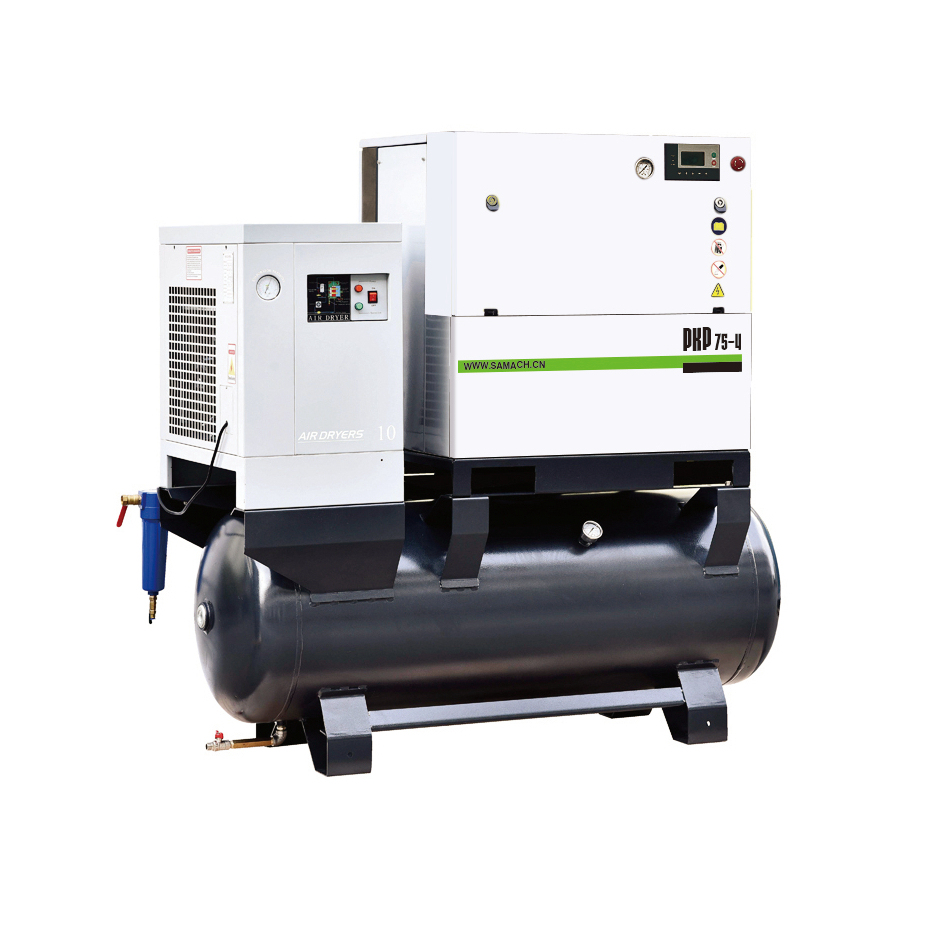

| Model | RKP75-4 | RKP110-4 | RKP150-4 |
| Motor power | 7.5kw | 11kw | 15kw |
| Max working air pressure | 8.8barg | 8.8barg | 8.8barg |

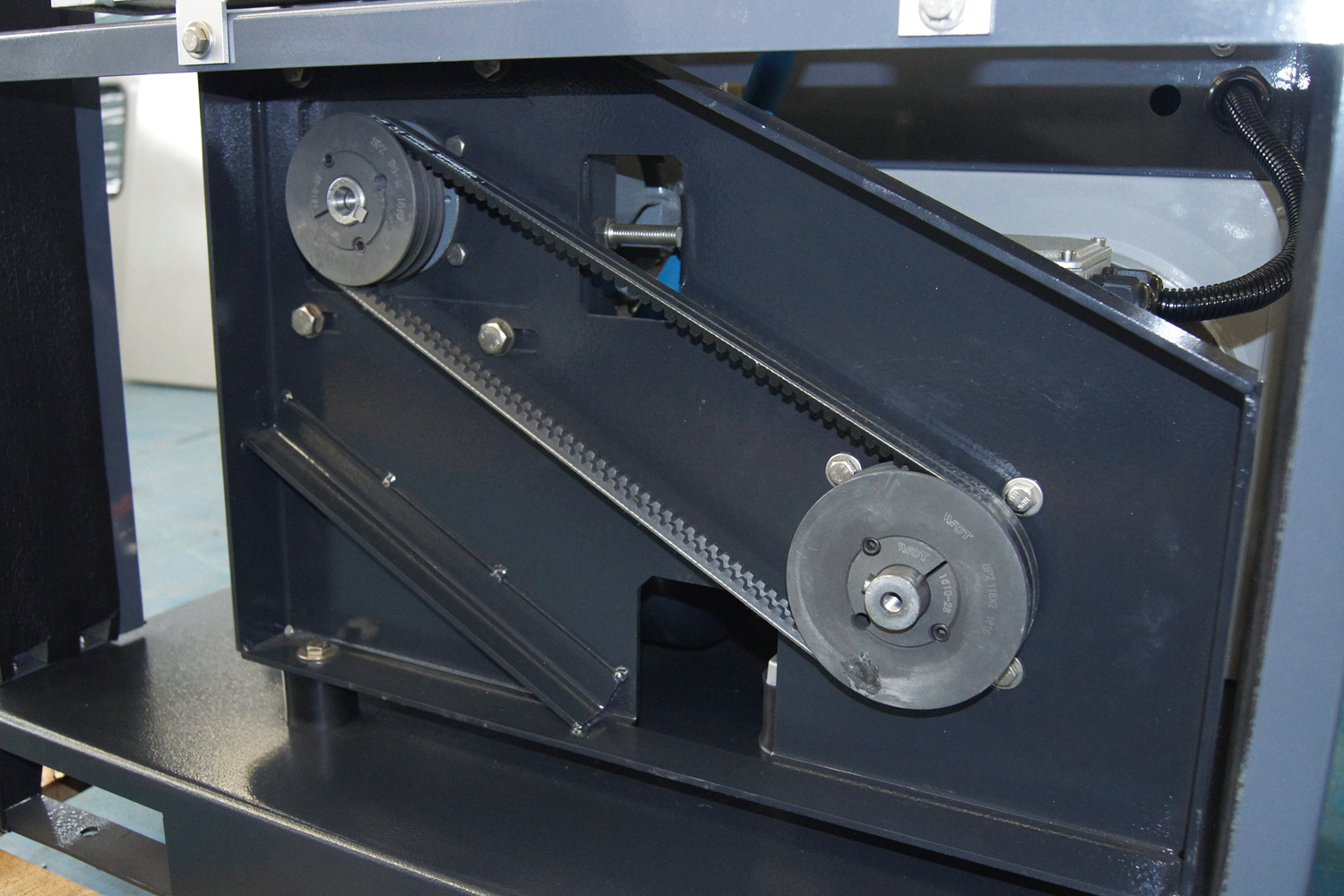

| Transmission | Belt driven | Belt driven | Belt driven |
| Air displacement | 1.1m³ | 1.6m³ | 2.3m³ |
| Oil capacity | 5.3L | 6L | 6L |
| Blower capacity | 1475m³/h | 2950m³/h | 2950m³/h |
| Motor speed | 2920rpm | 2920rpm | 2920rpm |
| Noise | 66dB(A) | 69dB(A) | 69dB(A) |
| Dryer air delivery | 2.0m³/min（10AC） | 2.2m³/min（15AC） | 2.6m³/min（20AC） |
| Filter air delivery | 1.5m³/min | 2.4m³/min | 2.4m³/min |
| gas storage | 360L | 360L | 500L |
| Outlet size | R3/4 | R3/4 | R3/4 |
| Oversize | 1785*820*1650 | 1785*820*1650 | 1900*1060*1741 |
| Weight | 160kg | 480kg | 580kg |
