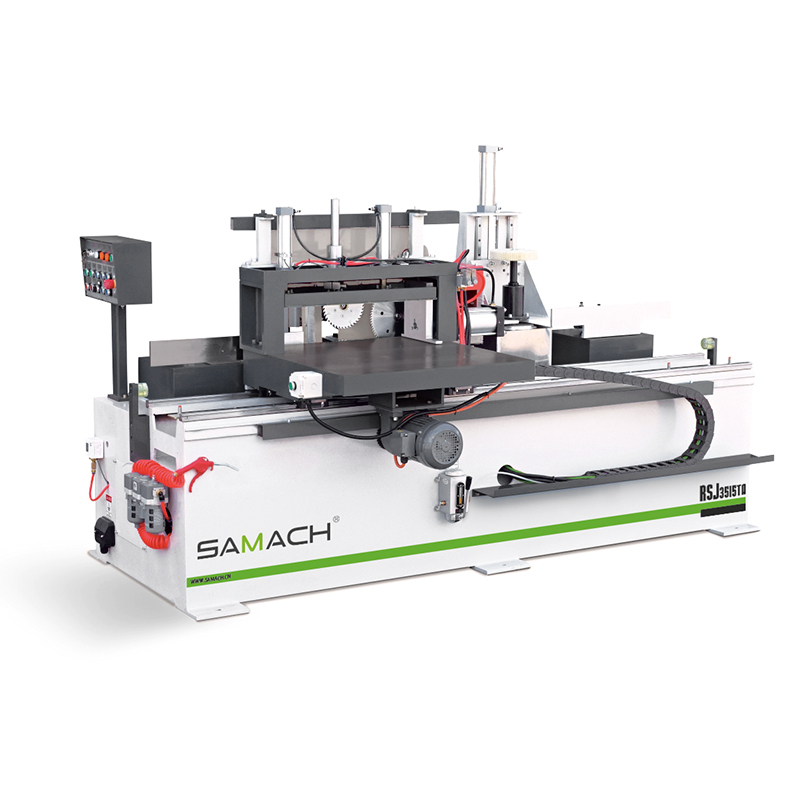

Finger Joint Shaper with Gluing

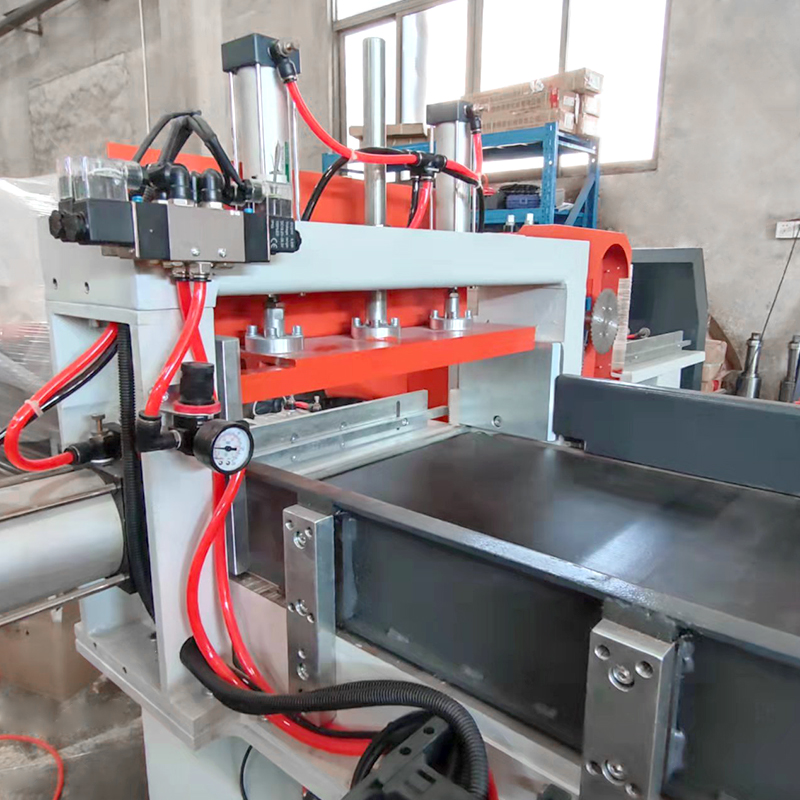

THE FEEDING TABLE GUIDE ADOPTS THE PRECISION LINEAR GUIDE IMPORTED FROM JAPAN, WHICH ENSURES THE PRECISION OF THE OPENING

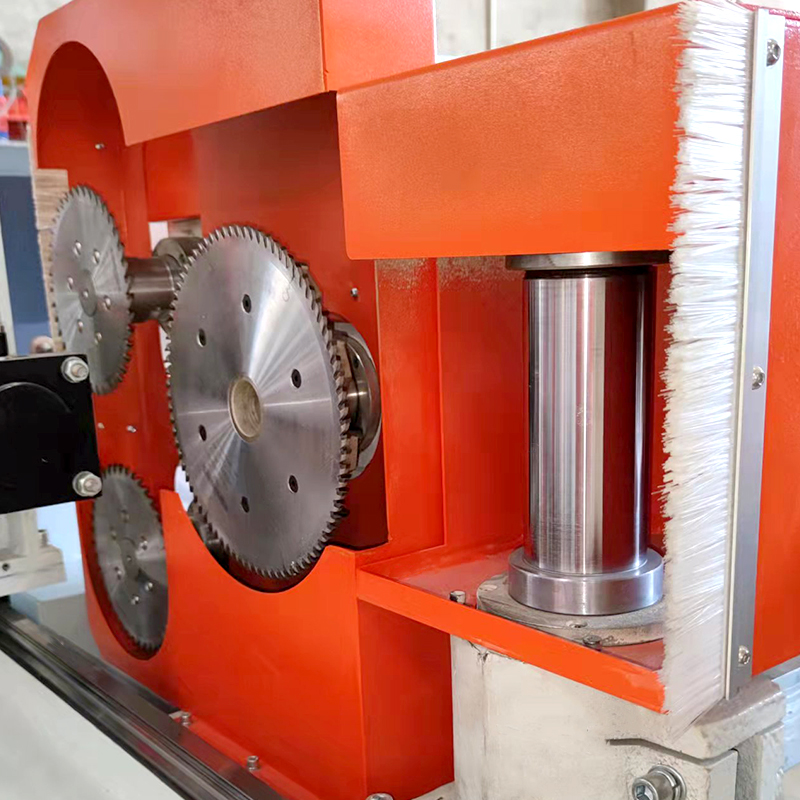

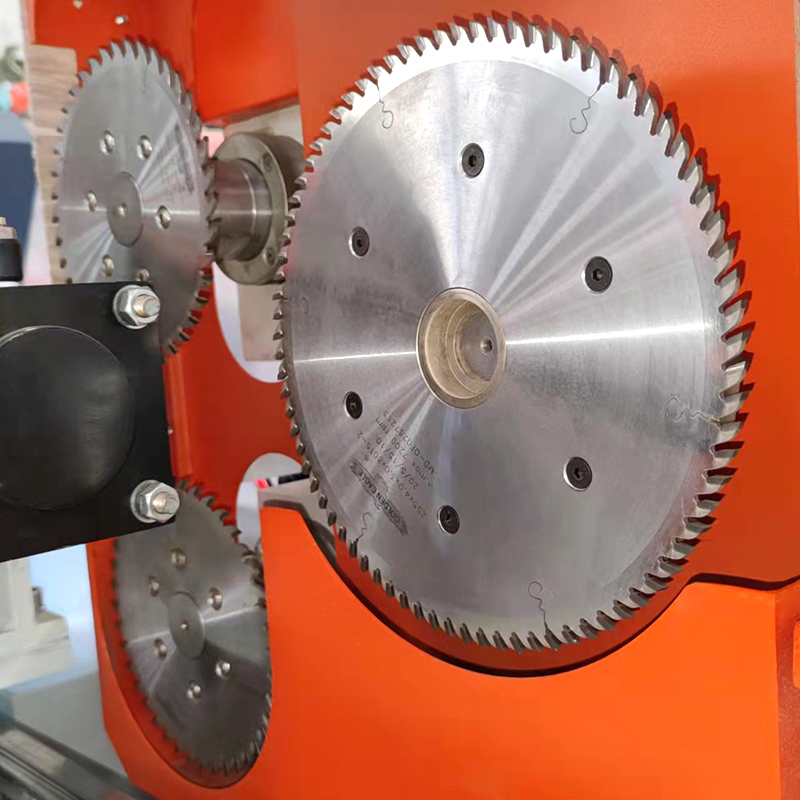

THE SAWING PART ADOPTS A COMBINATION OF A DOUBLE SAW SHAFT AND A PULVERIZING KNIFE TO IMPROVE THE QUALITY OF THE OPENING
THE WORKTABLE ADVANCES AND RETREATS ADOPTS A RACK AND PINION TRAVEL MECHANISM, WHICH IS STABLE AND FAST, EASY TO MAINTAIN, AND CONSUMES LESS POWER

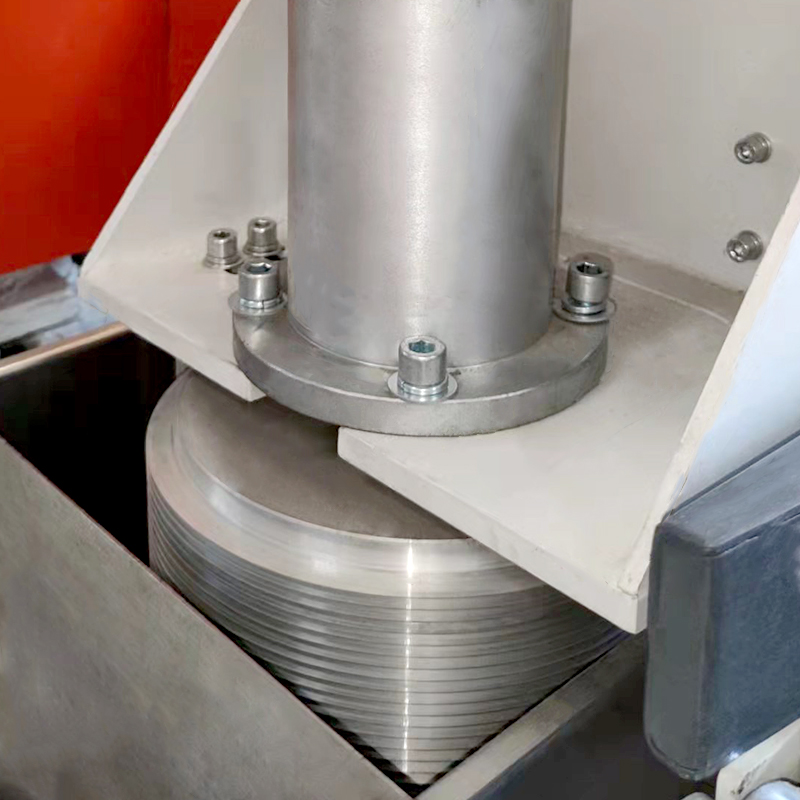

THE TOOTH-SHAPED ANASTOMOSIS SPRAY SYSTEM IS USED TO ACHIEVE UNIFORM SPRAY GLUE, ACHIEVING THE EFFECT OF SAVING GLUE

Model	RSJ3515A	RSJ3515TA (with gluing)
Worktable size	500*650 mm	500*650 mm
Max. Working thickness	150mm	150mm
Max. Working width	600mm	500mm
Diameter of main saw spindle	Φ30mm	Φ30mm
Diameter of shaper spindle	Φ50mm	Φ50mm
Diameter of Shaper blade	Φ160mm	Φ160mm
Main saw spindle speed	2840rpm	2840rpm
Shaper spindle speed	6000rpm	6000rpm
Shaper spindle power	11kw	11kw
Saws spindle power	5.5kw	4kw
Working table drive motor power	0.37kw	0.75kw*2
Total power	16.5kw	16.5kw
Working air pressure	0.8 Mpa	0.8 Mpa
Overall dimensions	270017301550mm	270017301550mm
Net weight	1800kg	2000kg
