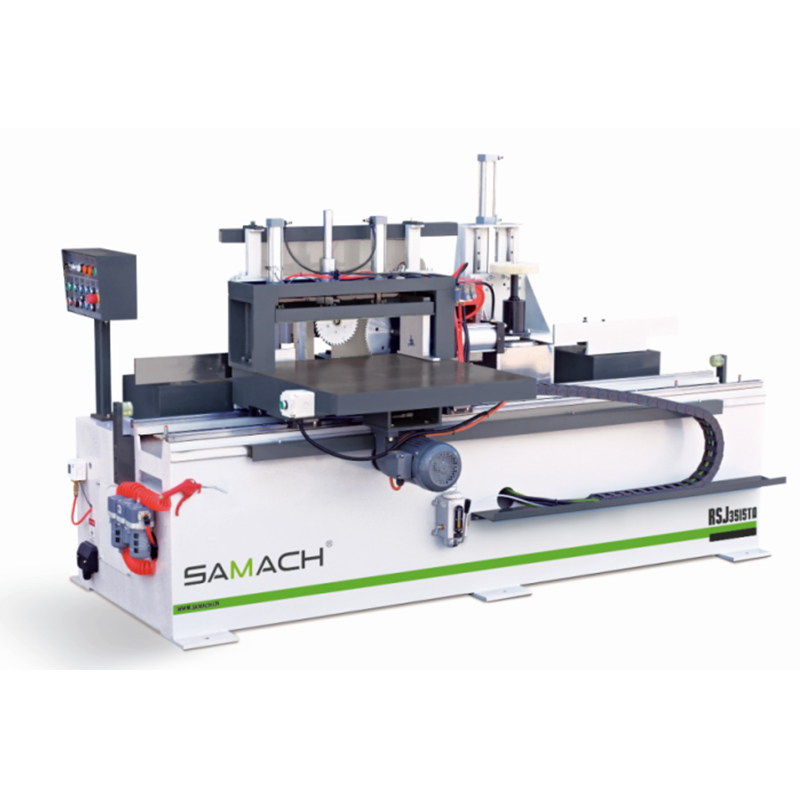

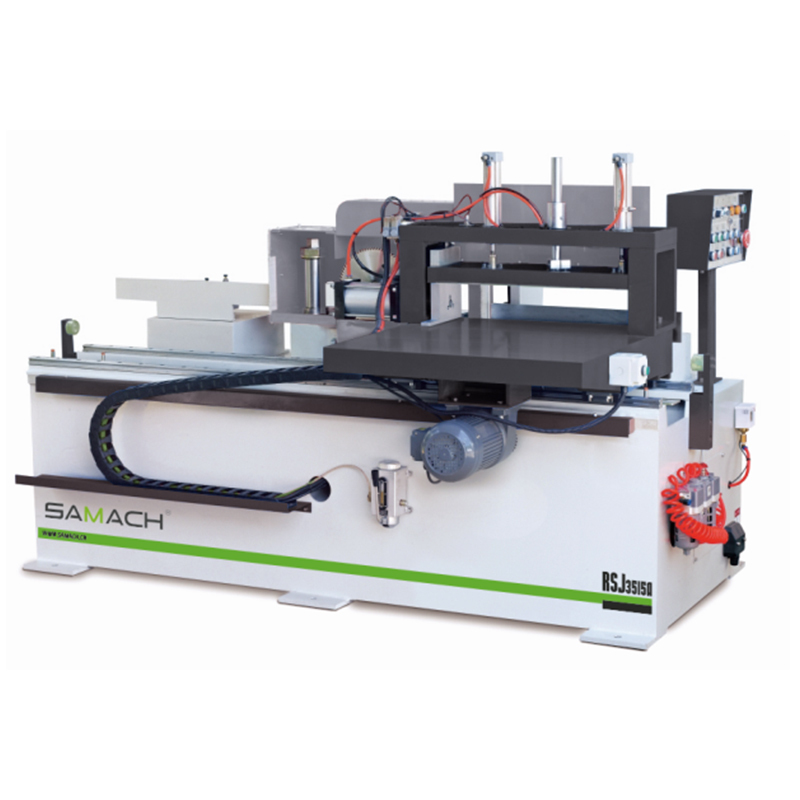

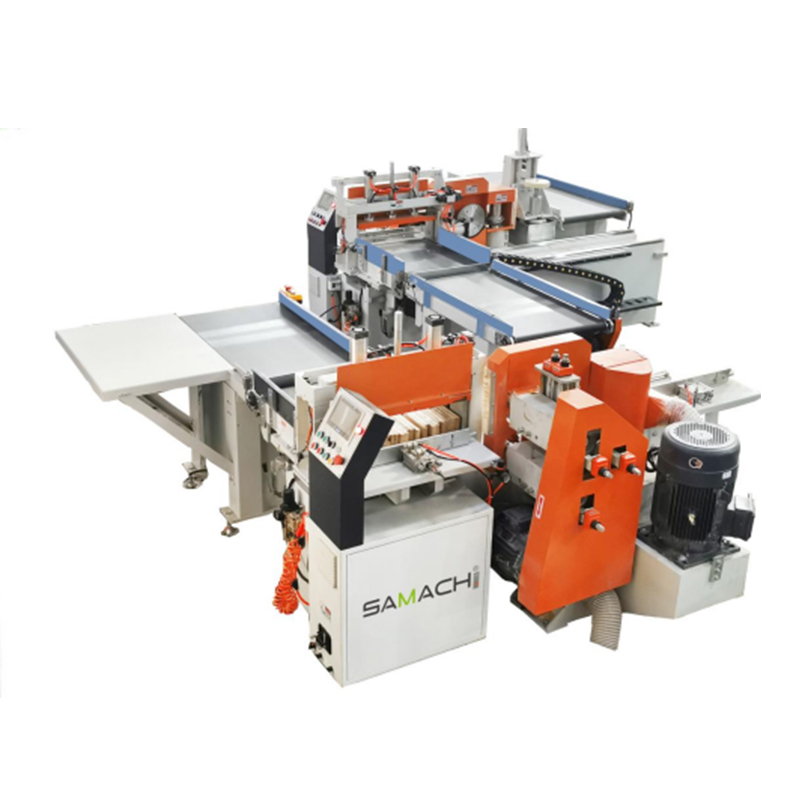

Finger Joint Shaper Line
- AUTOMATIC FINGER JOINT SHAPER LINE TO SAVE LABORS AND WORKERS

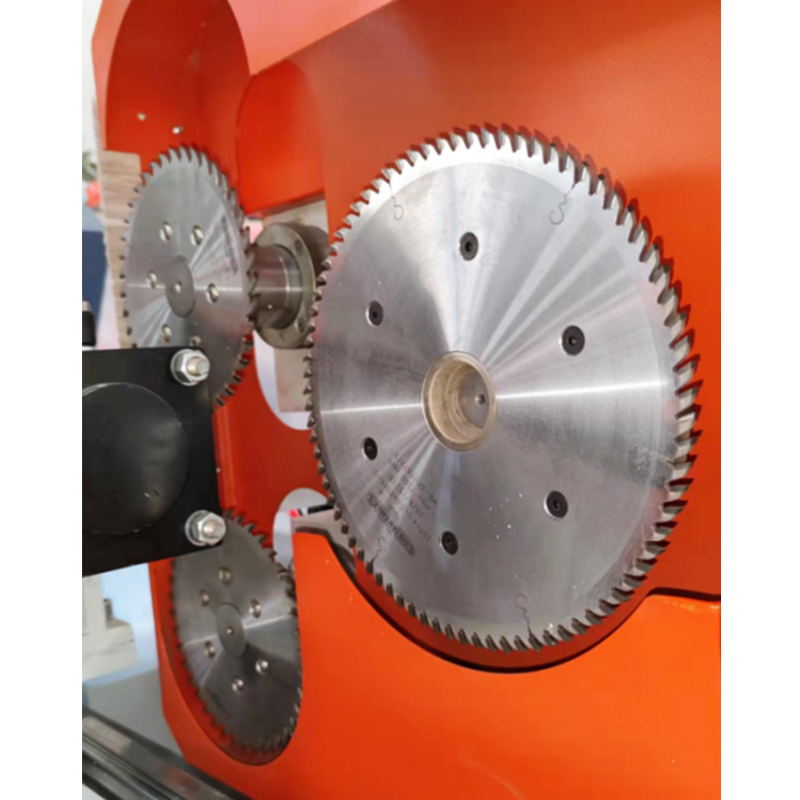

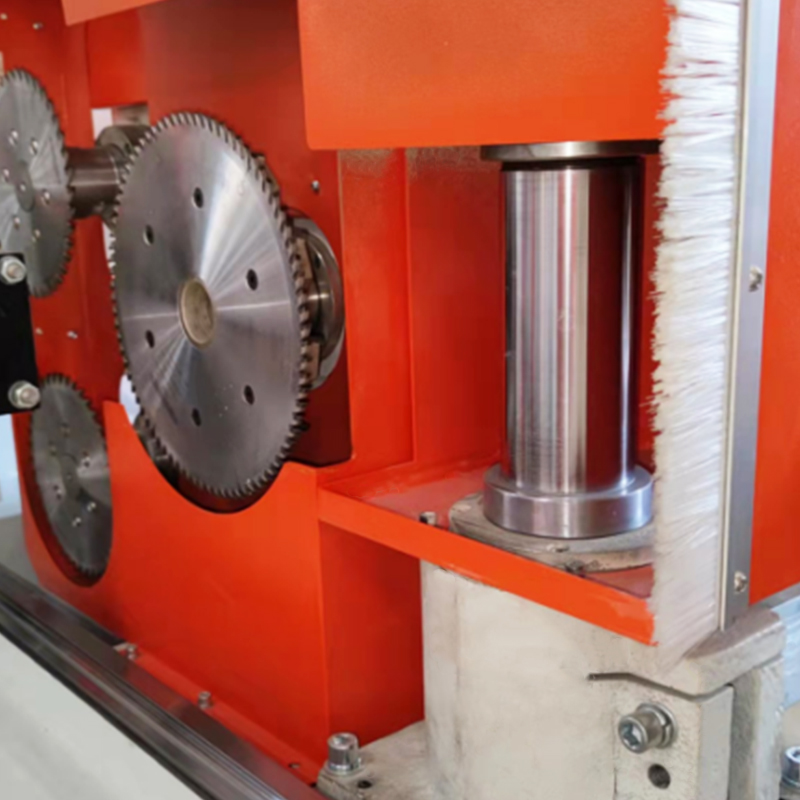

- THE SAWING PART ADOPTS A COMBINATION OF A DOUBLE SAW SHAFT AND A PULVERIZING KNIFE TO IMPROVE THE QUALITY OF THE OPENING
- THE WORKTABLE ADVANCES AND RETREATS ADOPTS A RACK AND PINION TRAVEL MECHANISM, WHICH IS STABLE AND FAST, EASY TO MAINTAIN, AND CONSUMES LESS POWER

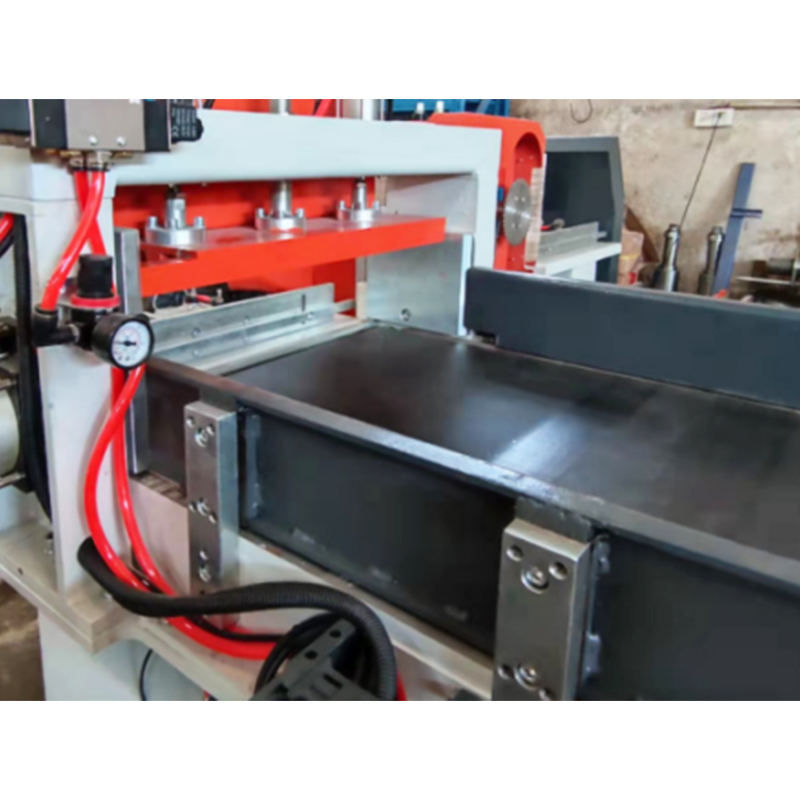

- THE FEEDING TABLE GUIDE ADOPTS THE PRECISION LINEAR GUIDE IMPORTED FROM JAPAN, WHICH ENSURES THE PRECISION OF THE OPENING
| Finger joint shaper | Finger joint shaper(with gluing) | |
| Model | RSJ3515A(Line) | RSJ3515TA(Line) |
| Worktable size | 850*600mm | 850*600mm |
| Max. working size | 850*80*150mm | 850*80*150mm |
| Min. working size | 150*20*30mm | 200*30*20mm |
| Shaper spindle diameter | Φ70mm | Φ70mm |
| Shaper blade diameter | Φ160mm | Φ160mm |
| Main saw blade size | Φ255mm | Φ255mm |
| Main saw spindle speed | 2840rpm | 2840rpm |
| Shaper spindle speed | 6000rpm | 6000rpm |
| Working air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Total power | 16.12kw | 16.87kw |
| Infeed strap conveyor | Middle strap conveyor | Output strap conveyor | |
| Model | MF756A | MF756B | MF756C |
| Length of work table | 1150mm | 1150mm | 1150mm |
| Width of work table | 600mm | 600mm | 600mm |
| Rate power of motor | 0.375kw | 0.375kw | 0.375kw |
| Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Overall diameter | 1180*1330*920mm | 1180*725*920mm | 1180*725*920mm |
