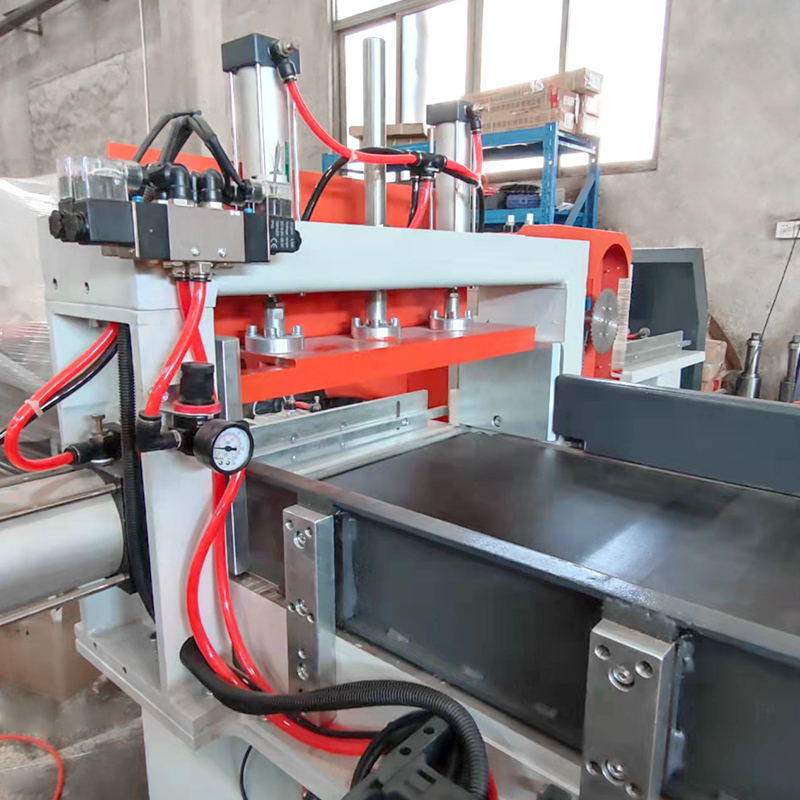

- THE FEEDING TABLE GUIDE ADOPTS THE PRECISION LINEAR GUIDE IMPORTED FROM JAPAN, WHICH ENSURES THE PRECISION OF THE OPENING

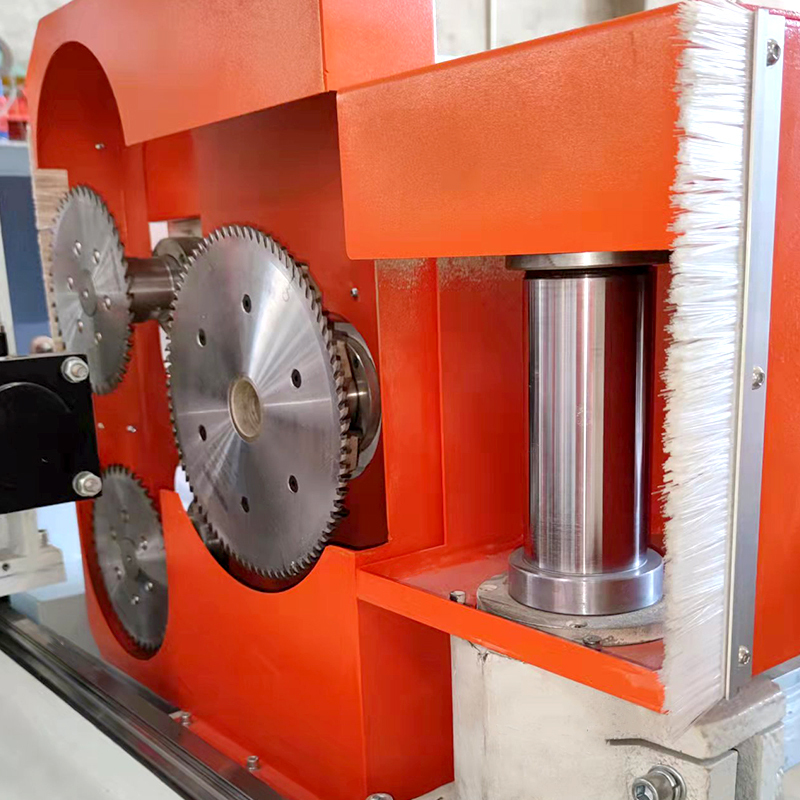

- THE SAWING PART ADOPTS A COMBINATION OF A DOUBLE SAW SHAFT AND A PULVERIZING KNIFE TO IMPROVE THE QUALITY OF THE OPENING
- THE WORKTABLE ADVANCES AND RETREATS ADOPTS A RACK AND PINION TRAVEL MECHANISM, WHICH IS STABLE AND FAST, EASY TO MAINTAIN, AND CONSUMES LESS POWER
| Model | RSJ3515A | RSJ3515TA (with gluing) |
| Worktable size | 500*650 mm | 500*650 mm |
| Max. Working thickness | 150mm | 150mm |
| Max. Working width | 600mm | 500mm |
| Diameter of main saw spindle | Φ30mm | Φ30mm |
| Diameter of shaper spindle | Φ50mm | Φ50mm |
| Diameter of Shaper blade | Φ160mm | Φ160mm |
| Main saw spindle speed | 2840rpm | 2840rpm |
| Shaper spindle speed | 6000rpm | 6000rpm |
| Shaper spindle power | 11kw | 11kw |
| Saws spindle power | 5.5kw | 4kw |
| Working table drive motor power | 0.37kw | 0.75kw*2 |
| Total power | 16.5kw | 16.5kw |
| Working air pressure | 0.8 Mpa | 0.8 Mpa |
| Overall dimensions | 2700*1730*1550mm | 2700*1730*1550mm |
| Net weight | 1800kg | 2000kg |
