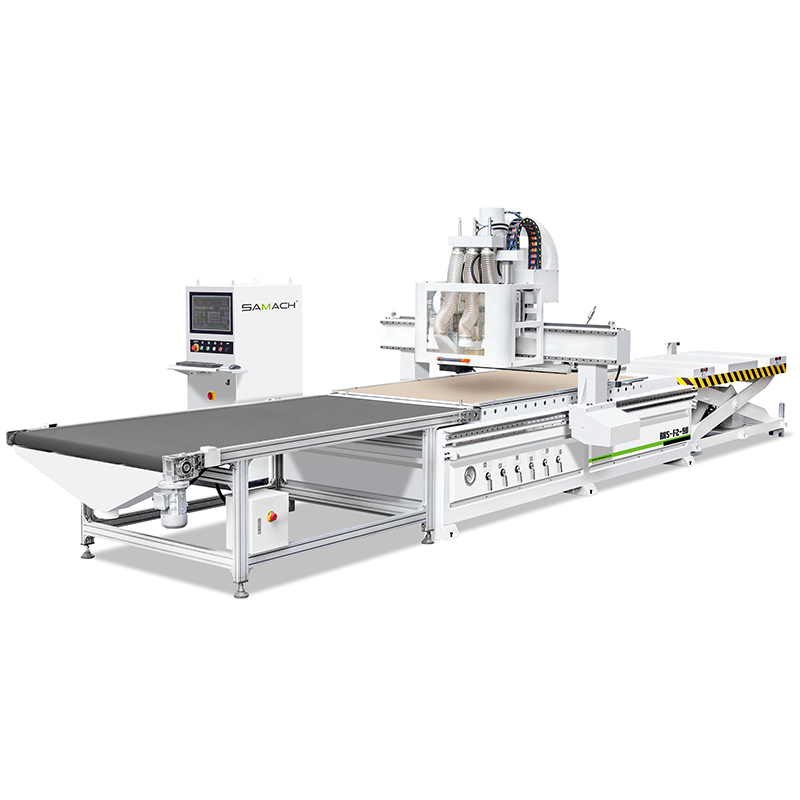

Double Spindles CNC Router Line

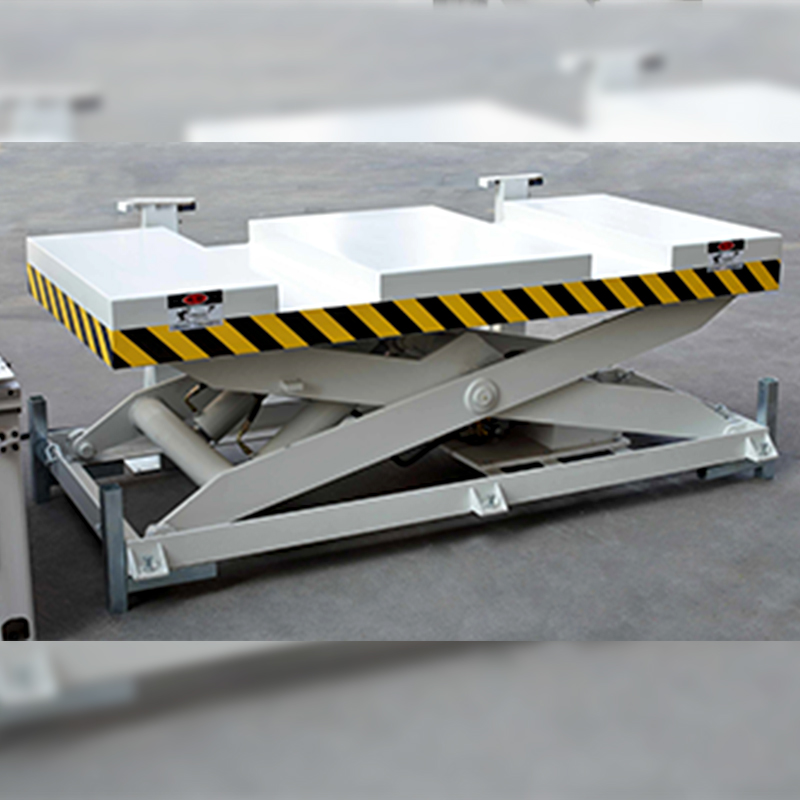

- AUTOMATIC LOADING AND UNLOADING DEVICE
- ADAPTS DXF MPR XML COMMON FURNITURE FORMAT

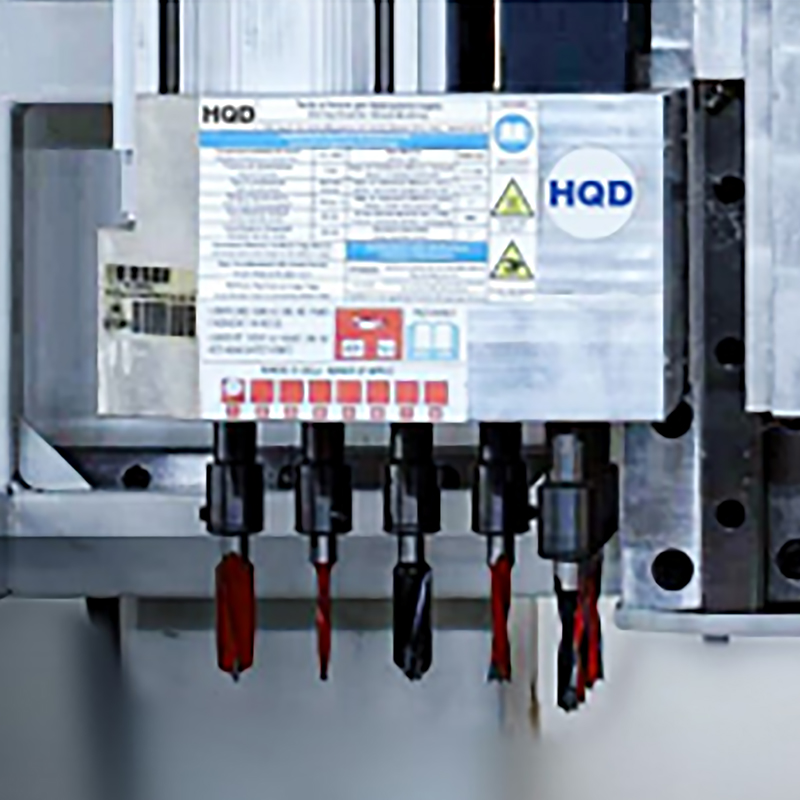

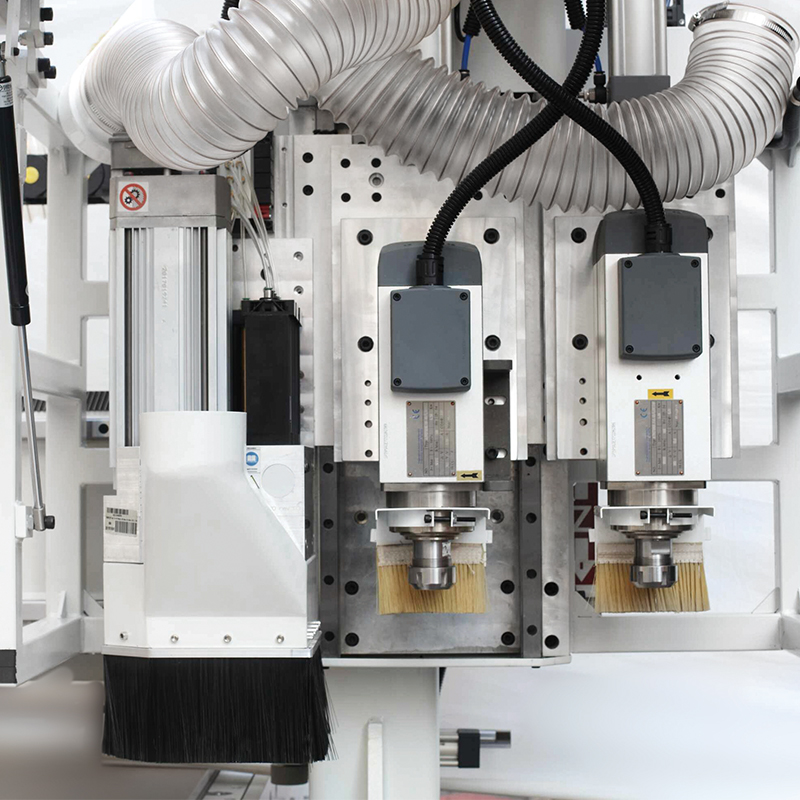

- 6KW*2 SPINDLE + 9 DRILLING BLOCKS

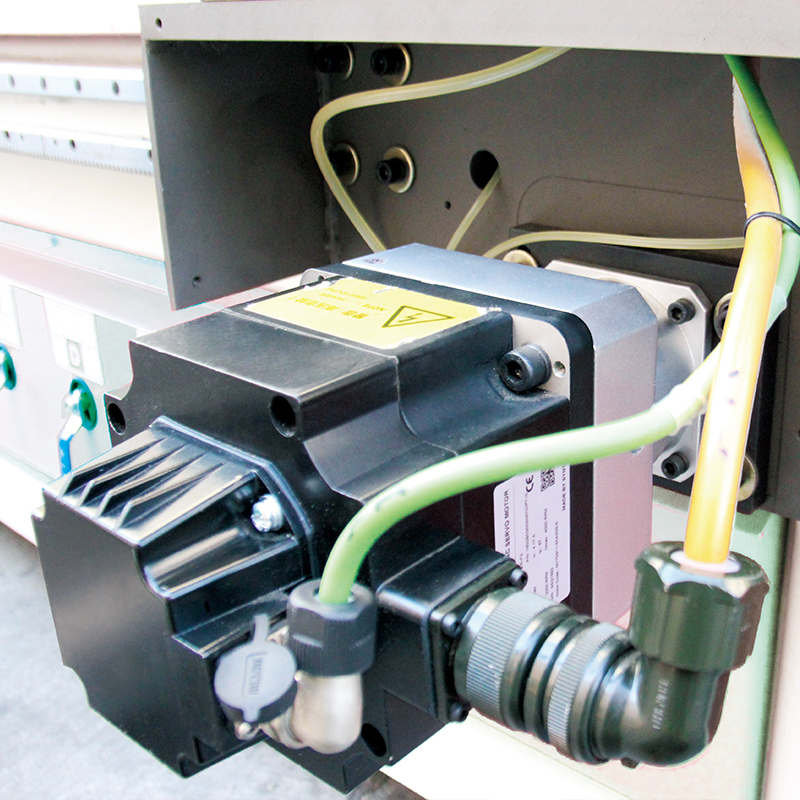

- JAPAN YASKAWA SERVO AND DRIVER

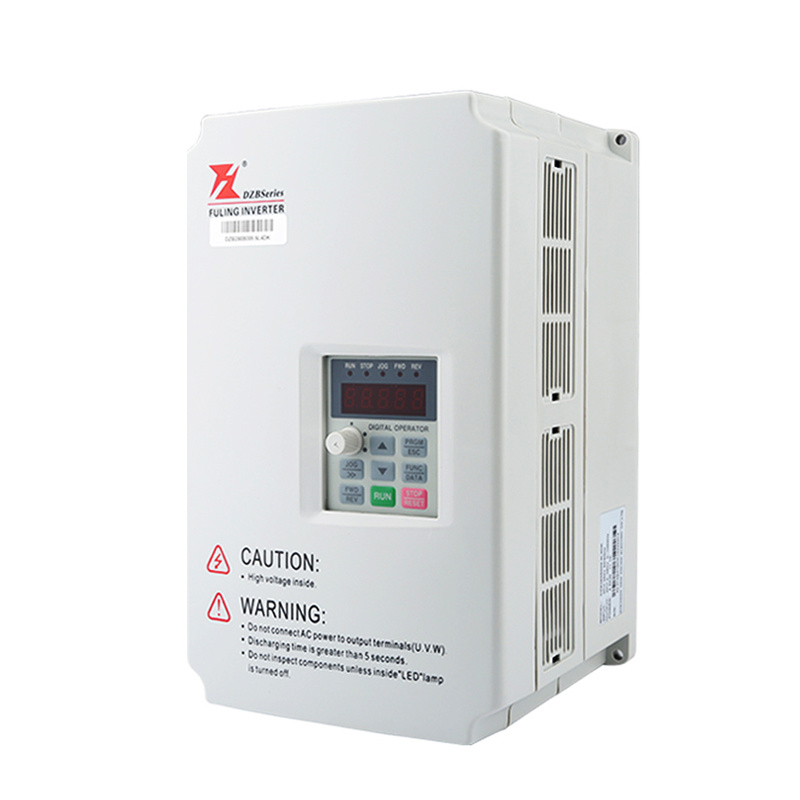

- 5.5KW FULLING NVERTER

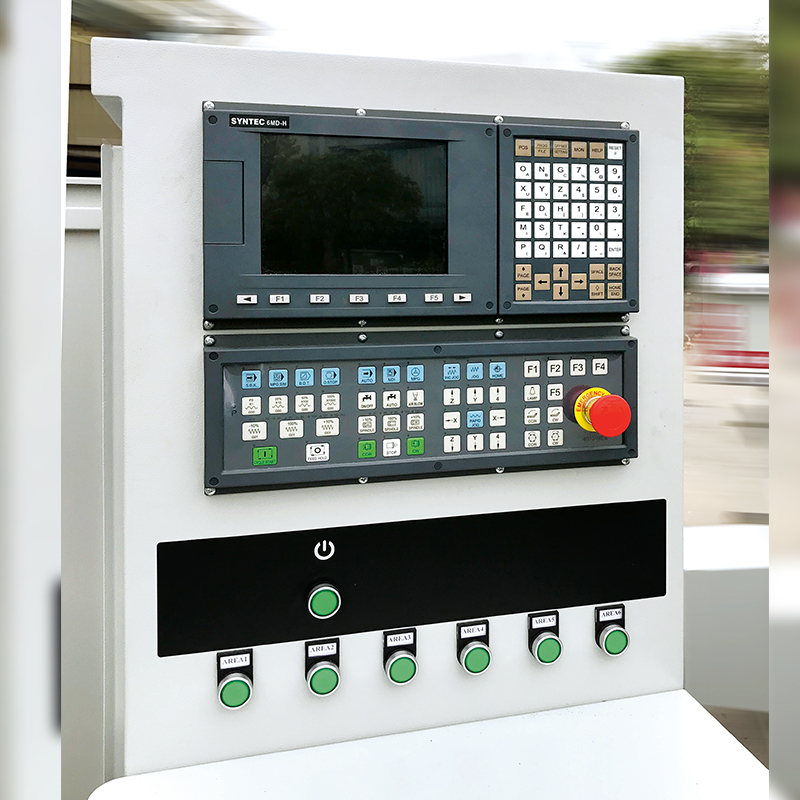

- SYNTEC/NCSTUDIO COMPUTER CONTROL SYSTEM
- 7.5KW WATER PUMP
| Model | RKS-F2+9V |
| Work stroke | 1300*2500*180mm |
| Spindle Brand | Domestic 6KW*2 air cooling |
| Spindle Speed | 18000r/min |
| Drive system | Japan Yaskawa 850W servo drive |
| Inverter | Sunfar 5.5KW |
| Guide rail X/Y/X axis | 25mm |

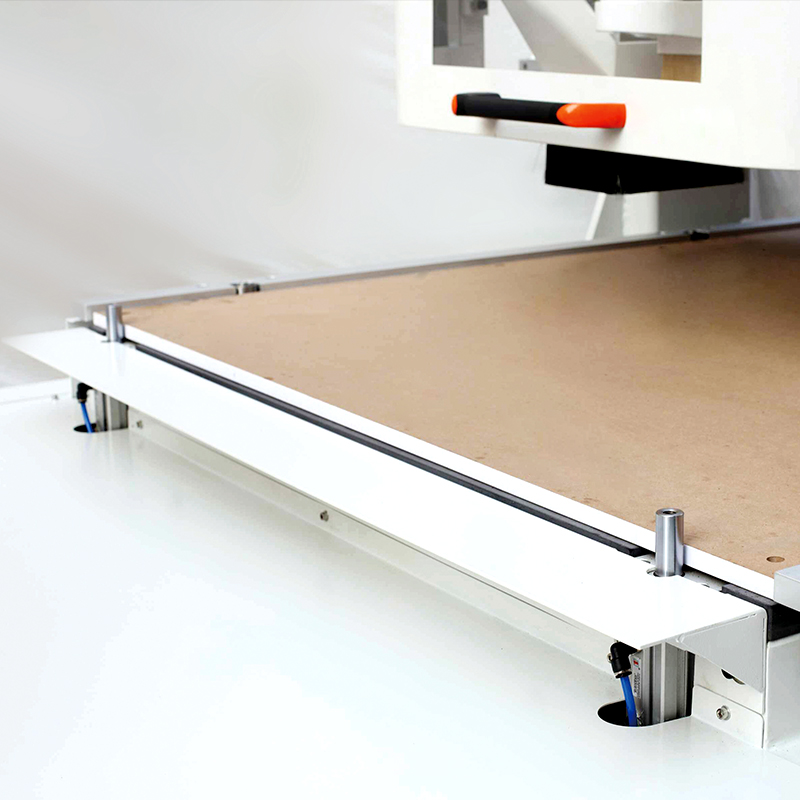

| Positioning cylinder X axis | 2sets |
| Positioning bar Y axis | Installed in two sides of Y axis |
| PVC vacuum adsorption | Total 6 areas, 2 holes in each area |
| Vacuum Pump | Domestic water cycle 7.5kw |
| Reducer | Helical gear reducer, 2m rack |

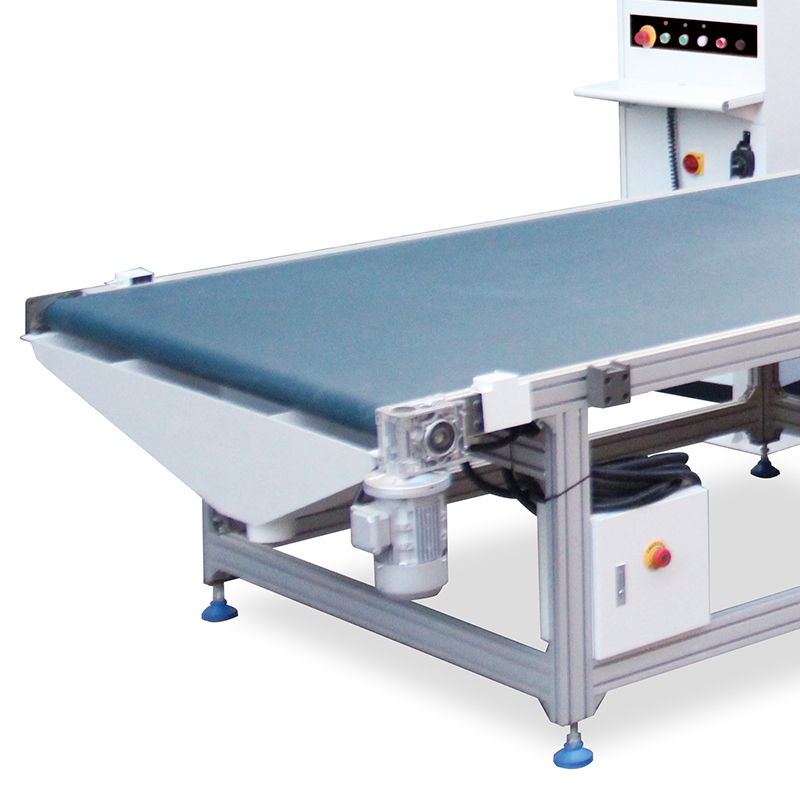

| Pushing device | Auto loading, unloading device (lifting worktable and belt conveyor platform) |
| Max. work speed | X/Y axis: 25m/min, Z axis: 10m/min |
| Operation instruction | G-code, *.NC |
| Operation system | Syntec FC computer control system (display monitor and handwheel) |
