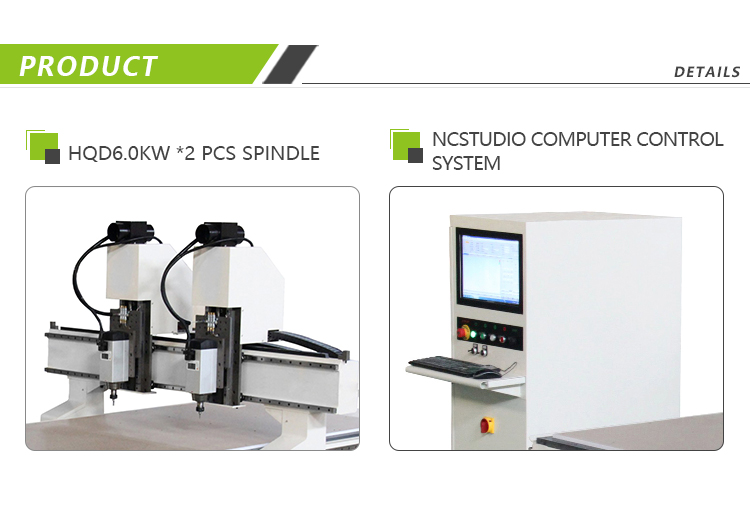

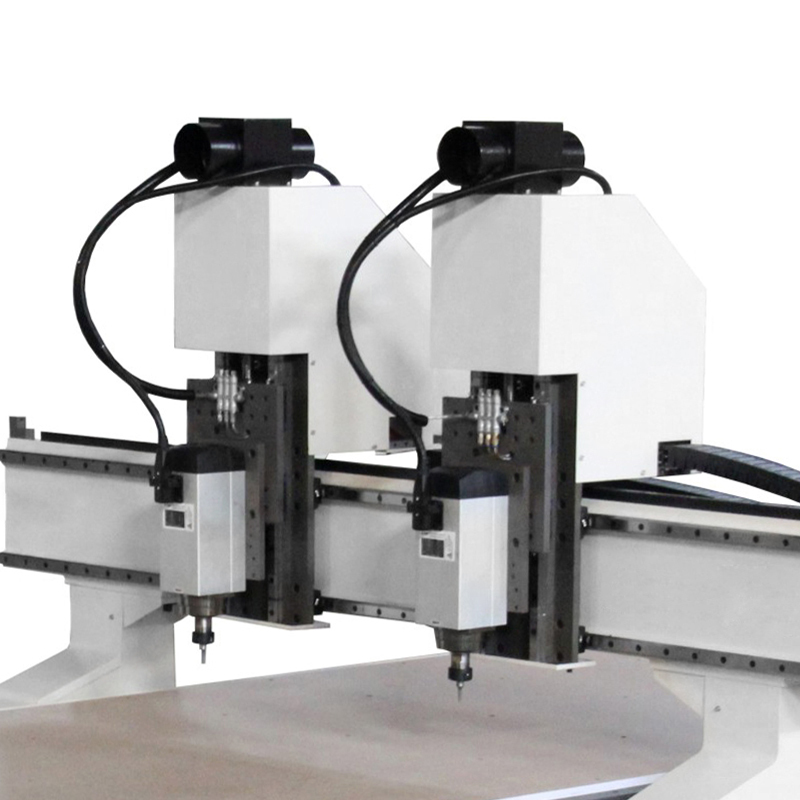

- HQD 6KW SPINDLE*2 PCS
- VACUUM TABLE WORK STROKE: 1300*2800*50MM
- NCSTUDIO SERVO AND DRIVER
- 7.5 KW FULLING INVERTER
- NCSTUDIO COMPUTER CONTROL SYSTEM
- 7.5KW WATER PUMP
- ADAPTS DXF MPR XML COMMON FURNITURE FORMAT
| Model | RTS-2S |
| Work stroke | 1300*2800*50mm |
| Spindle Brand | HQD 6KW *2 |
| Spindle Speed | 18000r/min |
| Drive system | NC Studio servo drive |
| Inverter | Fulling 7.5 KW |
| Guide rail X/Y/X axis | 25mm |
| Positioning cylinder X axis | 4sets |
| PVC vacuum adsorption | Total 6 areas, 2 holes in each area |
| Vacuum Pump | Domestic water cycle 7.5kw |
| Reducer | Helical gear reducer, 2m rack |
| Max. Idling speed | X/Y axis: 75m/min, Z axis: 15m/min |
| Max. work speed | X/Y axis: 25m/min, Z axis: 10m/min |
