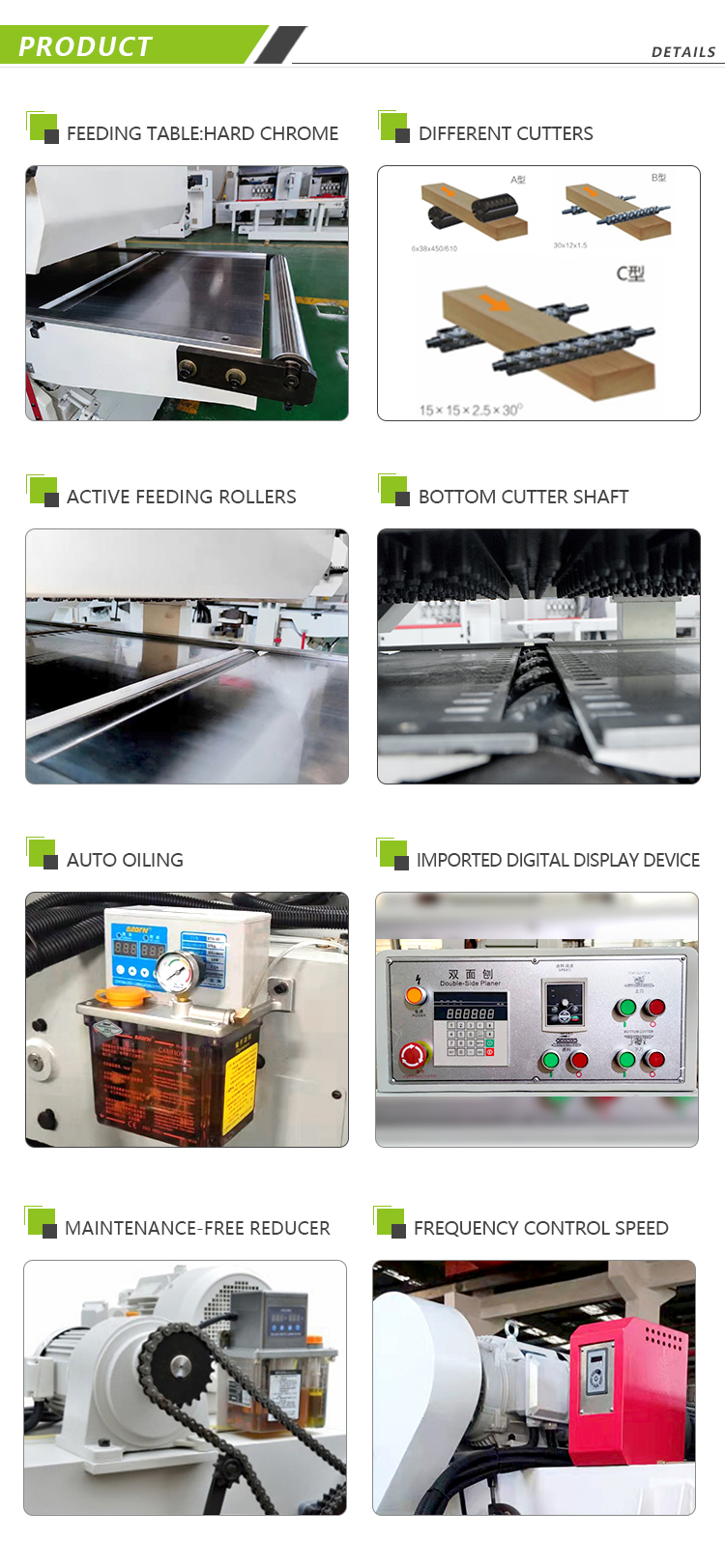

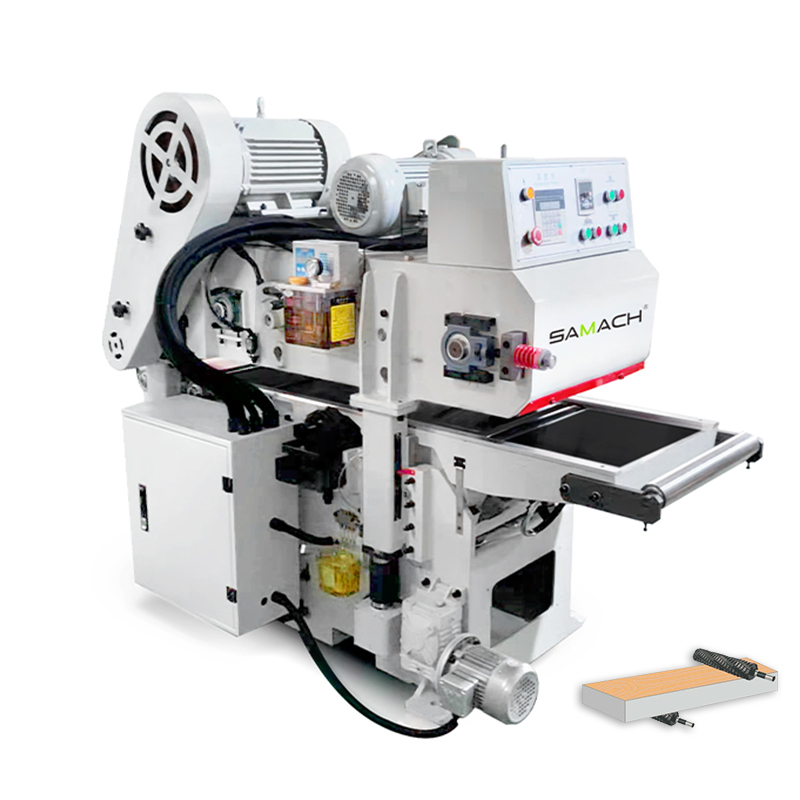

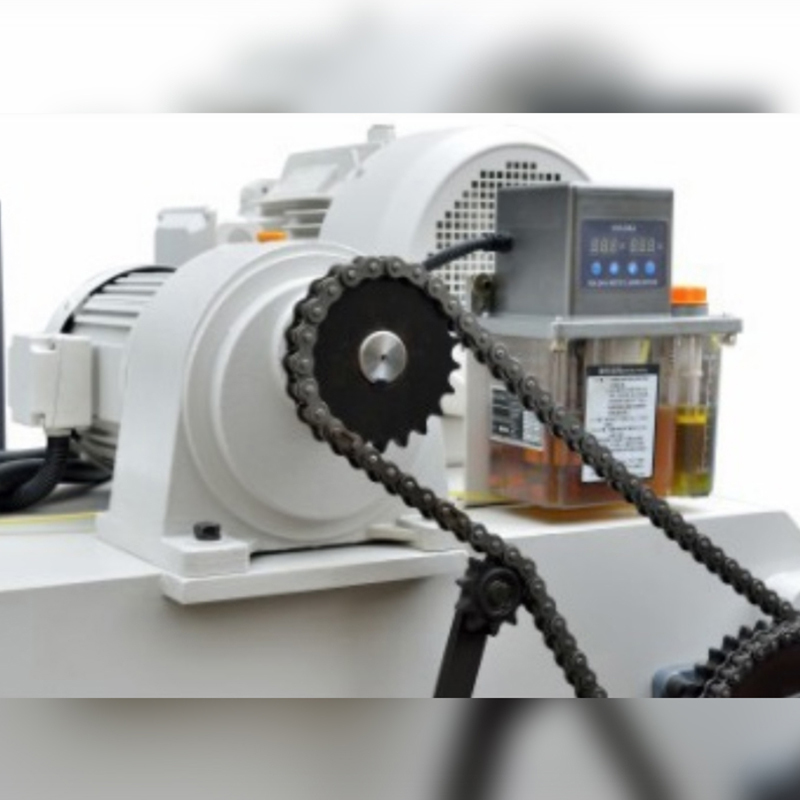

Double Sides Planer for Narrow Series

  • SPECIAL FOR BOARDS WIDTH UNDER 410MM
  • FLAT/SPRIAL CUTTERS ARE OPTIONAL

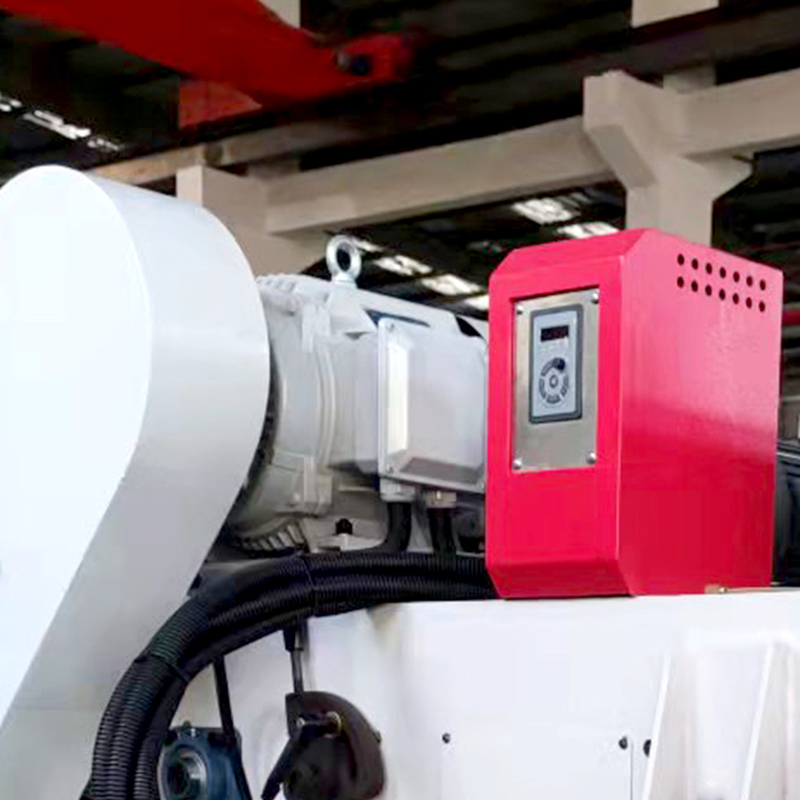

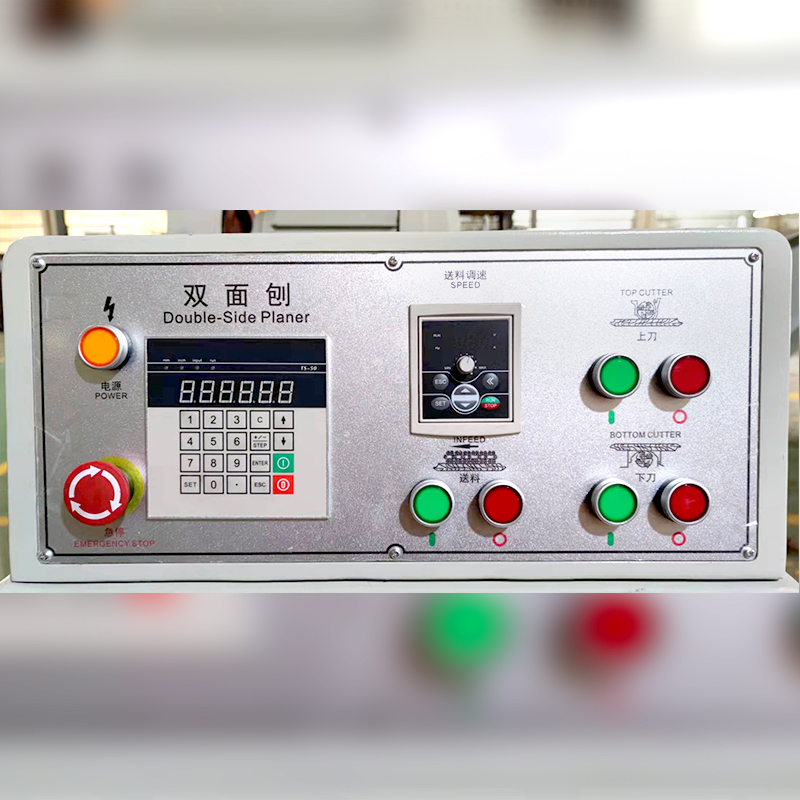

  • FREQUENCY CONTROL SPEED WITH IMPORT DIGITAL DISPLAY
  • MACHINE FRAMES ARE ALL RESIN SAND CASTING TO AVOID ANY DEFORMATION
  • PRESSURE PLATE FOR SHORT WORKPIECE(OPTIONAL)
Model RMB410
Working thickness 9-120mm
Working Width 10-410mm
Min.working Length 320mm
Spindle Rotation speed 5000r/min
Feeding Speed 6-13m/min
Spindle diameter Ф110mm
Top Spindle Power 7.5kw
Bottom spindle Power 5.5kw
Feeding Motor Power 2.2kw
Lifting Motor Power 0.37kw
Total Power 15.57kw
Dust collect Diameter Ф140mm*2
Net weight 2500kg
Overall Size 2150*950*1550mm

Double Sides Planer
