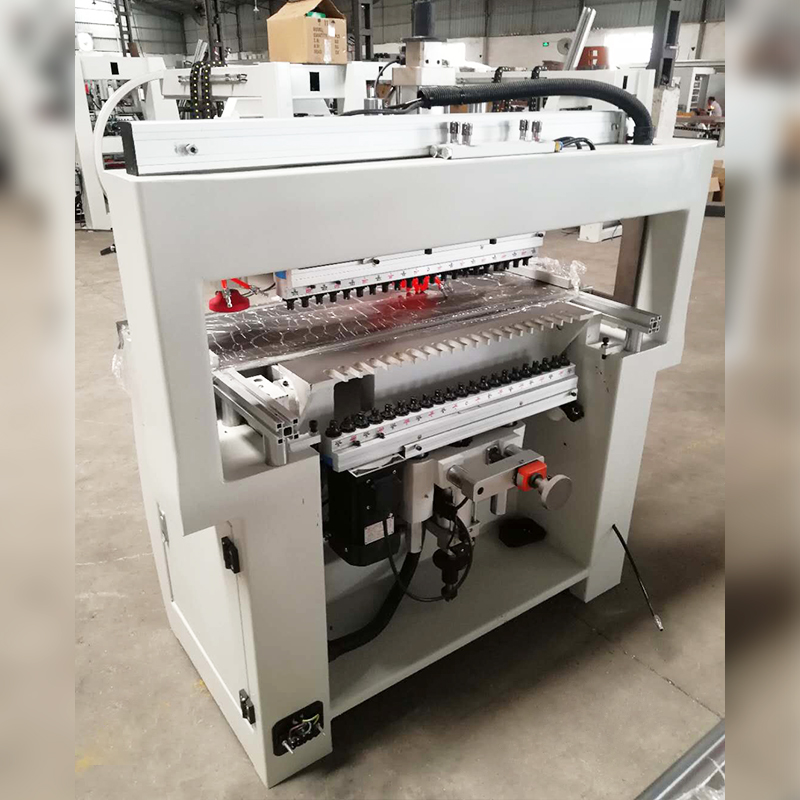

Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
Double Rows Drilling Machine
1/7

Double Rows Drilling Machine

Double Rows Drilling Machine

  • THE MACHINE IS A POROUS PROCESSING MACHINERY WHICH CAN TILT 0 ~ 90
  • IT CAN SELECT APPROPRIATE CUTTING FEED SPEED AND ADJUSTED DRILLING DEPTH BY ADJUSTABLE AIR FLOW BASED ON DRILLING HOLE SIZE AND PLATE HARDNESS
  • IT CAN DRILL BOARD IN VERTICAL AND HORIZONTAL DIRECTION AT THE SAME TIME, CONVENIENT AND FLEXIBLE OPERATION, MULTI-USAGE, HIGH EFFICIENCY, LARGE DIMENSION PLATES
  • IT IS A INDISPENSABLE EQUIPMENT IN FURNITURE FACTORY, CABINET FACTORY AND OTHER WOOD COMPANY

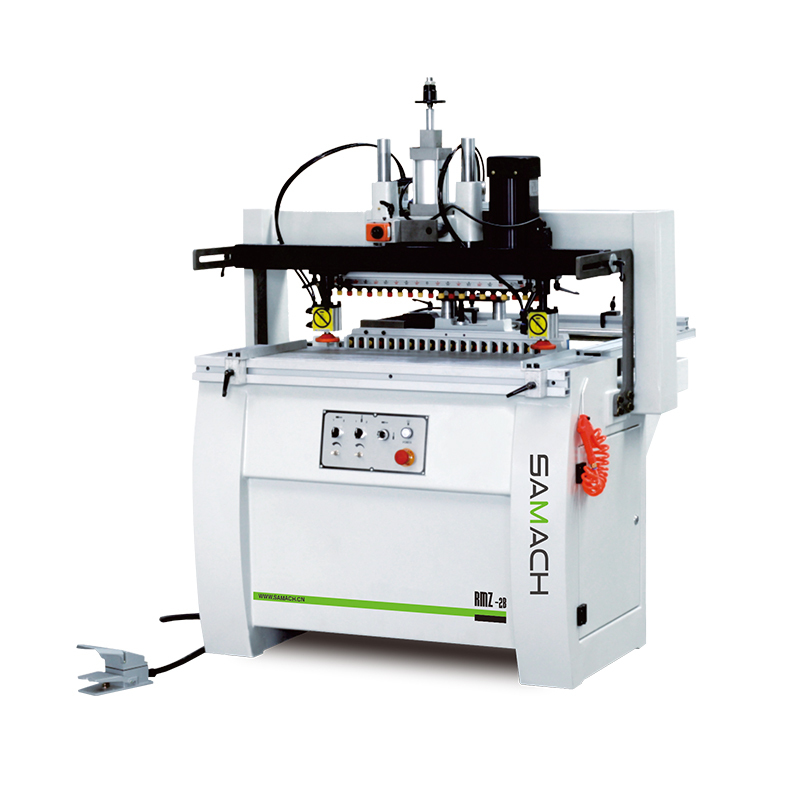

Model RMZ-2B
Max. center distance between holes 600mm*640mm
Min. center distance between holes 50mm*32mm
Workpiece thickness 8-50mm
Total quantity of spindles 21pcs*2
Total quantity of drill lines 2
Max. drilling diameter 35mm (single bit) 13mm(multi bits)
Max. drilling depth 50mm
Dia. of drill bit shaft 10mm
Installation tool length 57/70mm
Spindle speed 2840rpm
Total power 3kw
Net weight 650kg
Overall dimensions 1300*1200*1650mm

Double Rows Drilling Machine
