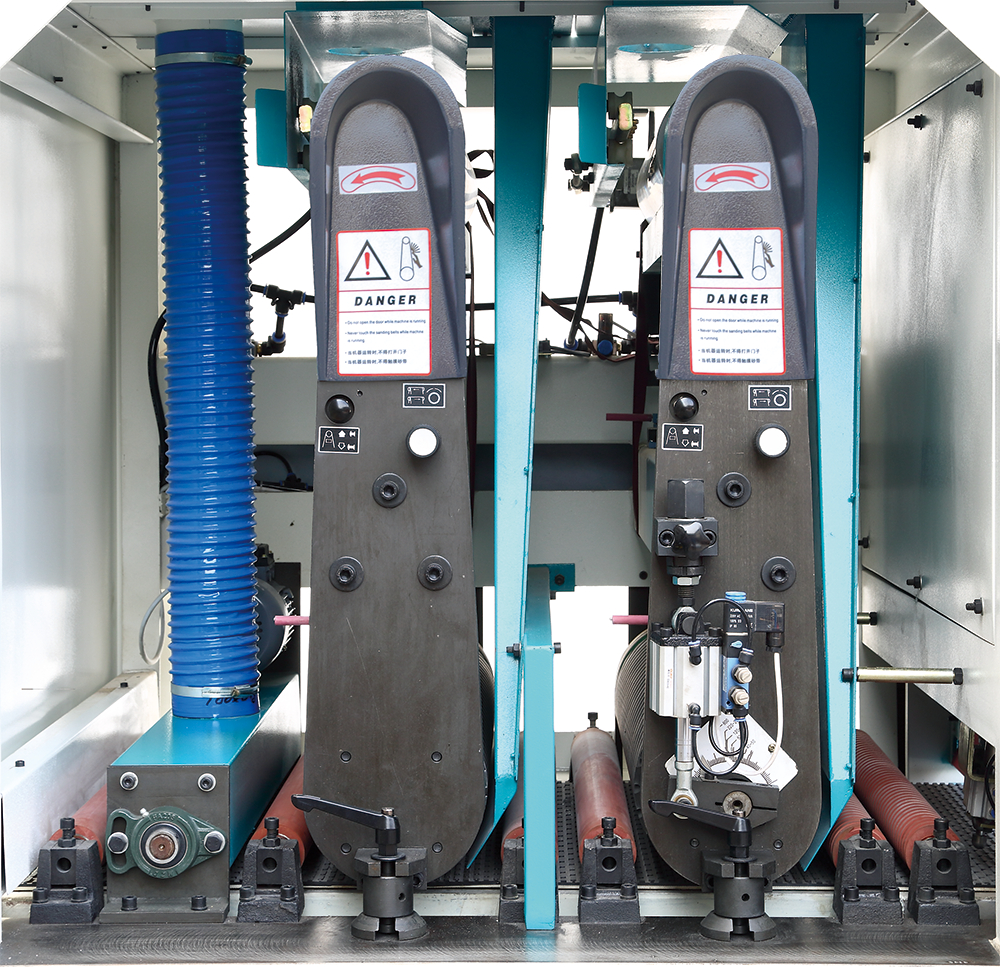

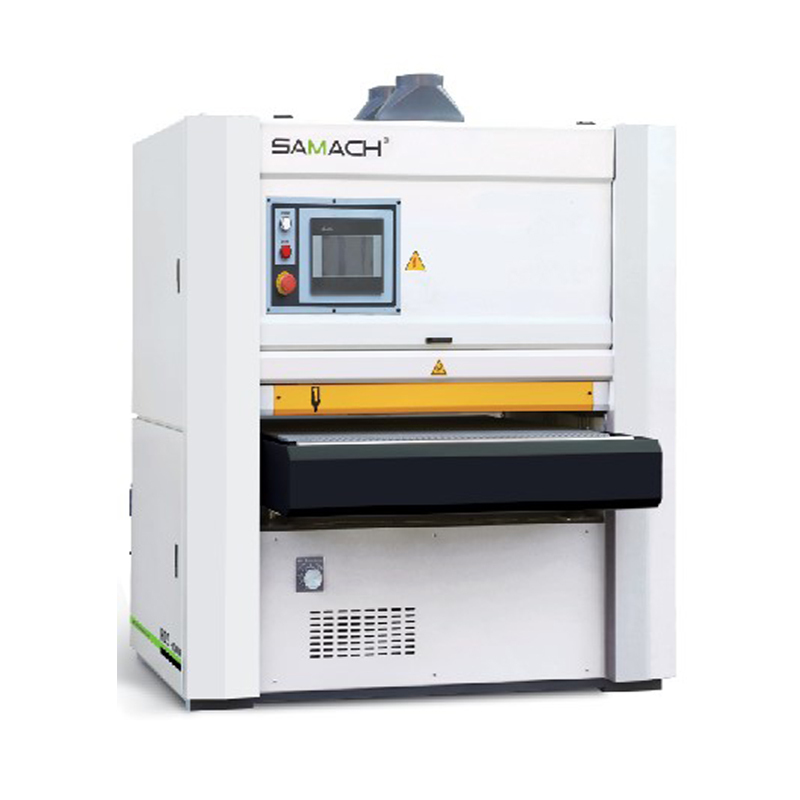

Double Heads Lacquer Sanding Machine
- 2 RUBBER ROLLER PLUS BUILD IN BRUSH FOR BOARDS AFTER PAINTING

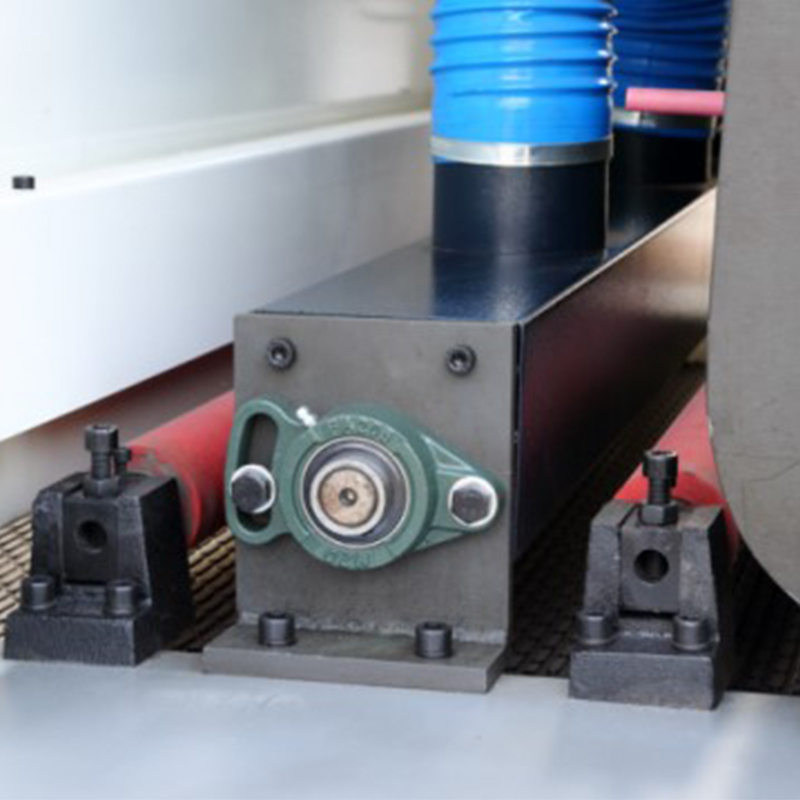

- 2 PCS OF SWING SANDING BELT DUST REMOVE TO KEEP BELT CLEAN TO EXTEND THE SANDING BELT WORK TIME
- HARDENING TREATMENT MACHINING CENTER TO PROCESS THE MACHINE FRAME, STABLE AND PRECISION
- ASSEMBE DYNAMICALLY BALANCED ROLLERS ON THIS MACHINE AND OTHER GOOD QUALITY PARTS, ALL OF THESE TO ENSURE THE ENTIRE MACHINE HAS HIGH PRECISION AND LONG TERM RELIABILITY
| Model | RPS630R-R | RPS1000R-R | RPS1300R-R |
| Working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 2-100mm | 2-100mm | 2-100mm |
| Abrasive belt speed | 3-16m/s | 3-16m/s | 3-16m/s |
| Feed speed | 5-25m/min | 5-25m/min | 5-25m/min |
| Size of abrasive belt | 650*1900mm | 1020*2000mm | 1320*2200mm |
| Sanding belt (paper) | 320/400 Mesh | 320/400 Mesh | 320/400 Mesh |
| #1 sanding unit | 4kw, Ø190mm, 30sh eccentric rubber | 7.5kw, Ø190mm, 30sh eccentric rubber | 11kw, Ø240mm, 30sh eccentric rubber |
| #2 sanding unit | 4kw, Ø190mm, 25sh rubber | 7.5kw, Ø190mm, 25sh rubber | 11kw, Ø240mm, 25sh rubber |
| Total motor power | 9.7kw | 17kw | 26kw |
| Working air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Speed of sucked air | ≥25m/s | ≥25m/s | ≥25m/s |
| Overall dimensions | 1850*1270*2000mm | 1862*1680*2040mm | 2260*2020*2150mm |
