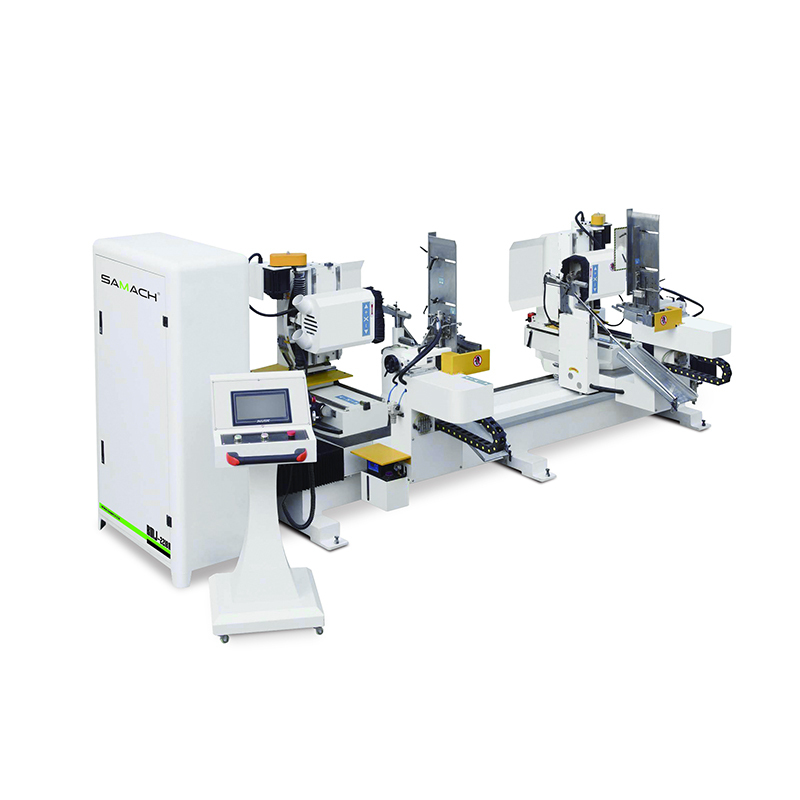

Double-end CNC Tenon Machine

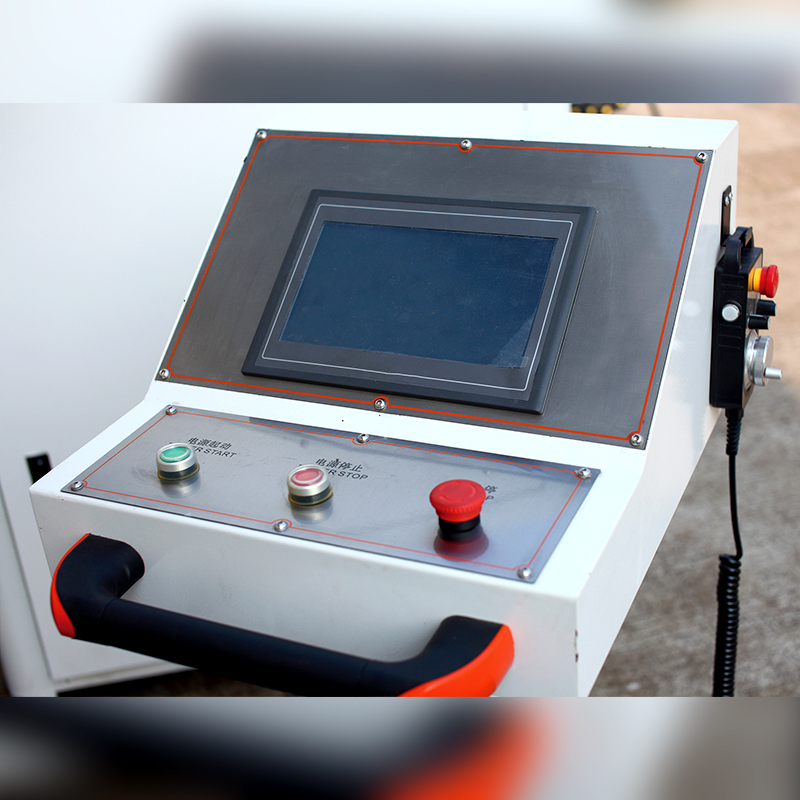

- TAIWAN CNC TOUCH SCREEN CONTROL SYSTEM

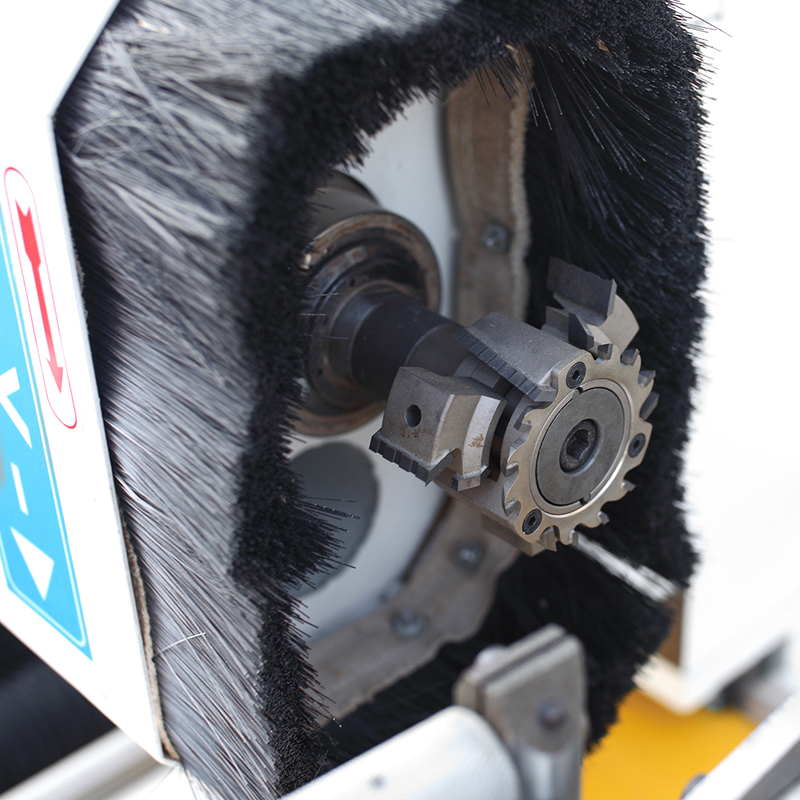

- LARGE POWER AND HIGH PRECISION SPINDLE

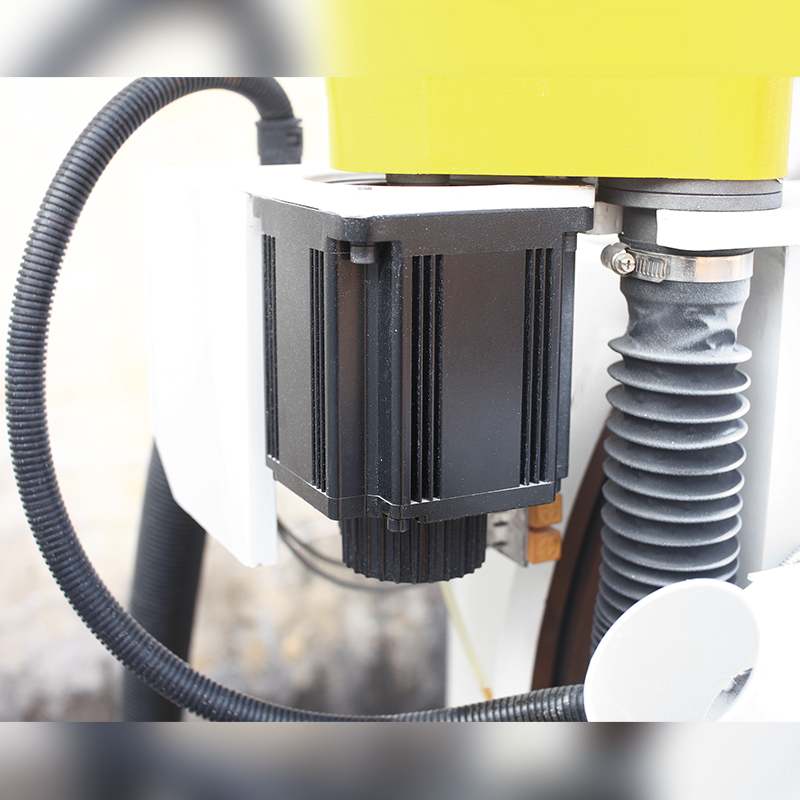

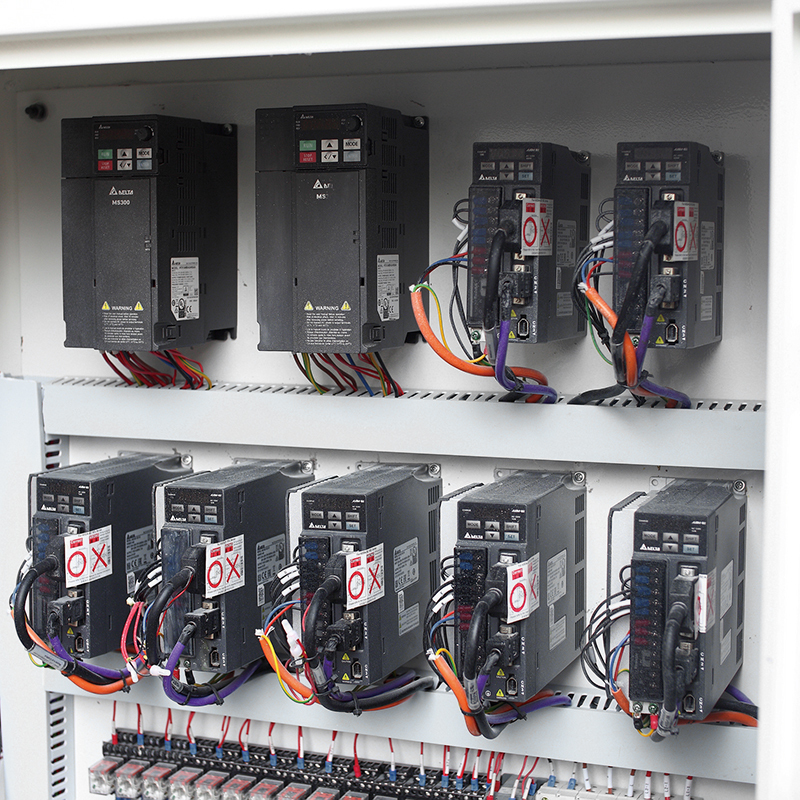

- WIDTH ADJUSTMENT CONTROLLED BY SERVO MOTOR

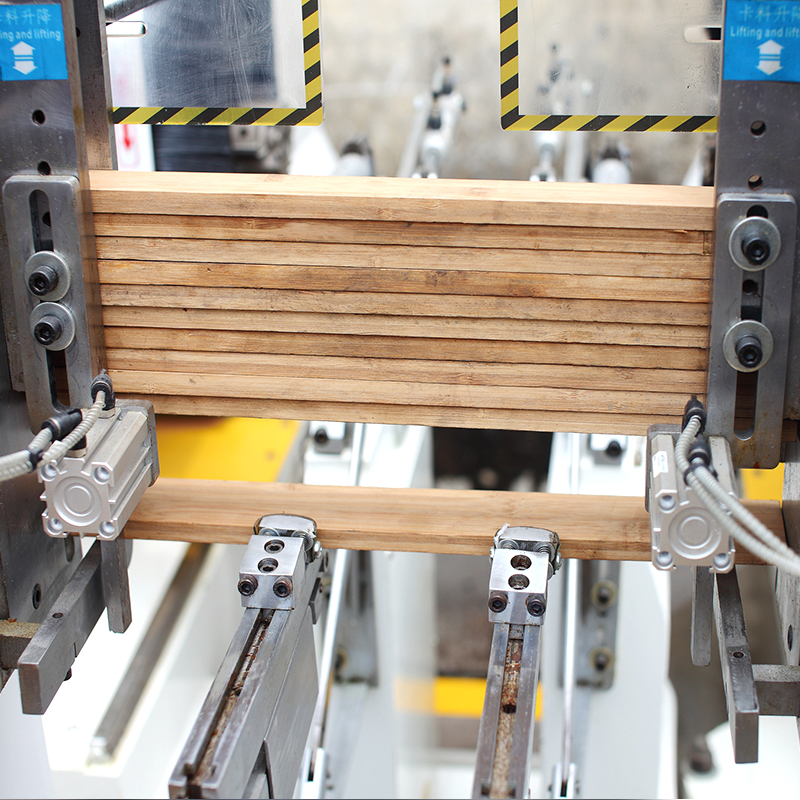

- AUTOMATIC FEEDING STRUCTURE WHICH SAVE LARBORS AND TIME

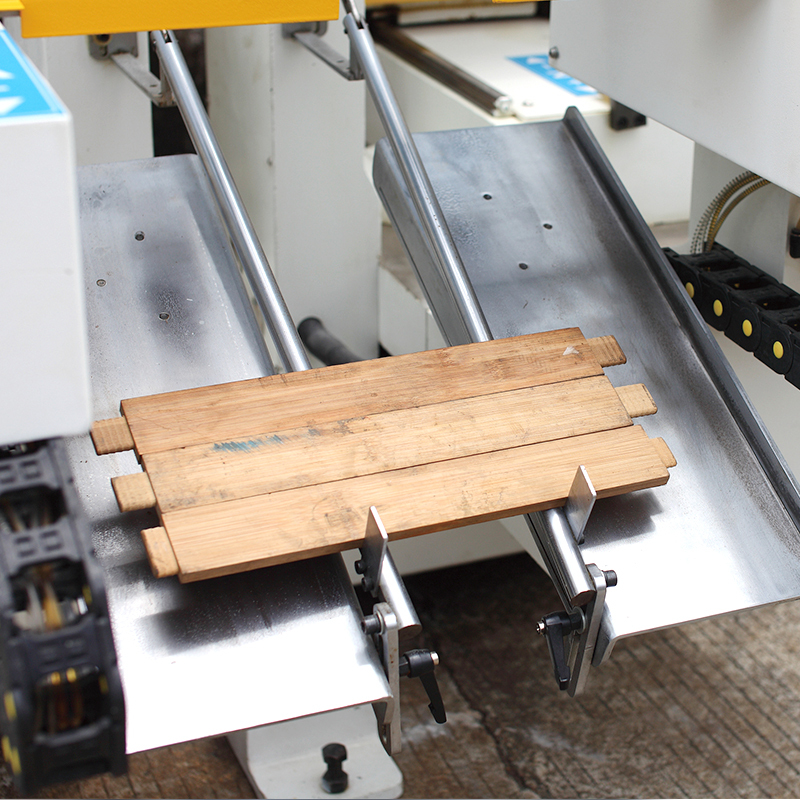

- AUTOMATIC OUTFEED DEVICE SAVE SPACE
| Model | RMJ2218A | RMJ2218B |
| Processing length range | 220-2000mm | 195-2000mm |
| Max. processing width range | 10-180mm | 10-180mm |
| Max. processing thickness range | 5-70mm | 5-80mm |
| Tongue length range | 40mm | 40mm |
| Tenon width | 150mm | 150mm |
| Mortise thickness | 80mm | 80mm |
| Spindle speed | 12000r/min | 8000-12000/15000r/min |
| Total power | 17kw | 21.4kw |
| Dimensions | 4280*2300*1980mm | 4280*2600*1980mm |
