Door Jamb Sanding Machine

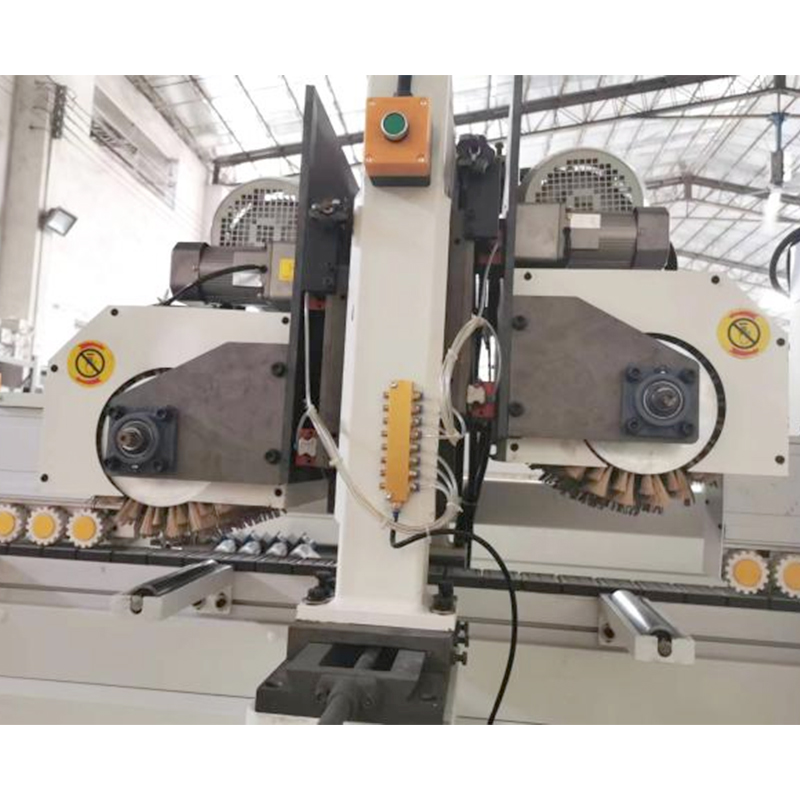

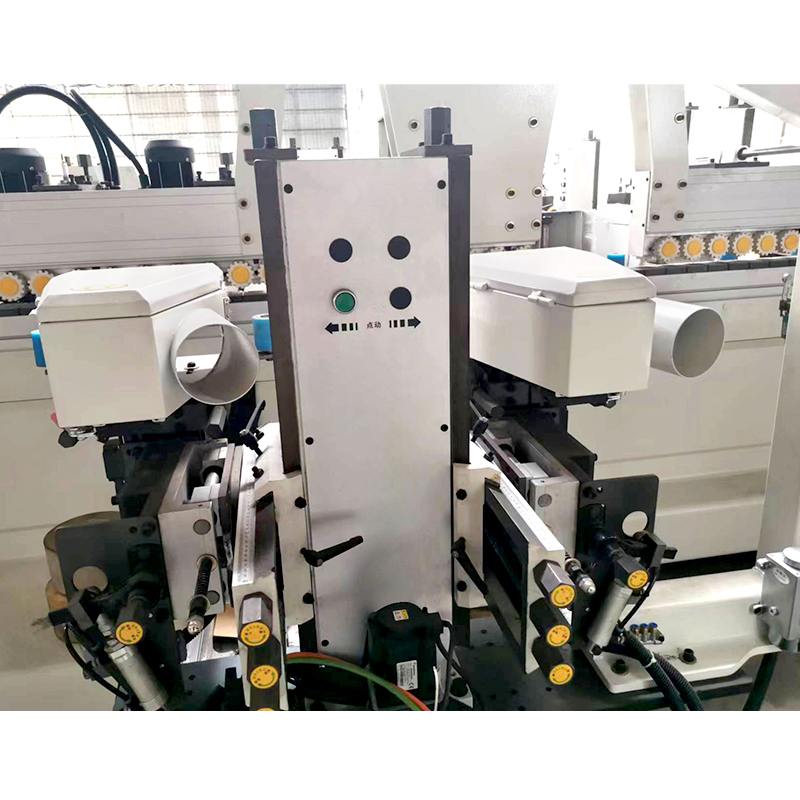

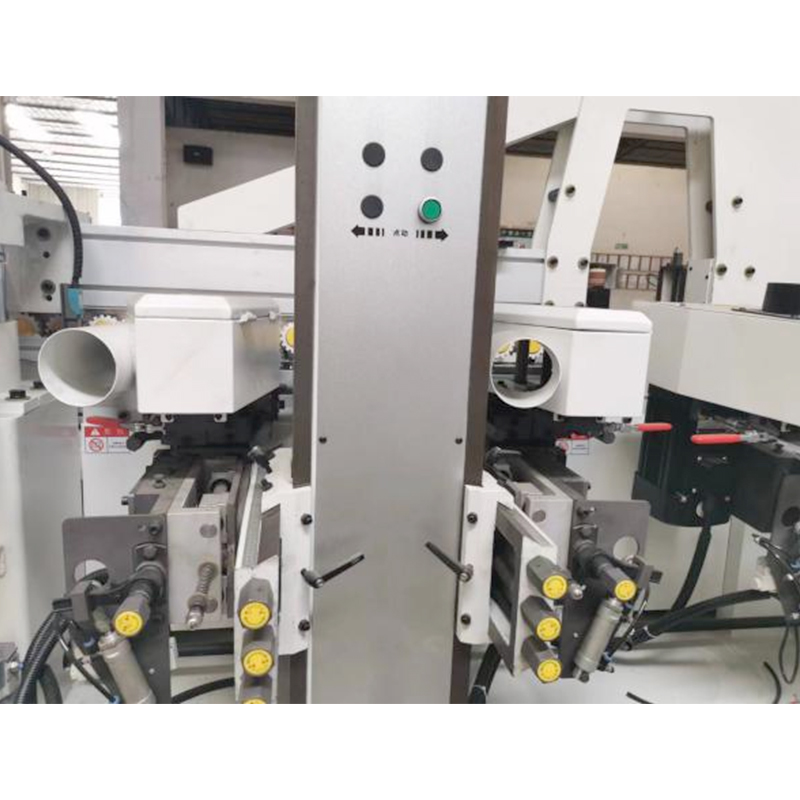

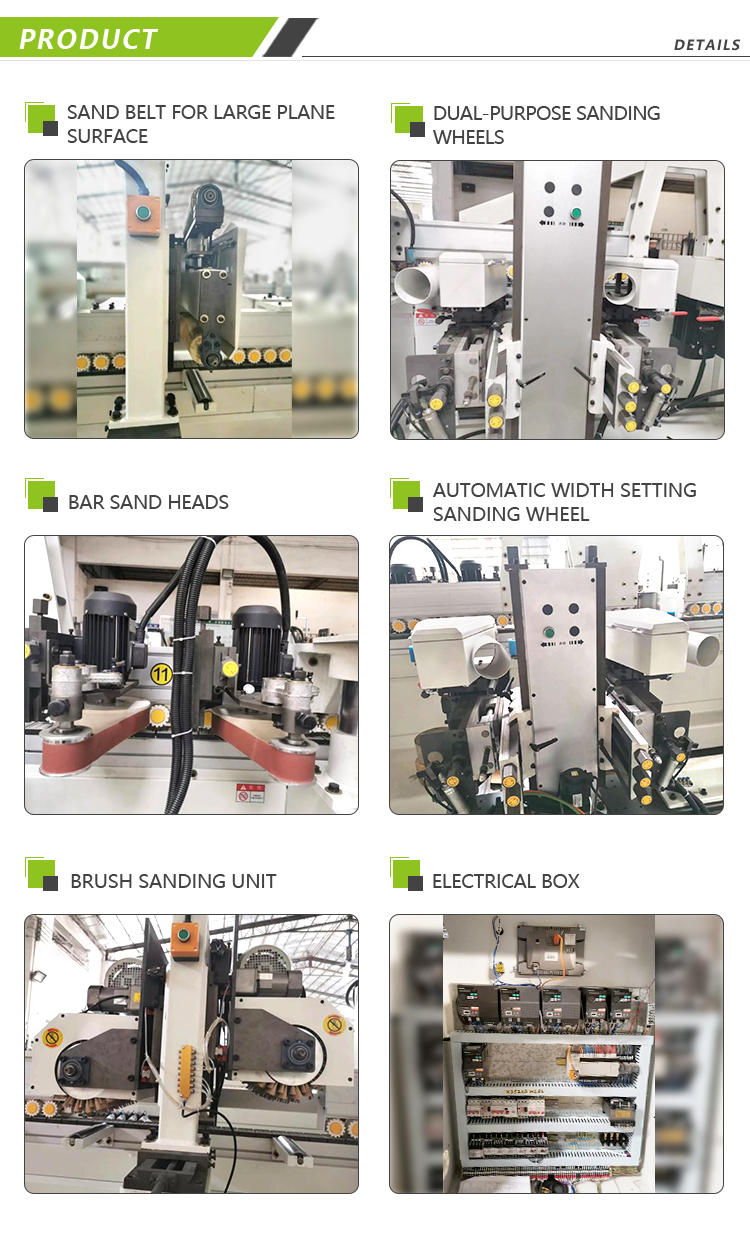

SPECIALIZING IN THE PROFILING SANDING OF VARIOUS DOOR JAMB, USE SANDING BELTS, OCTAGONAL SAND, FLYING WING WHEELS, NYLON WHEELS AND OTHER SANDING MATERIALS TO ADJUST TO THE SHAPE SUITABLE FOR THE SURFACE OF THE WORKPIECE, AND PROFILE THE WORKPIECE UNDER THE DRIVE OF THE SAND HEAD MOTOR

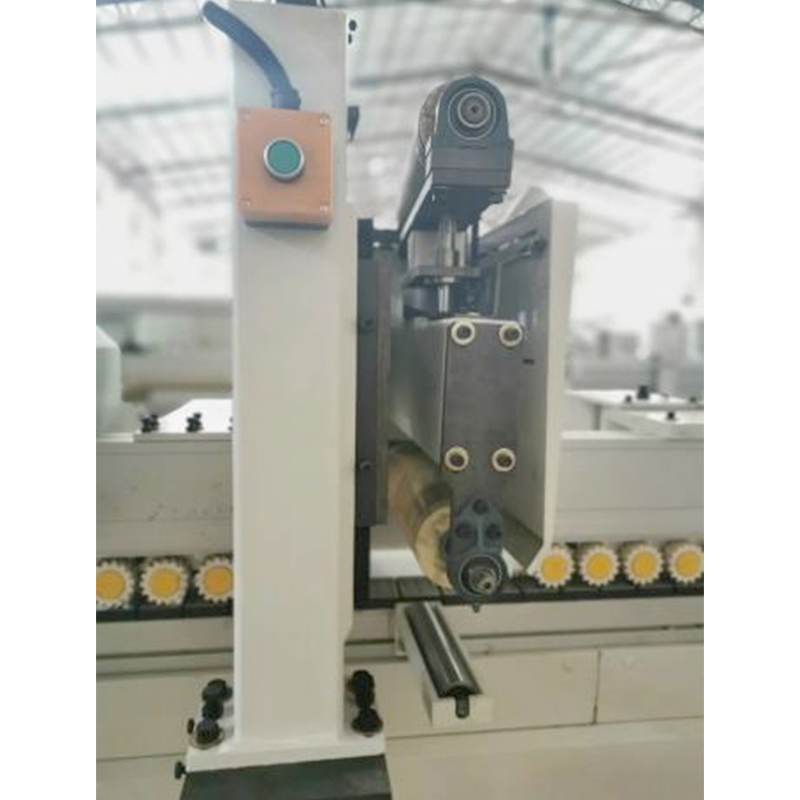

FOR THE LARGE PLANE ON THE DOOR JAMB, USE THE SAND BELT TO GRIND, WHICH CAN SAVE THE MATERIAL COST

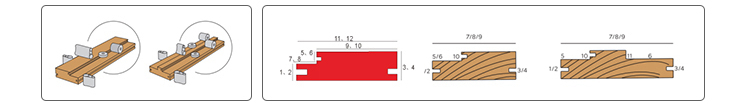

SANDING UNITS ARE DIFFERENT ACCORDING TO DIFFERENT DOOR JAMBS

Model	RDS-S2W4F2K2P2
Width of the workpiece	110-4000mm
Min. workpiece length	600mm
Workpiece thickness range	3-80mm
Feed speed	3-25m/min (Frequency)
Feed motor power	3.7kw (Frequency)
Sand frame speed	300-1440r/min (Frequency)
Sand frame angle	Adjustable
Number of sand spindle configurations	6 sets (PLC grinding wheel automatic compensation)
Spindle size (shaft diameter * length)	Φ25.4*100mm
Sand wheels motor power	1.5 kw*6

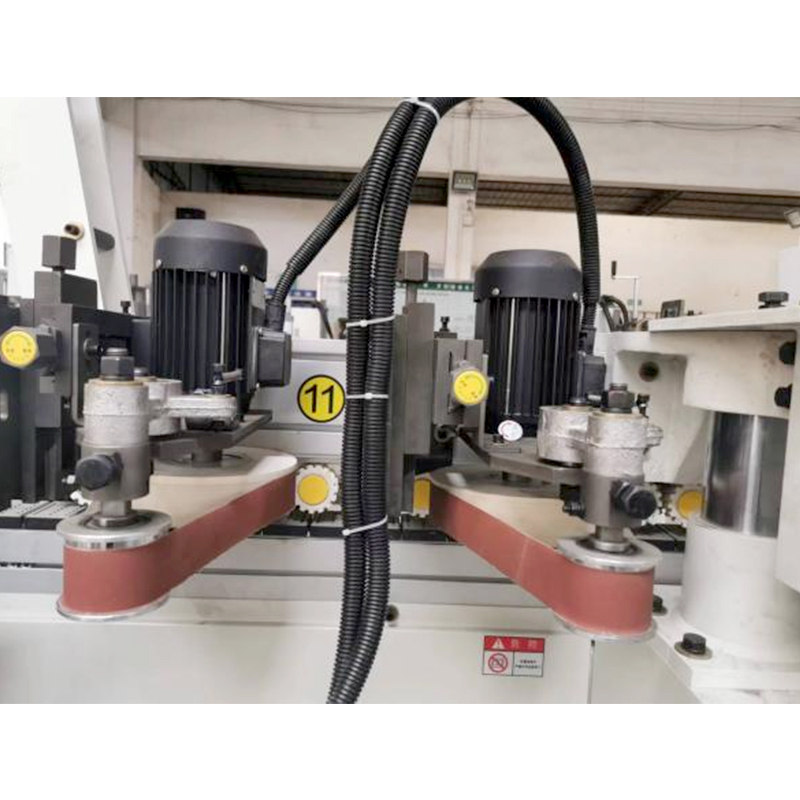

Bar sand heads motor power	0.55kw*2
400-type sand frames motor power	3.7kw*2
400-type oscillating polishing heads	3.7kw*2
Beam lifting power	0.55kw
Dust collector diameter	100mm
Working air pressure	0.2-0.6Mpa
Power supply	380V 50Hz，three-phase five-wire
Total power	29.15kw
Overall dimension	860016001650mm
Weight	4000kg
