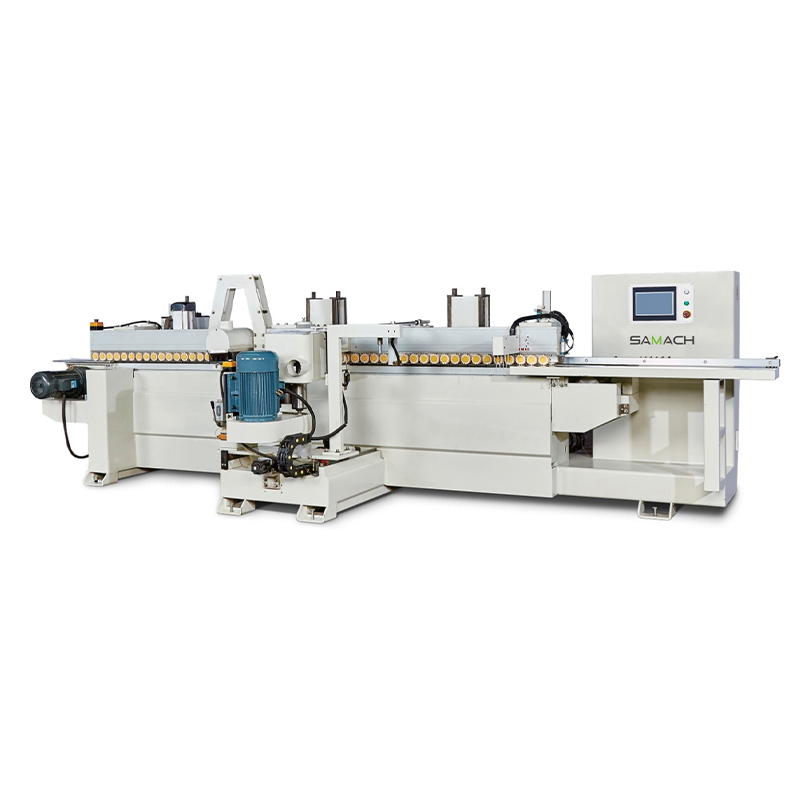

Door Jamb Milling Machine with Stop Line Type Door Jamb Technology

Door Jamb Milling Machine

  • (PAINT-FREE DOOR JAMB: WRAPPING TYPE: RAW BOARD CUTTING - MILLING - SANDING - WRAPPING) OR (MELAMINE BOARD: CUTTING - EDGE BANDING - MILLING - GUN NAILING - FINE CUTTING - HINGES, KEYHOLES ), THE STOPPER IS MILLING - SANDING - WRAPPING AND THEN NAILED.
  • (PAINT DOOR JAMB: RAW BOARD CUTTING – PRIMING – MILLING - SANDING) OR (LARGE-BOARD COATED PRIMER – CUTTING - EDGE PRIMER - MILLING – SANDING - GUN NAILING – FINE CUTTING - HINGES, KEYHOLES – TOP COAT), THE STOPPER IS MILLING – SANDING – PRIMER - SANDING, THEN NAILING, AND FINALLY TOP COAT.
  • THE CORRESPONDING EQUIPMENT REQUIRED FOR PAINT-FREE TYPE: (WRAPPING TYPE: CUTTING SAW - DOOR JAMB MILLING MACHINE (CAN ADD SANDING AND CHAMFERING FUNCTIONS) - WRAPPING MACHINE (FRAME AND STOPPER ARE WRAPPED SEPARATELY) - GUN NAILING MACHINE - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE).
  • MELAMINE BOARD: CUTTING SAW - EDGE BANDING MACHINE - DOOR JAMB MILLING MACHINE OR EDGE BANDING MACHINE WITH HOGGING SYSTEM - GUN NAILING MACHINE - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE).
  • THE CORRESPONDING EQUIPMENT REQUIRED FOR PAINT TYPE: (CUTTING SAW - SANDING MACHINE—PAINTING MACHINE—DOOR JAMB MACHINE—GUN NAILING MACHINE (STOPPER FIRST MAKE PRIMER AND THEN NAILED)—DOOR JAMB SIZING MACHINE—DOOR JAMB HINGE AND KEYHOLE MACHINE – TOP COAT MACHINE).
Model RDJ-H2J1K1X1
Workpiece width range 100-400mm
Minimum workpiece length 600mm
Workpiece thickness range 15-100mm
Feeding speed 3-15m/min (Frequency)
Feeding motor power 2.2kw
Scribing saw motor power 1.5kw*2
Scribing saw motor rotating speed 12000r/min
Fixed saw motor power 5.5kw, motor with shaft structure
Number of fixed saw spindles 1 set
Fixed saw spindle rotating speed 4800r/min
Fixed width saw motor power 5.5kw, motor with shaft structure
Number of fixed width saw spindles 1 set
Fixed width saw spindle rotating speed 4800r/min
Upper milling cutter motor power 5.5kw, motor with shaft structure
Number of upper milling cutter spindles 1 set
Upper milling cutter rotating speed  8000r/min, high speed motor
Dimensions of milling cutter spindle Φ35*100mm
Lifting motor power 0.55kw
Saw blade size Max. 200mm
Suction port diameter 120mm*4   80mm*2
Total power 22.45kw
Mechanical dimensions 4500*1700*1550mm
Weight  2000kg

Door Jamb Milling Machine
