Door Jamb Milling Machine with Solid Wood Splice Technology

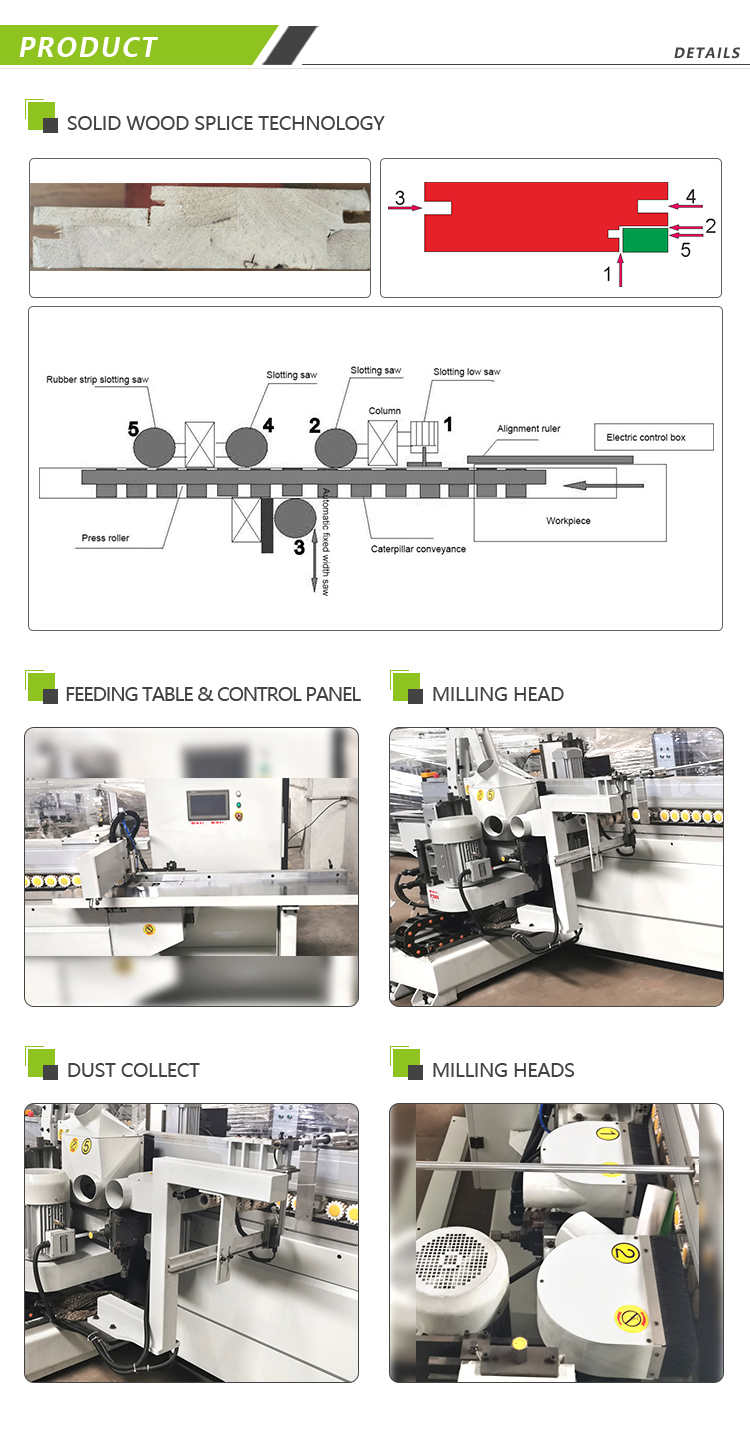

Door Jamb Milling Machine

  • (PAINT DOOR JAMB: RAW BOARD CUTTING - MILLING - SANDING - PRIMER - SANDING – FINE CUTTING - HINGES, KEYHOLES – TOP COAT).
  • CORRESPONDING THE REQUIRED EQUIPMENT: (CUTTING SAW - DOOR JAMB MILLING MACHINE OR FOUR-SIDED MOULDER – PAINT SPARYER - DOOR JAMB SANDING MACHINE - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE – TOP COAT).
Model RDJ-J4K1
Workpiece width range 120-400mm
Minimum workpiece length 600mm
Workpiece thickness range 15-80mm
Feeding speed 5-15m/min, (Frequency)
Feeding motor power 3.7kw
Bottom saw motor power 4kw, integrated motor
Bottom saw rotating speed 4800r/min
Number of bottom saw spindles 1 set
Flat saw motor power 5.5kw, motor belt with spindle structure
Flat saw rotating speed 4800r/min
Number of flat saw spindles 1set
Fixed slotting saw motor power 5.5kw, motor belt with spindle structure
Fixed slotting saw rotating speed 4800r/min
Number of fixed slotting saw spindles 1 set
Rubber groove slotting saw motor power 4kw, square shell special motor
Rubber groove slotting saw rotating speed 4800r/min
Number of rubber groove slotting saw spindles 1set
Floating fixed width slotting saw motor power 5.5kw, motor belt with spindle structure
Floating fixed width slotting saw rotating speed 4800r/min
Number of floating fixed width slotting saw spindles 1 set
Suction port (quantity * size) 6*120mm
Lifting motor power 0.55kw
Saw blade size (outer diameter) Max. 250mm
Total power 28.75kw
Mechanical Dimensions 5300*1700*1550mm
Weight 3500kg
