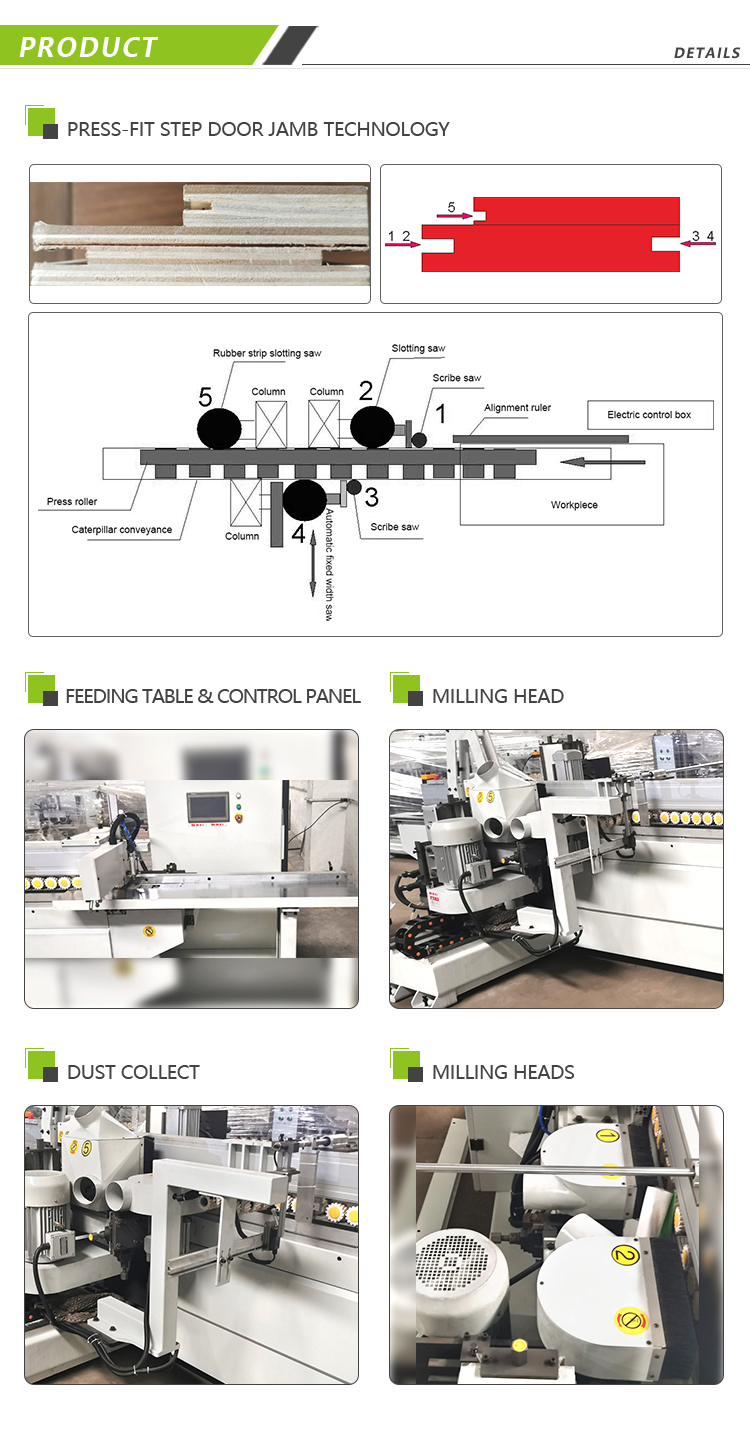

![[Copy]Door Jamb Milling Machine with Press-fit Step Door Jamb Technology](https://img-va.myshopline.com/image/store/2001468154/1660702912142/ebb6a17f416f4242862a5ff9acdf76d0.jpeg?w=800&h=800&q=80)
![[Copy]Door Jamb Milling Machine with Press-fit Step Door Jamb Technology](https://img-va.myshopline.com/image/store/2001468154/1660702912142/799352fc70914087b196e72de3aefb2d.jpeg?w=800&h=800&q=80)
![[Copy]Door Jamb Milling Machine with Press-fit Step Door Jamb Technology](https://img-va.myshopline.com/image/store/2001468154/1660702912142/a114e9ca02774f019bdebc53132e5e5d.jpeg?w=800&h=800&q=80)
![[Copy]Door Jamb Milling Machine with Press-fit Step Door Jamb Technology](https://img-va.myshopline.com/image/store/2001468154/1660702912142/1b716bde5143419c9534776151e58b5e.jpeg?w=800&h=800&q=80)
![[Copy]Door Jamb Milling Machine with Press-fit Step Door Jamb Technology](https://img-va.myshopline.com/image/store/2001468154/1660702912142/9fec6792bd5d4dc3b5ba704c7eca35e9.jpeg?w=800&h=800&q=80)
- (PAINT-FREE DOOR FRAME: WRAPPING TYPE: RAW BOARD CUTTING - PRESSING - MILLING - SANDING - WRAPPING - FINE CUTTING - HINGES, KEYHOLES) OR (MELAMINE BOARD: CUTTING - PRESSING – EDGE BANDING - MILLING - FINE CUTTING - HINGES, KEYHOLES).
- (PAINT DOOR JAMB: SOLID WOOD BOARD CUTTING - PRESSING - PRIMER - MILLING - SANDING - FINE CUTTING - HINGES, KEYHOLES – TOP COAT) OR (RAW BOARD CUTTING - PRESSING - EDGE BANDING – PRIMER - SANDING - MILLING – FINE CUTTING - HINGES, KEYHOLES – TOP COAT).
- EQUIPMENT REQUIRED FOR PAINT-FREE TYPE: (WRAPPING TYPE: CUTTING SAW - PRESS MACHINE - DOOR JAMB MILLING MACHINE (CAN ADD SANDING FUNCTION) - WRAPPING MACHINE - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE).
- (MELAMINE BOARD: CUTTING SAW - EDGE BANDING MACHINE - PRESS MACHINE - DOOR FRAME MILLING MACHINE OR EDGE BANDING MACHINE WITH HOGGING SYSTEM - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE).
- EQUIPMENT REQUIRED FOR PAINT TYPE: (CUTTING SAW - PRESS MACHINE - SANDER - DOOR JAMB MILLING MACHINE - PAINT SPRAYER – SANDER - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE – TOP COAT).
| Model | RDJ-H2J2K1 |
| Workpiece width range | 100-400mm |
| Minimum workpiece length | 600mm |
| Workpiece thickness range | 15-100mm |
| Feeding speed | 3-15m/min (Frequency) |
| Feeding motor power | 2.2kw |
| Scribing saw motor power | 1.1kw*2 |
| Scribing saw motor rotating speed | 12000r/min |
| Fixed saw motor power | 5.5kw, motor with shaft structure |
| Number of fixed saw spindles | 1 set |
| Fixed saw spindle rotating speed | 4800r/min |
| Fixed width saw motor power | 5.5kw, motor with shaft structure |
| Number of fixed width saw spindles | 1 set |
| Fixed width saw spindle rotating speed | 4800r/min |
| Rubber strip slot saw motor power | 4kw, integrated motor |
| Rubber strip slot saw rotating speed | 4800r/min |
| Number of rubber strip slot saw spindles | 1 set |
| Lifting motor power | 0.55kw |
| Saw blade size (outer diameter) | Max. 200mm |
| Suction port diameter | 120mm*4 80mm*2 |
| Total power | 21.45kw |
| Mechanical dimensions | 4500*1700*1550mm |
| Weight | 2000kg |
