Door Jamb Milling Machine with AB Splice Technology

Door Jamb Milling Machine

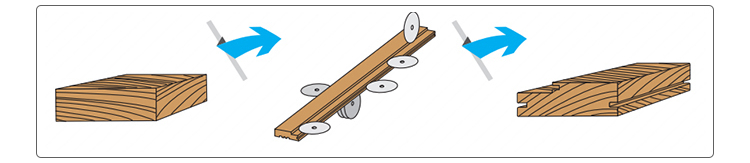

  • (PAINT DOOR JAMB: THE TWO WIDTHS OF THE BOARD ARE CUT SEPARATELY - EDGE BANDING - MILLING - PRESSING - PRIMER - SANDING - FINE CUTTING - HINGES, KEYHOLES – TOP COAT) OR (TWO WIDTHS OF THE BOARD ARE CUT SEPARATELY - EDGE BANDING – MILLING – PRESSING – PRIMER – SANDING – TOP COAT – FINE CUTTING - HINGES, KEYHOLES).
  • CORRESPONDING EQUIPMENT REQUIRED: (CUTTING SAW - EDGE BANDING MACHINE - DOOR JAMB MILLING MACHINE OR FOUR-SIDED MOULDER - GUN NAILING PRESSING MACHINE – PAINT SPRAYER - DOOR JAMB SANDING MACHINE - DOOR JAMB SIZING MACHINE - DOOR JAMB HINGE AND KEYHOLE MACHINE – TOP COAT MACHINE).
Model RDJ-X2K1J1
Workpiece width range 50-400mm
Minimum workpiece length 600mm
Workpiece thickness range 15-100mm
Feeding speed 5-15m/min (Frequency)
Feeding motor power 3.7kw
Milling cutter motor power 5.5kw*2, motor with shaft structure
Number of milling cutter spindles 2 sets
Milling cutter rotating speed 6000r/min
Dimensions of milling cutter spindle (shaft diameter*length) Φ35*100mm
Rubber strip slot saw motor power 4kw, square shell special motor
Rubber strip slot saw rotating speed 4000r/min
Number of rubber strip slot saw spindles 1 set
Automatic fixed width slotting saw motor power 5.5kw*1  4kw*1, motor with shaft structure
Automatic fixed width slotting saw rotating speed 4000r/min
Number of automatic fixed width slotting saw spindles 2 sets (Servo adjustment) Shihlin PLC
Suction port (quantity * size) 1*80mm   7*120mm
Lifting motor power 0.55kw
Saw blade size (outer diameter) Max. 250mm
Total power 28.75kw
Mechanical Dimensions 5400*1700*1550mm
Weight 3300kg

Door Jamb Milling Machine
