Door Jamb Lock And Hinge Machine

Door Jamb Lock And Hinge Machine

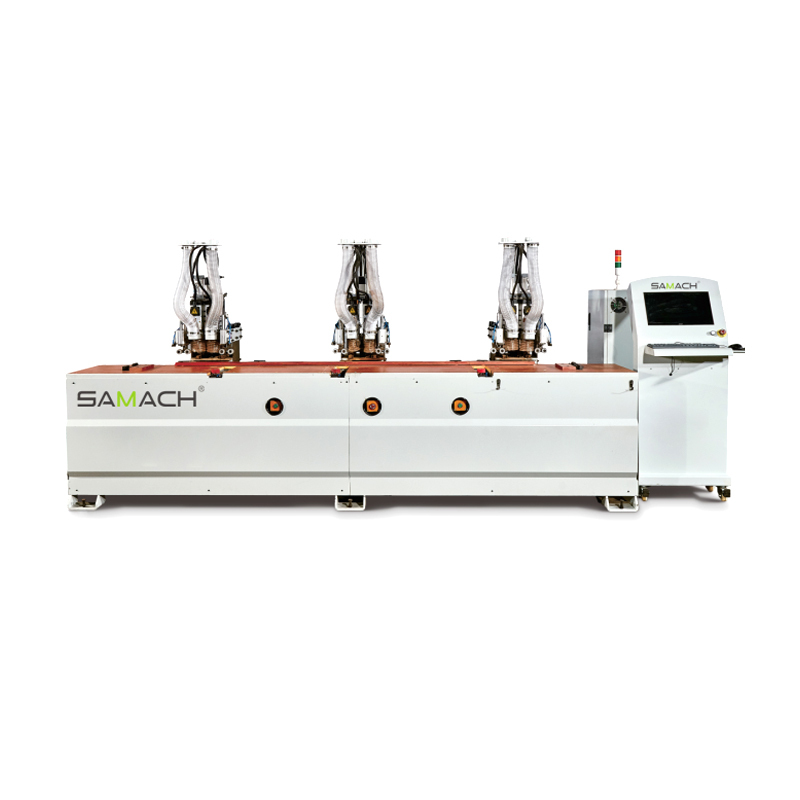

  • THIS MACHINE IS A CONTINUOUS LONGITUDINAL PASS-THROUGH DOOR HINGE AND LOCK MACHINE

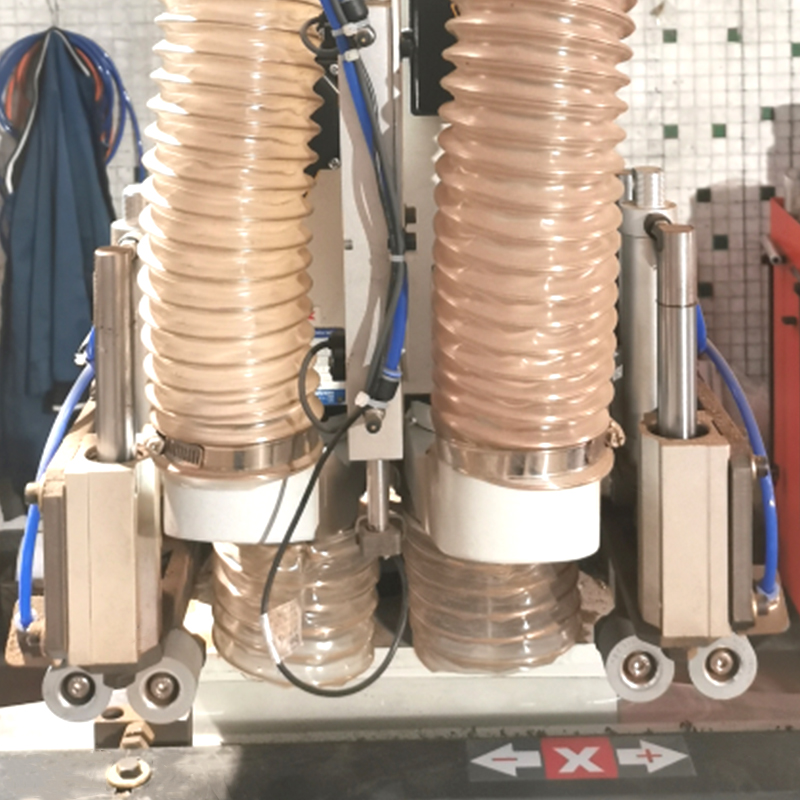

  • THREE SETS OF DOUBLE-HEAD MILLING HEADS WITH TWO MILLING CUTTERS ON EACH HEAD; A LARGE MILLING CUTTER 2.2KW FOR MILLING HINGES AND KEYHOLE
  • A SMALL MILLING CUTTER 2.2KW FOR ROUNDING THE CORNERS OF HINGES AND LOCK HOLES; 3 MILLING HEADS POSITIONING AND MOVING CONTROLLED BY SERVO MOTORS
  • THE LENGTH OF THE DOOR JAMB, THE QUANTITY AND SIZES OF HINGES, AND THE POSITION AND SIZE OF THE KEYHOLE CAN BE MANUALLY INPUT DATA OR BAR CODE SCANNED; WITH AUTOMATIC THICKNESS MEASUREMENT FUNCTION
Model RDJ-X6
Work width  80-400mm
Work length 600-2500mm
Work thickness 10-80mm
Feed speed 3-15m/min (VFD)
Feeding motor power 2.2kw
Spindle motor power 1.5kw*3+2.2kw*2 +3kw*1
Spindle speed 18000r/min
Milling cutter size (outer diameter) 2-20mm
Dust outlet diameter 97mm*6pcs

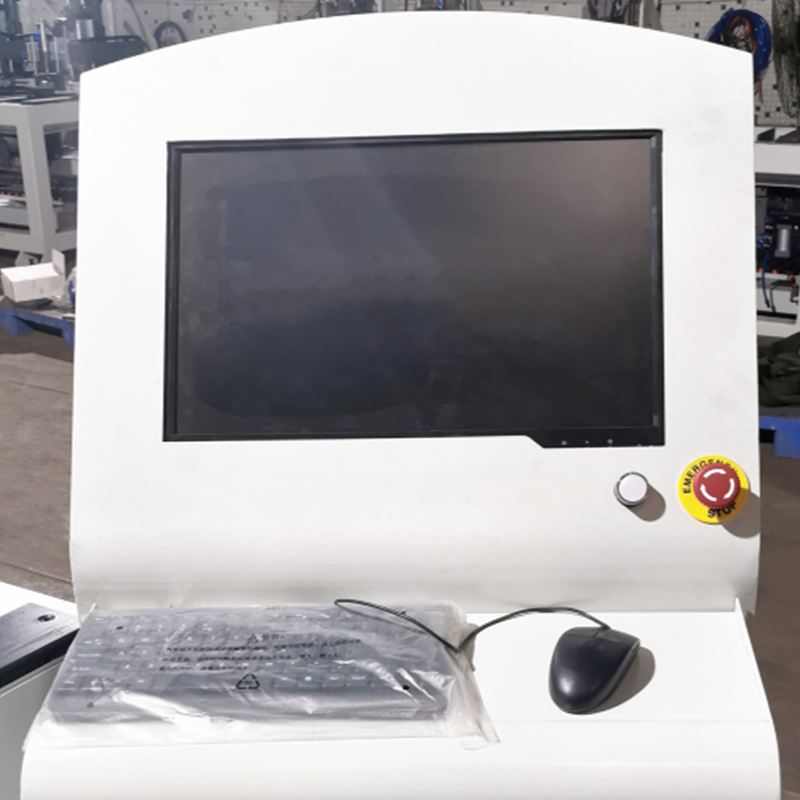

Touch screen+servo drive Taiwan Shilin
Voltage 380V 50Hz 3P
Total power 15.4kw
Dimensions 3700*1600*1500mm
Weight 2000kg
