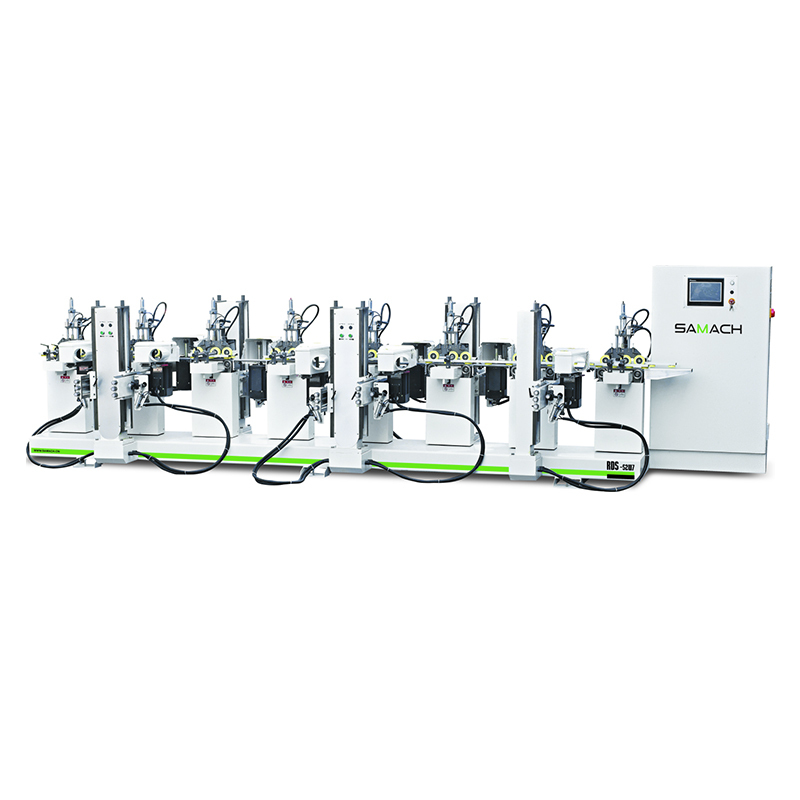

| Model |
RDS-W9 |
| Width of the workpiece |
10-230mm |
| Min. workpiece length |
500mm |
| Workpiece thickness range |
3-80mm |
| Feed speed |
3-40m/min (Frequency) |
| Feed motor power |
0.55kw*8 |
| Sand frame speed |
300-1440r/min (Frequency) |
| Sand frame angle |
Adjustable |
| Sand head spindle motor power |
1.5 kw*9 |
| Number of head spindle configurations |
9 sets(PLC grinding wheel automatic compensation) |
| Automatic compensation device |
9 sets, Compensation amount 0.04mm/time |
| Spindle size (shaft diameter * length) |
Φ25.4*100mm*7 Φ25.4*150mm*2 |
| Grinding wheel size (outer diameter) |
200mm |
| Dust collector diameter |
100mm |
| Working air pressure |
0.2-0.6Mpa |
| Power supply |
380V;50hz，three-phase five-wire |
| Total power |
17.9kw |
| Overall dimension |
6300*1600*1650mm |
| Weight |
2300kg |
