- Applicable processes：Remove oxide layer, Deburring,Corner Rounding
- Function：

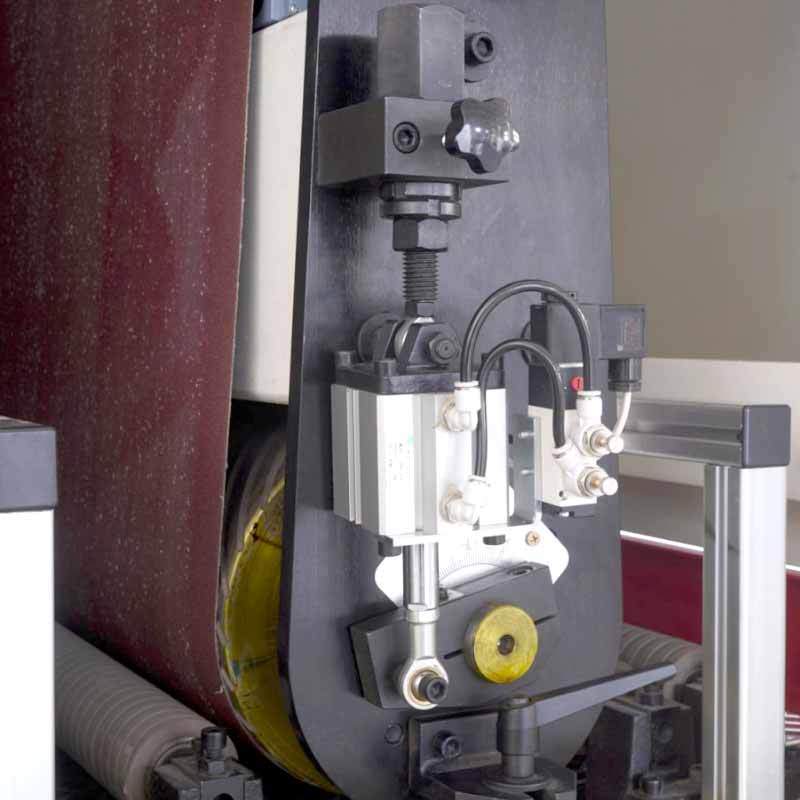

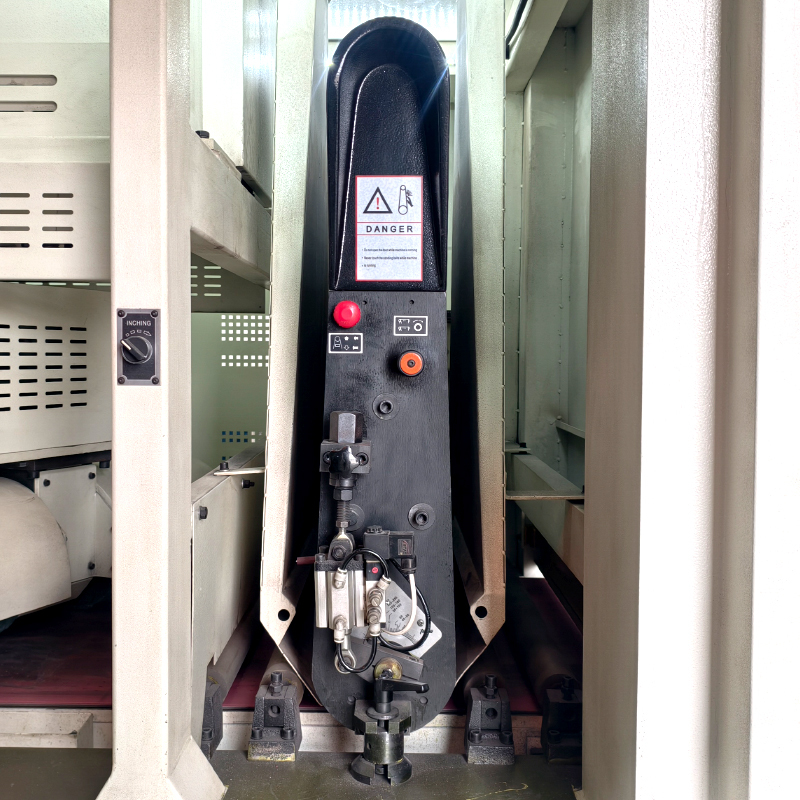

- The contact roller can rotate forward and backward, adjustable with one key, convenient and fast.

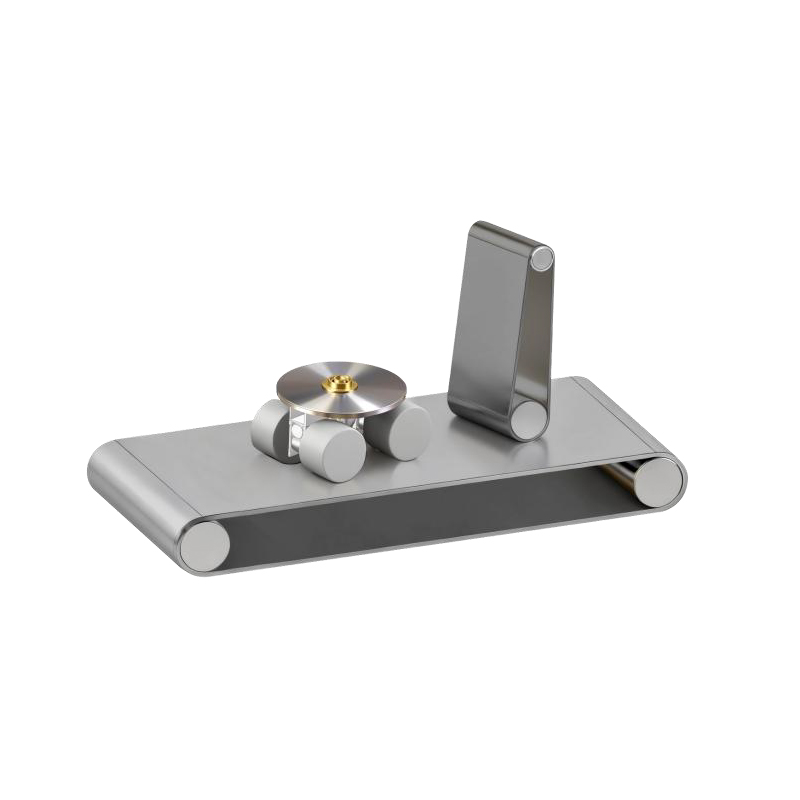

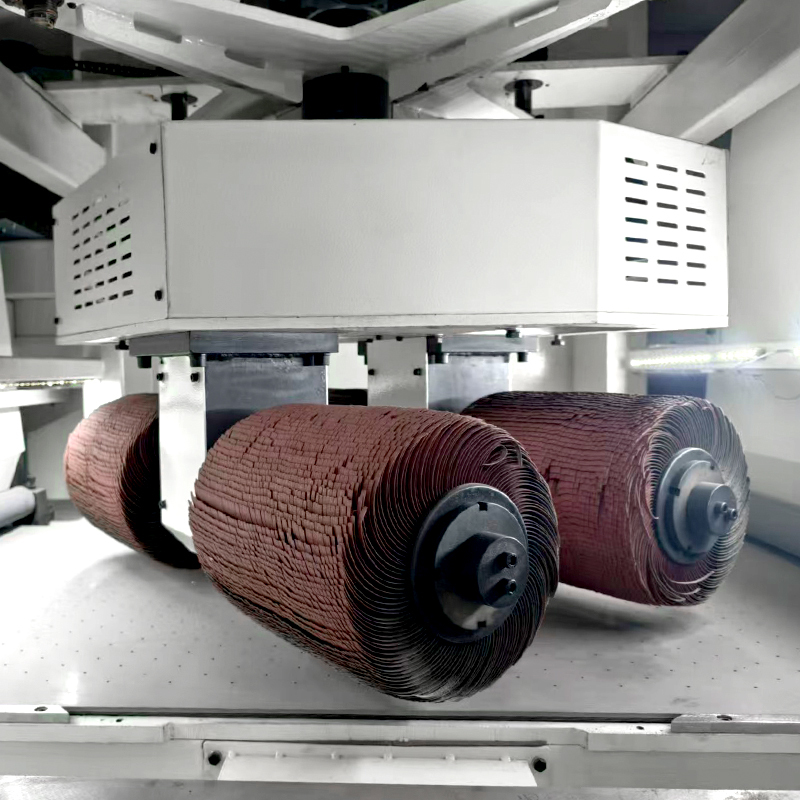

- The universal roller uses a dual-direction flexible polishing with a thousand-wire wheel, used to remove burrs inside holes and on edges of workpieces to achieve chamfering.
- The universal roller features an independently liftable structure, suitable for polishing workpieces of different thicknesses.

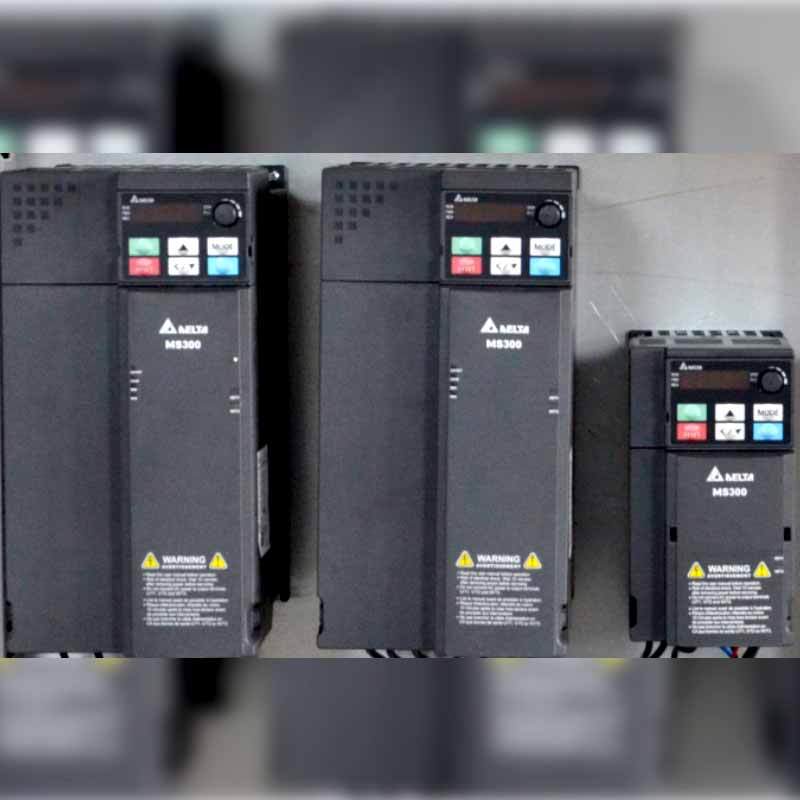

- Operates in a self-rotation mode, with variable frequency speed control for the universal roller, allowing different R-angle requirements.

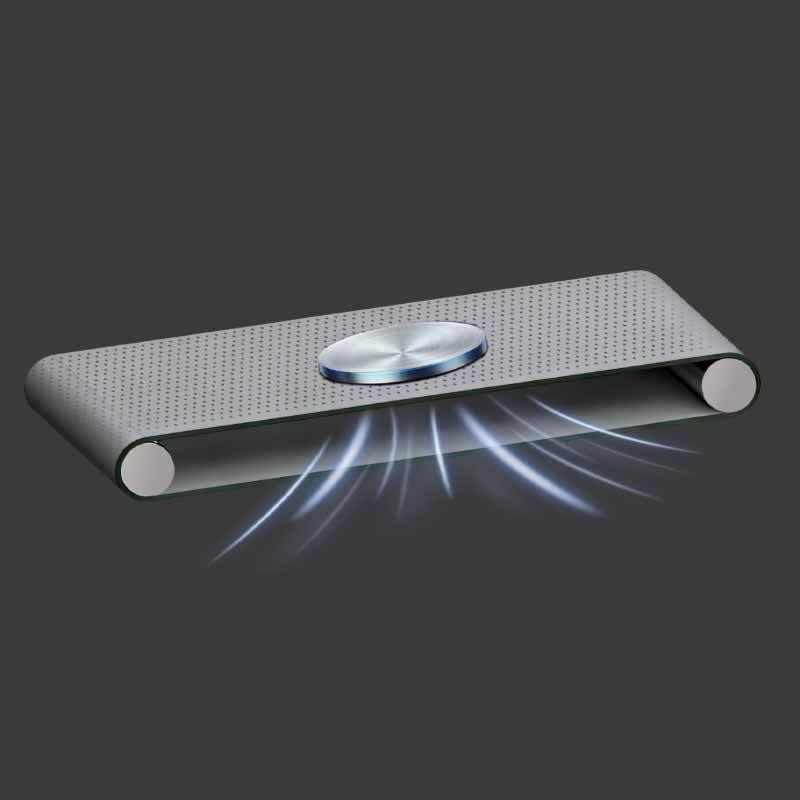

- Equipped with a vacuum suction workbench, suitable for processing small-sized workpieces.

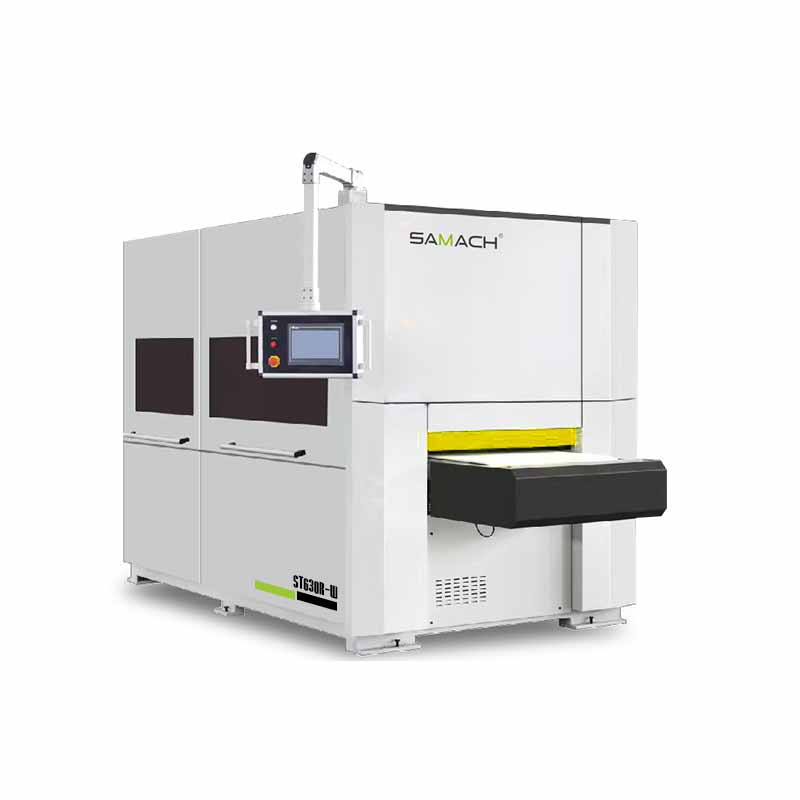

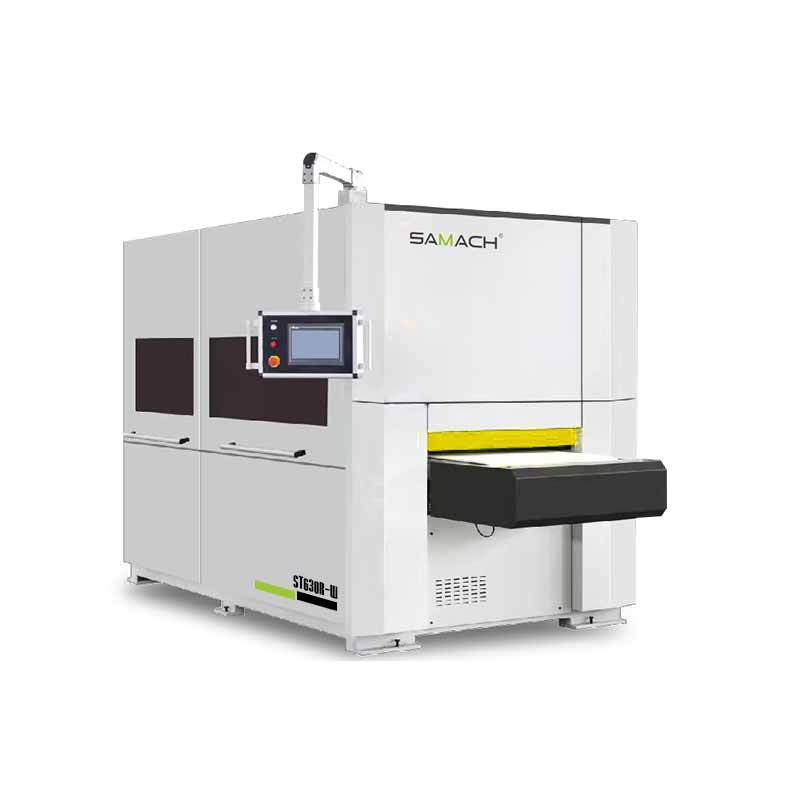

| Model | RST630R-W | RST1000R-W | RST1300R-W |
| Effective working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 0.5-100mm | 0.5-100mm | 0.5-100mm |
| Roller line speed | 3-16m/s Variable frequency | 3-16m/s Variable frequency | 3-16m/s Variable frequency |
| Abrasive belt size(perimeter*width) | 1900*650mm | 2000*1020mm | 2200*1320mm |
| Universal roller quantity | 4pcs | 6pcs | 8pcs |
| Contact roller power | 7.5kw | 11kw | 15kw |
| Universal rolle power | 1.5kw*2 | 2.2kw*1 1.5kw*2 | 2.2kw*4 |
| Universal roller rotation power | 0.75kw | 0.75kw | 0.75kw |
| Universal roller lifting power | 0.55kw | 0.55kw | 0.55kw |
| Conveyor motor power | 1.5kw | 1.5kw | 1.5kw |
| Workbench lifting power | 0.55kw | 0.55kw | 0.55kw |
| Vacuum adsorption power | 15kw | 15kw | 15kw |
| Total power | 28.85kw | 34.55kw | 42.15kw |
| Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Overall dimensions | 2600*1680*2350mm | 3000*2000*2350mm | 3600*2200*2410mm |
| Weight | 2800kg | 3400kg | 4100kg |
