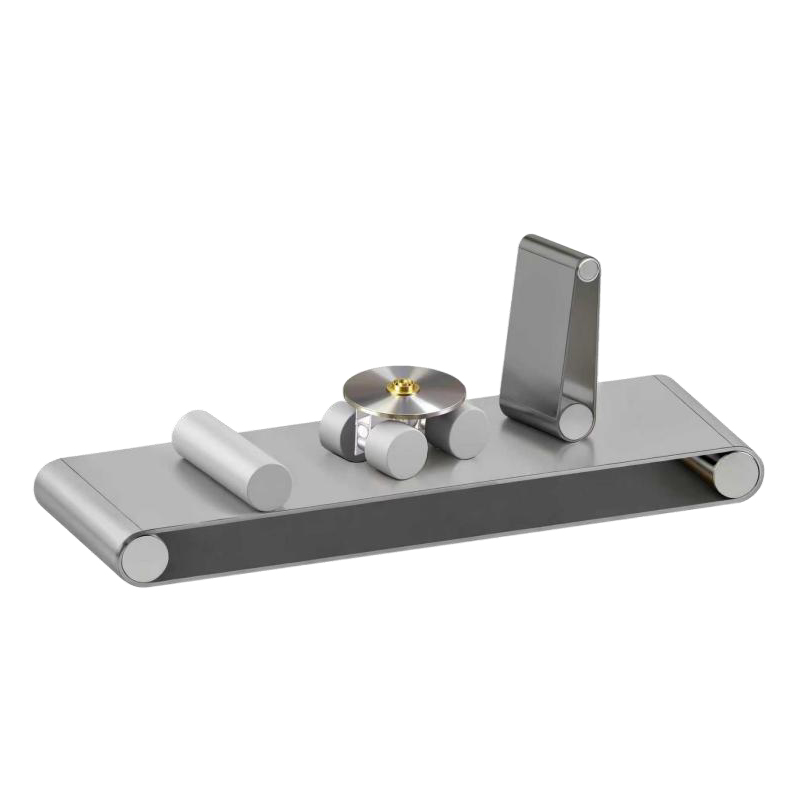

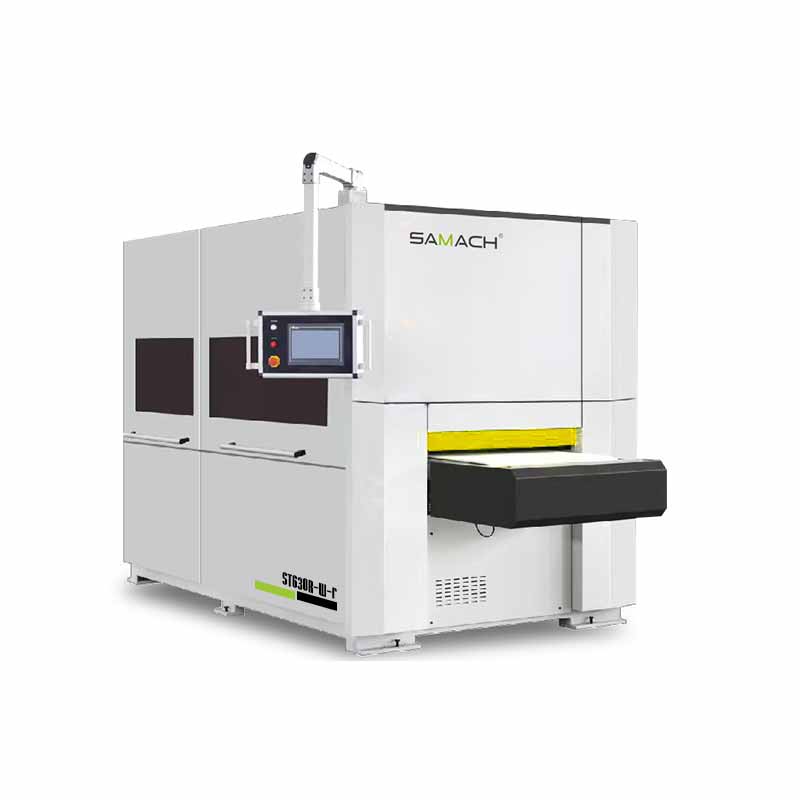

Deburring Machine with R-W-r Series

Applicable processes：Remove oxide layer, Deburring, Corner Rounding, Drawing（HL long straight）
Function：

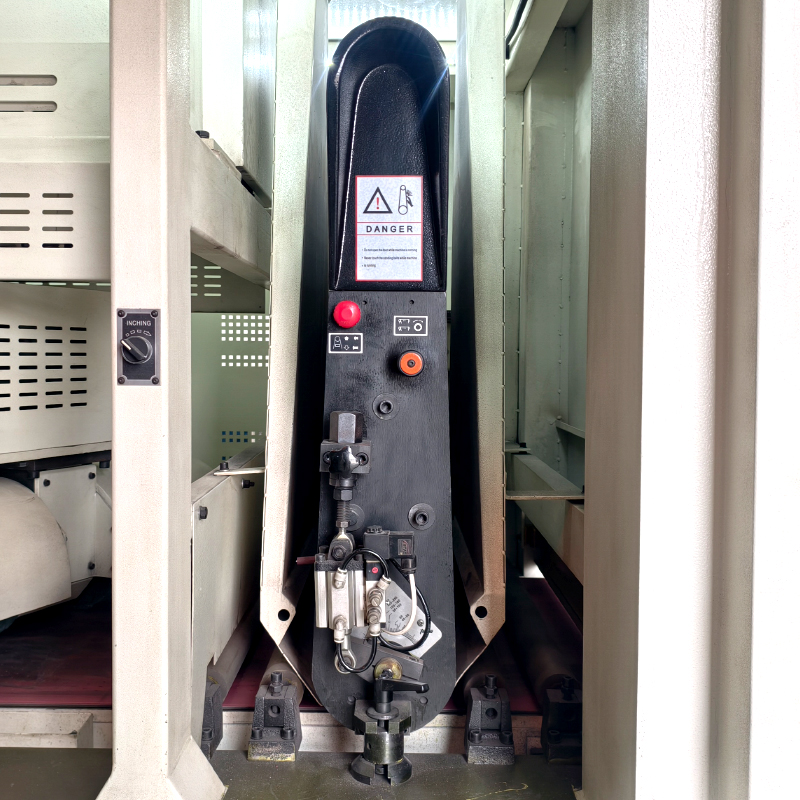

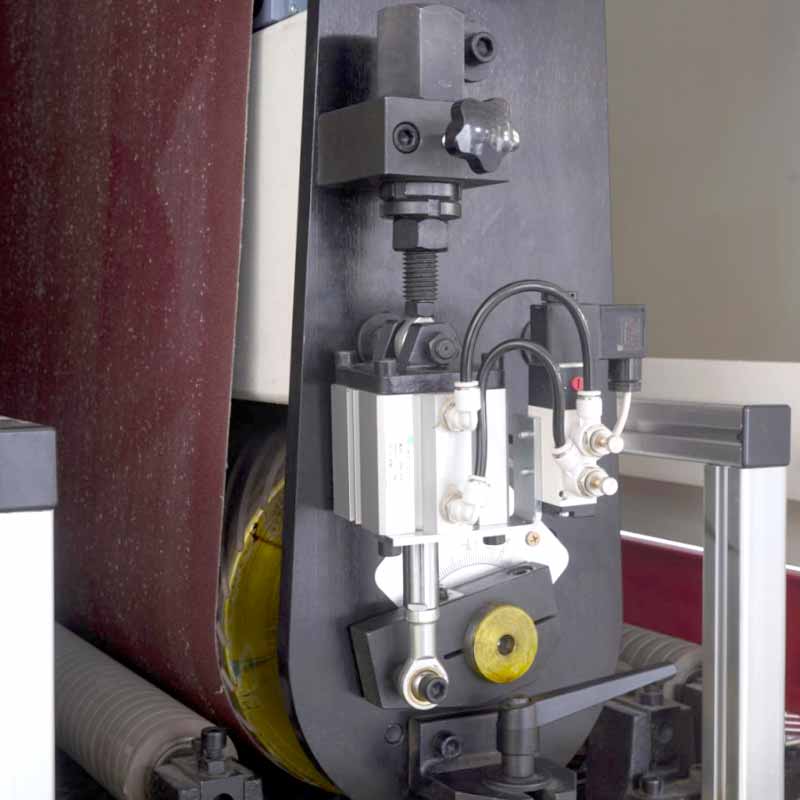

- The contact roller can rotate forward and backward, adjustable with one button, convenient and quick.

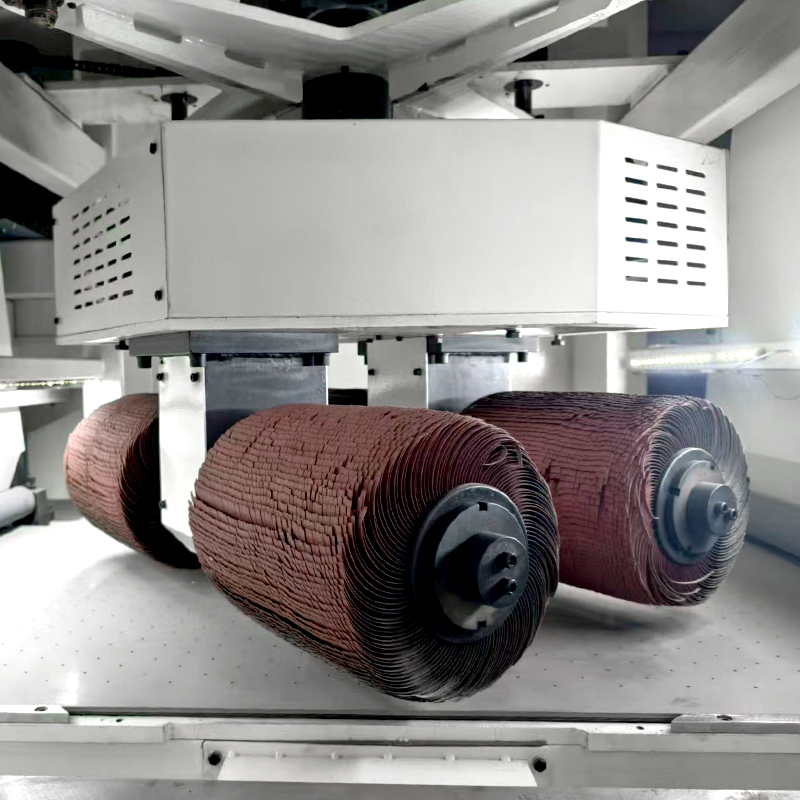

- The universal roller uses a dual-direction flexible polishing brush to remove burrs inside holes and edges of workpieces, achieving a chamfering effect.
- The universal roller has an independently liftable structure, suitable for polishing workpieces of different thicknesses.

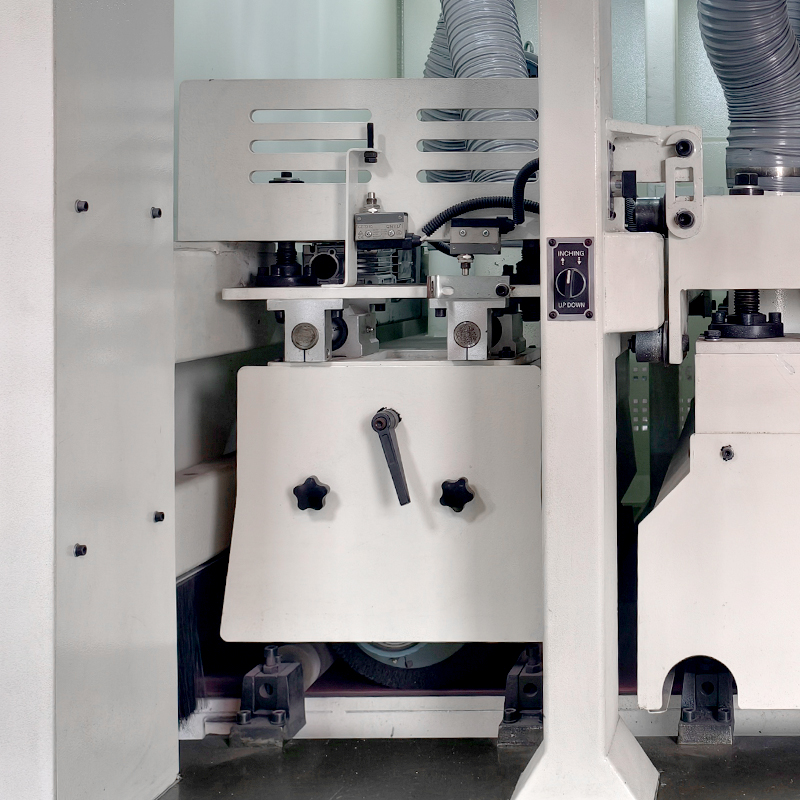

- The polishing roller can be lifted independently, suitable for polishing workpieces of different thicknesses.

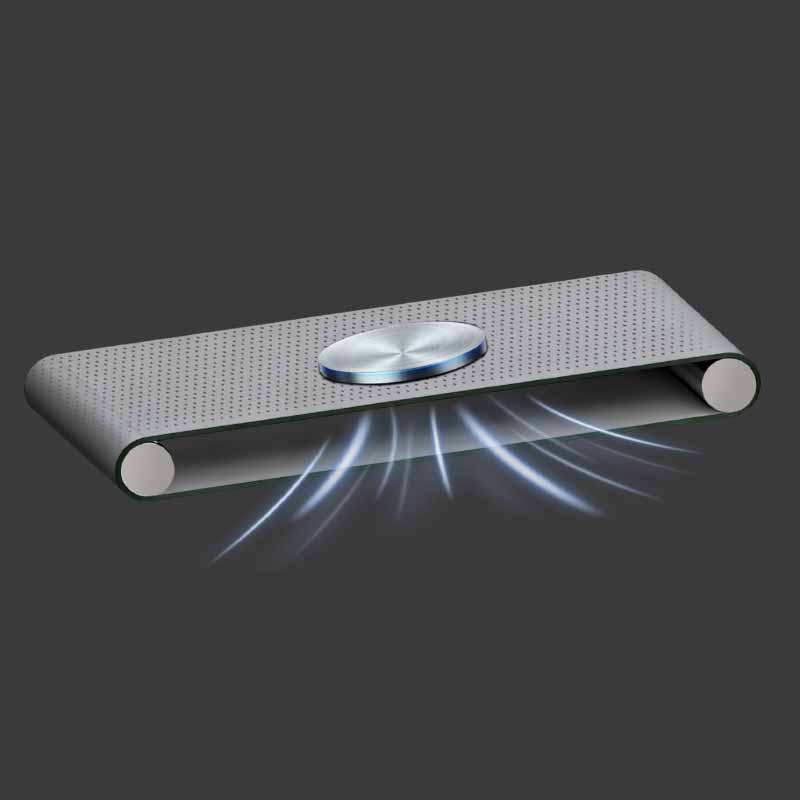

- Equipped with a vacuum suction workbench, it can process small-sized workpieces.

Model	RST630R-W-r	RST1000R-W-r	RST1300R-W-r
Effective working width	30-630mm	30-1000mm	30-1300mm
Working thickness	0.5-100mm	0.5-100mm	0.5-100mm
Roller line speed	3-16m/s Variable frequency	3-16m/s Variable frequency	3-16m/s Variable frequency
Abrasive belt size(perimeter*width)	1900*650mm	2000*1020mm	2200*1320mm
Universal roller quantity	4pcs	6pcs	8pcs
Contact roller power	7.5kw	11kw	15kw
Universal rolle power	1.5kw*2	2.2kw1 1.5kw2	2.2kw*4
Universal roller rotation power	0.75kw	0.75kw	0.75kw
Universal roller lifting power	0.55kw	0.55kw	0.55kw
Polishing roller power	4kw	7.5kw	11kw
Polishing roller lifting power	0.37KW	0.37KW	0.55kw
Polishing roller swinging power	0.55KW	0.55KW	0.55kw
Conveyor motor power	1.5kw	1.5kw	1.5kw
Workbench lifting power	0.55kw	0.55kw	0.55kw
Vacuum adsorption power	15kw	15kw	15kw
Total power	33.77kw	42.97kw	54.25kw
Air pressure	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
Overall dimensions	290016802350mm	320020002350mm	370022002410mm
Weight	3400kg	3900kg	4800kg
