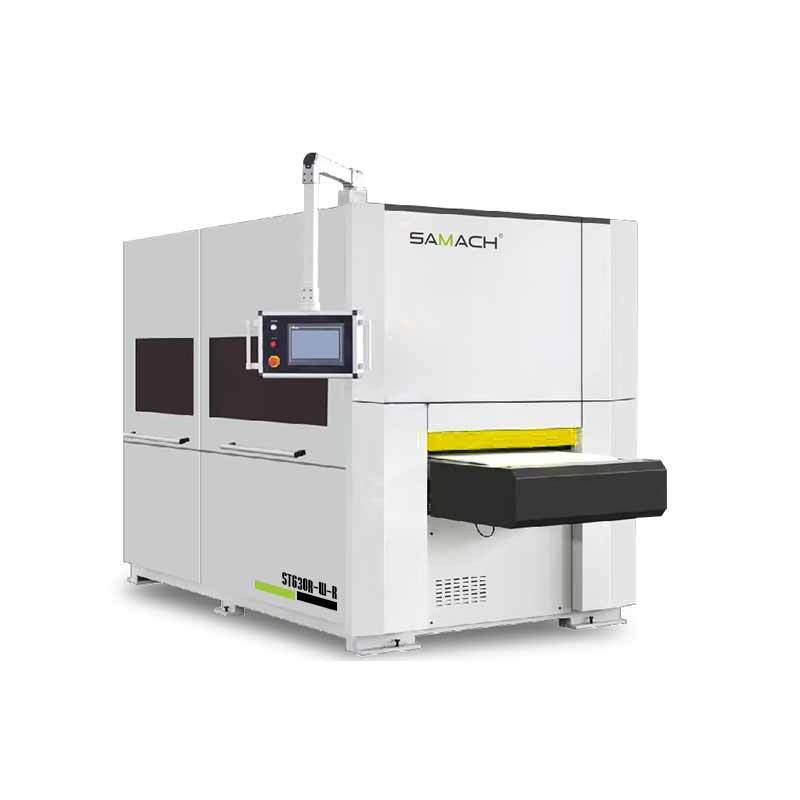

Deburring Machine with R-W-R Series
$0.00 USD
Shipping calculated at checkout.
Quantity
Free worldwide shipping
Free returns
Carbon neutral
Secure payments
- Applicable processes：Remove oxide layer,Deburring,Corner Rounding,Drawing（NO4 Snowflake）
- Function：

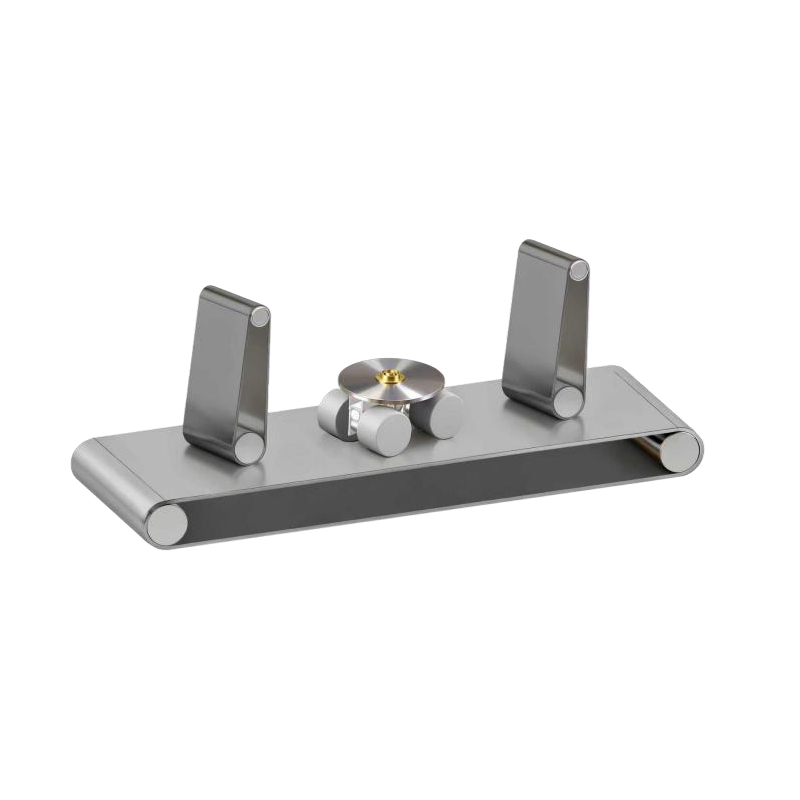

- The contact roller can rotate forward and backward, adjustable with one key, convenient and fast.
- The universal roller uses a dual-direction flexible polishing with thousands of filaments to remove burrs inside holes and on edges of workpieces, achieving a chamfering effect.
- The universal roller features an independently liftable design, suitable for polishing workpieces of different thicknesses.
- Operates with self and driven rotation; the variable frequency speed-controlled universal roller allows achieving different R angle requirements.
- Uses a vacuum suction workbench, capable of processing small-sized workpieces.
| Model | RST630R-W-R | RST1000R-W-R | RST1300R-W-R |
| Effective working width | 30-630mm | 30-1000mm | 30-1300mm |
| Working thickness | 0.5-100mm | 0.5-100mm | 0.5-100mm |
| Roller line speed | 3-16m/s Variable frequency | 3-16m/s Variable frequency | 3-16m/s Variable frequency |
| Abrasive belt size(perimeter*width) | 1900*650mm | 2000*1020mm | 2200*1320mm |
| Universal roller quantity | 4pcs | 6pcs | 8pcs |
| Contact roller power | 7.5kw*2 | 11kw*2 | 15kw*2 |
| Universal rolle power | 1.5kw*2 | 2.2kw*1 1.5kw*2 | 2.2kw*4 |
| Universal roller rotation power | 0.75kw | 0.75kw | 0.75kw |
| Universal roller lifting power | 0.37kw | 0.37kw | 0.55kw |
| Conveyor motor power | 1.5kw | 1.5kw | 1.5kw |
| Workbench lifting power | 0.55kw | 0.55kw | 0.55kw |
| Vacuum adsorption power | 15kw | 15kw | 15kw |
| Total power | 36.35kw | 45.55kw | 57.15kw |
| Air pressure | ≥0.6Mpa | ≥0.6Mpa | ≥0.6Mpa |
| Overall dimensions | 3000*1680*2350mm | 3300*2000*2350mm | 3800*2200*2410mm |
| Weight | 3500kg | 4000kg | 5000kg |
